CB 1/6-2/4 PT-BE
-
Base element
2800929
Base element with push-in connection technology for CB ... device circuit breakers
Pentru operarea acestui produs, sunt necesare și alte produse.
Accesorii necesare
Detalii despre produs
| Product type | Base element |
| Product family | CB BE |
| Type | Base element, DIN rail mounting |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Maximum load current | 16 A |
| Maximum power dissipation for nominal condition | 0 VA |
| Nominal voltage UN | 300 V |
| General | |
| Rated insulation voltage Ui | 250 V |
| Rated surge voltage | 4 kV |
| Insertion/withdrawal cycles | 100 |
| Indicator/remote signaling | |
| Connection name | Remote indication circuit |
| Switching function | Changeover contact |
| Maximum load current | 16 A |
| Connection method | Push-in connection |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.5 mm² Connection 1 ... 6 mm² Connection 1 |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.5 mm² Connection 1 ... 6 mm² Connection 1 |
| Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve) | 0.5 mm² Connection 1 ... 1 mm² Connection 1 |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² Connection 2.1/2.2 ... 4 mm² Connection 2.1/2.2 |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² Connection 2.1/2.2 ... 4 mm² Connection 2.1/2.2 |
| Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve) | 0.5 mm² Connection 2.1/2.2 ... 1 mm² Connection 2.1/2.2 |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.14 mm² Connection 12/11/14 ... 1 mm² Connection 12/11/14 |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.14 mm² Connection 12/11/14 ... 1.5 mm² Connection 12/11/14 |
| Connection cross sections directly pluggable | |
| Conductor cross section rigid | 1 mm² ... 6 mm² |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.5 mm² Connection 1 ... 6 mm² Connection 1 |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.5 mm² Connection 1 ... 6 mm² Connection 1 |
| Conductor cross section rigid | 0.5 mm² ... 6 mm² |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.5 mm² Connection 2.1/2.2 ... 4 mm² Connection 2.1/2.2 |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.75 mm² Connection 2.1/2.2 ... 4 mm² Connection 2.1/2.2 |
| Conductor cross section rigid | 0.25 mm² ... 1.5 mm² |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.34 mm² Connection 12/11/14 ... 1 mm² Connection 12/11/14 |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.34 mm² Connection 12/11/14 ... 1.5 mm² Connection 12/11/14 |
| Connection 1 | |
| Connection method | Push-in connection |
| Stripping length | 12 mm |
| Conductor cross section flexible min. | 0.5 mm² |
| Conductor cross section flexible max. | 6 mm² |
| Conductor cross section, rigid min. | 0.5 mm² |
| Conductor cross section, rigid max. | 6 mm² |
| Connection 2.1/2.2 | |
| Connection method | Push-in connection |
| Stripping length | 12 mm |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 4 mm² |
| Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section, rigid max. | 6 mm² |
| Remote indication circuit | |
| Connection method | Push-in connection |
| Stripping length | 8 mm |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section AWG | 26 ... 16 |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.14 mm² ... 1.5 mm² |

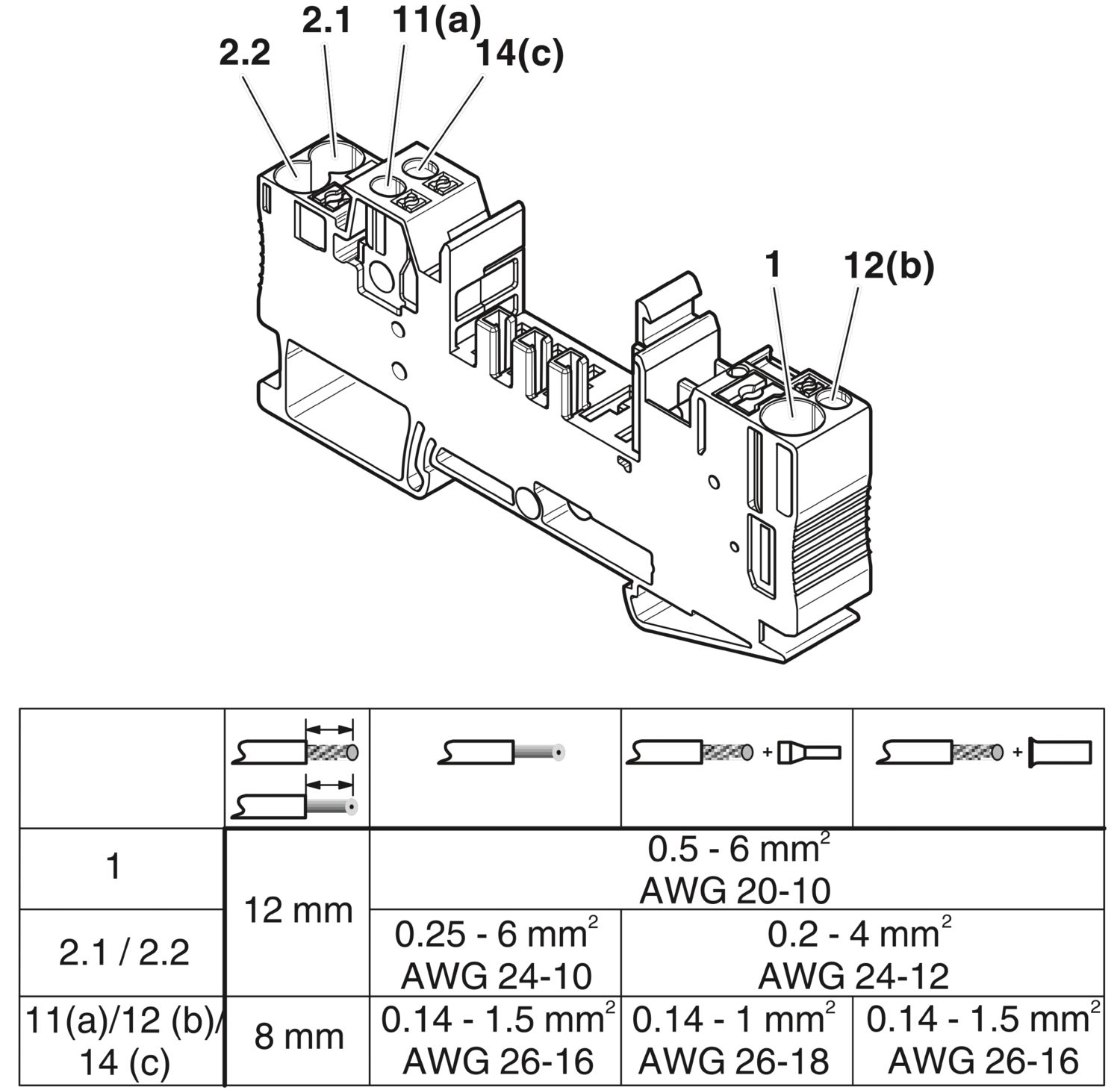

| Dimensional drawing |
|
| Width | 12.3 mm |
| Height | 90 mm |
| Depth | 46.7 mm |
| Color | gray (RAL 7042) |
| black (RAL 9005) | |
| Flammability rating according to UL 94 | V0 |
| Insulating material group | I |
| Insulating material | PA 6.6 |
| Mechanical data | |
| Open side panel | No |
| Ambient conditions | |
| Degree of protection | IP30 (Actuation area) |
| Ambient temperature (operation) | -30 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 120 °C |
| Standards/specifications | IEC 60947-7-1 |
| Mounting type | DIN rail: 35 mm |
Avantajele dumneavoastră
Fast installation with reduced wiring work with bridging options
Can be extended at any time with the modular design
Fast and reliable installation thanks to Push-in connection technology
Clear assignment of protective plug with coding options
