PTS 2,5-TWIN-PE - Protective conductor terminal block

3211935

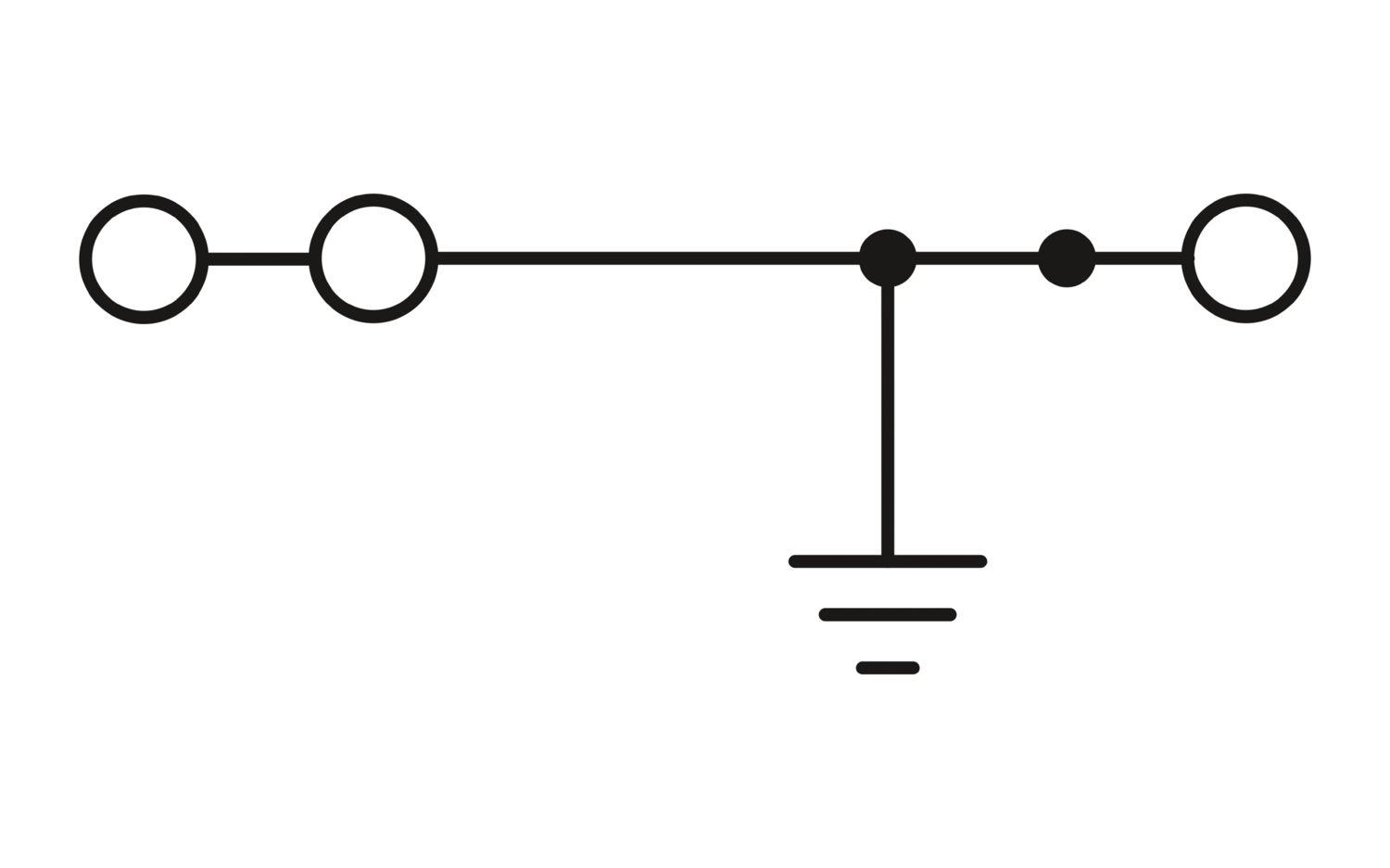

Protective conductor terminal block, number of connections: 3, connection method: Push-in connection, 1 level, cross section: 0.14 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: green-yellow

Tuotetiedot

Product type	Ground terminal block
Product family	PTS
Number of connections	3
Number of rows	1
Insulation characteristics
Overvoltage category	III

Rated surge voltage	8 kV
Maximum power dissipation for nominal condition	0.77 W

Number of connections per level	3
Nominal cross section	2.5 mm²
1 level
Note	Please observe the current carrying capacity of the DIN rails.
Stripping length	8 mm ... 10 mm
Internal cylindrical gage	A3
Connection in acc. with standard	IEC 60947-7-2
Conductor cross section rigid	0.14 mm² ... 4 mm²
Cross section AWG	26 ... 12 (converted acc. to IEC)
Conductor cross section flexible	0.14 mm² ... 4 mm²
Conductor cross section, flexible [AWG]	26 ... 12 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.14 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.14 mm² ... 2.5 mm²
Maximum load current	with 4 mm² conductor cross section, rigid
Stripping length	8 mm ... 10 mm
1 level Connection cross sections directly pluggable
Conductor cross section rigid	0.34 mm² ... 4 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)	0.34 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.34 mm² ... 2.5 mm²

Rated data (ATEX/IECEx)
Identification	 II 2 GD Ex eb IIC Gb
Operating temperature range (1)	-60 °C ... 85 °C
Operating temperature range (2)	-40 °C ... 110 °C
Ex-certified accessories	3031762 D-STS 2,5
	1204517 SZF 1-0,6X3,5
	3022276 CLIPFIX 35-5
	3022218 CLIPFIX 35
output	(Permanent)
Ex connection data General
Nominal cross section	2.5 mm²
Rated cross section AWG	14
Connection capacity rigid	0.14 mm² ... 4 mm²
Connection capacity AWG	26 ... 12
Connection capacity flexible	0.14 mm² ... 2.5 mm²
Connection capacity AWG	26 ... 14

Width	5.2 mm
End cover width	2.2 mm
Height	49 mm
Depth on NS 35/7,5	43 mm
Depth on NS 35/15	50.5 mm

Color	green-yellow
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	130 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)	28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Mechanical data
Open side panel	Yes

Oscillation/broadband noise
Specification	DIN EN 50155 (VDE 0115-200):2008-03
Spectrum	Long life test category 1, class B, body mounted
Frequency	f₁ = 5 Hz to f₂ = 150 Hz
ASD level	1.857 (m/s²)²/Hz
Acceleration	0.8g
Test duration per axis	5 h
Test directions	X-, Y- and Z-axis
Result	Test passed
Shocks
Specification	DIN EN 50155 (VDE 0115-200):2008-03
Pulse shape	Half-sine
Acceleration	5g
Shock duration	30 ms
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)
Result	Test passed
Ambient conditions
Ambient temperature (operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Connection in acc. with standard	IEC 60947-7-2

Mounting type	NS 35/7,5
	NS 35/15

Kaupalliset tiedot

Tuotenumero	3211935
Pakkausyksikkö	50 Kappaletta
Vähimmäistilausmäärä	50 Kappaletta
Tuoteavain	BE2222
Tuotekoodi	BE2222
GTIN	4046356499538
Paino kappaletta kohti (sis. pakkauksen)	12,002 g
Paino kappaletta kohti (ilman pakkausta)	11,65 g
Tullitariffinumero	85369010
Alkuperämaa	PL

Luokitukset

Hyväksynnät

Approval Specification Data
	Nimellisjännite U_N	Nimellisvirta I_N	Poikkipinta AWG	Poikkipinta mm²
			26 - 12

Approval Specification Data
	Nimellisjännite U_N	Nimellisvirta I_N	Poikkipinta AWG	Poikkipinta mm²
				0.2 - 2.5

Approval Specification Data
	Nimellisjännite U_N	Nimellisvirta I_N	Poikkipinta AWG	Poikkipinta mm²
				0.2 - 2.5

Approval Specification Data
	Nimellisjännite U_N	Nimellisvirta I_N	Poikkipinta AWG	Poikkipinta mm²
Use group B
			26 - 12
Use group C
			26 - 12

Environmental product compliance

Yhteensopivat tuotteet

Lisätarvikkeet

Edut

2, 3, and 4-conductor terminal blocks with the same shape

Ground terminal blocks of the same shape are available

The PTS 2,5, which is equipped with four bridge shafts, offers a wide range of potential bridging options

Angled conductor entry for use in flat terminal boxes

Large space saving when used in concealed wiring systems

EU RoHS
Täyttää RoHS-direktiivin vaatimukset	Kyllä (Ei poikkeussäännöksiä)
China RoHS
Environment friendly use period (EFUP)	EFUP-E Ei raja-arvot ylittäviä vaarallisia aineita
EU REACH SVHC
Huomautus REACH-kandidaattiaineesta (CAS-nro)	Aineen pitoisuus ei ole yli 0,1 %.
