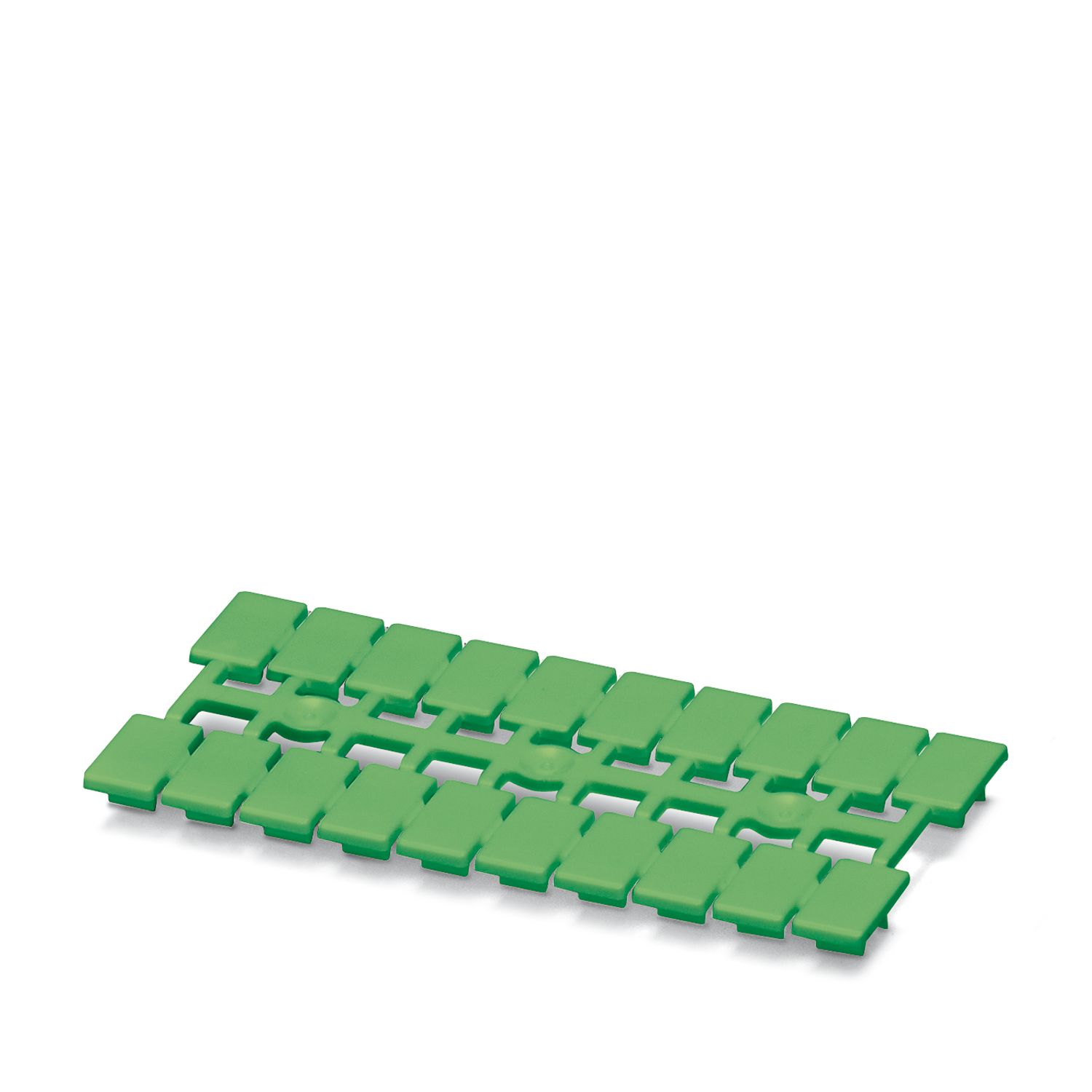

Markers for marking terminal blocks from Weidmüller, Conta Clip, and Klemsan, 20-section, unmarked, can be marked with THERMOMARK CARD and BLUEMARK, color: green
Tuotetiedot
Product type
Klemmenmarker
Pitch
6 mm
Marking
Number of individual labels
20
Number of individual labels per row
10
Number of marker strips
2
Width
5.55 mm
Height
9.99 mm
Depth
3.08 mm
Pitch
6 mm
Length
10 mm
RoHS compliant
yes
Color
green (RAL 6021)
Material
PC
Flammability rating according to UL 94
V2
Components
free from silicone, halogen, and cadmium
Test for substances that would hinder coating with paint or varnish
Result
Test passed
UV resistance
Specification
ISO 4892-2:2013-03 (following)
Result
Test passed
Test duration
96 h
Wipe resistance of inscriptions
Specification
IEC 61010-1:2010-06
DIN EN 62208 (VDE 0660-511):2012-06 (in parts)
Isopropyl [CAS No. 67-63-0]
Test passed
n-Hexane [CAS No. 110-54-3]
Test passed
Water + Petroleum ether [CAS No. 64742-82-1]
Test passed
Testing in a condensation changing climate in the presence of sulfur dioxide
