SACB-8/8-L-PUR SCO FLK14/MCV3P
-
Distributor box
1547928
Distributor box, application: Standard, extended requirements, connection method: M12 socket Metal, number of slots: 8, number of positions: 4, coding: A, slot assignment: single, status display: yes, PNP; master cable connection: Rear FLK pin strip and MINI COMBICON 270°, shielding: no
Tuotetiedot
| Assembly note | NOTE: Observe the permissible bending radii when routing cables, since the degree of protection may be at risk if the bending forces are too high. Reduce mechanical loads upstream of the connector, e.g., by using cable ties. |
| Note on application | Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories". |
| Product type | Distributor box |
| Application | Standard, extended requirements |
| Number of positions | 4 |
| Number of slots | 8 |
| Coding | A |
| LED | yes |
| Local diagnostics | |
| Monitored function | Supply voltage |
| Optical representation | Green LED |
| Max. operating voltage Umax | 30 V DC |
| Local diagnostics | Supply voltage Green LED |
| Status display I/O Yellow LED | |
| Nominal voltage UN | 24 V DC |
| Rated current, total | 4 A |
| 8 A (up to 40 °C) | |
| Max. current carrying capacity per path | 0.5 A (1 A to 40 °C) |
| Current carrying capacity per slot | 0.5 A (1 A to 40 °C) |
| Conductor connection | |
| Sensor/actuator connection system | M12 socket |
| Conductor cross section Flexible power supply | 0.14 mm² ... 1.5 mm² |
| Connection cross section AWG Flexible power supply | 26 ... 16 |
| Stripping length Signal line | 9 mm |
| Tightening torque slot sensor/actuator cable | 0.4 Nm |
| Tightening torque of mounting screw for fixing the housing | 0.5 Nm |

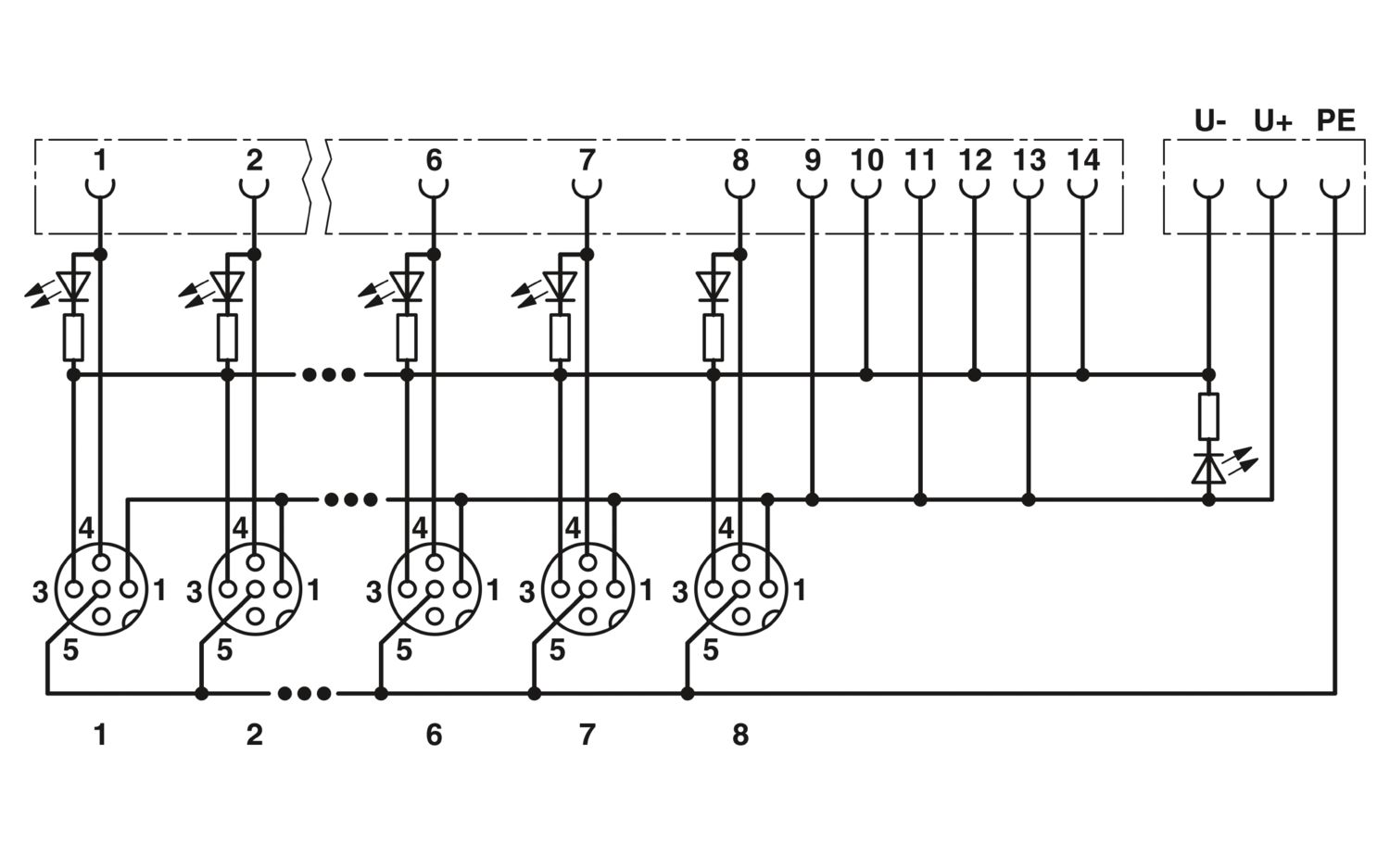

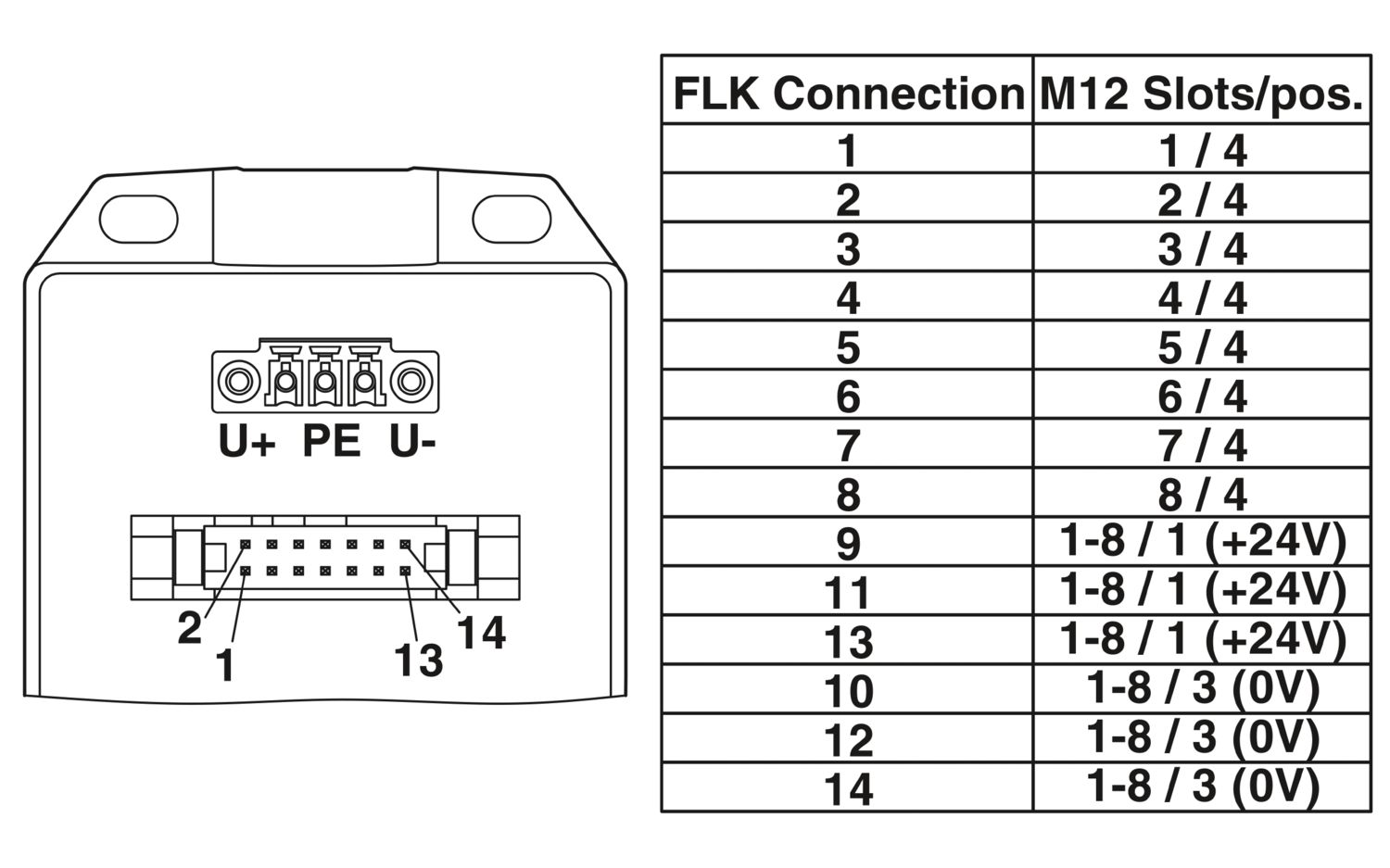

| Connection assignment | |
| Slot/position = Wire color or connection | 1 / 4 (A) = 1 |
| 2 / 4 (A) = 2 | |
| 3 / 4 (A) = 3 | |
| 4 / 4 (A) = 4 | |
| 5 / 4 (A) = 5 | |
| 6 / 4 (A) = 6 | |
| 7 / 4 (A) = 7 | |
| 8 / 4 (A) = 8 | |
| 1-8 / 1 (+ 24 V) = 9 | |
| 1-8 / 1 (+ 24 V) = 11 | |
| 1-8 / 1 (+ 24 V) = 13 | |
| 1-8 / 3 (0 V) = 10 | |
| 1-8 / 3 (0 V) = 12 | |
| 1-8 / 3 (0 V) = 14 | |
| Status display present | yes |

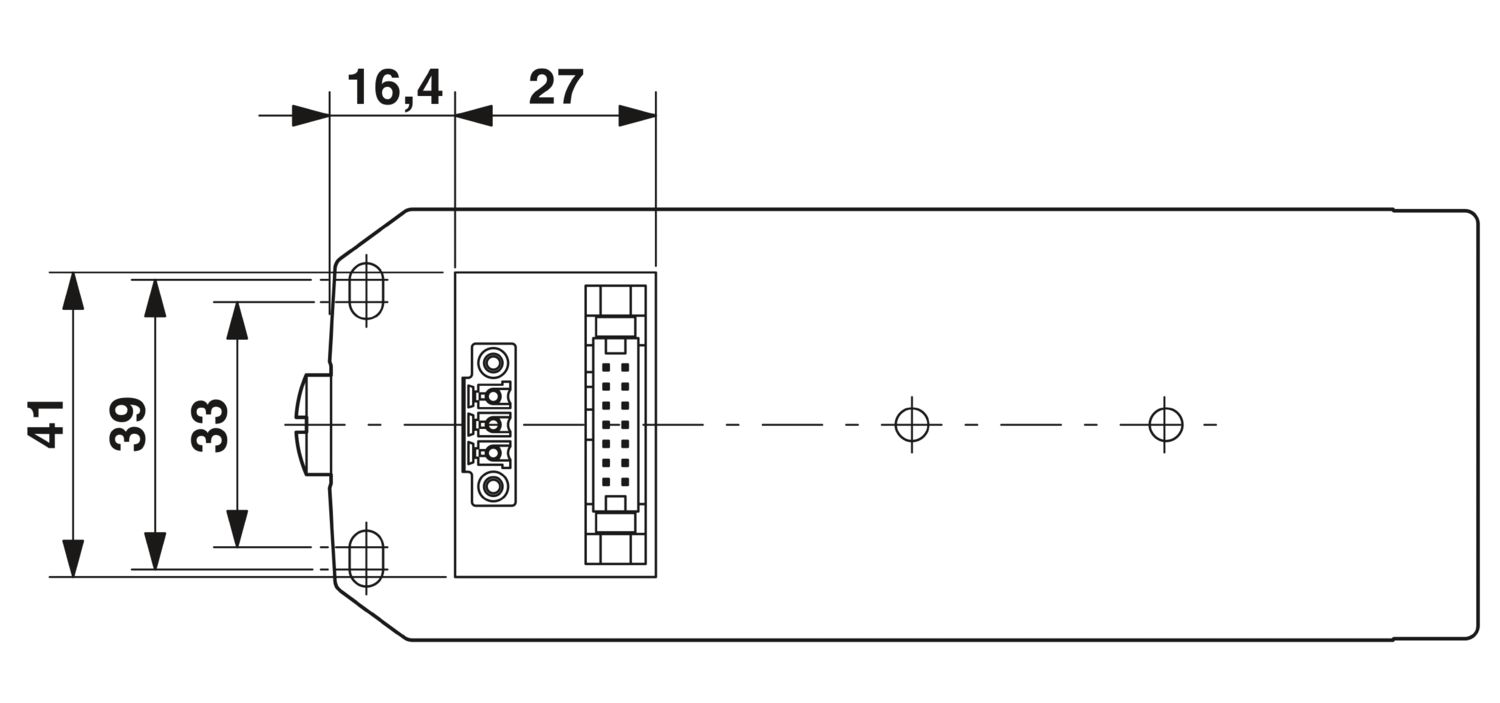

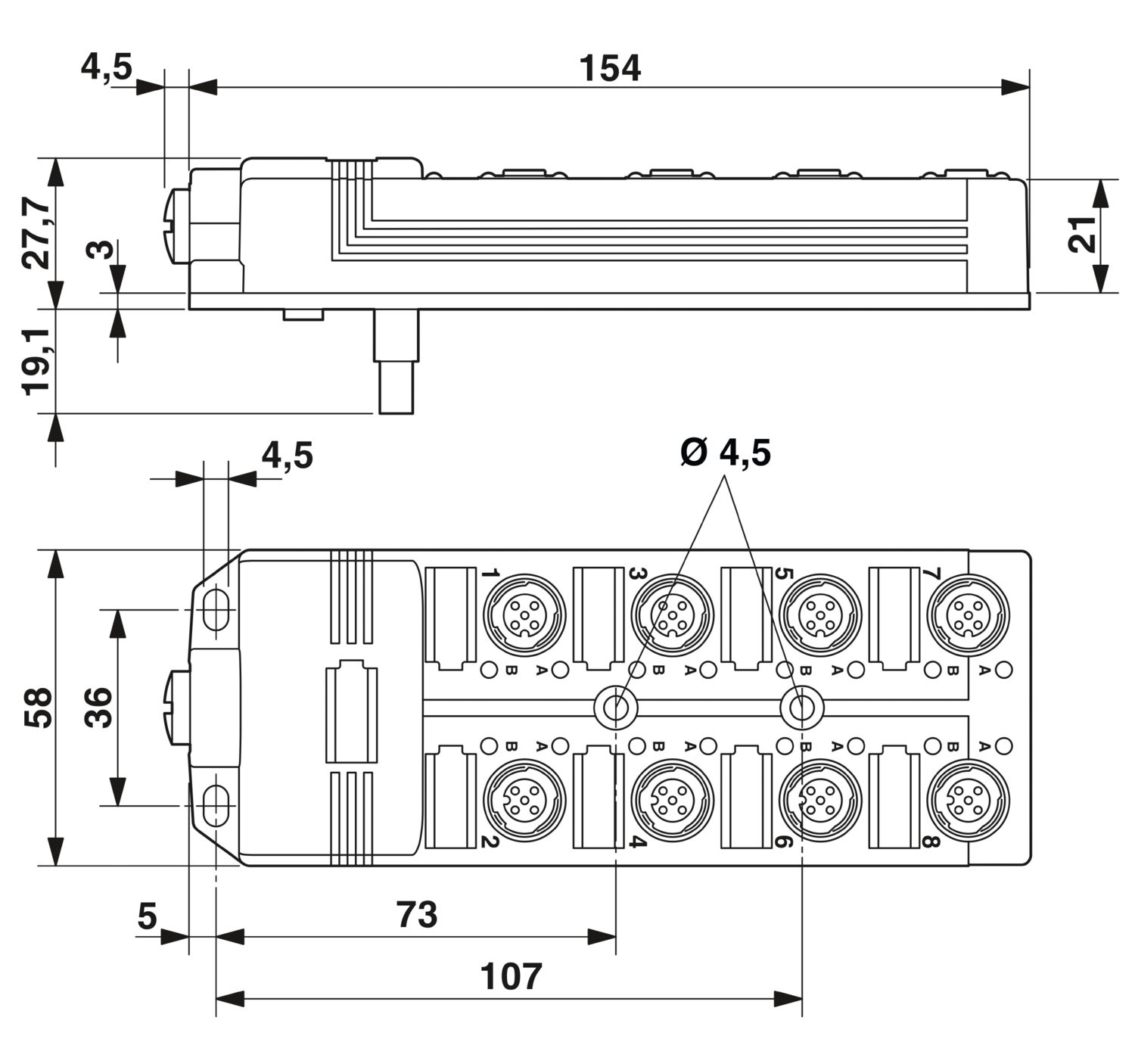

| Dimensional drawing |
|
| Width | 58 mm |
| Height | 28 mm |
| Length | 159 mm |
| Material Threaded sleeve | Die-cast zinc |
| Material Housing | PBT |
| Material Molding compound | PUR |
| Seal material O-ring | NBR |
| Contact material | Cu alloy |
| Contact surface material | gold-plated |
| Contact carrier material | PA |
| Material of contact, master cable side | CU alloy |
| Material of the contact carrier on the master cable side | PA |
| Material of contact surface, master cable side | tin-plated |
| Connection method | Rear FLK pin strip and MINI COMBICON |
| Ambient conditions | |
| Degree of protection | IP54 (with sealed mounting holes) |
| Ambient temperature (operation) (male connector/female connector) | -30 °C ... 80 °C |
| Ambient temperature (storage/transport) | -30 °C ... 90 °C |
| M12 | |
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-101 |
