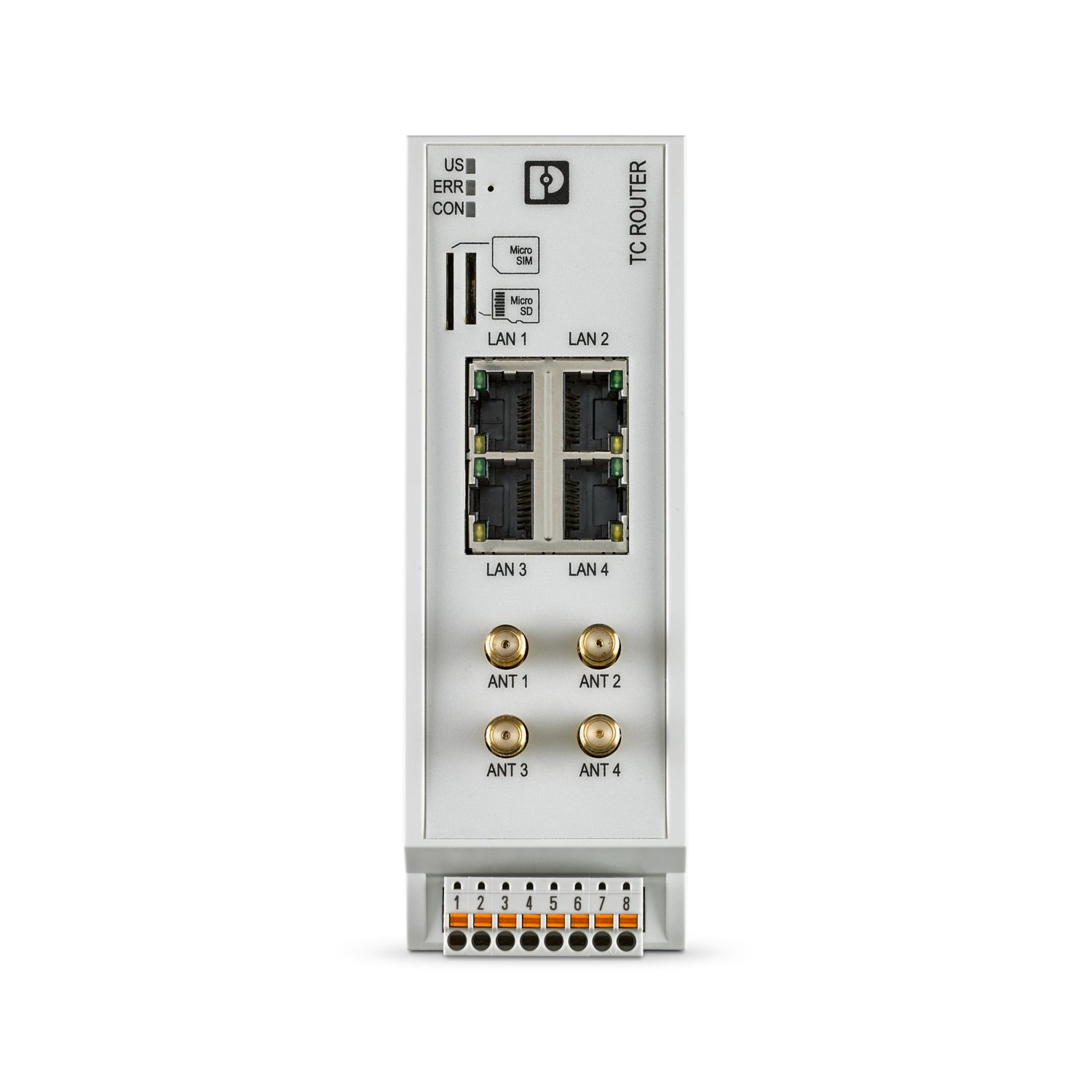

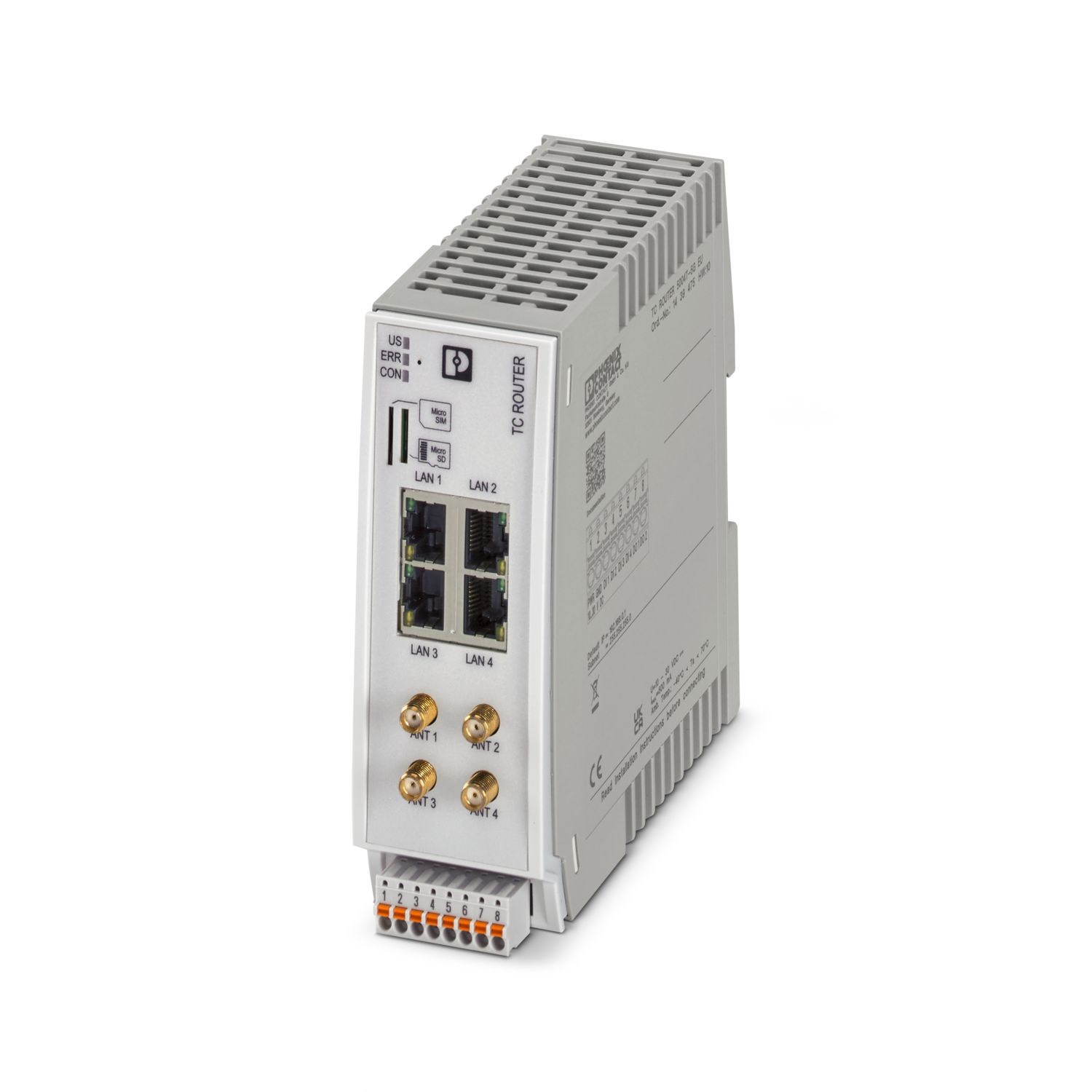

TC ROUTER 5004T-5G EU
-
Router
1439475
Industrial 5G router (5G NR, SA/NSA), EU device, fallback to 4G (LTE Advanced Pro) and 3G (HSPA+), 4-port switch, firewall, NAT, IPsec and OpenVPN, 4x SMA-F antenna sockets, SMS and email transmission, 4 DI, 2 DO
Maksuton lataus saatavilla.
Ladattavat tiedostot
Tuotetiedot

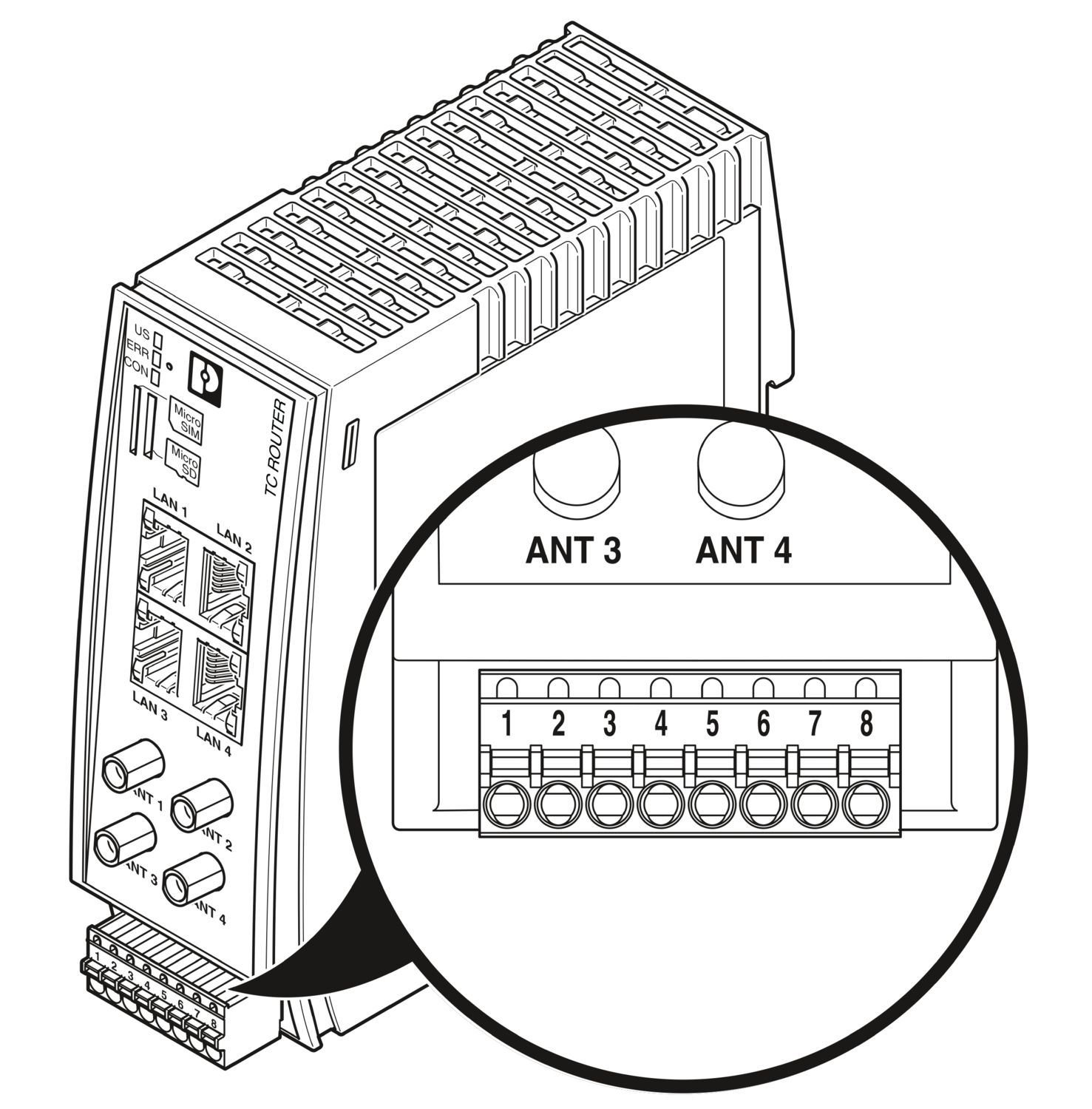

| Note on application | |
| Note on application | Only for industrial use |
| Product type | Cellular router |
| Application | Ethernet |
| MTTF | 378 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) |
| 164 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%) | |
| 65 Years (SN 29500 standard, temperature 40°C, operating cycle 100%) |
| Electrical isolation | Ethernet // PE |
| Maximum power dissipation for nominal condition | 7.2 W |
| Mains type | Cellular communication |
| Supply | |
| Supply voltage range | 10 V DC ... 30 V DC (Via pluggable Push-in terminal block) |
| Typical current consumption | 300 mA (24 V DC) |
| 90 mA (24 V DC, with activated energy-saving mode) | |
| Function | |
| Management | Web-based management |
| SNMPv1/v2/v3 | |
| SSHv2 | |
| Digital | |
| Description of the input | Digital input |
| Number of inputs | 4 |
| Voltage input signal | 10 V DC ... 30 V DC |
| Switching level "0" signal | < 8 V DC |
| Switching level "1" signal | 10 V DC ... 30 V DC |
| Signal | |
| Output name | Digital output |
| Number of outputs | 2 |
| Voltage output signal | 10 V DC ... 30 V DC (depending on the operating voltage) |
| Current output signal | ≤ 50 mA (Not short-circuit proof) |
| Supply | |
| Connection method | Push-in spring connection |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.25 mm² ... 0.75 mm² |
| Single conductor/terminal point, rigid | 0.14 mm² ... 1.5 mm² |
| Single-wire/terminal point, flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section, flexible [AWG] | 26 ... 16 |
| Stripping length | 9.00 mm |
| Web server | yes |
| Data: Ethernet interface, 10/100/1000Base-T(X) in accordance with IEEE 802.3 | |
| Serial transmission speed | 10/100/1000 Mbps, auto negotiation |
| Connection method | RJ45 jack, shielded |
| No. of channels | 4 |
| Transmission length | 100 m (shielded twisted pair) |
| Protocols supported | TCP/IP, UDP/IP, HTTP(S), (S)FTP |
| VPN: IPsec, OpenVPN, GRE | |
| Auxiliary protocols | ARP, DHCP, DNS, DynDNS, PING (ICMP), SMTP(S), NTP, SSL/TLS, STARTTLS, SMS |
| Wireless | |
| Interface description | 5G (NR) / 4G (LTE Advanced Pro) / 3G (HSPA+) |
| Operating mode | LTE (CAT16) |
| 5G NR (3GPP R15) | |
| Frequency range | 2100 MHz (5G NR NSA, n1) |
| 1800 MHz (5G NR NSA, n3) | |
| 850 MHz (5G NR NSA, n5) | |
| 2600 MHz (5G NR NSA, n7) | |
| 900 MHz (5G NR NSA, n8) | |
| 800 MHz (5G NR NSA, n20) | |
| 700 MHz (5G NR NSA, n28) | |
| 2600 MHz (5G NR NSA, n38) | |
| 2300 MHz (5G NR NSA, n40) | |
| 2600 MHz (5G NR NSA, n41) | |
| 3700 MHz (5G NR NSA, n77) | |
| 2100 MHz (5G NR SA, n1) | |
| 1800 MHz (5G NR SA, n3) | |
| 850 MHz (5G NR SA, n5) | |
| 2600 MHz (5G NR SA, n7) | |
| 900 MHz (5G NR SA, n8) | |
| 800 MHz (5G NR SA, n20) | |
| 700 MHz (5G NR SA, n28) | |
| 2600 MHz (5G NR SA, n38) | |
| 2300 MHz (5G NR SA, n40) | |
| 2600 MHz (5G NR SA, n41) | |
| 3700 MHz (5G NR SA, n77) | |
| 3500 MHz (5G NR SA, n78) | |
| 2100 MHz (LTE (FDD), B1) | |
| 1800 MHz (LTE (FDD), B3) | |
| 850 MHz (LTE (FDD), B5) | |
| 2600 MHz (LTE (FDD), B7) | |
| 900 MHz (LTE (FDD), B8) | |
| 800 MHz (LTE (FDD), B20) | |
| 700 MHz (LTE (FDD), B28) | |
| 1500 MHz (LTE (FDD), B32) | |
| 2600 MHz (LTE (TDD), B38) | |
| 2300 MHz (LTE (TDD), B40) | |
| 2500 MHz (LTE (TDD), B41) | |
| 3500 MHz (LTE (TDD), B42) | |
| 3700 MHz (LTE (TDD), B43) | |
| 2100 MHz (WCDMA, B1) | |
| 850 MHz (WCDMA, B5) | |
| 900 MHz (WCDMA, B8) | |
| Data rate | 2.1 Gbps (5G NR SA, DL) |
| 900 Mbps (5G NR SA, UL) | |
| 2.5 Gbps (5G NR NSA, DL) | |
| 650 Mbps (5G NR NSA, UL) | |
| 1 Gbps (LTE, DL) | |
| 200 Mbps (LTE, UL) | |

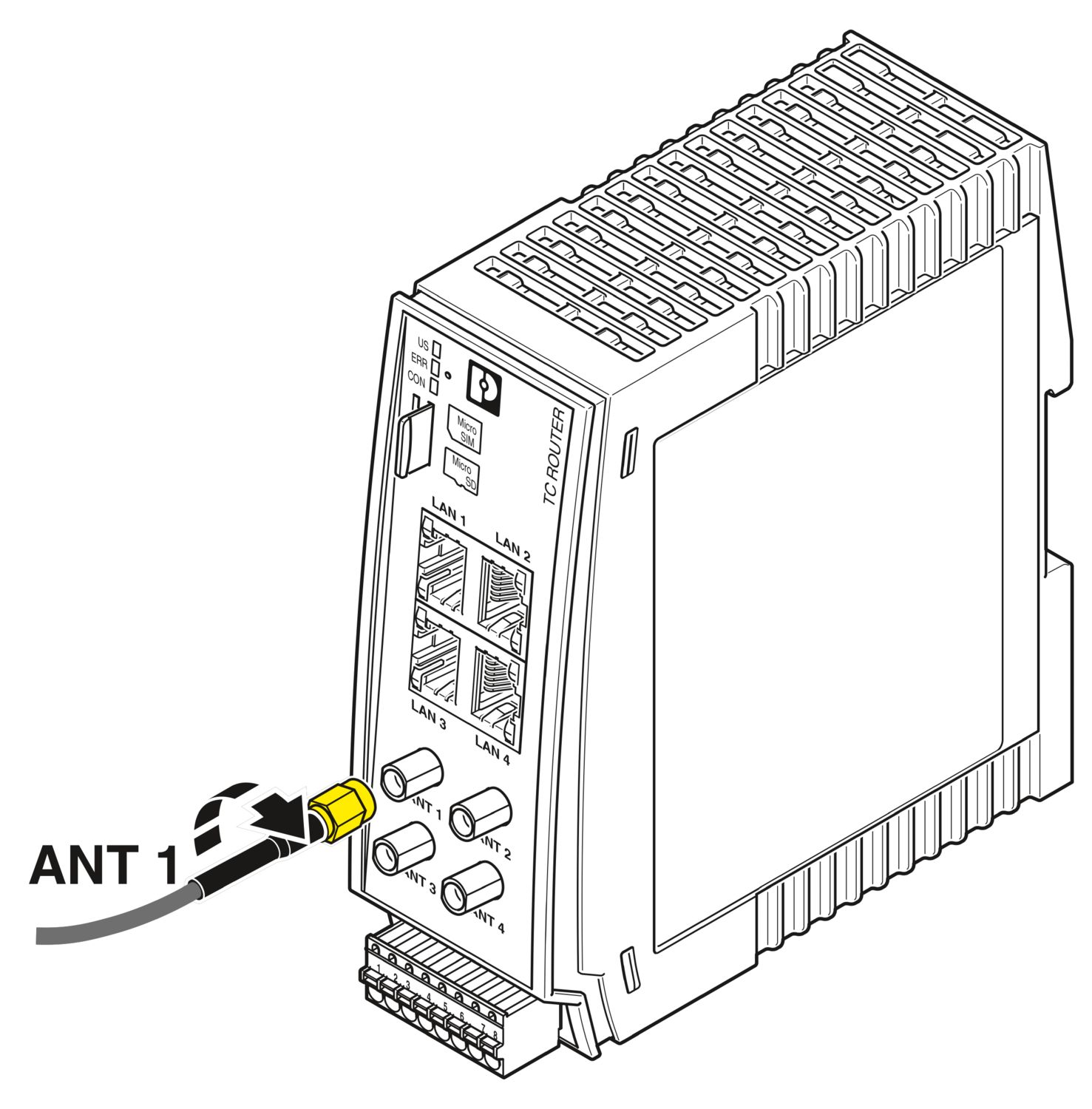

| Number | 4 |
| Connection method | SMA (female) |
| Impedance | 50 Ω |
| SIM Interface | 1.8 volt, 3 volt |
| Micro SIM (3FF) | |
| Country support | Europe |

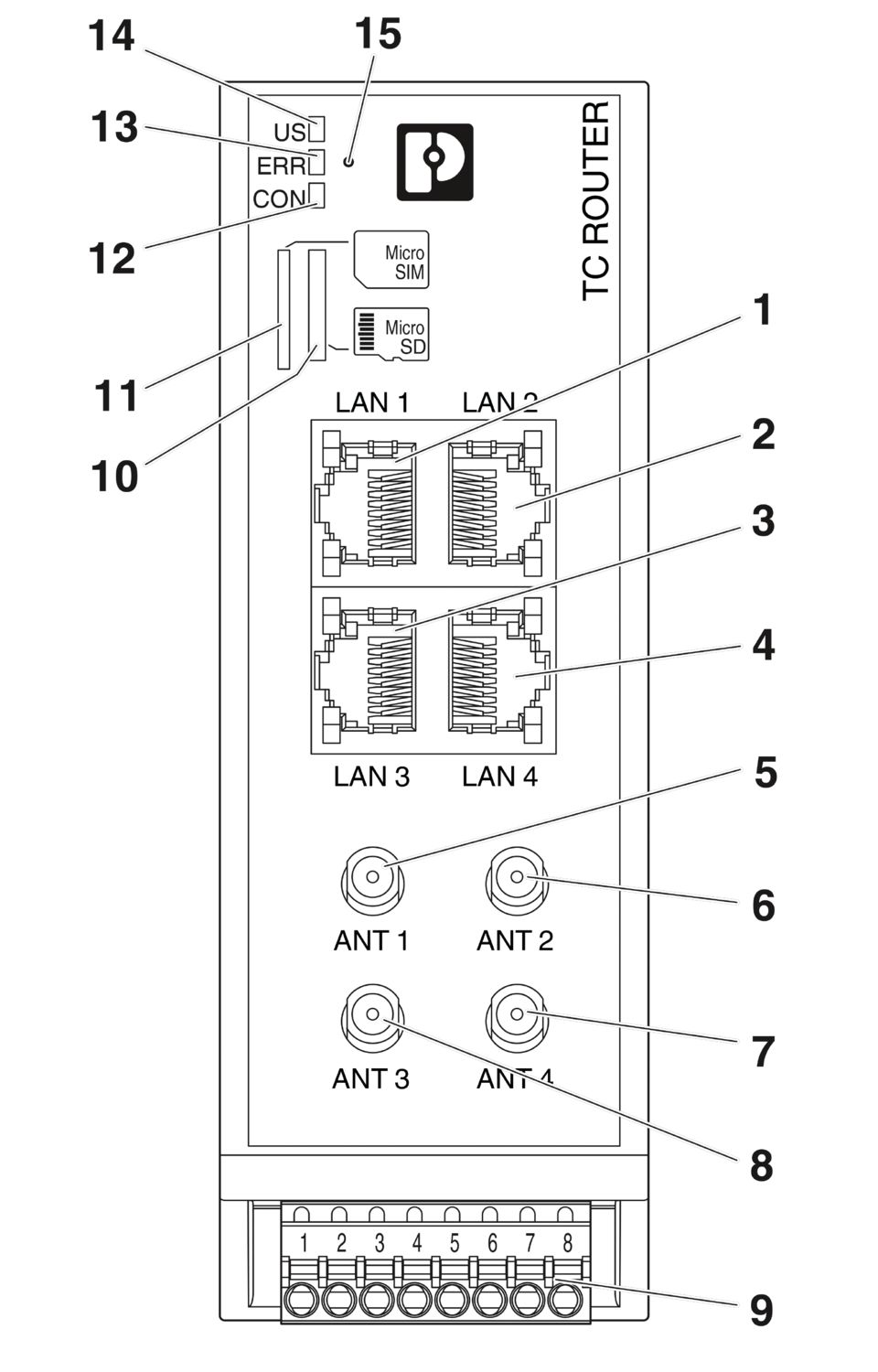

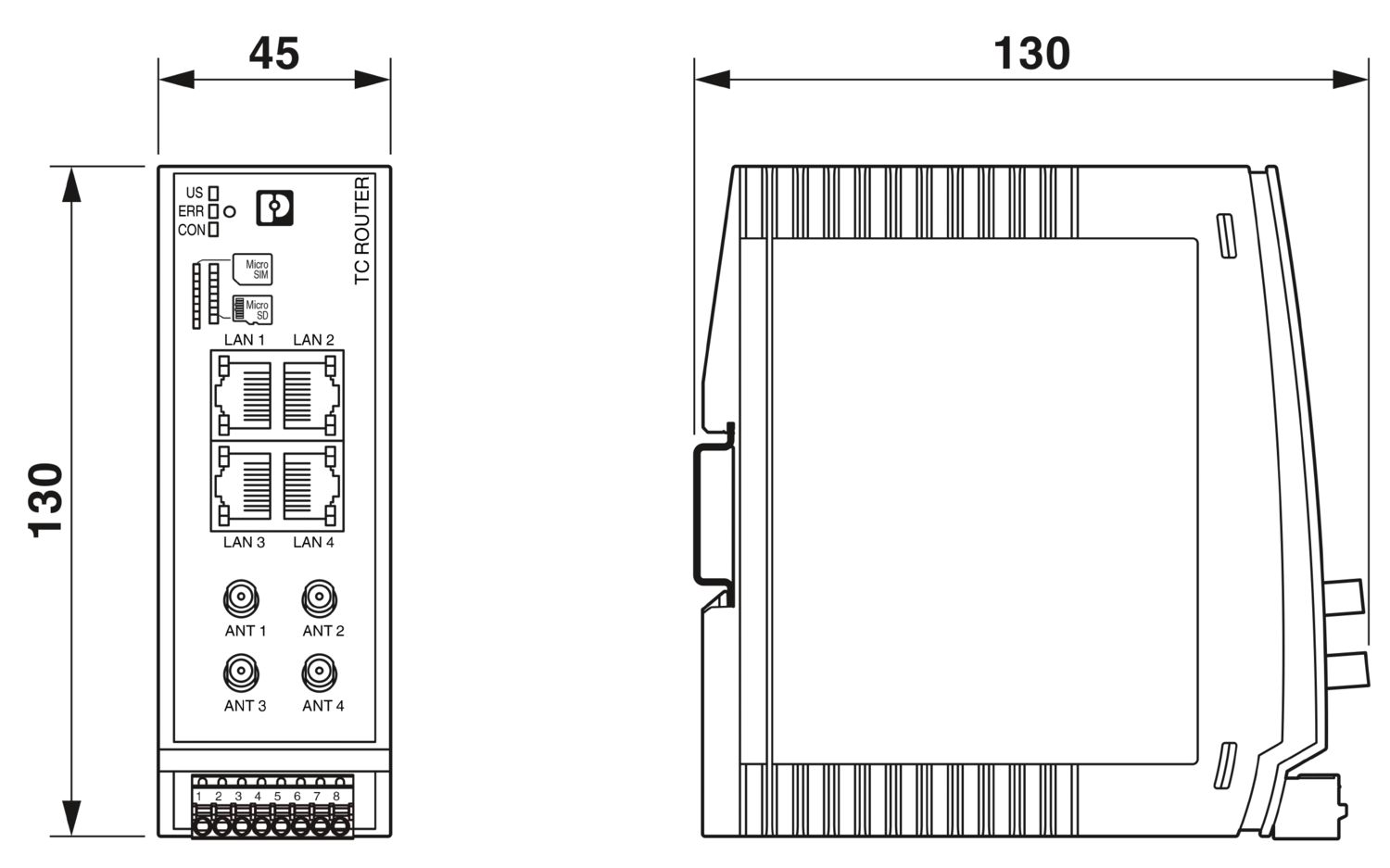

| Dimensional drawing |
|
| Width | 45 mm |
| Height | 130 mm |
| Depth | 130 mm |
| Color (Upper housing part) | gray (RAL 7042) |
| Material (Housing) | Polycarbonate |
| Vibration resistance in accordance with EN 60068-2-6/IEC 60068-2-6 | : 5g, 10...150 Hz, 2.5 h, in XYZ direction |
| Shock in accordance with EN 60068-2-27/IEC 60068-2-27 | : 15g |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation) |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| CE | |
| Certificate | CE-compliant |
| Electromagnetic compatibility | Conformance with RED Directive 2014/53/EU |
| Noise immunity | EN 61000-6-2 |
| Electrostatic discharge | |
| Standards/regulations | EN 61000-4-2 |
| Electrostatic discharge | |
| Contact discharge | ± 6 kV (Test Level 3) |
| Discharge in air | ± 8 kV (Test Level 3) |
| Comments | Criterion B |
| Electromagnetic HF field | |
| Standards/regulations | EN 61000-4-3 |
| Electromagnetic HF field | |
| Frequency range | 80 MHz ... 3 GHz (Test Level 3) |
| Field intensity | 10 V/m |
| Comments | Criterion A |
| Fast transients (burst) | |
| Standards/regulations | EN 61000-4-4 |
| Fast transients (burst) | |
| Input | ± 2 kV (Test Level 3) |
| Signal | ± 2 kV (Ethernet) |
| Comments | Criterion B |
| Surge current load (surge) | |
| Standards/regulations | EN 61000-4-5 |
| Surge current load (surge) | |
| Input | ± 0.5 kV (symmetrical) |
| ± 1 kV (asymmetrical) | |
| Signal | ± 1 kV (Data line, asymmetrical) |
| Comments | Criterion B |
| Conducted interference | |
| Standards/regulations | EN 61000-4-6 |
| Conducted interference | |
| Frequency range | 0.15 MHz ... 80 MHz |
| Comments | Criterion A |
| Voltage | 10 V |
| Emitted interference | |
| Standards/regulations | EN 61000-6-4 |
| Radio interference voltage in acc. with EN 55011 | Class B, area of application: Industry and residential |
| Emitted radio interference in acc. with EN 55011 | Class B, area of application: Industry and residential |
| Criteria | |
| Criterion A | Normal operating behavior within the specified limits. |
| Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
| Mounting type | DIN rail mounting |
| Assembly note | To achieve all frequency combinations and maximum reception quality, always use four antennas. |
Edut
Cellular router for public and private 5G networks (SA/NSA)
Stateful inspection firewall for dynamic filtering
Alert sent via SMS or email directly via the integrated switching input
IPsec and OpenVPN
VPN remote start via call or SMS
Configuration via web-based management or microSD card
4 switching inputs and 2 switching outputs
4 local Ethernet connections
Integrated logbook
Extended temperature range of -40 °C … +70 °C
Comprehensive diagnostic functions
Switchable energy-saving mode
