PRC 3-FC-FS6 8-21 HR - Coupler connector

1017635

Coupler connector, Range of articles: PRC 35, design: Release with tool or by hand (see accessories), color: black, number of positions: 3, min. conductor cross section: 1.5 mm², max. conductor cross section: 6 mm², rated voltage: 690 V AC, rated current: 35 A, Connection method: Screw connection, Contact connection type: Socket, min. cable diameter: 8 mm, max. cable diameter: 21 mm, Variant for manual release

Tuotetiedot

Order information:	Variant for manual release
Note on application	For assembly notes, please refer to the packing slip
Safety note
Safety note	• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
	• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
	WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
	• Assembled products may not be manipulated or improperly opened.
	• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
	• When using the product in direct connection with third-party manufacturers, the user is responsible.
	• For operating voltages > 50 V AC, conductive connector housings must be grounded
	• Ensure that the protective or functional ground has been properly connected.
	• VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector
	• Observe the corresponding technical data. You will find information: o On the product o On the packing label o In the supplied documentation o Online at phoenixcontact.com/products under the product
	• Only use tools recommended by Phoenix Contact
	• The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product.
	• Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products
	• Operate the connector only when it is fully plugged in.
	• Operate the connector only when it is fully plugged in and interlocked.
	• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
	• Observe the minimum bending radius of the cable. Lay the cable without twisting it.
	• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).

Product type	Installation connector
Product family	PRC 35
Type	Release with tool or by hand (see accessories)
Number of positions	3

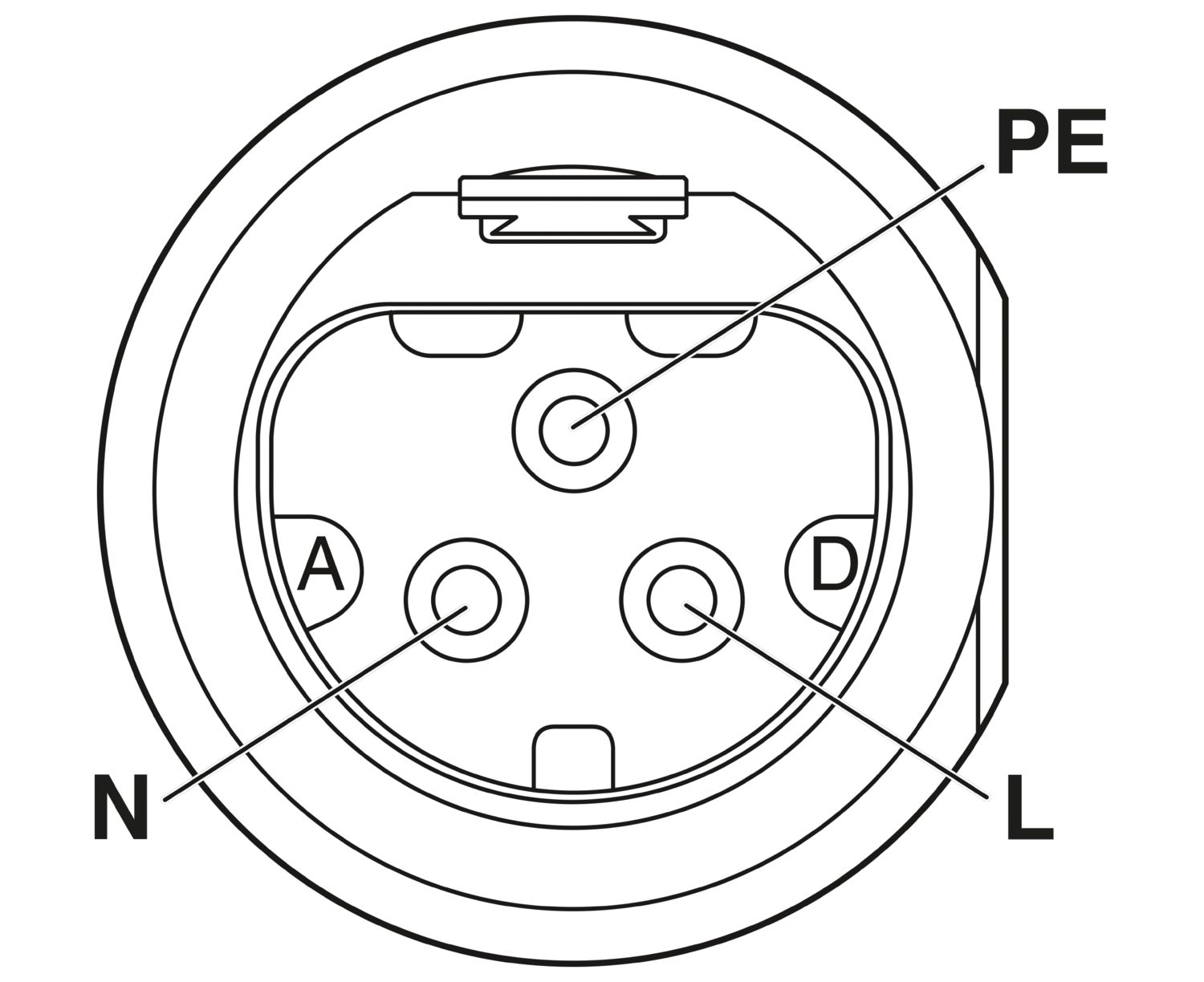

Connection profile	2+PE
Coding	AD
Insulation characteristics
Protection class	II
Degree of pollution	2

Rated voltage (III/2)	690 V
Nominal voltage ATD	690 V AC (III/2.00) in accordance with IEC 61984
	600 V AC (III/2.00) In accordance with UL 2238
	500 V DC (III/2.00) in accordance with IEC 61535, when mounted
Rated surge voltage (III/2)	8 kV
Rated surge voltage (III/3)	6 kV
Rated current	35 A (With 6 mm² conductor cross section in accordance with IEC 61984)
	32 A (with AWG 10, in accordance with UL 2237)
	32 A (With 6 mm² conductor cross section in accordance with IEC 61535)

Conductor connection
Conductor cross section	1.5 mm² ... 6 mm²

Dimensional drawing
Width	37.6 mm
Height	37.6 mm
Length	107.5 mm

Color (Housing)	black (RAL 9005)
Color of the housing part	black
Material Seal	EPDM (Cable seal)
	EPDM (Housing seal)
Material Housing	PPE
Material Contact carrier	PPE
Material Cable gland	PPE
Material Contact	CuZn (Contact material, Pb < 0.1)
Flammability rating according to UL 94	V0
Insulating material group	I / CTI 600
Contact surface material	silver-plated
O-ring material	EPDM

Pull-out-force	150 N ±50 N

External cable diameter	8 mm ... 21 mm
External cable diameter	8 mm ... 21 mm
Single wire, cross section	1.5 mm² 6 mm²
Stripping length of the individual wire	Lay PE conductor 8 mm leading
Halogen-free	yes (in accordance with IEC 61249-2-21:2003- 11 Cl.3.1)

Mechanical data
Insertion/withdrawal cycles	2000
Insertion force	30 N ±10 N

Ambient conditions
Degree of protection (when plugged in)	IP66/IP68 (2 m / 24 h) IP69K
Degree of protection	IP66/IP68 (2 m / 24 h) IP69K
	IP66/IP68 (2 m / 24 h) IP69K
Category of shock impact	IK08 (-25°C)
Ambient temperature (operation)	-40 °C ... 105 °C (dependent on the derating curve)
Ambient temperature (storage/transport)	-40 °C ... 70 °C
Ambient temperature (assembly)	-5 °C ... 85 °C

Standards/specifications	IEC 61984:2008
	EN 61984:2008
	DIN EN IEC 61535:2020
	IEC 61535:2019
	2 PfG 1915/03.2015
	UL 2237 Ed.1:2021-01-08
	CSA C22.2 No. 182.3-16 Ed.2:2019-01

Kaupalliset tiedot

Tuotenumero	1017635
Pakkausyksikkö	1 Kappaletta
Vähimmäistilausmäärä	1 Kappaletta
Tuoteavain	ABLCBA
Tuotekoodi	ABLCBA
GTIN	4055626500775
Paino kappaletta kohti (sis. pakkauksen)	92,6 g
Paino kappaletta kohti (ilman pakkausta)	78,736 g
Tullitariffinumero	85366990
Alkuperämaa	DE

Luokitukset

Hyväksynnät

Approval Specification Data
	Nimellisjännite U_N	Nimellisvirta I_N	Poikkipinta AWG	Poikkipinta mm²
	600 V	35 A		14 - 10

Approval Specification Data
	Nimellisjännite U_N	Nimellisvirta I_N	Poikkipinta AWG	Poikkipinta mm²
	600 V	35 A	14 - 10

Approval Specification Data
	Nimellisjännite U_N	Nimellisvirta I_N	Poikkipinta AWG	Poikkipinta mm²
	600 V	25 A

Approval Specification Data
	Nimellisjännite U_N	Nimellisvirta I_N	Poikkipinta AWG	Poikkipinta mm²
	600 V	32 A

Approval Specification Data
	Nimellisjännite U_N	Nimellisvirta I_N	Poikkipinta AWG	Poikkipinta mm²
	690 V	35 A

Approval Specification Data
	Nimellisjännite U_N	Nimellisvirta I_N	Poikkipinta AWG	Poikkipinta mm²
	500 V	21.4 A

Approval Specification Data
	Nimellisjännite U_N	Nimellisvirta I_N	Poikkipinta AWG	Poikkipinta mm²
	500 V	32 A
