EV-T1HPCC-DC500A-5,0M50ECBK11 - DC charging cable

1085658

CHARX connect professional, CCS type 1, HPC DC charging cable, up to 700 A in Boost mode, 500 A permanent, 1000 V DC, with cooled vehicle charging connector and cooled cable, cable: 5 m, black, straight, with charging connector holder, with replaceable mating face frame, without panel feed-through, PHOENIX CONTACT logo, SAE J1772, IEC 62196-3-1, for charging electric vehicles (EV) with direct current (DC)

Maksuton lataus saatavilla. Ladattavat tiedostot

Tuotetiedot

Tuotekuvaus

General	The color appearance and gloss level of the charging cable may vary.

Product type	DC charging cable
Product family	CHARX connect professional
Technology	Combined Charging System
	High Power Charging
Application	for charging electric vehicles (EV) with direct current (DC)
	for installation at charging stations for electromobility (EVSE)
Type	HPC DC charging cable
	with cooled vehicle charging connector and cooled cable
Design	with charging connector holder
	with replaceable mating face frame
	without panel feed-through
Affixed logo	PHOENIX CONTACT logo
Label	8.9 mm x 28.9 mm (customer logo on request)
Charging standard	CCS type 1
Charging mode	Mode 4

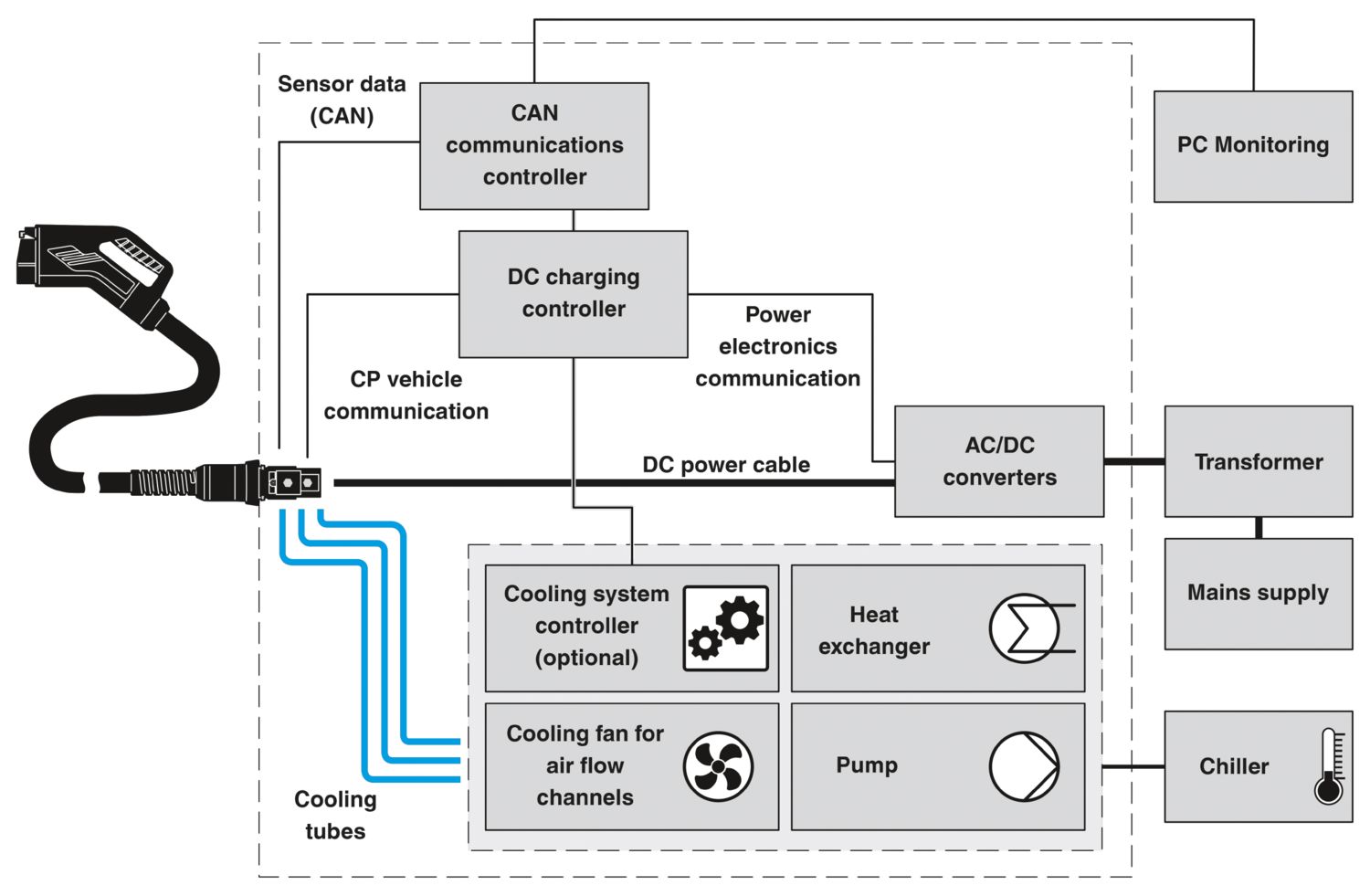

Cooling system
Cooling	in the vehicle charging connector and in the cable
Coolant	50% water, 50% glycol (Glysofor N)
Cooling capacity	600 W (Cable length: 3 m)
	800 W (Cable length: 4 m)
	900 W (Cable length: 5 m)
	1050 W (Cable length: 6 m)
Cooling hose diameter	1x 11.50 mm Supply hose
	2x 8.80 mm Return hoses
Flow rate	2 l/min
Operating pressure	1.00 bar ... 2.00 bar
Relief pressure	2.00 bar
Maximum permissible pressure	4.00 bar
Flow-in temperature	15 °C

Type of signal transmission	Pulse width modulation with modulated Powerline communication in accordance with ISO/IEC 15118 / DIN SPEC 70121
Coding	480 Ω (Lever actuated)
	150 Ω (Lever not actuated)
Type of charging current	DC
Charging power	500 kW
Charging current	500 A DC
Type of charging current	DC Boost Mode
Charging power	up to 700 kW (Boost Mode, depending on the ambient conditions. For further information on implementation, please contact your local Phoenix Contact office and see the packing slip in the download area for this item.)
Charging current	up to 700 A DC
Power contact
Number	3 (PE, DC+, DC-)
Rated voltage	1000 V DC
Rated current	500 A
Signal contact
Number	2 (CP, PP)
Rated voltage	30 V AC
Rated current	2 A
Temperature sensors (NTC)
Sensor type	NTC
Attachment point	2 sensors for the replaceable front DC contacts
	2 sensors for the internal DC power wires
	1 sensor on the PCB in the housing
Switch-off temperature	90 °C

Vehicle charging connector
Width	69.6 mm
Height	192.6 mm
Depth	284.6 mm

Color (Housing)	black (9005)
Color (Handle area)	black (9005)
Color (Mating face)	black (9005)
Color (Cable)	black (9005)
Material (Vehicle charging connector)	Plastic
Material (Cable outer sheath)	EVM-1 in accordance with EN 50620
Material (Contact surface)	Silver
Flammability rating according to UL 94	V0 (Mating face)

Cable length	5 m ±45 mm
Wiring standards/regulations	according to UL 62 (File E515623, Vol 1)
	according to IEC 62893
Cable weight	max. 1938.00 kg/km
Cable type	straight
Cable structure	5 x 25 mm² + 7 x 0.75 mm²
External cable diameter	35.70 mm ±0.4 mm
Outer sheath, material	TPE-U in accordance with IEC 62893-1
Stripping length of the sheath	250 mm ±5 mm
Stripping length	250 mm ±5 mm
Cable resistance	≤ 0.00078 Ω/m (based on a power core, at an ambient temperature of 20°C)
Bending radius	min. 357 mm (10x Ø)

Mechanical data
Insertion/withdrawal cycles	> 10000 (based on IEC 62196-1)
Insertion force	< 75 N
Withdrawal force	< 75 N

Ambient conditions
Degree of protection (Vehicle charging connector)	IP54 / Type 3R (The degree of protection is only ensured in the ready and plugged-in state when both plug-in components are original products from Phoenix Contact or suitable standard-compliant products.)
Ambient temperature (operation)	-30 °C ... 40 °C
	max. 55 °C (Current reduction required, observe the DC contact temperature limit value of 90°C)
Ambient temperature (storage/transport)	-40 °C ... 80 °C
Altitude	5000 m (above sea level)

Standards
Standards/regulations	SAE J1772
	IEC 62196-3-1

Kaupalliset tiedot

Tuotenumero	1085658
Pakkausyksikkö	1 Kappaletta
Vähimmäistilausmäärä	1 Kappaletta
Tuoteavain	XWBALB
Tuotekoodi	XWBALB
GTIN	4055626873589
Paino kappaletta kohti (sis. pakkauksen)	13 000 g
Paino kappaletta kohti (ilman pakkausta)	11 600 g
Tullitariffinumero	85444290
Alkuperämaa	DE

Luokitukset

Hyväksynnät

Approval Specification Data
	Nimellisjännite U_N	Nimellisvirta I_N	Poikkipinta AWG	Poikkipinta mm²
	1000 V	500 A

Environmental product compliance

Yhteensopivat tuotteet

Lisätarvikkeet

Edut

Complete product range

The right charging cable for every application, from the carport to the charging park

Ultra-fast HPC charging, with temporary power up to 500 kW

Convenient handling due to the ergonomic design

Available with your logo on request - for consistent branding of your charging station

Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001

Additional safety thanks to integrated leakage sensors and a wear indicator in the cable sheath

Convenient communication interfaces via CAN bus and digital output

Maintenance-friendly replacement of the mating face frame without draining the coolant

EU RoHS
Täyttää RoHS-direktiivin vaatimukset	Kyllä
poikkeussäännökset siltä osin kuin ne ovat tiedossa	6(c), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-10 Löydät tuotekohtaisen Kiinan RoHS-ilmoitusluettelon kunkin tuotteen latausalueelta Valmistajan ilmoitus -kohdasta. EFUP-E-merkinnän sisältäville tuotteille ei tarvita Kiinan RoHS-ilmoitusluetteloa, eikä sitä tarvitse siksi laatia.
EU REACH SVHC
Huomautus REACH-kandidaattiaineesta (CAS-nro)	Lead (CAS-nro: 7439-92-1)
SCIP	24c3ca22-7cb5-41b8-8abf-d7a044629388
