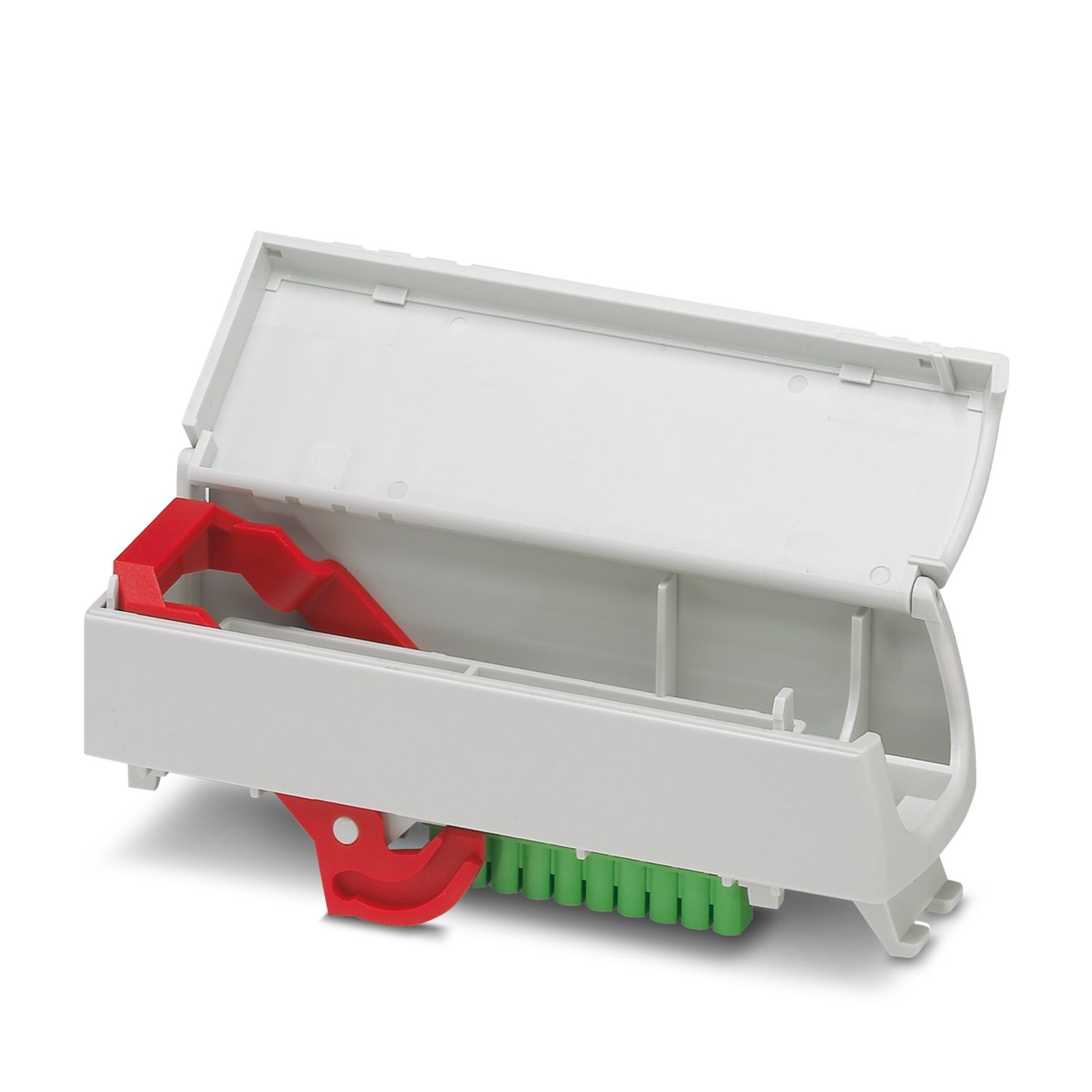

ME PLC 40 B BUS 50/40 GY7035
-

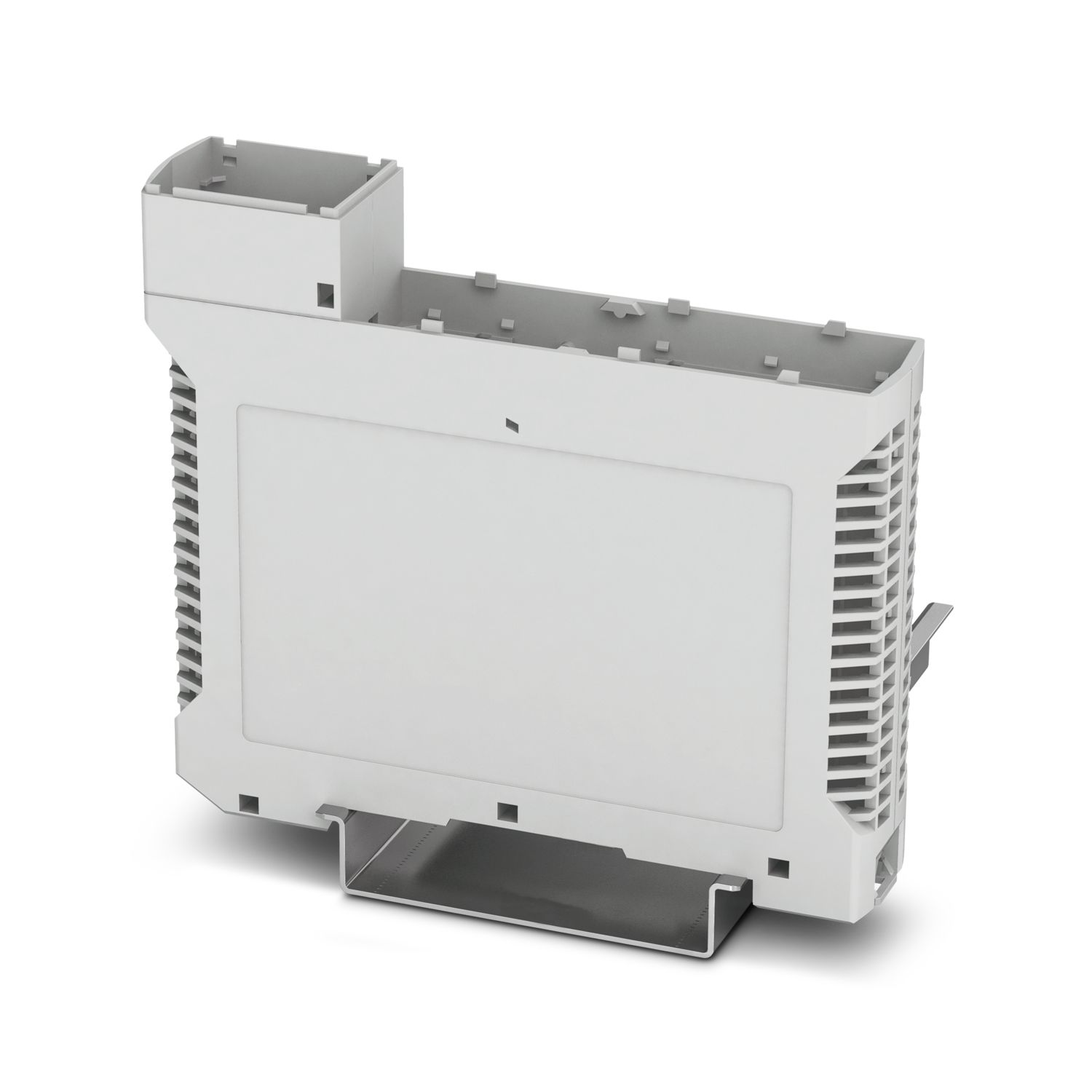

Mounting base housing
2201500
DIN rail housing, Lower housing part with metal foot catch, for 50/40 bus connector, width: 39.7 mm, height: 180.1 mm, depth: 137.7 mm, color: light gray (similar RAL 7035), cross connection: DIN rail bus connector (optional), number of positions cross connector: 50
Pentru operarea acestui produs, sunt necesare și alte produse.

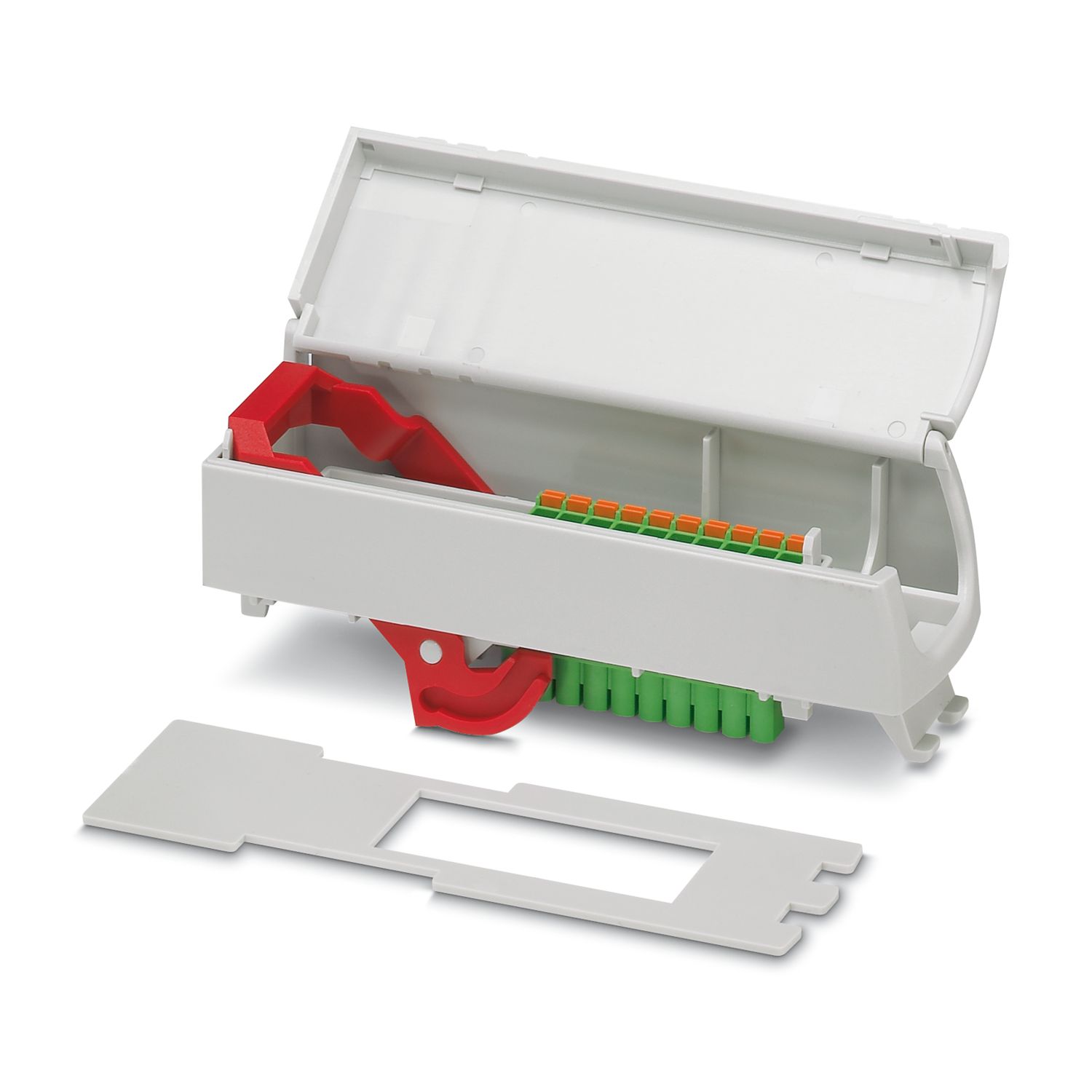

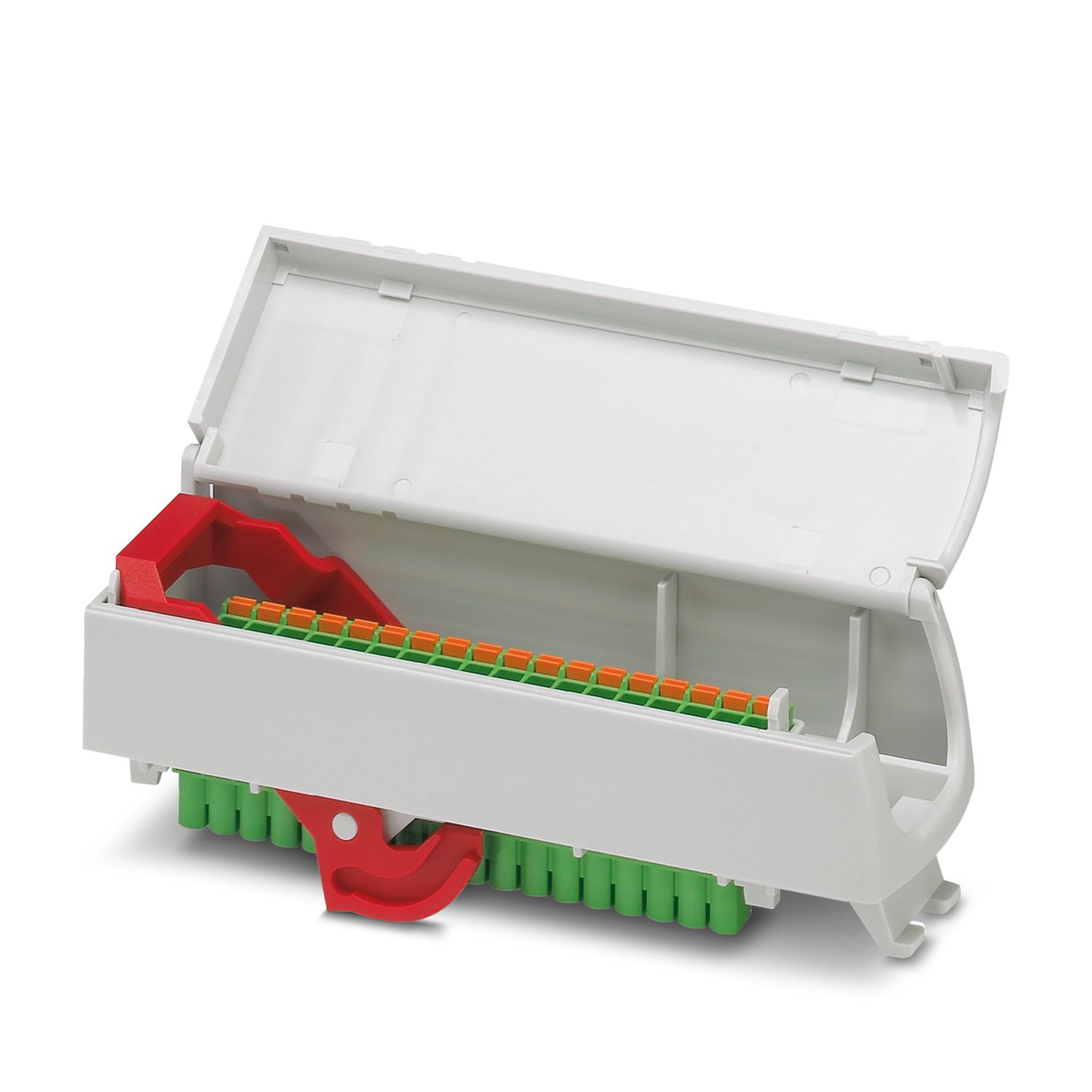

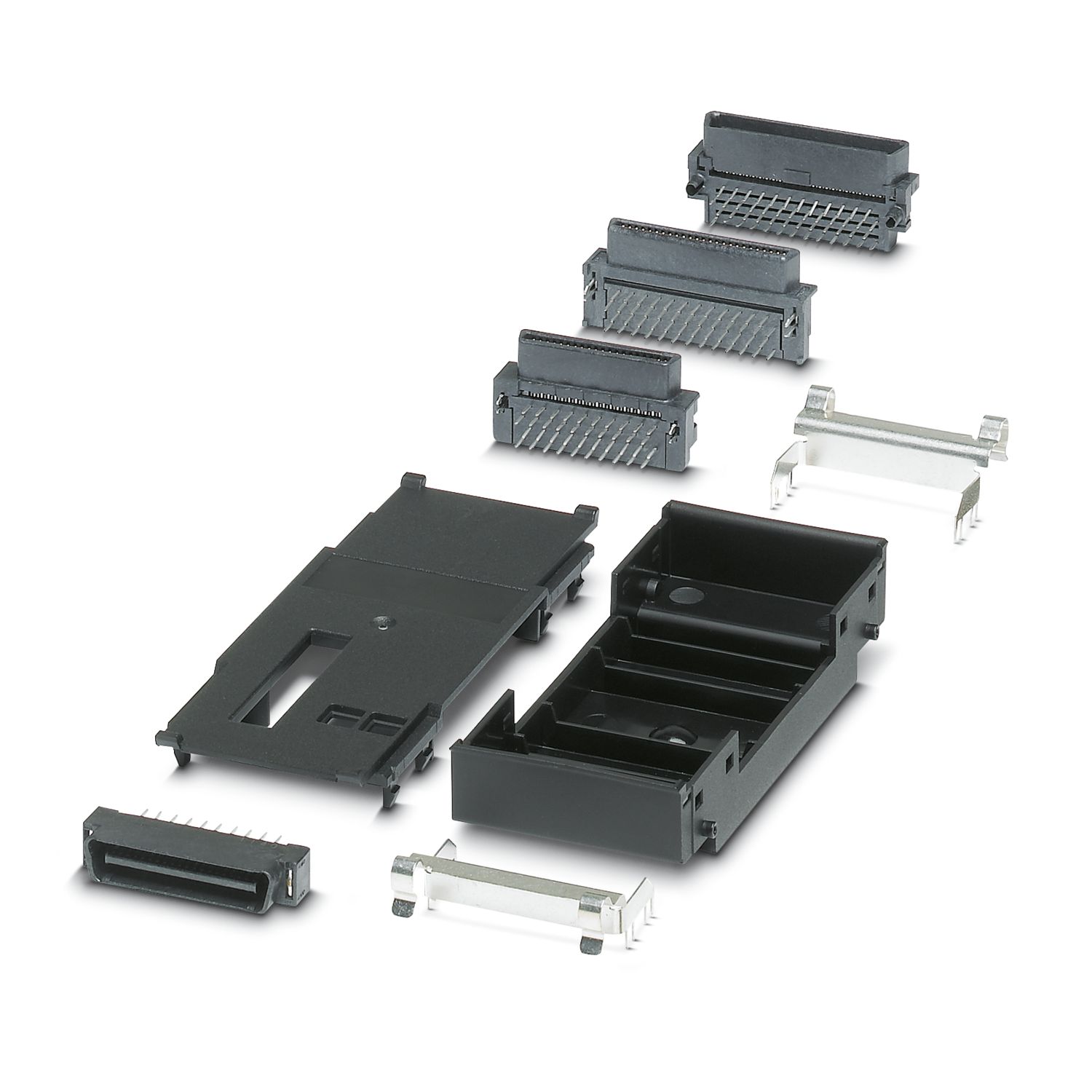

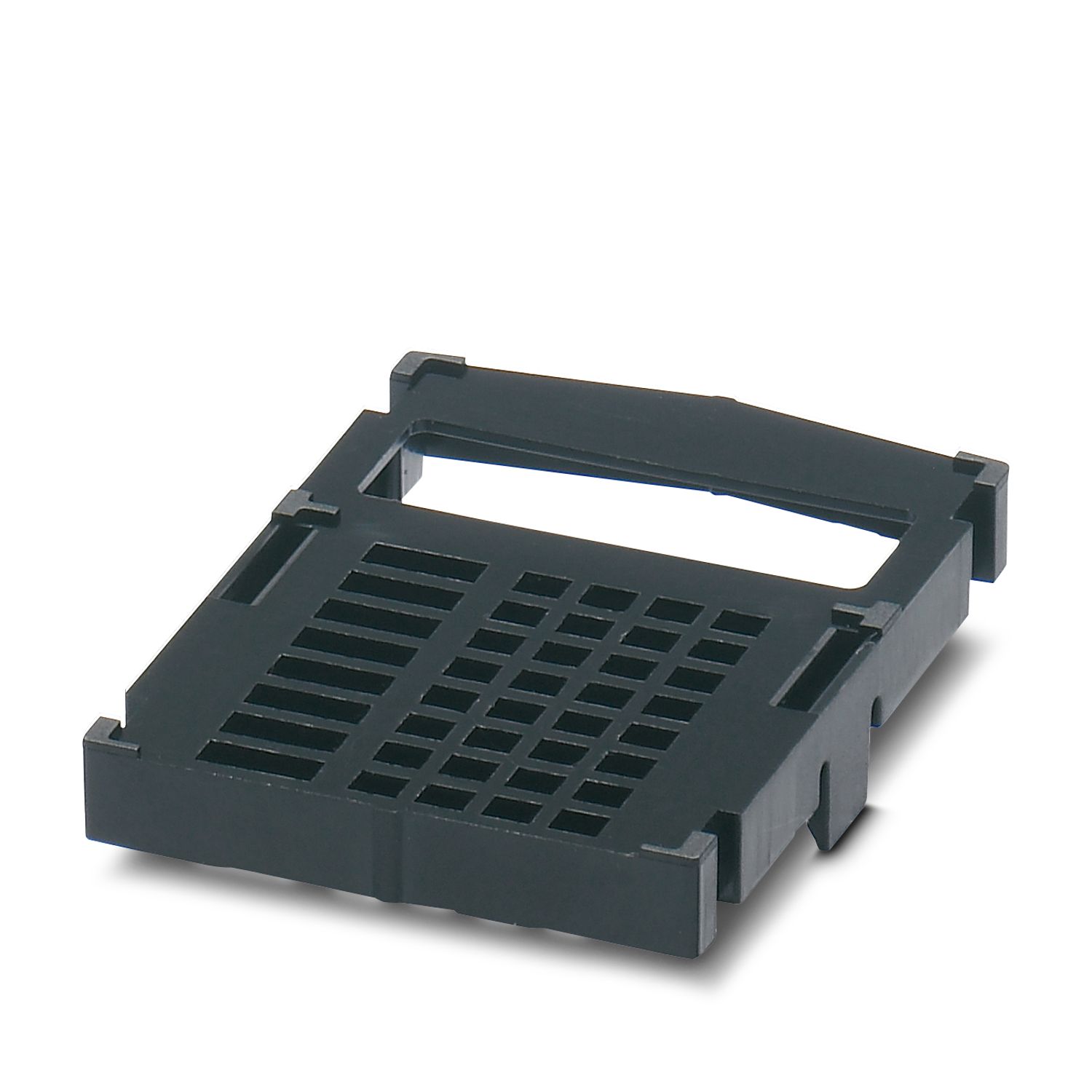

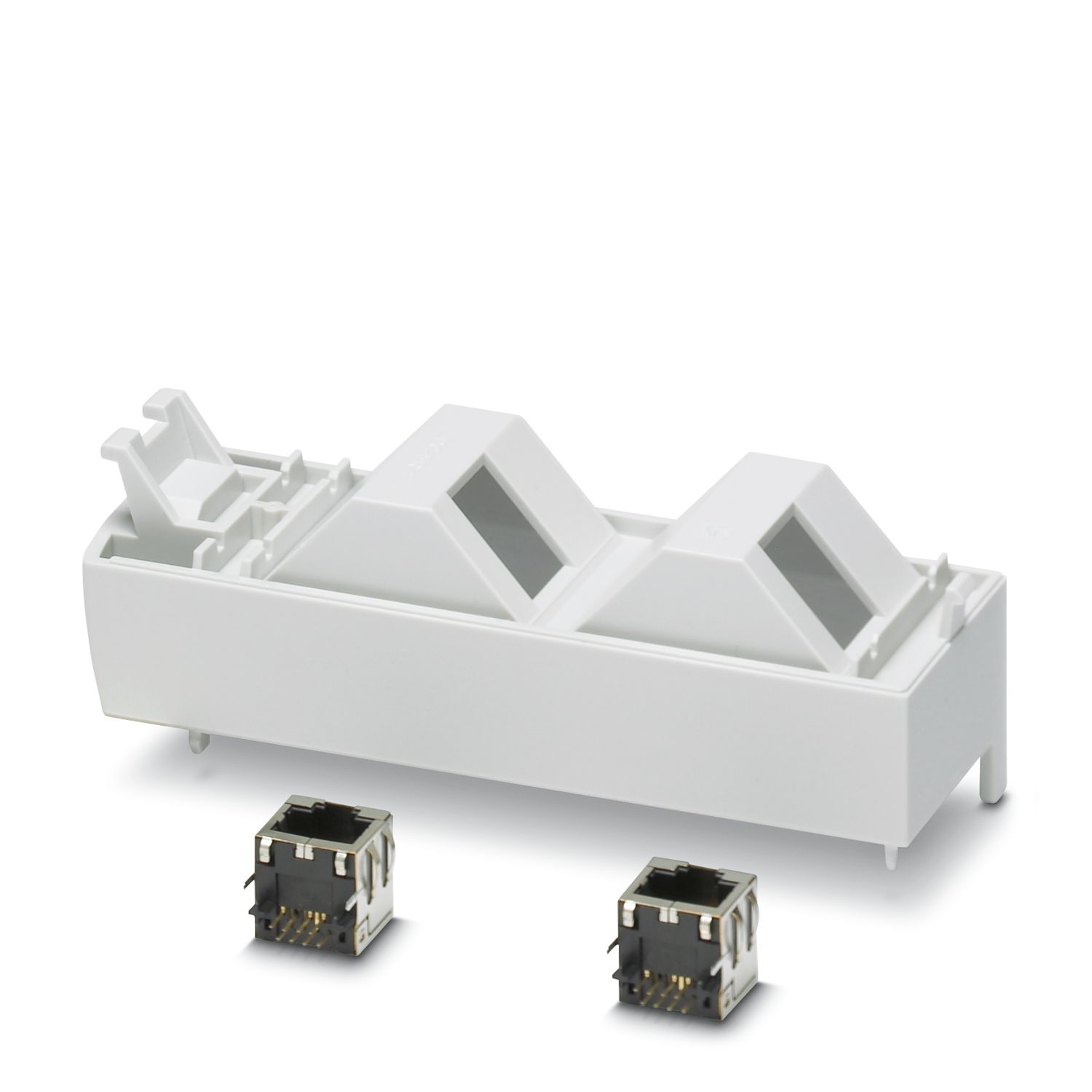

Accesorii necesare
Detalii despre produs
| Assembly note | Please observe the application note in the download area. |
| Product type | Enclosure bottom part |
| Housing type | DIN rail housing |
| Housing series | ME PLC |
| Max. number of positions | 36 (pitch: 5 mm) |
| Type | Lower housing part with metal foot catch |
| Ventilation openings present | yes |

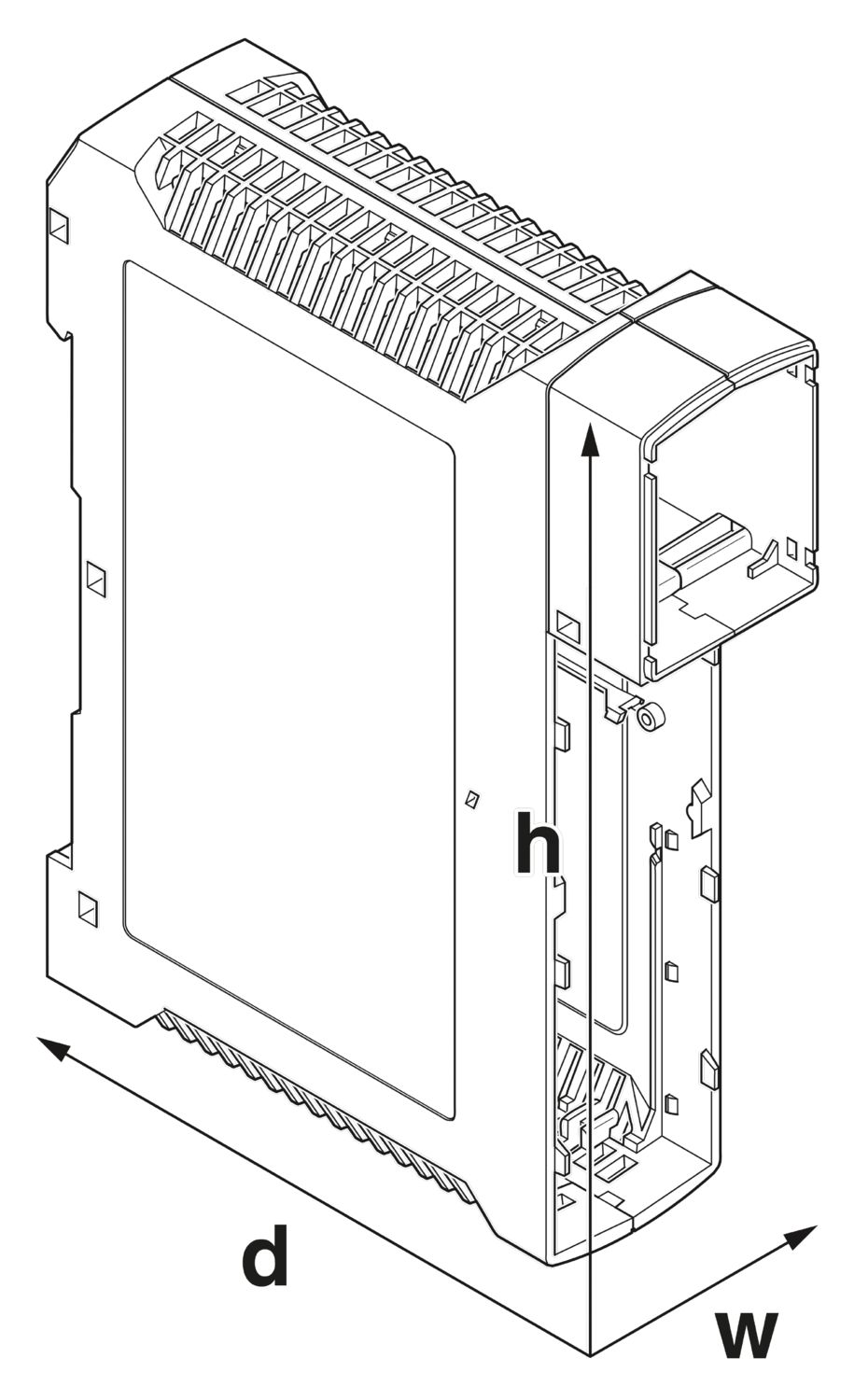

| Dimensional drawing |
|
| Width | 39.7 mm |
| Height | 180.1 mm |
| Depth | 137.7 mm |
| Depth from top edge of DIN rail | 131.1 mm |
| Depth from top edge of DIN rail to support point on upper part | 108 mm |
| PCB design | |
| PCB thickness | 1.4 mm ... 1.8 mm |
| Color (Housing) | light gray (RAL 7035) |
| Flammability rating according to UL 94 | V0 |
| CTI according to IEC 60112 | 225 |
| Housing material | PC |
| Surface characteristics | untreated |
| Ambient conditions | |
| Max. IP code to attain | IP20 |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 95 % |
| Number of PCB holders | 1 |
| Type of PCB mount | Latching |
| Total PCB surface | 16000 mm² |
| Thickness of the PCB | 1.4 mm ... 1.8 mm |
| Mounting type | DIN rail mounting |
| Type of packaging | packed in cardboard |
| Outer packaging type | Carton |
Avantajele dumneavoastră
Tool-free mounting
Available in 40 mm overall width
Flammability rating V0 in accordance with UL 94
Variety of connection technology
Can be mounted on the DIN rail
With DIN-rail-mountable bus connector and power connector system as an option
