The terminal is designed for use within an Inline station. It can be used to connect INTERFACE modules to the Inline station and thus the bus system used via the INTERFACE system bus. Features: - Easy connection of INTERFACE EEM and/or EMM modules - Transmission speed: 500 kbps - Data width in the local bus can be set via DIP switches or memory stick configuration depending on the number of connected INTERFACE devices - Maximum data width from the INTERFACE system bus to the local bus: 32 words (including PCP) - Maximum data width from the local bus to the INTERFACE system bus: 16 words - Parameterization, configuration, and diagnostics via FDT/DTM (Field Device Tool/Device Type Manager) supported - Serial interface (S-PORT) can be used to connect a memory stick - Memory stick can be used for configuration backup - Applications: motor and energy management; switching, protection, and monitoring of drives

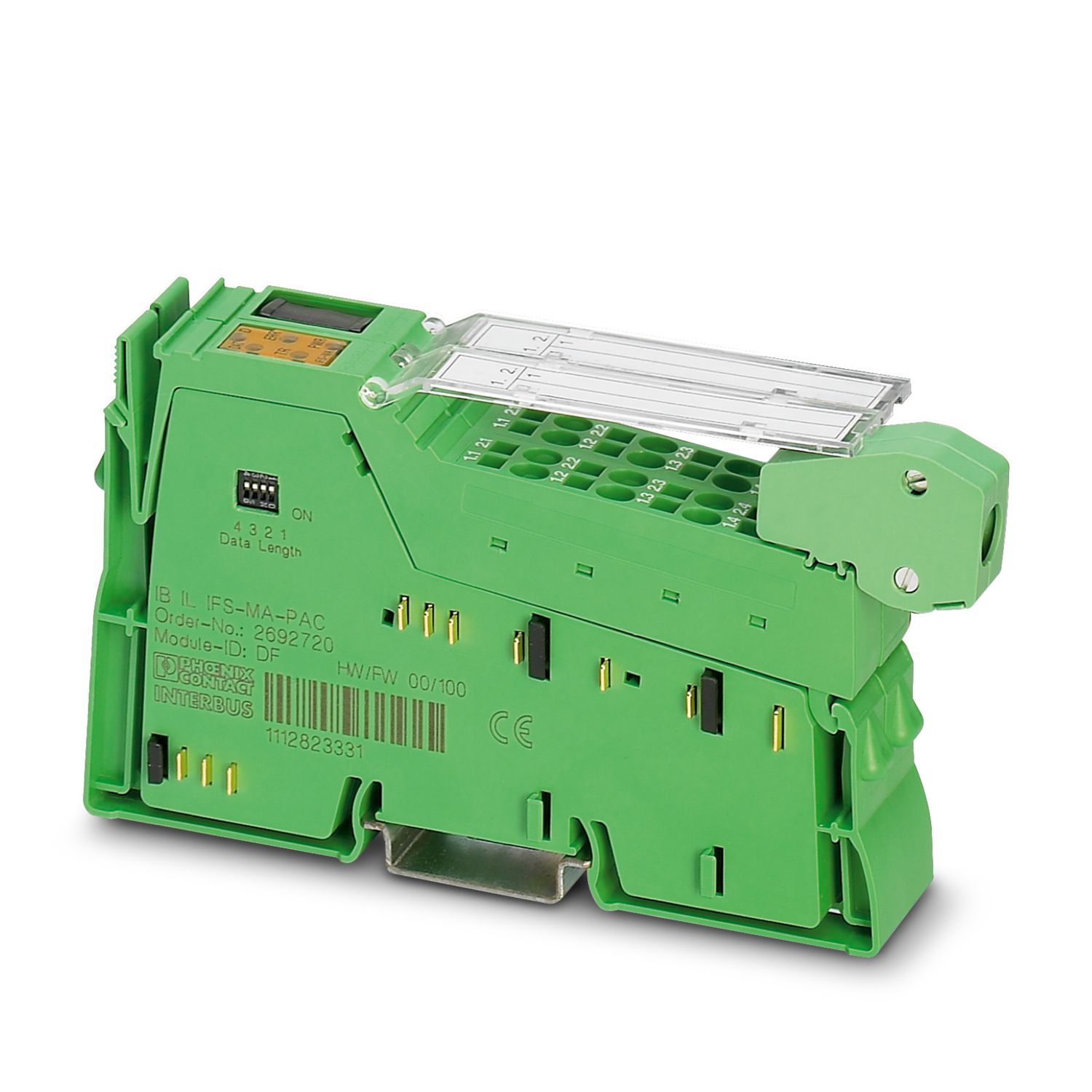

IB IL IFS-MA-PAC
-
Communication module
2692720
Inline system bus master, for connecting the interface system bus, complete with accessories (connector and marking field)
Maksuton lataus saatavilla.
Ladattavat tiedostot
Tuotetiedot
| Dimensional drawing |
|

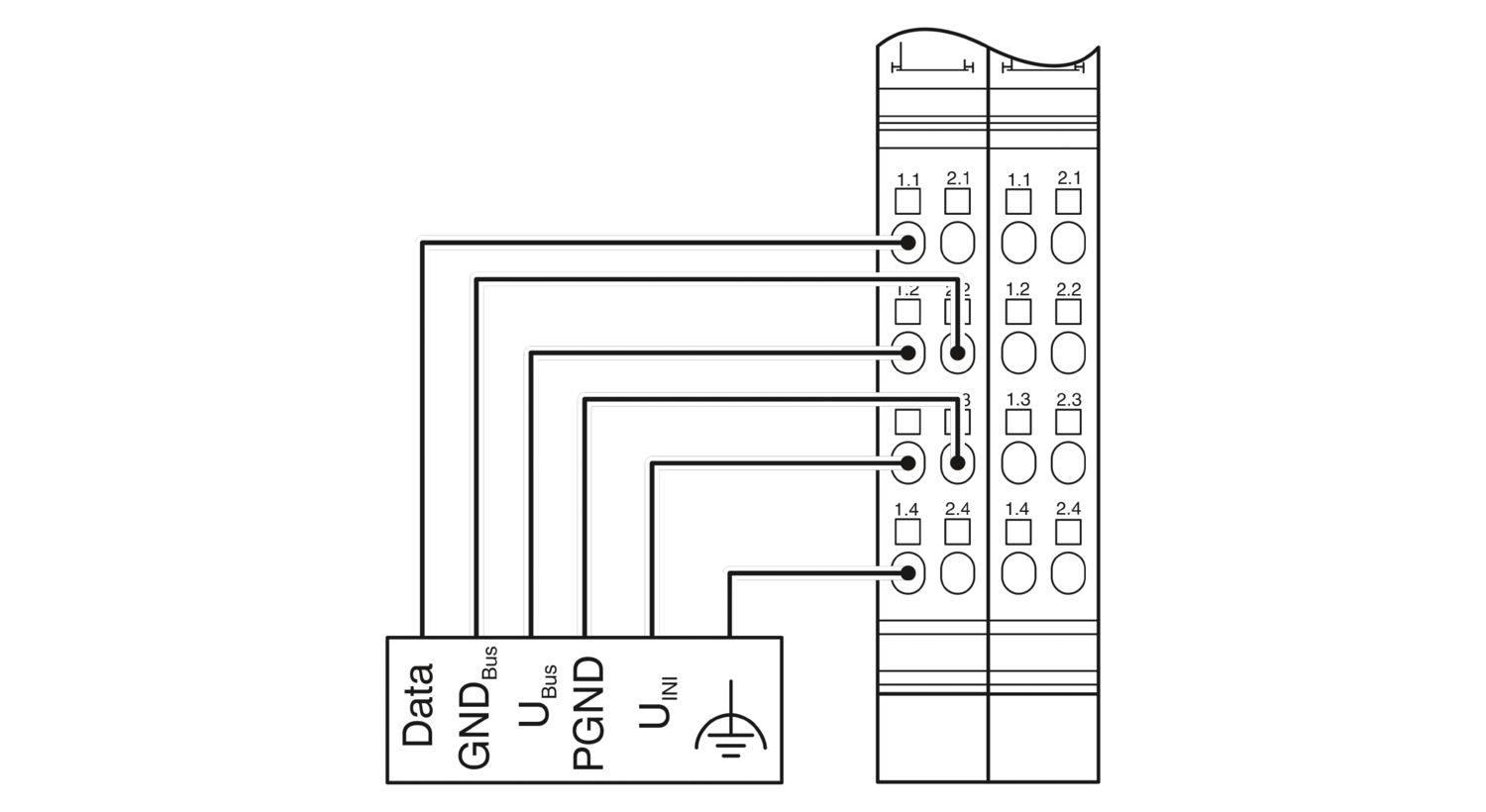

| Width | 24.4 mm |
| Height | 135 mm |
| Depth | 71.5 mm |
| Note on application | |
| Note on application | Only for industrial use |
| Inline local bus | |
| Connection method | Bus base module |
| Transmission speed | 500 kbps |
| INTERFACE system bus | |
| Connection method | Inline shield connector |
| Transmission physics | Single wire |
| No. of channels | 1 |
| Protocols supported | CAN |
| Programming interface (S port) | |
| Connection method | IFS-USB-PROG-ADAPTER |
| No. of channels | 1 |
| Protocols supported | Serial |
| Local diagnostics | |
| Error messages via the bus | 9 V power supply faulty |
| Group error message, INTERFACE system bus error | |
| Module | |
| ID code (dec.) | 220 |
| ID code (hex) | DC |
| Length code (hex) | 1E |
| Length code (dec) | 30 |
| Process data channel | 60 Byte |
| Input address area | max. 60 Byte |
| Output address area | max. 60 Byte |
| Register length | 64 Byte |
| Required parameter data | 1 Byte |
| Required configuration data | 5 Byte |
| Product type | I/O component |
| Product family | Inline |
| Type | modular |
| Operating mode | Process data mode with up to 31 words; PCP with 1, 2, or 4 words |
| Maximum power dissipation for nominal condition | 1.25 W |
| Power dissipation | 1.285 W (Module) |
| Potentials: Communications power (UL) | |
| Supply voltage | 7.5 V DC (via voltage jumper) |
| Current draw | max. 78 mA |
| typ. 66 mA | |
| Potentials: Main circuit supply (UM) | |
| Supply voltage | 24 V DC (via voltage jumper) |
| Supply voltage range | 19.2 V DC ... 30 V DC |
| Current draw | max. 300 mA |
| typ. 141 mA | |
| Electrical isolation/isolation of the voltage ranges | |
| Test voltage: 24 V supply UM, bus, logic/INTERFACE interface | 500 V AC, 50 Hz, 1 min |
| Test voltage: 24 V supply UM, bus, logic/functional ground | 500 V AC, 50 Hz, 1 min |
| Test voltage: INTERFACE interface/functional ground | 500 V AC, 50 Hz, 1 min |
| Connection technology | |
| Connection name | Inline connector |
| Conductor connection | |
| Connection method | Spring-cage connection |
| Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm |
| Inline connector | |
| Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm |
| Ambient conditions | |
| Ambient temperature (operation) | -25 °C ... 55 °C |
| Degree of protection | IP20 |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | DIN rail mounting |
Edut
Acquisition and output of up to 31 measured values and 16 manipulated variables
Easy integration of up to 8 INTERFACE EMM and EEM modules with firmware 1.03 or later
User-friendly parameterization, configuration, and diagnostics using DTMs (Device Type Managers)
Serial interface (S port) including a memory stick for saving the configuration
