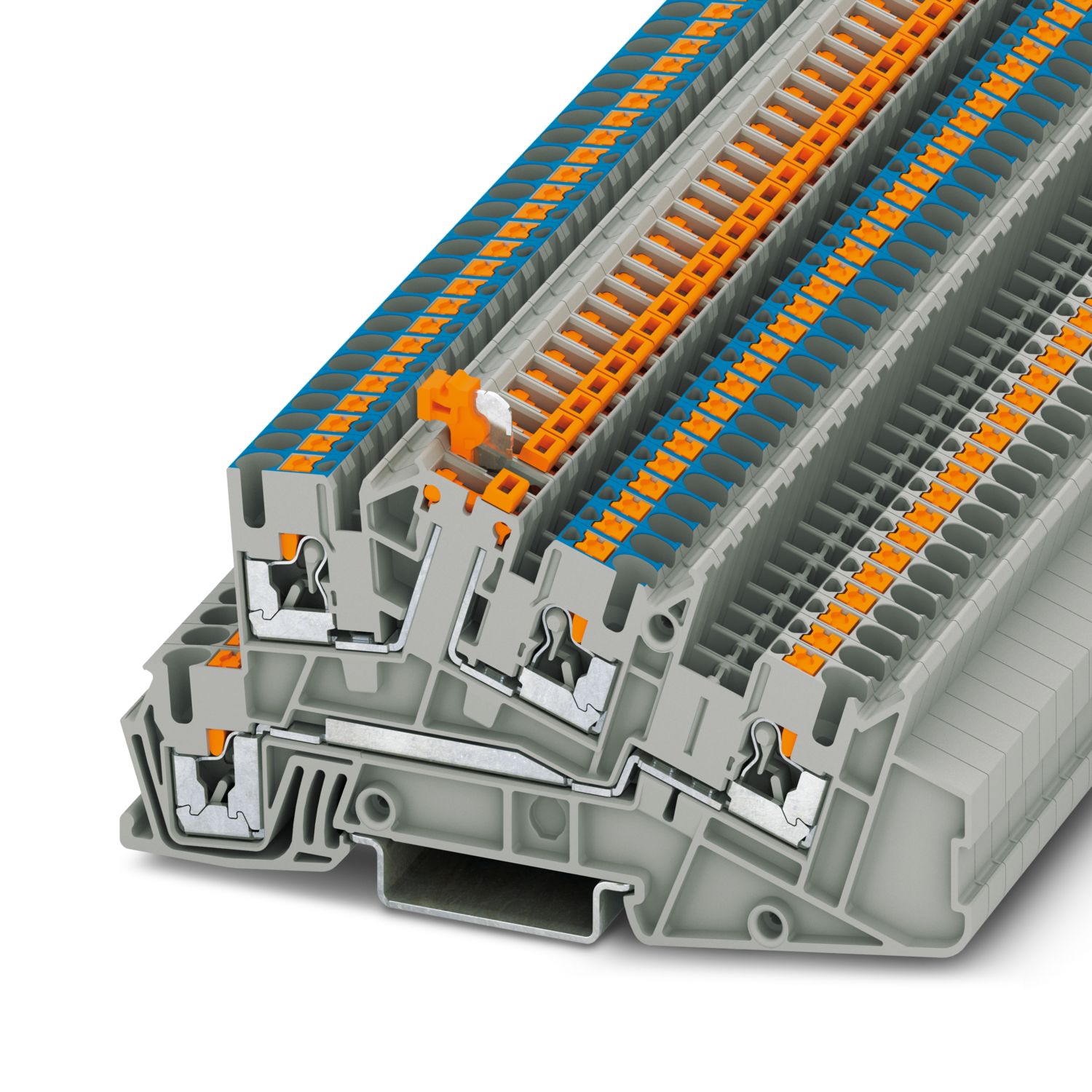

PTI 2,5-L/NTB - Installation level terminal block

3213956

Installation level terminal block, nom. voltage: 400 V, nominal current: 24 A, Push-in connection, Rated cross section: 2.5 mm², cross section: 0.14 mm² - 4 mm², Push-in connection, Rated cross section: 1.5 mm², cross section: 0.14 mm² - 4 mm², mounting type: NS 35/7,5, NS 35/15, color: gray

Tuotetiedot

Product type	Installation terminal block
Number of connections	4
Number of rows	3
Potentials	2
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Rated surge voltage	4 kV
	6 kV
Maximum power dissipation for nominal condition	1.02 W

Number of connections per level	2
Nominal cross section	2.5 mm²
Stripping length	8 mm ... 10 mm
Internal cylindrical gage	A3
Conductor cross section rigid	0.14 mm² ... 4 mm²
Cross section AWG	26 ... 12 (converted acc. to IEC)
Conductor cross section flexible	0.14 mm² ... 4 mm²
Conductor cross section, flexible [AWG]	26 ... 12 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.14 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.14 mm² ... 2.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm²
Nominal current	24 A (with 4 mm² conductor cross section)
Maximum load current	30 A (with 4 mm² conductor cross section and 3-pos. terminal block)
Nominal voltage	400 V (phase conductor/phase conductor)
	250 V (phase conductor/PE)
	phase conductor/N
Nominal cross section	2.5 mm²
Level 2
Stripping length	8 mm ... 10 mm
Conductor cross section rigid	0.14 mm² ... 4 mm²
Cross section AWG	26 ... 12 (converted acc. to IEC)
Conductor cross section flexible	0.14 mm² ... 4 mm²
Conductor cross section, flexible [AWG]	26 ... 12 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.14 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.14 mm² ... 2.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm²
Nominal current	16 A
Maximum load current	16 A (with a 2.5 mm² conductor cross section)
Nominal voltage	250 V
Nominal cross section	1.5 mm²
Connection cross sections directly pluggable
Conductor cross section rigid	0.34 mm² ... 4 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)	0.34 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.34 mm² ... 2.5 mm²
Level 2 Connection cross sections directly pluggable
Conductor cross section rigid	0.34 mm² ... 4 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)	0.34 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.34 mm² ... 2.5 mm²

Width	5.2 mm
End cover width	2.2 mm
Height	101 mm
Depth on NS 35/7,5	50.5 mm
Depth on NS 35/15	58 mm

Color	gray (RAL 7042)
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	125 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)	27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Surge voltage test
Test voltage setpoint	7.3 kV
Result	Test passed
Temperature-rise test
Requirement temperature-rise test	Increase in temperature ≤ 45 K
Result	Test passed
Short-time withstand current 4 mm²	0.48 kA
Short-time withstand current 1.5 mm²	0.18 kA
Result	Test passed
Power-frequency withstand voltage
Test voltage setpoint	1.89 kV
Result	Test passed

Mechanical data
Open side panel	Yes

Mechanical strength
Result	Test passed
Attachment on the carrier
DIN rail/fixing support	NS 35
Test force setpoint	1 N
Result	Test passed
Test for conductor damage and slackening
Rotation speed	10 rpm
Revolutions	135
Conductor cross section/weight	0.14 mm² / 0.2 kg
	4 mm² / 0.9 kg
Result	Test passed

Aging
Temperature cycles	192
Result	Test passed
Needle-flame test
Time of exposure	30 s
Result	Test passed
Ambient conditions
Ambient temperature (operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Mounting type	NS 35/7,5
	NS 35/15

Kaupalliset tiedot

Tuotenumero	3213956
Pakkausyksikkö	50 Kappaletta
Vähimmäistilausmäärä	50 Kappaletta
Tuoteavain	BE2253
Tuotekoodi	BE2253
Luettelosivu	Sivu 93 (C-1-2019)
GTIN	4046356609517
Paino kappaletta kohti (sis. pakkauksen)	15,91 g
Paino kappaletta kohti (ilman pakkausta)	15,91 g
Tullitariffinumero	85369010
Alkuperämaa	DE

Luokitukset

Hyväksynnät

Approval Specification Data
	Nimellisjännite U_N	Nimellisvirta I_N	Poikkipinta AWG
Use group B
	300 V	20 A	26 - 12
Use group C
	150 V	20 A	26 - 12
Use group D
	300 V	10 A	26 - 12

Approval Specification Data
	Nimellisjännite U_N	Nimellisvirta I_N	Poikkipinta AWG	Poikkipinta mm²
	400 V			0.2 - 4

Approval Specification Data
	Nimellisjännite U_N	Nimellisvirta I_N	Poikkipinta AWG
Use group B
	300 V	20 A	26 - 12
Use group D
	300 V	10 A	26 - 12

Approval Specification Data
	Nimellisjännite U_N	Nimellisvirta I_N	Poikkipinta AWG	Poikkipinta mm²
	400 V			0.2 - 4

Environmental product compliance

Yhteensopivat tuotteet

Lisätarvikkeet

Edut

The terminal blocks with knife disconnect zone in the upper level meet the safety requirement regarding individual circuit isolation of DIN VDE 0100-718

ECLASS-13.0	27250110
ECLASS-15.0	27250110

EU RoHS
Täyttää RoHS-direktiivin vaatimukset	Kyllä (Ei poikkeussäännöksiä)
China RoHS
Environment friendly use period (EFUP)	EFUP-E Ei raja-arvot ylittäviä vaarallisia aineita
EU REACH SVHC
Huomautus REACH-kandidaattiaineesta (CAS-nro)	Aineen pitoisuus ei ole yli 0,1 %.
