CK1,6-ER-2,50ST OIC AG
-
Crimp contact
1004365
Crimp contact, contact diameter: 1.6 mm, rolled, Pin, contact material: Cu alloy, nickel-plated, contact surface: silver-plated, connection cross section: 1.5 mm2 ... 2.5 mm2, AWG 16 ... 14
Tuotetiedot
| General | This product replaces 1884089 CK1,6-ER-1,50ST AG |
| Product type | Crimp contact |
| Series | HC-M-12 |
| HC-M-EMV | |
| HC-D | |
| HC-DD | |
| VC-D | |
| HC-M-03/04 | |
| HC-M-17 | |
| HC-K | |
| HC-Q | |
| HC-COM | |
| HC-M-42 | |
| HC-M-08-MBIT | |
| Type | Individual male contact |
| Contact material type | rolled |
| Connection method | Crimp connection |
| Contact connection type | Pin |
| Connection technology | Crimp connection |
| Conductor cross section | 1.5 mm² ... 2.5 mm² |
| Connection cross section AWG | 16 ... 14 |
| Stripping length of the individual wire | 4 mm |
| Conductor cross section flexible | 1.5 mm² ... 2.5 mm² |
| Conductor cross section AWG | 16 ... 14 |
| Contact material | Cu alloy, nickel-plated |
| Contact surface material | silver-plated |

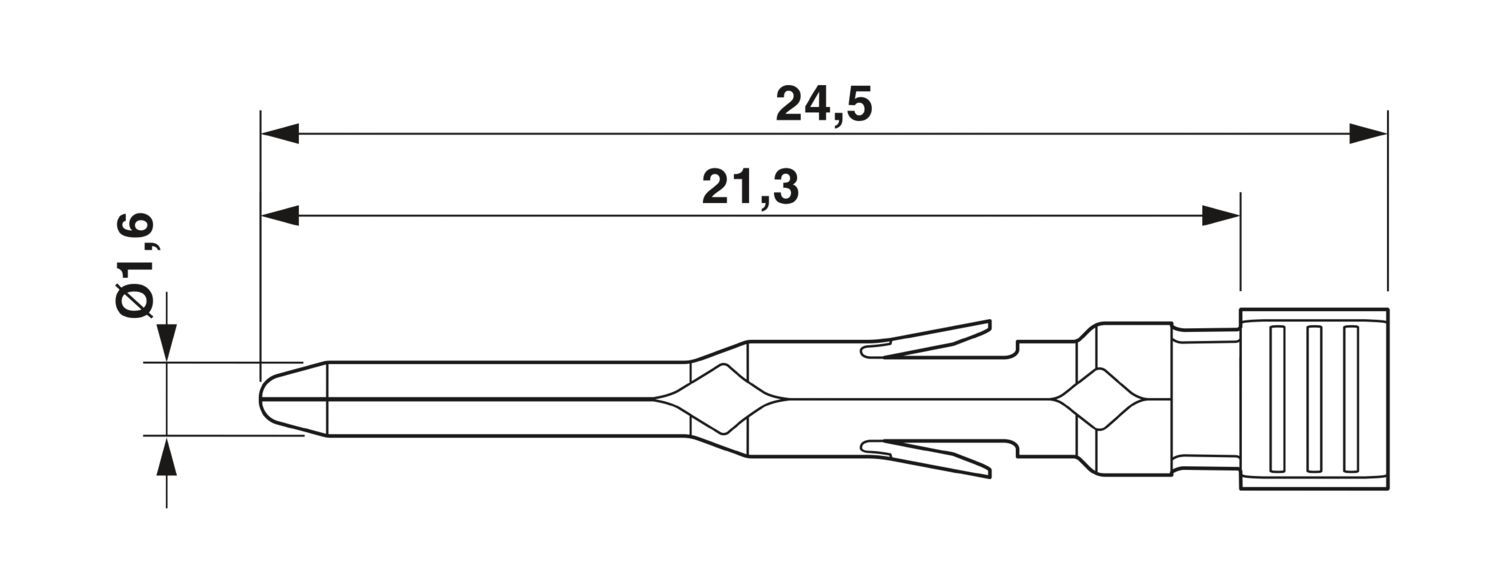

| Dimensional drawing |
|
| Length | 24.5 mm |
| Mechanical characteristics | |
| Contact diameter | 1.6 mm |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 50 |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
