Marker for terminal blocks - UCT-TM 10
0829142

Marker for terminal blocks, Sheet, white, unlabeled, can be labeled with: TOPMARK NEO, TOPMARK LASER, BLUEMARK ID COLOR, BLUEMARK ID, BLUEMARK CLED, THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD, mounting type: snapped, for terminal block width: 10.2 mm, lettering field size: 8.9 x 9.6 mm, Number of individual labels: 36


Detalii despre produs




General Can be labeled via thermal transfer

Product type Terminal marking
Pitch 10.2 mm
Type high
Marking
Number of individual labels 36
Number of individual labels per row 6
Marking technology
Device 5146464 THERMOMARK CARD

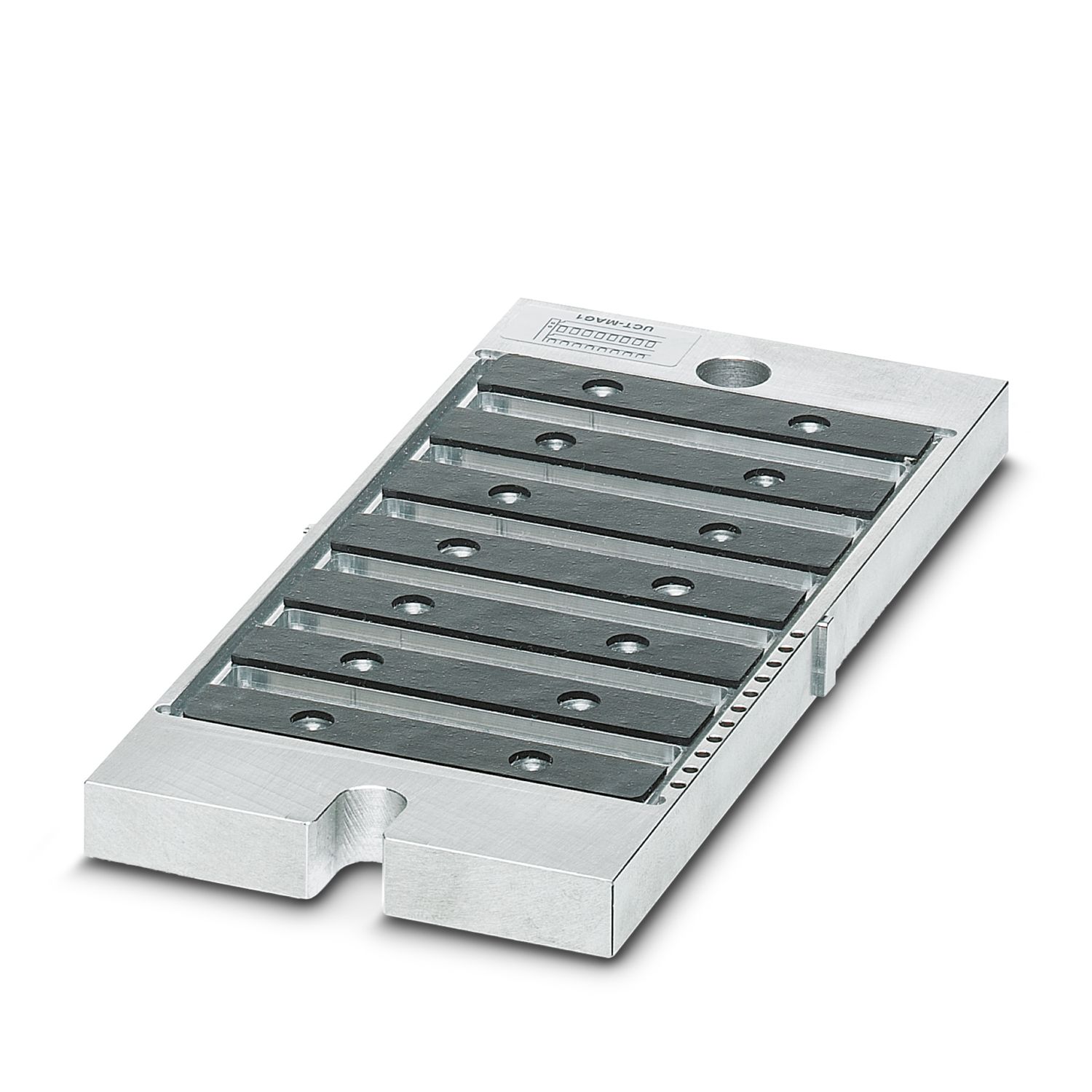

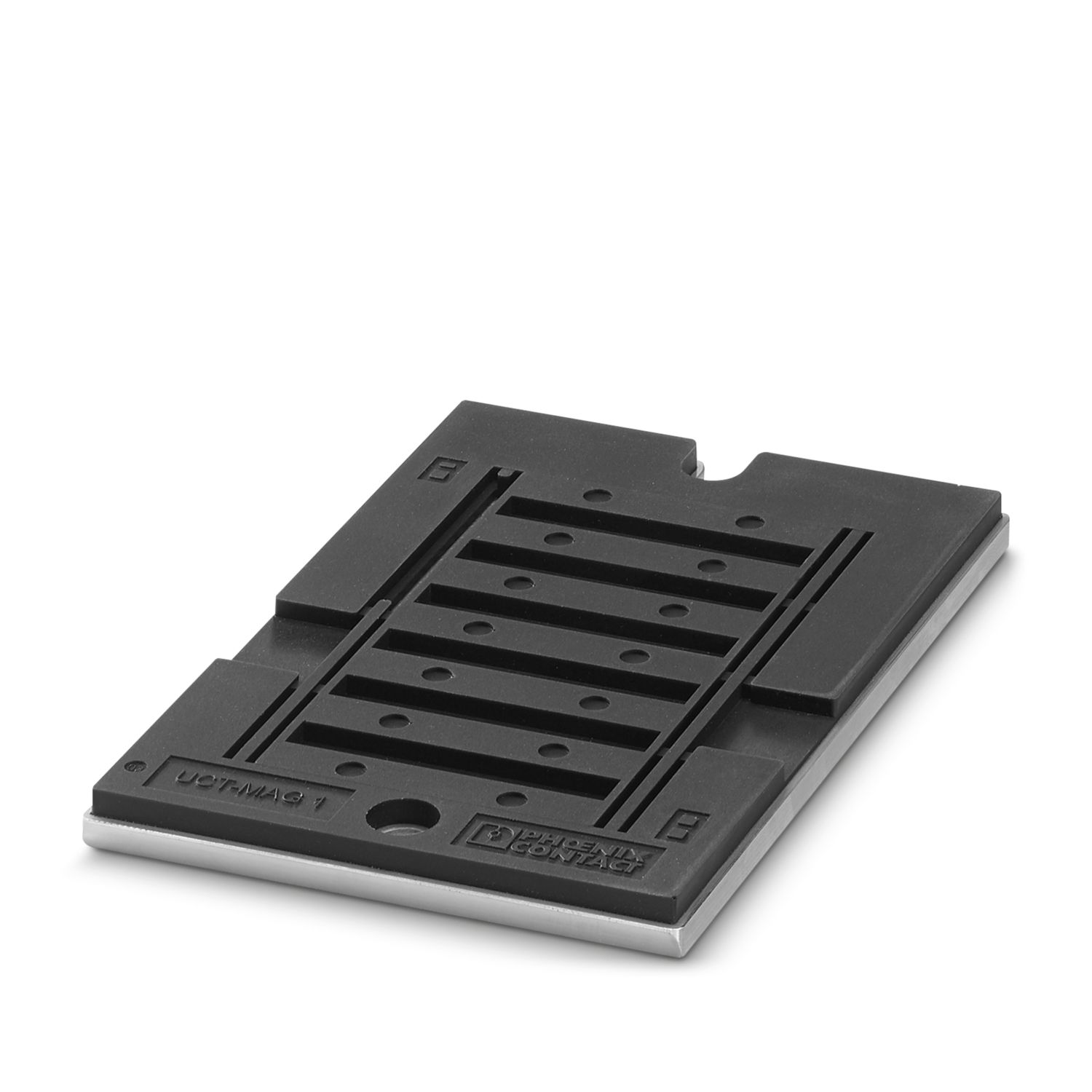

5146480 THERMOMARK CARD-UCT-MAG1
5147888 BLUEMARK LED
5147999 BLUEMARK CLED
Ink ribbon 0801371 THERMOMARK-RIBBON 110-TC
5147421 BLUEMARK FLUID-CARTRIDGE
5146662 BLUEMARK CLED-FLUID-CARTR.
Printability Thermal transfer
Inkjet printing

Width 9.6 mm
Height 4.76 mm
Length 10.5 mm
Pitch 10.2 mm

Color white
RoHS compliant Yes
Material PC
Flammability rating according to UL 94 V0
Relative insulation material temperature index (Elec., UL 746 B) 130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22 HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23 HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24 HL 1 - HL 3
Components free from silicone and halogen
Silicone-free yes
Halogen-free Yes

Test for substances that would hinder coating with paint or varnish
VW PV 3.10.7:2005-02
Result Test passed
UV resistance
Specification Following ISO 4892-2:2013-03
Result Test passed
Test duration 96 h
Wipe resistance of inscriptions
Specification DIN EN 61010-1 (VDE 0411-1):2011-07
DIN EN 62208 (VDE 0660-511):2012-06 (in parts)
Testing in a condensation changing climate in the presence of sulfur dioxide
Specification DIN 50018:2013-05
Result Test passed
Climate level AHT 1,0 S
Cycles 2
Salt spray test
Specification DIN EN 60068-2-11:2000-02
Result Test passed
Ambient conditions
Ambient temperature (operation) -40 °C ... 120 °C

Wipe resistance DIN EN 61010-1 (VDE 0411-1)

Mounting type snapped

Număr articol 0829142
Unitate de ambalare 10 Bucată
Cantitate minimă pentru comandă 1 Bucată
Cod produs BG2118
Pagina de catalog Pagina 133 (C-3-2019)
GTIN 4046356563130
Greutate pe bucată (inclusiv ambalajul) 15,8 g
Greutate pe bucată (fără ambalaj) 14,523 g
Cod tarifar vamal 39269097
Țara de origine PL


ECLASS

ECLASS-9.0 27141137
ECLASS-10.0.1 27141137
ECLASS-11.0 27281101

ETIM

ETIM 8.0 EC000761

UNSPSC

UNSPSC 21.0 39131500


Avantajele dumneavoastră

The UCT-TM... UniCard labeling range includes markers for Phoenix Contact products with tall marker grooves, e.g. terminals
Marking service: Phoenix Contact can custom-mark all UniCard markers according to your specifications
