UM-PRO A/U 92 CM
-
Covering hood
2200312
Press-drawn section housings, Latching, Cover, width: 92 mm, profile length (configurable): 3 cm ... 100 cm, height: 34 mm, Note: max. length of the cover = PCB length - 19 mm
Pentru operarea acestui produs, sunt necesare și alte produse.
Accesorii necesare
Detalii despre produs
| Assembly note | Please observe the application note in the download area. |
| Product type | Component housing cover |
| Housing type | Press-drawn section housings |
| Housing series | UM |
| Type | Cover |
| Ventilation openings present | no |

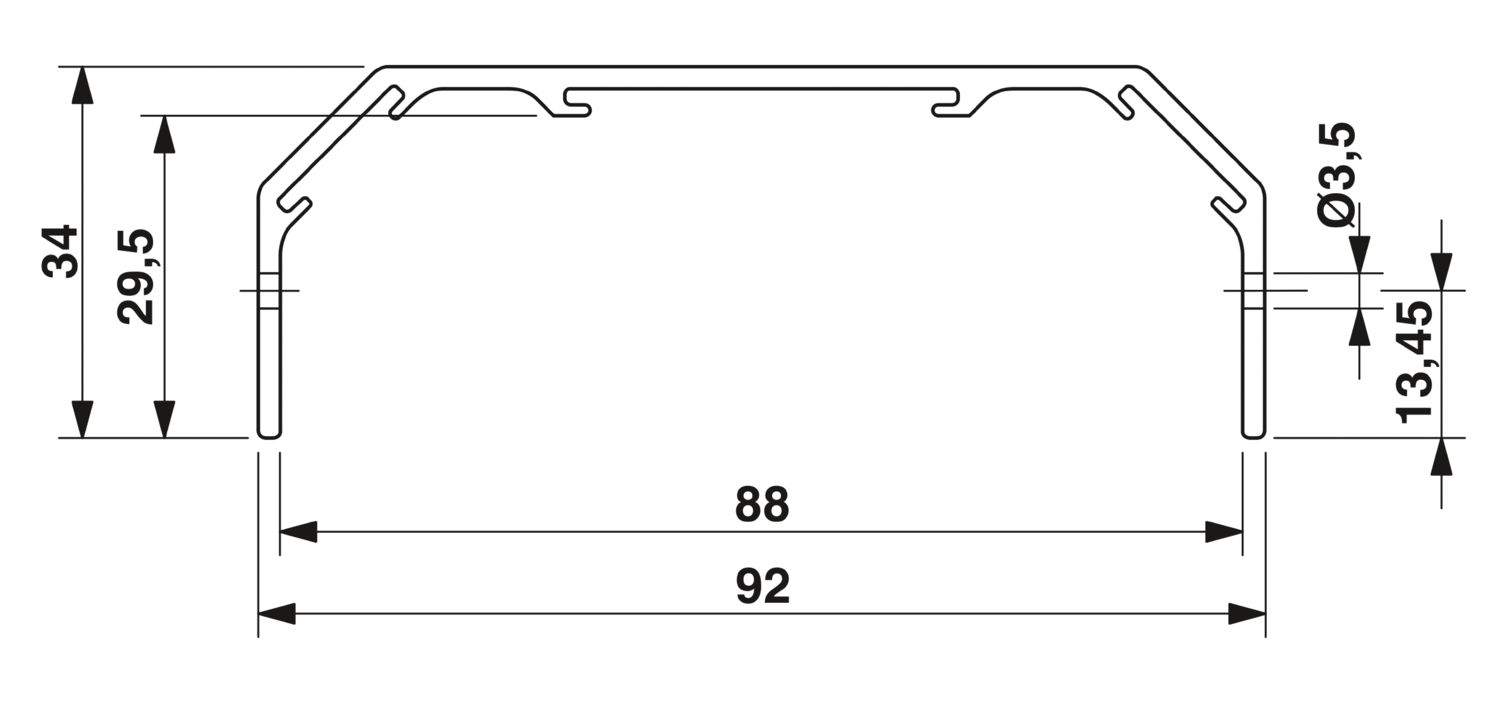

| Dimensional drawing |
|
| Width | 92 mm |
| Height | 34 mm |
| Color (Housing) | transparent |
| Flammability rating according to UL 94 | V0 |
| Housing material | PC |
| Surface characteristics | untreated |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 95 % |
| Mounting type | Latching |
| Mounting position | vertical or horizontal |
| Type of packaging | packed in cardboard |
| Outer packaging type | Carton |
Avantajele dumneavoastră
Tailor-made housing length, can be cut to length with millimeter precision
Easy integration of large electronics components, thanks to the open design
Heat-resistant UM-PRO made from polyamide with UL approval up to 100°C
Easy device mounting thanks to snap-mount principle (the sides are fixed without the aid of tools)
High degree of flexibility, thanks to freely positionable covering hoods
