TMC 7 B1 80 57 C
-
Wiring bridge
1022238
Bus bar for TMC 71... circuit breakers (single phase) 17.8 mm pitch, up to 57 positions. Rated for 80 A (end feed) 600 V AC/1000 V DC. UL508 Listed for connection of UL1077 rated circuit breakers.
Tuotetiedot
| Product type | Bridge |
| Type | Comb bridge |
| Number of positions | 57 |
| Number of phases | 1 |
| Nominal voltage UN | 600 V AC (1000 V DC) |
| Nominal current IN | 80 A (End feed) |
| 160 A (Center feed with two 115 A TMC 7 B TERM PIN terminals required per phase) |

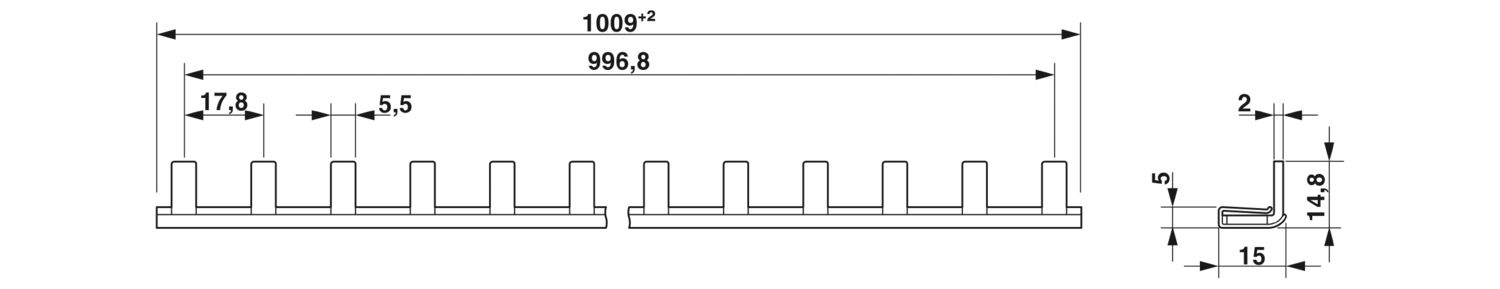

| Dimensional drawing |
|
| Width | 1009 mm |
| Height | 5 mm |
| Depth | 15 mm |
| Color | light gray (RAL 7035) |
| Housing material | Plastic |
