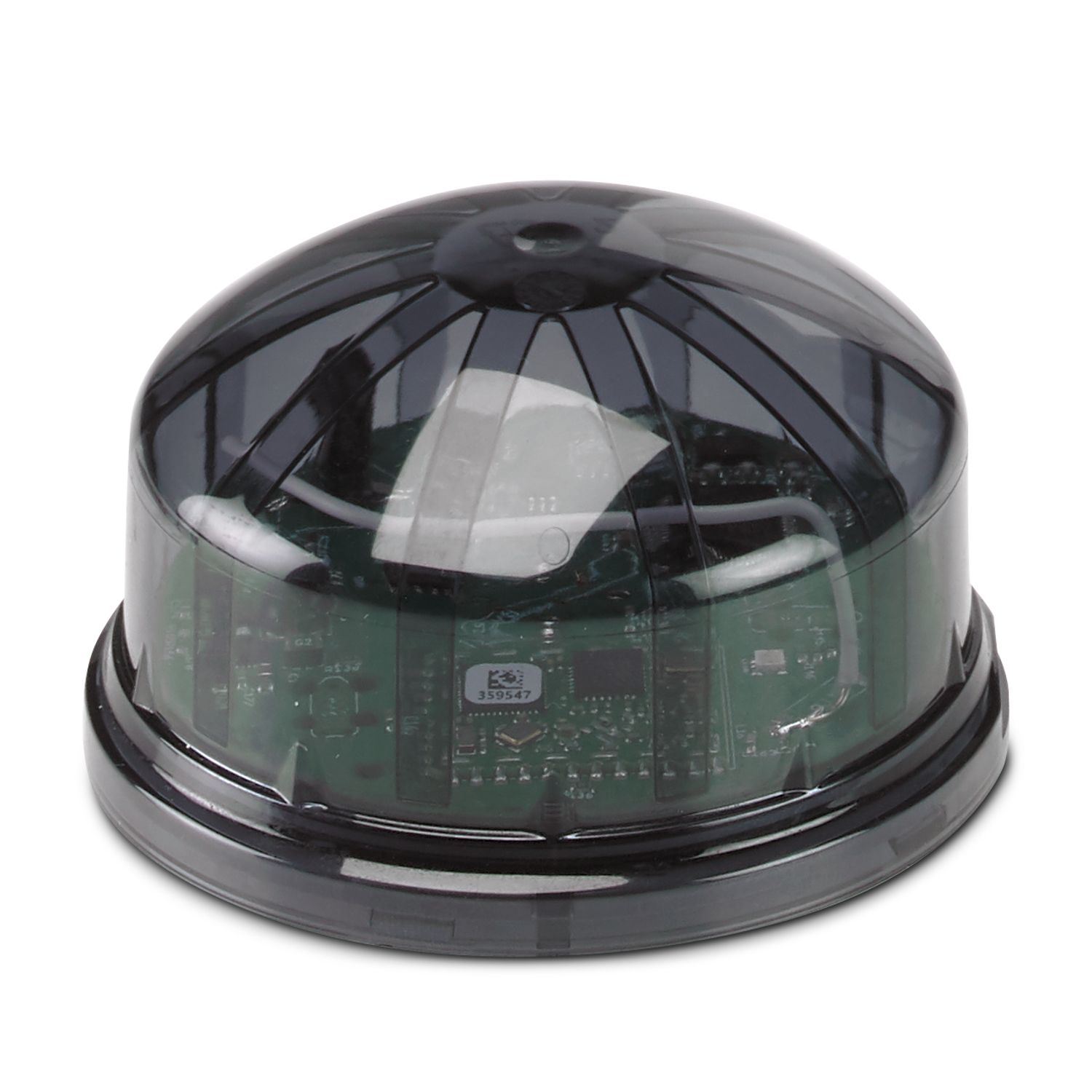

LPWAN LCU D4I ZHAGA BULK 48 EU
-
Wireless module
1639836
Zhaga Book 18-compatible control device for street lighting via LoRaWAN®, packing unit: 48 pieces, power supply and DALI-2 communication via Zhaga-compatible base, control of DALI-2-compatible electronic ballasts
Tuotetiedot
| Note on application | |
| Note on application | Only for industrial use |
| Product type | Wireless module |
| Insulation characteristics | |
| Protection class | II (plastic housing) |
| Transient surge protection | no |
| System limits | |
| Designation | Wireless module |
| Number of supported devices | = 1 (via DALI communication with internal power supply) |
| ≤ 64 (via DALI communication with external power supply) | |
| Supply | |
| Supply voltage | typ. 24 V DC ±2 V (≥ 1 W) |
| Connection method | Zhaga Book 18 socket |
| Functions | |
| Basic functions | Controller for LED driver |
| Automatic channel selection | ADR |
| Wireless licenses | Europe |
| Country support | Egypt |
| Albania | |
| Andorra | |
| Armenia | |
| Austria | |
| Bahrain | |
| Bangladesch | |
| Belarus | |
| Belgium | |
| Burma (Myanmar) | |
| Bosnia/Herzegovina | |
| Brunei Darussalam | |
| Bulgaria | |
| Cambodia | |
| Croatia | |
| Cyprus | |
| Czech Republic | |
| Denmark | |
| Estonia | |
| Finland | |
| France | |
| Germany | |
| Greece | |
| Iceland | |
| Hungary | |
| Iran | |
| Italy | |
| Laos | |
| Latvia | |
| Lebanon | |
| Liechtenstein | |
| Lithuania | |
| Luxembourg | |
| Macedonia | |
| Malta | |
| Moldavia | |
| Montenegro | |
| Morocco | |
| Netherlands | |
| New Zealand | |
| Nigeria | |
| Norway | |
| Oman | |
| Pakistan | |
| Philippines | |
| Poland | |
| Qatar | |
| Romania | |
| Saudi Arabia | |
| Serbia | |
| Singapore | |
| Slovakia | |
| Slovenia | |
| South Africa | |
| Spain | |
| Sweden | |
| Switzerland | |
| Tunisia | |
| Turkey | |
| Ukraine | |
| United Arab Emirates | |
| Great Britain | |
| Ireland | |
| Portugal | |
| Vietnam | |
| Wireless | |
| Designation | LoRaWAN® EU 868 |
| Number | 1 |
| Frequency band | 868 MHz |
| Wireless standard | LoRaWAN® |
| Transmission power | up to 27 dBm |
| Range | up to 15 km |
| Receiver sensitivity | - 139.50 dBm |
| Transmission physics | LoRa® |
| Number of wireless interfaces | 1 |
| Dimensional drawing |
|
| Width | 80 mm |
| Height | 45 mm |
| Depth | 80 mm |
| Color | transparent |
| Ambient conditions | |
| Degree of protection | IP66 |
| Ambient temperature (operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Permissible humidity (operation) | 0 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 0 % ... 95 % |
| CE | |
| Identification | CE-compliant |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Conformance with EMC directives | Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Electrostatic discharge (ESD)EN 61000-4-2/IEC 61000-4-2 Criterion A, ±4 kV contact discharge, ±8 kV air discharge |
| Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Electromagnetic fieldsEN 61000-4-3/IEC 61000-4-3 Criterion A, Field intensity: 10 V/m | |
| Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Fast transients (burst)EN 61000-4-4/IEC 61000-4-4 Criterion A, ±2 kV | |
| Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Transient overvoltage (surge)EN 61000-4-5/IEC 61000-4-5 Criterion A, ±1 kV (symmetrical) | |
| Immunity test in accordance with EN 61000-6-2/IEC 61000-6-2 Conducted interferenceEN 61000-4-6/IEC 61000-4-6 Criterion A, Test voltage 10 V | |
| Noise emission test in accordance with EN 61000-6-3/IEC 61000-6-3 Radio interference properties EN 55015 |
| Mounting type | Zhaga Book 18 connector |
Edut
Improved energy efficiency with bidirectional LoRaWAN® communication
Keep an eye on lighting points at all times with remote parameterization and diagnostics
Automatic fallback strategy in case of communication failure
TLS 128 encrypted data transmission
