MUTTB 2,5 BU - Mini feed-through terminal block

3249014

Mini feed-through terminal block, nom. voltage: 500 V, nominal current: 22 A, connection method: Screw connection, Rated cross section: 2.5 mm², cross section: 0.2 mm² - 4 mm², mounting type: NS 15, NS 35/7,5, NS 35/15, color: blue

Tuotetiedot

Product type	Miniature terminal block
Number of positions	2
Number of connections	4
Number of rows	2
Potentials	2
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Maximum power dissipation for nominal condition	0.77 W

Number of connections per level	2
Nominal cross section	2.5 mm²
Screw thread	M3
Stripping length	7 mm ... 9 mm
Internal cylindrical gage	A3
Connection in acc. with standard	IEC 60947-7-1
Conductor cross section rigid	0.2 mm² ... 4 mm²
Cross section AWG	24 ... 12 (converted acc. to IEC)
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section, flexible [AWG]	4 ... 14 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.25 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.25 mm² ... 2.5 mm²
2 conductors with same cross section, solid	0.2 mm² ... 1.5 mm²
2 conductors with the same cross-section AWG rigid	24 ... 16 (converted acc. to IEC)
2 conductors with same cross section, flexible	0.2 mm² ... 1.5 mm²
2 conductors with the same cross-section AWG flexible	24 ... 16 (converted acc. to IEC)
2 conductors with same cross section, flexible, with ferrule without plastic sleeve	0.2 mm² ... 1.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm² ... 1.5 mm²
Nominal current	22 A (with a 2.5 mm² conductor cross section)
Maximum load current	28 A (with 4 mm² conductor cross-section)
Nominal voltage	500 V
Nominal cross section	2.5 mm²

Rated data (ATEX/IECEx)
Identification	 II 2 GD Ex eb IIC Gb
Operating temperature range	-60 °C ... 110 °C
Ex-certified accessories	3249016 D-MUTTB 2,5
	1462738 DP-MUTTB 2,5
	1205053 SZS 0,6X3,5
	3022263 CLIPFIX 15
	3022276 CLIPFIX 35-5
List of bridges	Plug-in bridge / FBS 2-5 / 3030161
	Plug-in bridge / FBS 3-5 / 3030174
	Plug-in bridge / FBS 4-5 / 3030187
	Plug-in bridge / FBS 5-5 / 3030190
	Plug-in bridge / FBS 10-5 / 3030213
	Plug-in bridge / FBS 20-5 / 3030226
	Plug-in bridge / FBS 50-5 / 3038930
Bridge data	19 A / 2.5 mm²
Ex temperature increase	40 K (19 A / 2.5 mm²)
for bridging with bridge	275 V
- At bridging between non-adjacent terminal blocks	220 V
Rated insulation voltage	250 V
output	(Permanent)
Ex level General
Rated voltage	275 V
Rated current	19 A (2.5 mm²)
Maximum load current	24 A (4 mm²)
Ex connection data
Torque range	0.5 Nm ... 0.6 Nm
Connection capacity rigid	0.2 mm² ... 4 mm²
Connection capacity AWG	24 ... 12
Connection capacity flexible	0.2 mm² ... 2.5 mm²
Connection capacity AWG	24 ... 14
2 conductors with same cross section, solid	0.2 mm² ... 1.5 mm²
2 conductors with the same cross-section AWG rigid	24 ... 16
2 conductors with same cross section, stranded	0.2 mm² ... 1.5 mm²
2 conductors with the same cross-section AWG flexible	24 ... 16
output	(Permanent)
Ex level Level 1
Contact resistance	0.42 mΩ
output	(Permanent)
Ex level Level 2
Contact resistance	0.27 mΩ

Width	5.2 mm
Height	63.5 mm
Depth	50.8 mm
Depth on NS 15	51.6 mm
Depth on NS 35/7,5	52.3 mm
Depth on NS 35/15	59.8 mm

Color	blue (RAL 5015)
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Mechanical data
Open side panel	Yes

Oscillation/broadband noise
Specification	DIN EN 50155 (VDE 0115-200):2022-06
Spectrum	Long life test category 2, bogie-mounted
Frequency	f₁ = 5 Hz to f₂ = 250 Hz
ASD level	6.12 (m/s²)²/Hz
Acceleration	3.12g
Test duration per axis	5 h
Test directions	X-, Y- and Z-axis
Result	Test passed
Shocks
Specification	DIN EN 50155 (VDE 0115-200):2022-06
Pulse shape	Half-sine
Acceleration	30g
Shock duration	18 ms
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)
Result	Test passed
Ambient conditions
Ambient temperature (operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Connection in acc. with standard	IEC 60947-7-1

Mounting type	NS 15
	NS 35/7,5
	NS 35/15

Kaupalliset tiedot

Tuotenumero	3249014
Pakkausyksikkö	50 Kappaletta
Vähimmäistilausmäärä	50 Kappaletta
Tuoteavain	BE1164
Tuotekoodi	BE1164
GTIN	4055626405094
Paino kappaletta kohti (sis. pakkauksen)	13,02 g
Paino kappaletta kohti (ilman pakkausta)	9,99 g
Tullitariffinumero	85369010
Alkuperämaa	PL

Luokitukset

Hyväksynnät

Approval Specification Data
	Nimellisjännite U_N	Nimellisvirta I_N	Poikkipinta AWG
Use group B
	150 V	20 A	24 - 12
Use group C
	150 V	20 A	24 - 12
Use group D
	300 V	10 A	24 - 12

Approval Specification Data
	Nimellisjännite U_N	Nimellisvirta I_N	Poikkipinta AWG
Use group B
	150 V	20 A	24 - 12
Use group C
	150 V	20 A	24 - 12
Use group F
	500 V	20 A	24 - 12
Use group D
	300 V	10 A	24 - 12

Approval Specification Data
	Nimellisjännite U_N	Nimellisvirta I_N	Poikkipinta AWG	Poikkipinta mm²
Only flexible conductors	275 V	19 A		0.2 - 2.5
Only rigid conductors	275 V	24 A		0.2 - 4

Approval Specification Data
	Nimellisjännite U_N	Nimellisvirta I_N	Poikkipinta AWG	Poikkipinta mm²
Only flexible conductors	275 V	19.5 A		0.2 - 2.5
Only rigid conductors	275 V	24 A		0.2 - 4

Environmental product compliance

Yhteensopivat tuotteet

Lisätarvikkeet

Edut

Fixed bridges and test sockets can be used on both levels

Space saving thanks to compact design and mounting option on a 15 mm DIN rail

Clear arrangement thanks to marking of all terminal points

Easy potential distribution thanks to standardized plug-in bridges

EU RoHS
Täyttää RoHS-direktiivin vaatimukset	Kyllä
poikkeussäännökset siltä osin kuin ne ovat tiedossa	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 Löydät tuotekohtaisen Kiinan RoHS-ilmoitusluettelon kunkin tuotteen latausalueelta Valmistajan ilmoitus -kohdasta. EFUP-E-merkinnän sisältäville tuotteille ei tarvita Kiinan RoHS-ilmoitusluetteloa, eikä sitä tarvitse siksi laatia.
EU REACH SVHC
Huomautus REACH-kandidaattiaineesta (CAS-nro)	Lead (CAS-nro: 7439-92-1)
SCIP	9577e8bf-9a72-4c8a-befe-4fbc08ccda36

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

MUTTB 2,5 BU - Mini feed-through terminal block

3249014

Tuotetiedot

ECLASS

ETIM

UNSPSC

CSA

cULus Recognized

DNV

IECEx

ATEX

Yhteensopivat tuotteet

Edut

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

MUTTB 2,5 BU - Mini feed-through terminal block 3249014

Tuotetiedot

ECLASS

ETIM

UNSPSC

Yhteensopivat tuotteet

FBS 2-5 - Plug-in bridge 3030161

FBS 3-5 - Plug-in bridge 3030174

FBS 4-5 - Plug-in bridge 3030187

FBS 5-5 - Plug-in bridge 3030190

FBS 10-5 - Plug-in bridge 3030213

FBS 20-5 - Plug-in bridge 3030226

FBS 50-5 - Plug-in bridge 3038930

FBSR 2-5 - Plug-in bridge 3033702

FBSR 3-5 - Plug-in bridge 3001591

FBSR 4-5 - Plug-in bridge 3001592

FBSR 5-5 - Plug-in bridge 3001593

FBSR 10-5 - Plug-in bridge 3033710

FBS 2-5 BU - Plug-in bridge 3036877

FBS 3-5 BU - Plug-in bridge 3036880

FBS 4-5 BU - Plug-in bridge 3036893

FBS 5-5 BU - Plug-in bridge 3036903

FBS 10-5 BU - Plug-in bridge 3036916

FBS 20-5 BU - Plug-in bridge 3036929

FBS 50-5 BU - Plug-in bridge 3032114

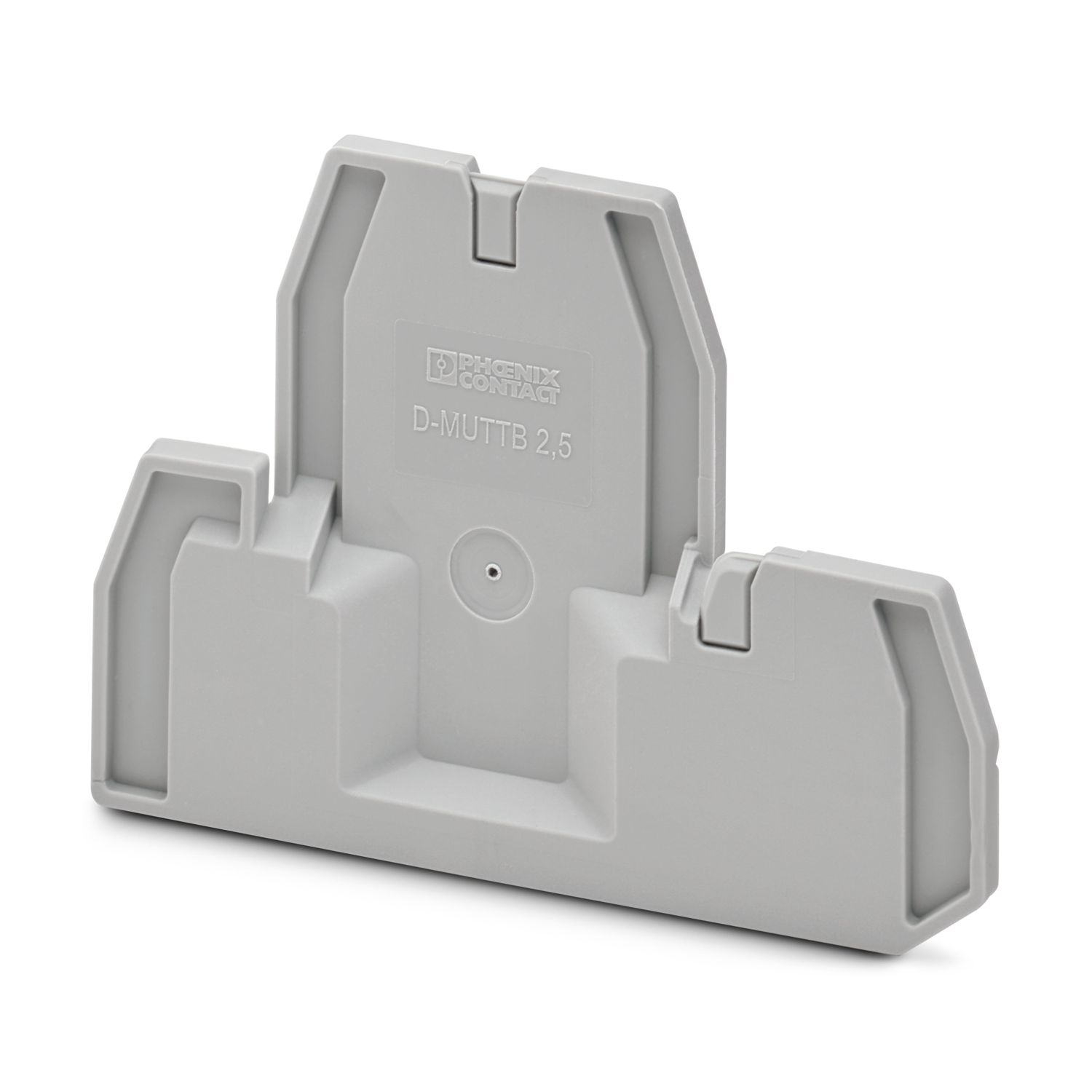

D-MUTTB 2,5 - End cover 3249016

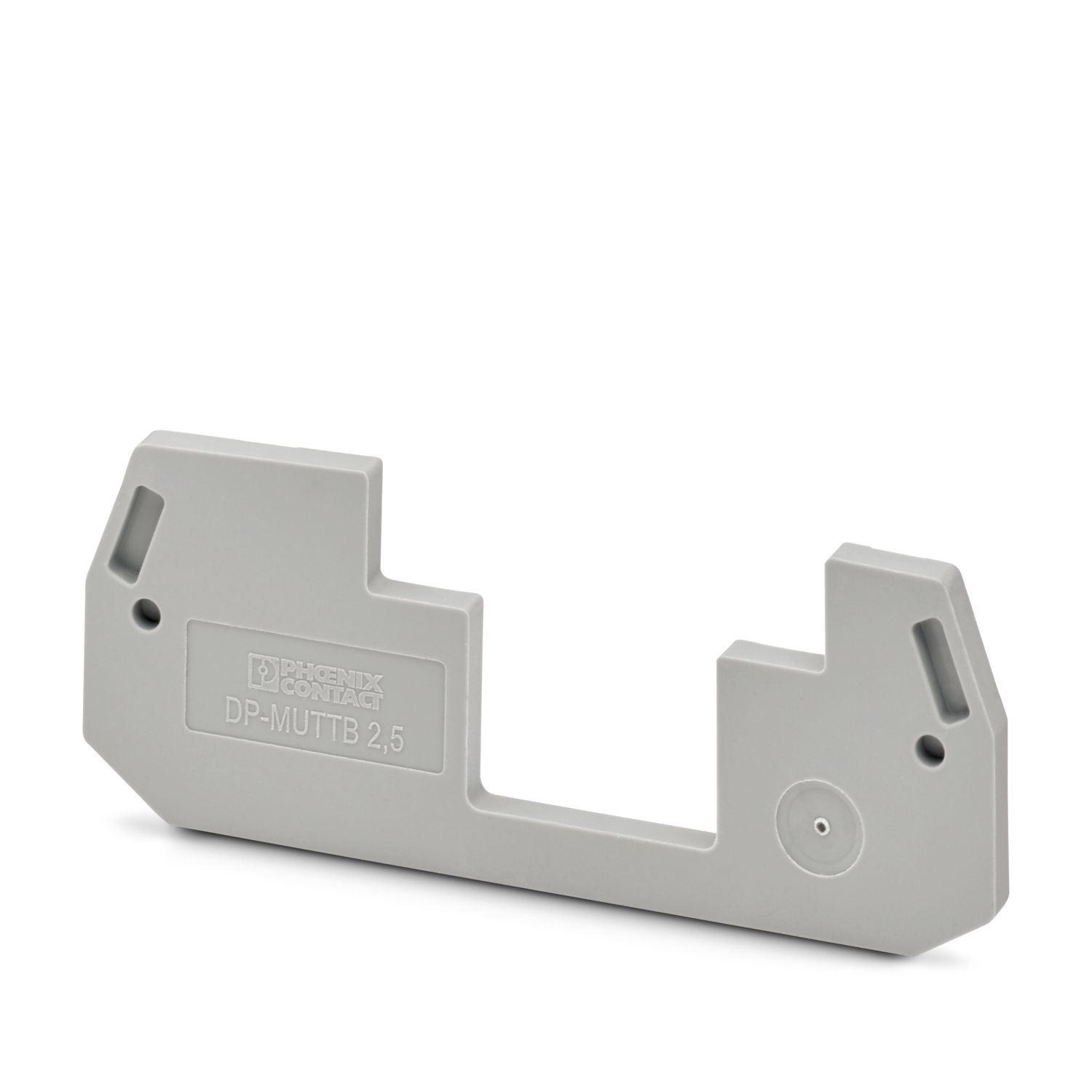

DP-MUTTB 2,5 - Spacer plate 1462738
