HC-B 10-KMQ-73/O1PG21G
-
Housing
1678392
Coupling housing, with double locking latch, height 73 mm, without screw connection, 1x Pg21
Tuotetiedot
| General | For contact inserts HC-B10, BB18, DD42, M, K8/24 |
| Product type | Housing with locking latch |
| Housing type | Coupling housings |
| Application | Standard |
| Type | B10 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x Pg21 |
| Cable outlet | straight |
| Pg screw connection | none |

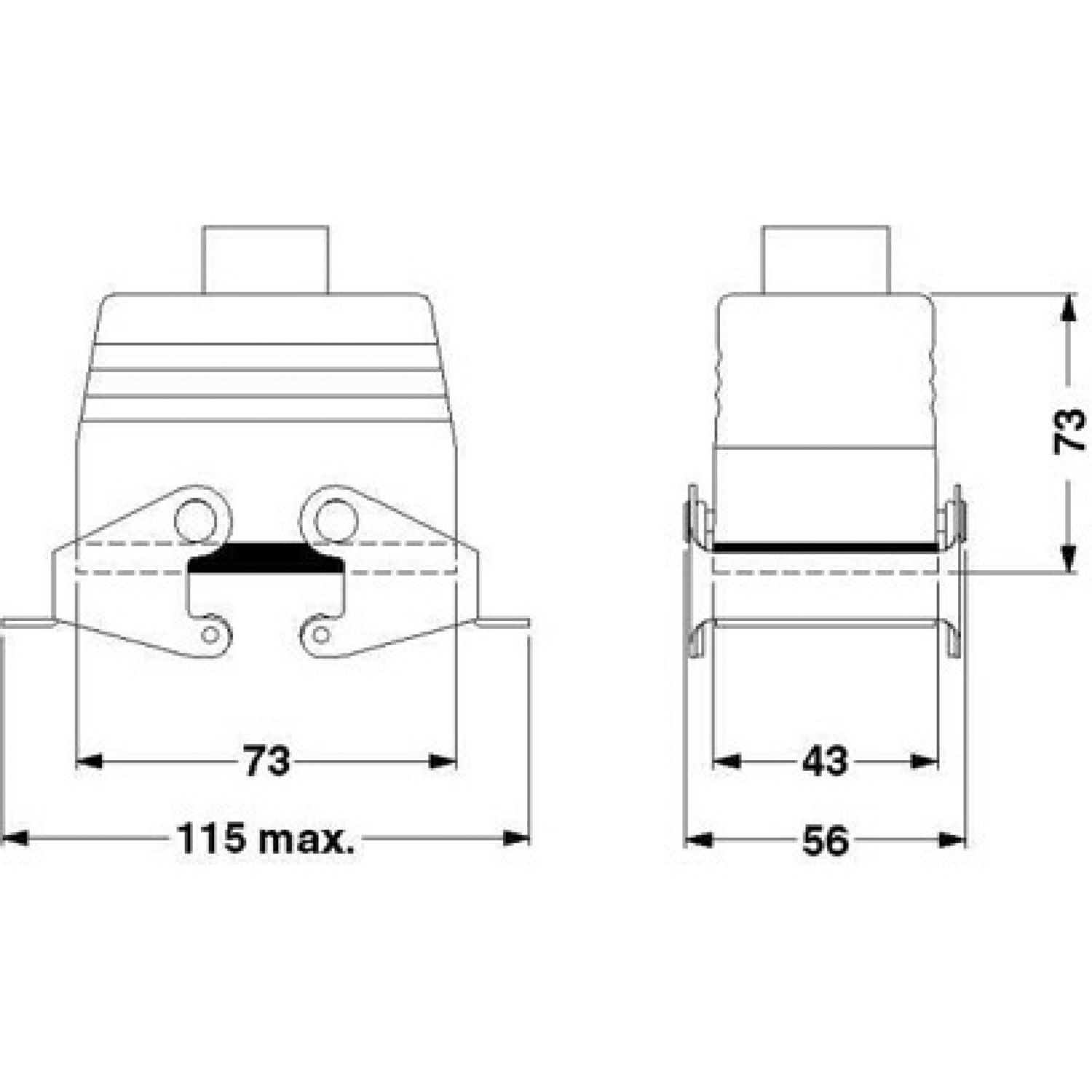

| Dimensional drawing |
|
| Width | 43 mm |
| Height | 73 mm |
| Length | 73 mm |
| Seal material | NBR |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Locking latch material | Stainless steel, handle: PA |
| Mechanical data | |
| Type of the screw connection | 1x Pg21 |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
