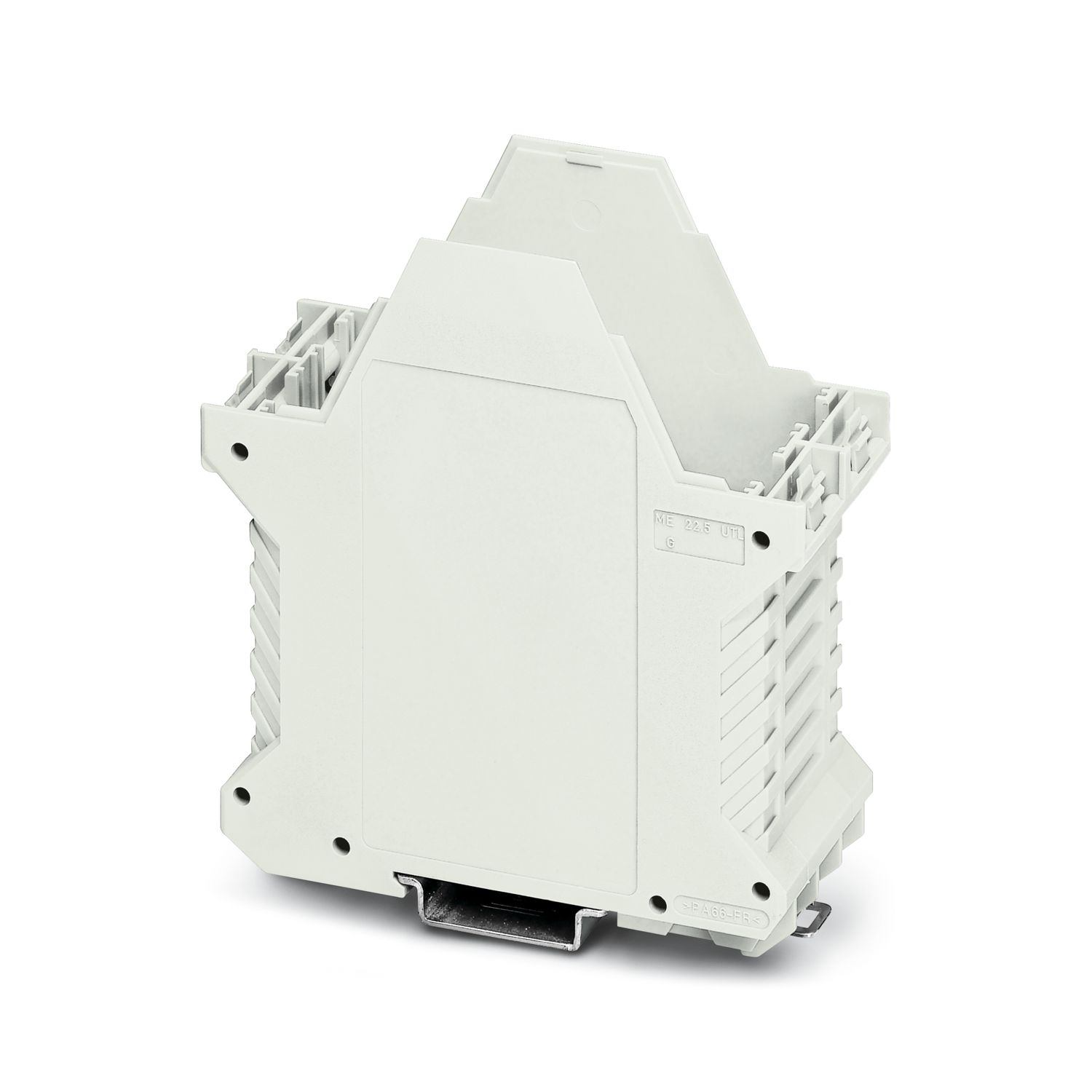

ME 45 UTG GYWH - Mounting base housing - 2707123

Tuotetiedot

Tekniset tiedot

Notes

Assembly note	Please observe the application note in the download area.
Recommendation	Material of contact pads for bus connector, galvanic gold (hard gold)

Product properties

Product type	Enclosure bottom part
Housing type	Component housing
Product family	ME UTG
Type	Lower housing parts without vents, housing cover necessary to complete the module
Number of positions	32
	8
Type	Tall design
Ventilation openings present	no

Dimensions

Width	45 mm
Depth	99 mm

Material specifications

Housing material	PA

Environmental and real-life conditions

Power dissipation single housing for 20 °C
Ambient temperature	20 °C
Reduction factor	1
Mounting position	vertical
Power dissipation	7.6 W
Power dissipation single housing for 30 °C
Ambient temperature	30 °C
Reduction factor	0.91
Mounting position	vertical
Power dissipation	6.9 W
Power dissipation single housing for 40 °C
Ambient temperature	40 °C
Reduction factor	0.81
Mounting position	vertical
Power dissipation	6.1 W
Power dissipation single housing for 50 °C
Ambient temperature	50 °C
Reduction factor	0.7
Mounting position	vertical
Power dissipation	5.3 W
Power dissipation single housing for 60 °C
Ambient temperature	60 °C
Reduction factor	0.57
Mounting position	vertical
Power dissipation	4.3 W
Power dissipation single housing for 70 °C
Ambient temperature	70 °C
Reduction factor	0.49
Mounting position	vertical
Power dissipation	3.7 W
Vibration test
Specification	IEC 60068-2-6:2007-12
Frequency	10 - 150 - 10 Hz
Sweep speed	1 octave/min
Amplitude	0.15 mm (10 Hz ... 58.1 Hz)
Acceleration	2g (58.1 Hz ... 150 Hz)
Test duration per axis	2.5 h
Test directions	X-, Y- and Z-axis
Glow-wire test
Specification	IEC 60695-2-11:2014-02
Temperature	850 °C
Time of exposure	30 s
Thermal stability / ball thrust test
Specification	IEC 60695-10-2:2014-02
Temperature	125 °C
Test duration	1 h
Force	20 N
Mechanical strength / tumbling barrel
Specification	IEC 60998-1:2002-12
Height of fall	50 cm
Frequency	10
Shocks
Specification	IEC 60068-2-27:2008-02
Pulse shape	Half-sine
Acceleration	15g
Shock duration	11 ms
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)
Degree of protection (IP code)
Specification	IEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08
Ambient conditions
Max. IP code to attain	IP20
Ambient temperature (operation)	-40 °C (depending on power dissipation)
Ambient temperature (storage/transport)	-40 °C ... 70 °C
Ambient temperature (assembly)	-5 °C ... 100 °C

Kaupalliset tiedot

Tuotenumero	2707123
Pakkausyksikkö	10 Kappaletta
Vähimmäistilausmäärä	1 Kappaletta
Huomautus	Toimeksiantosidonnainen valmistus (ei palautusta)
Tuoteavain	ACHAAA
Tuotekoodi	ACHAAA
GTIN	4017918895495
Paino kappaletta kohti (sis. pakkauksen)	66,08 g
Paino kappaletta kohti (ilman pakkausta)	51,004 g
Tullitariffinumero	85472000
Alkuperämaa	DE

Environmental product compliance

EU RoHS
Täyttää RoHS-direktiivin vaatimukset	Kyllä (Ei poikkeussäännöksiä)
China RoHS
Environment friendly use period (EFUP)	EFUP-E Ei raja-arvot ylittäviä vaarallisia aineita
EU REACH SVHC
Huomautus REACH-kandidaattiaineesta (CAS-nro)	Aineen pitoisuus ei ole yli 0,1 %.
