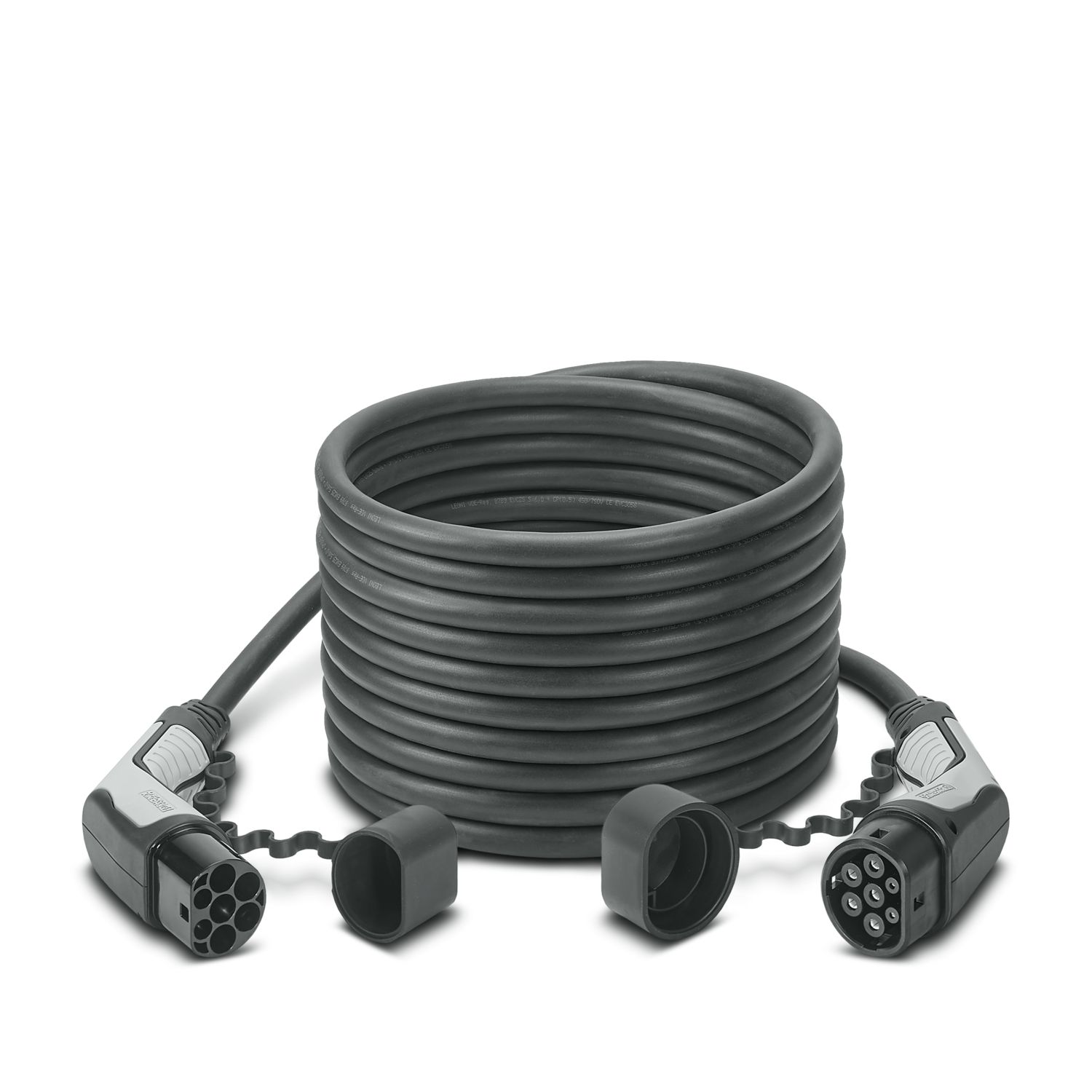

CHARX connect comfort, Type 2, Mobile AC charging cable, 32 A permanent, 480 V AC, with vehicle charging connector and infrastructure charging plug, cable: 10 m, black, straight, with protective cap, housing: black, gray, PHOENIX CONTACT logo, IEC 62196-2, for charging electric vehicles (EV) with alternating current (AC) via type 2 vehicle charging inlets
Mobile AC charging cable with vehicle charging connector and infrastructure charging plug for charging electric vehicles (EV) with alternating current (AC) via type 2 vehicle charging inlets, compatible with type 2 infrastructure charging sockets at charging stations for e-mobility (EVSE)
| Product type | AC charging cable |
| Product family | CHARX connect comfort |
| Application | for charging electric vehicles (EV) with alternating current (AC) via type 2 vehicle charging inlets |
| compatible with type 2 infrastructure charging sockets at charging stations for electromobility (EVSE) | |
| Type | Mobile AC charging cable |
| with vehicle charging connector and infrastructure charging plug | |
| Design | with protective cap |
| Affixed logo | PHOENIX CONTACT logo |
| Charging mode | Mode 3, Case B |
| Charging standard | Type 2 |
| Customer variations | On request |
| Type of signal transmission | Pulse width modulation |
| Note on the connection method | Crimp connection, cannot be disconnected |
| Coding | 220 Ω (between PE and PP) |
| Type of charging current | AC 3-phase |
| Charging power | 26.6 kW (3-phase) |
| Charging current | 32 A AC (3-phase) |
| Power contact | |
| Number | 5 (L1, L2, L3, N, PE) |
| Rated voltage | 480 V AC |
| Rated current | 32 A |
| Signal contact | |
| Number | 2 (CP, PP) |
| Rated voltage | 30 V AC |
| Rated current | 2 A |
| Infrastructure charging plug | |
| Dimensional drawing |
Infrastructure plug
|
| Width | 58 mm |
| Height | 131.8 mm |
| Depth | 233.4 mm |
| Vehicle charging connector | |
| Dimensional drawing |
Vehicle connector
|
| Width | 70 mm |
| Height | 137 mm |
| Depth | 215.9 mm |
| Color (Housing) | black (9005) |
| Color (Handle area) | gray (7042) |
| Color (Mating face) | black (9005) |
| Color (Protective cap) | black (9005) |
| Color (Cable) | black (9005) |
| Material (Vehicle charging connector) | Plastic |
| Material (Cable outer sheath) | TPE-U |
| Material (Infrastructure charging plug) | Plastic |
| Material (Contact surface) | Silver |
| Note | The color appearance and gloss level of the charging cable may vary. |
| Cable length | 10 m |
| Wiring standards/regulations | prEN 50620/DIN EN 50620 |
| Wiring certifications | VDE |
| Cable weight | max. 374.00 kg/km |
| Cable type | Class 5 |
| Cable type | straight |
| Cable structure | 5 x 4.0 mm² + 1 x 0.5 mm² |
| External cable diameter | 14.20 mm ±0.3 mm |
| Outer sheath, material | TPE-U |
| Cable resistance | ≤ 0.00425 Ω/m (based on a power core, at an ambient temperature of 20°C) |
| Bending radius | min. 113.6 mm (8x diameter) |
| Mechanical data | |
| Insertion/withdrawal cycles | > 10000 |
| Insertion force | < 100 N |
| Withdrawal force | < 100 N |
| Ambient conditions | |
| Degree of protection (Vehicle charging connector) | IP44 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products) |
| Degree of protection (Infrastructure charging plug) | IP44 (plugged in; when plugged in and ready to operate, the degree of protection is only ensued if both plug-in components are original products from Phoenix Contact or suitable standard-compliant products) |
| Degree of protection (Protective cap) | IP54 |
| Ambient temperature (operation) | -40 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | 5000 m (above sea level) |
| Standards | |
| Standards/regulations | IEC 62196-2 |
| Nimellisjännite UN | Nimellisvirta IN | Poikkipinta AWG | Poikkipinta mm2 | |
|---|---|---|---|---|
| 480 V | 32 A |
| Nimellisjännite UN | Nimellisvirta IN | Poikkipinta AWG | Poikkipinta mm2 | |
|---|---|---|---|---|
| 480 V | 32 A |
