HC-KA-D 40-ST/PEL
-
Contact insert
1774856

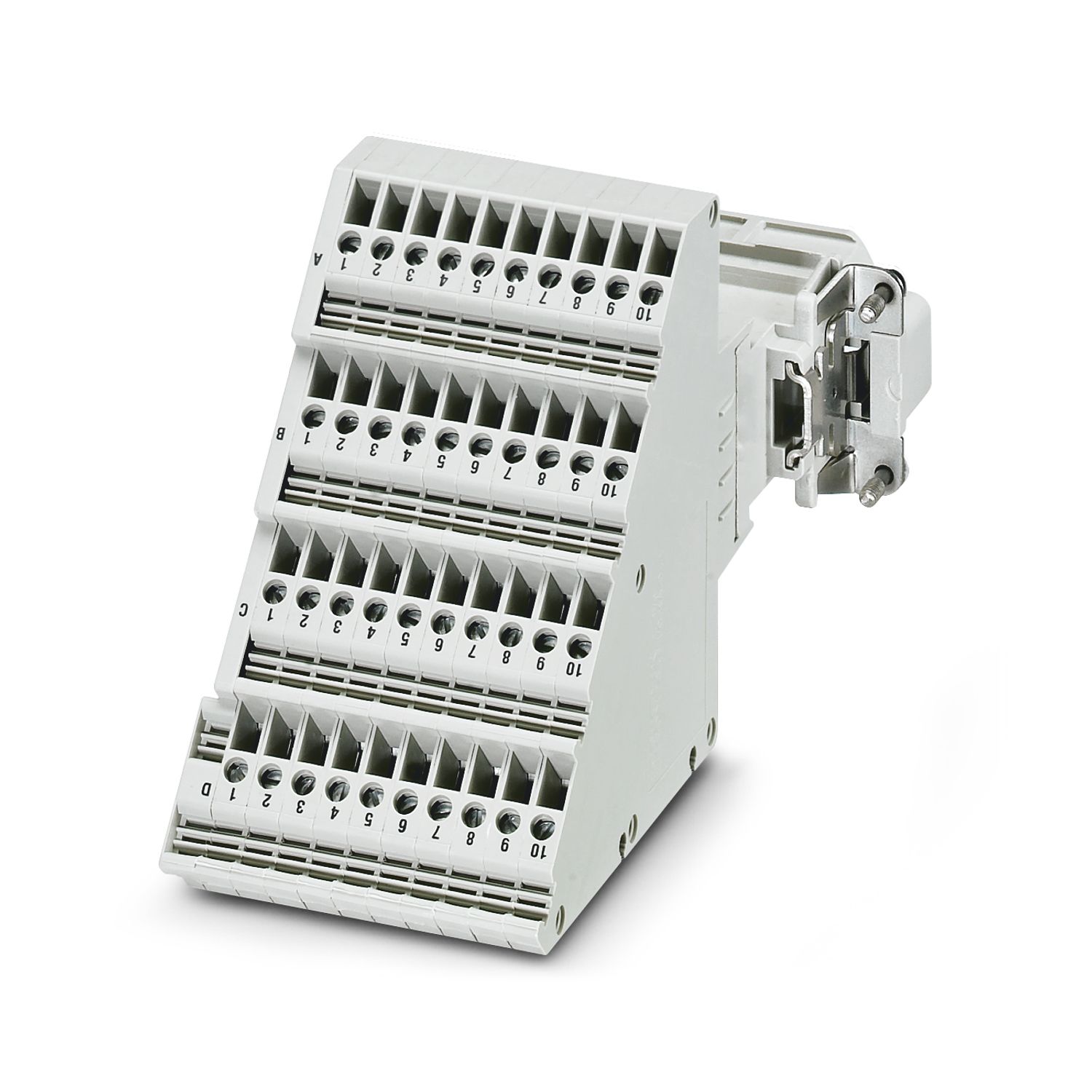

HEAVYCON terminal adapter male insert, D40 series, 40-pos., left protective conductor connection for the right side of the control cabinet, screw connection
Detalii despre produs
| General | For HEAVYCON-ADVANCE mounting flange and HEAVYCON panel mounting base of B16 type |
| Product type | Terminal adapter |
| Type | D40 |
| Number of positions | 40 |
| Connection profile | 40+PE |
| Type | for the right side of the control cabinet |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated voltage (III/3) | 250 V |
| Rated surge voltage | 4 kV |
| Rated current | 10 A |
| Connection technology | |
| Connection technology | Screw connection |
| Connection in acc. with standard | IEC / EN |
| Conductor connection | |
| Conductor cross section | 0.2 mm² ... 2.5 mm² |
| Connection cross section AWG | 22 ... 12 |
| Tightening torque | 0.5 Nm ... 0.8 Nm |
| Stripping length of the individual wire | 10 mm |

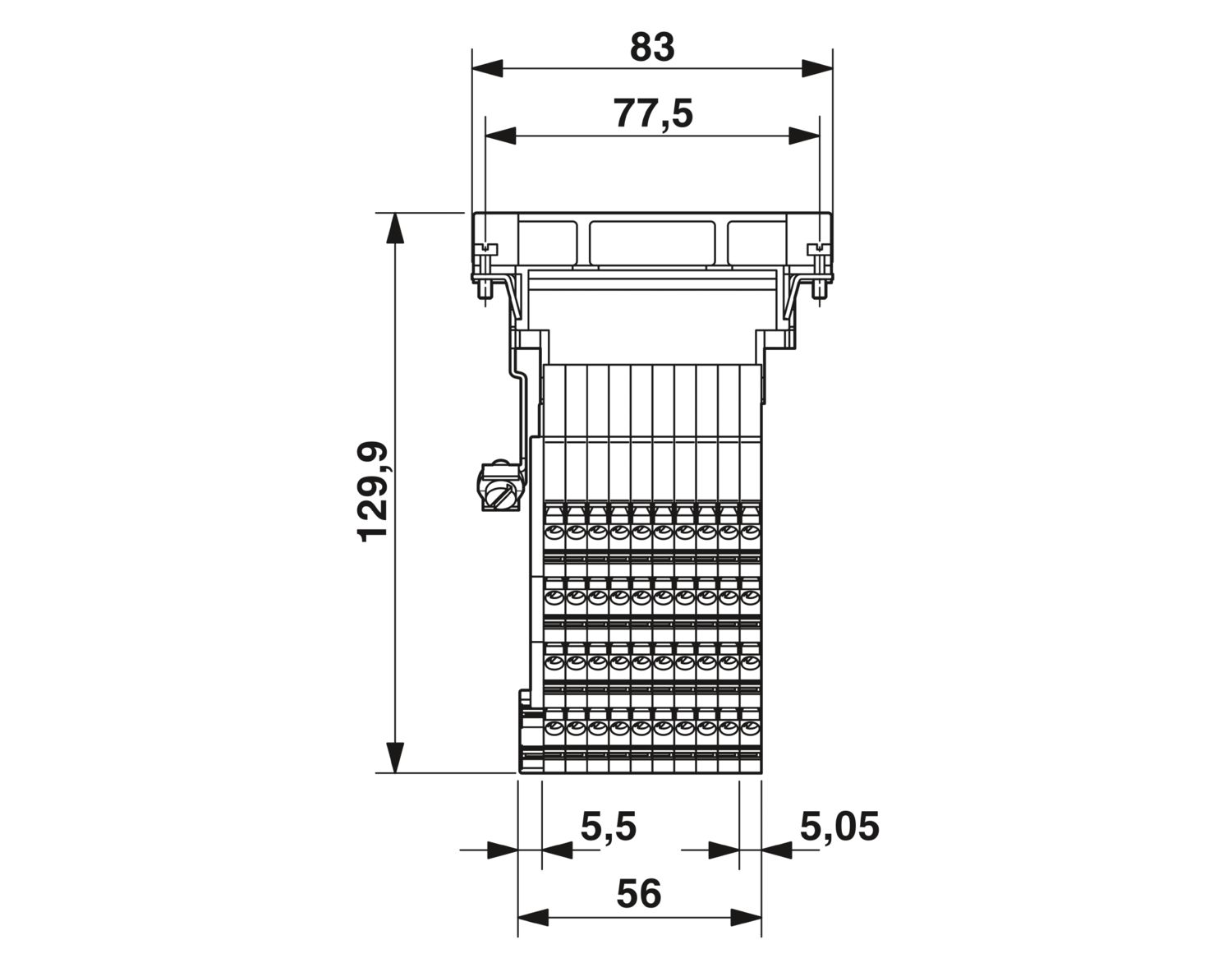

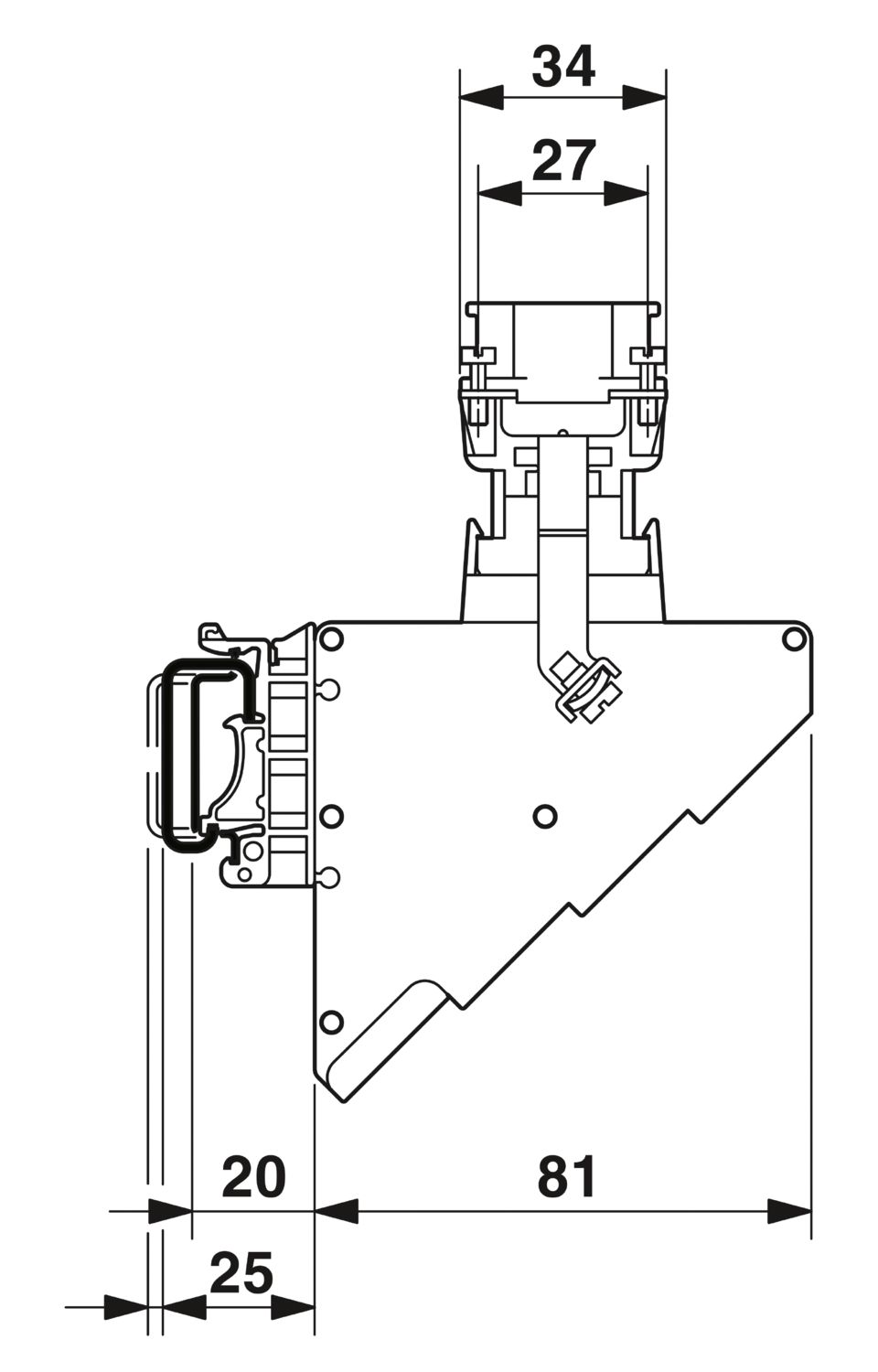

| Dimensional drawing |
|
| Width | 83 mm |
| Terminal adapter width | 56 mm |
| Height | 81 mm |
| Length | 132.6 mm |
| Flammability rating according to UL 94 | V0 |
| Contact material | Copper alloy |
| Contact surface material | Ag |
| Contact carrier material | PA/PC |
| Stripping length of the individual wire | 10 mm |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Assembly note | Connectors may be plugged in only when there is no load/voltage. Not for HC-B 16-AMQ-EMV housings |
