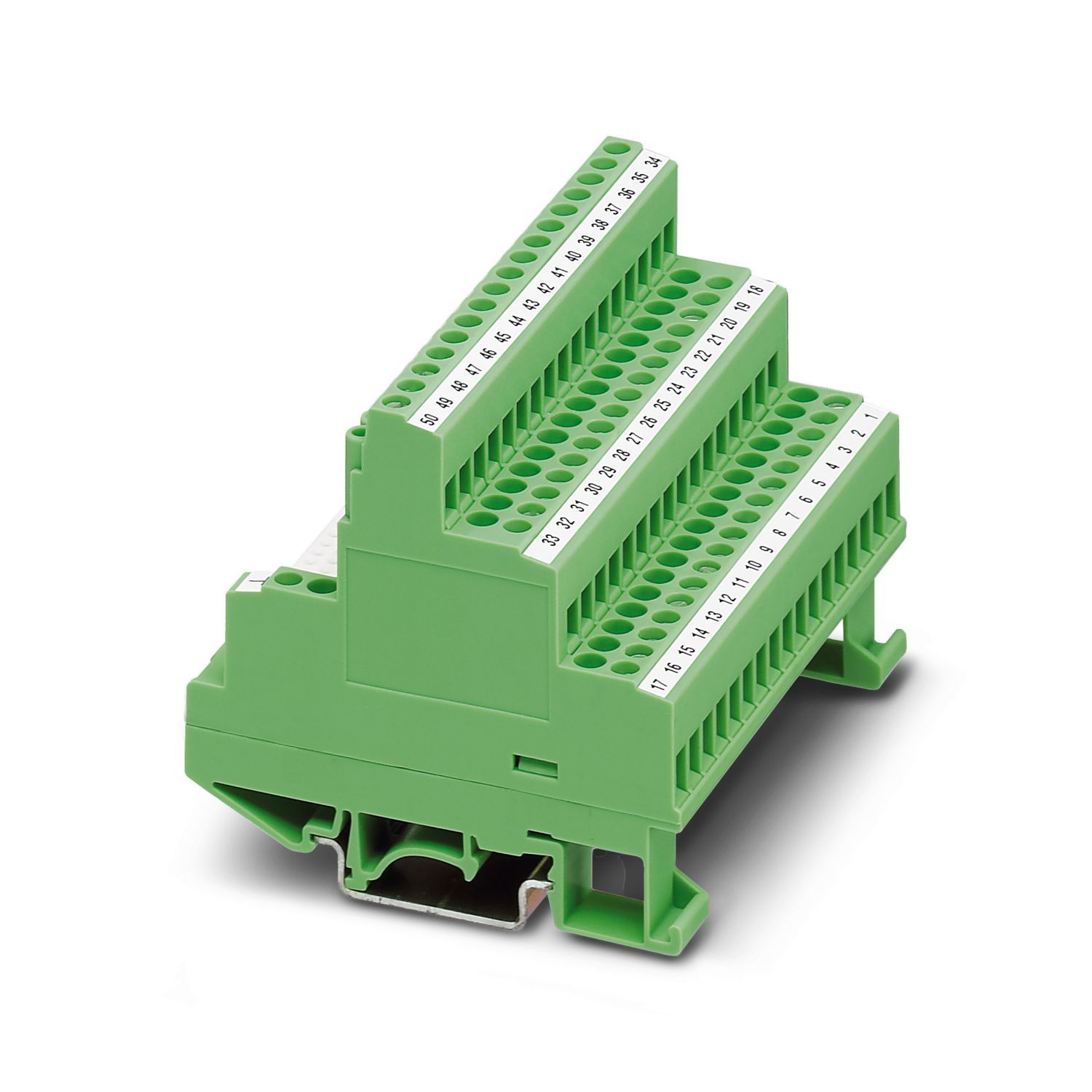

VARIOFACE module, with screw connection and D-Subminiature socket, for mounting on NS 35/7.5 or NS 32, 50-pos. (separate test socket for each channel)
Detalii despre produs
Product type
Interface module
Product family
VARIOFACE
Number of positions
50
Insulation characteristics
Overvoltage category
II
Pollution degree
2
Nominal voltage UN
125 V AC
Max. current carrying capacity per branch
2.5 A
Max. total current of all branches
75 A
Field level
Connection in acc. with standard
IEC / EN
Connection method
Screw connection
Stripping length
8 mm
Screw thread
M3
Note
separate test socket for each channel
Conductor cross section rigid
0.2 mm² ... 4 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
24 ... 12
Controller level
Connection method
D-SUB socket strip
Number of positions
50
Status display present
no
Item dimensions
Width
86 mm
Height
71 mm
Depth
51.2 mm
Color
green (RAL 6021)
Housing insulation material
Polyamide 6 green
Ambient conditions
Ambient temperature (operation)
-25 °C ... 50 °C
Ambient temperature (storage/transport)
-25 °C ... 70 °C
Standards/regulations
IEC 60664
DIN EN 50178
Mounting type
DIN rail mounting
Mounting position
any
Notes on operation
For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
Număr articol
2283676
Unitate de ambalare
5 Bucată
Cantitate minimă pentru comandă
1 Bucată
Indicație
Produs la comandă (nereturnabil)
Cod produs
DK2182
GTIN
4017918055615
Greutate pe bucată (inclusiv ambalajul)
224,46 g
Greutate pe bucată (fără ambalaj)
205,724 g
Cod tarifar vamal
85369010
Țara de origine
DE
EU REACH SVHC
Trimitere la substanţa candidată REACH (nr. CAS)
Nicio substanţă cu un procentaj masic mai mare de 0,1 %
