HC-B 24-TMQ-76/O1STM25G
-
Housing
1647226

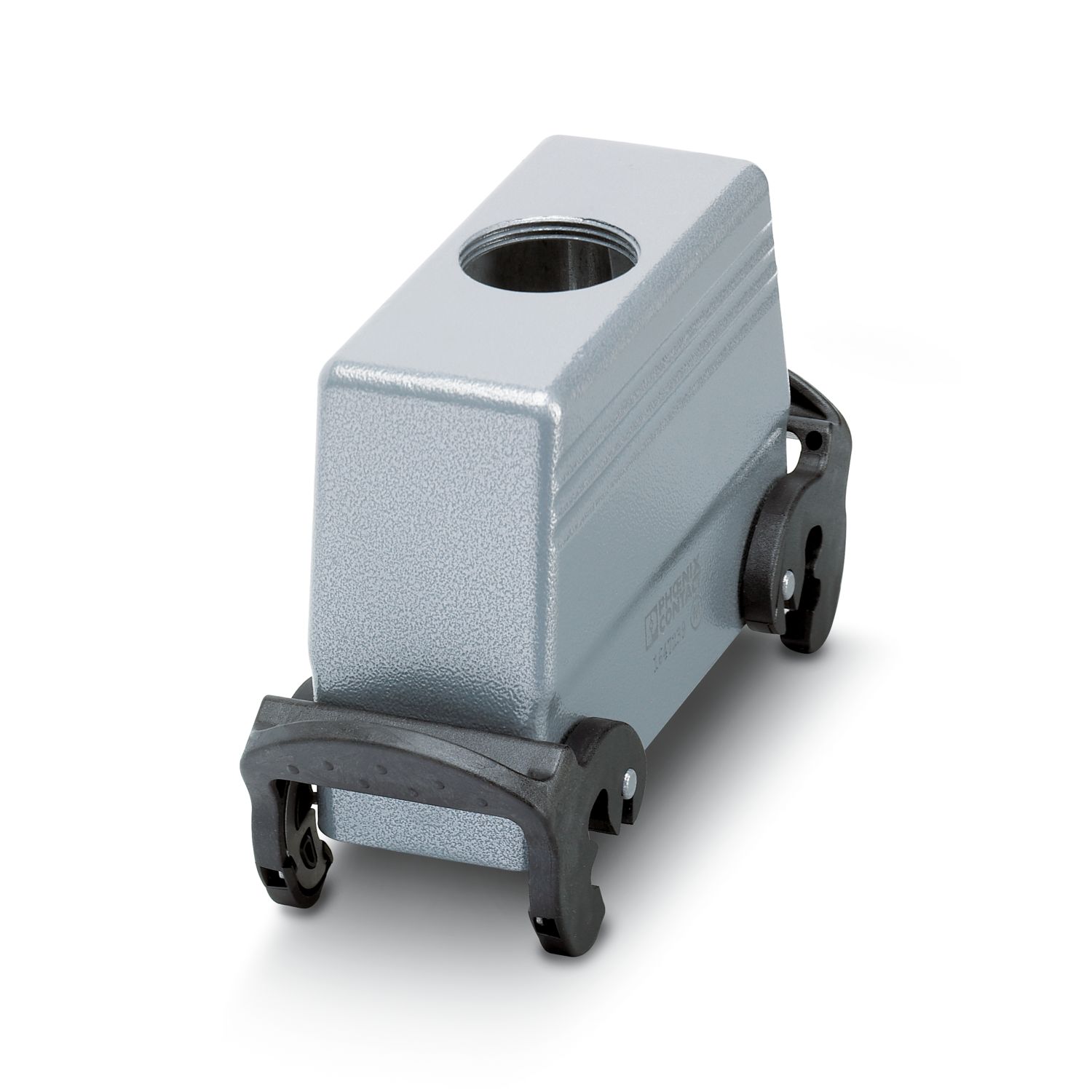

HEAVYCON sleeve housing B24, with double locking latch, height 76 mm, with thread 1x M25, straight conductor exit
Detalii despre produs
| General | For contact inserts HC-B24, BB46, BBB64, D64, DD108, M |
| Product type | Housing with locking latch |
| Housing type | Sleeve housing |
| Application | Standard |
| Type | B24 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x M25 |
| Shielded | no |
| Cable outlet | straight |
| Pg screw connection | none |
| Dimensional drawing |
|
| Width | 43 mm |
| Height | 76 mm |
| Length | 120 mm |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Locking latch material | High-grade steel, handle: PA-GF |
| Mechanical data | |
| Type of the screw connection | 1x M25 |
| Locking type | Latch |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
