HC-B 16-SMQ-67/M1M25
-
Housing
1586895

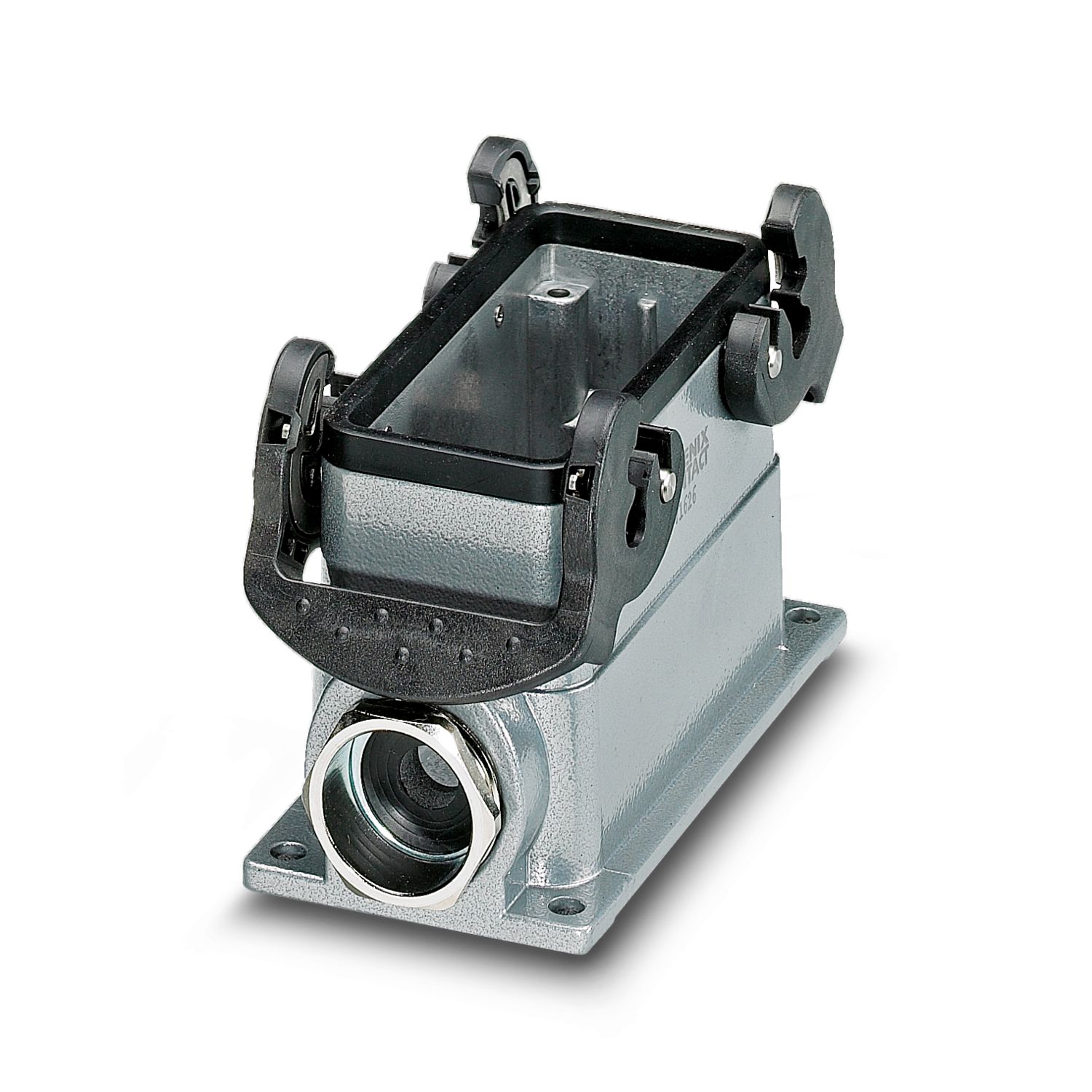

Box mounting base, with double locking latch, height 67 mm, with screw connection, 1x M25
Detalii despre produs
| General | For contact inserts HC-B16, BB32, BBB40, D40, DD72, HS6, M, K |
| Product type | Housing with locking latch |
| Housing type | Surface mounting housing |
| Application | Standard |
| Type | B16 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x M25 |
| Shielded | no |
| Cable outlet | lateral |
| Pg screw connection | with |
| Dimensional drawing |
|
| Width | 57 mm |
| Height | 67 mm |
| Length | 117 mm |
| Wrench size, union nut | 25 mm |
| Material Screw connection | Brass, nickel-plated |
| Seal material Cable seal | NBR |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Locking latch material | Stainless steel, handle: PA |
| Mechanical data | |
| Type of the screw connection | 1x M25 |
| Locking type | Latch |
| External cable diameter Cable 1 | 9 mm ... 18 mm |
| External cable diameter | 9 mm ... 18 mm |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
