SSK 0525 KER 1E - Feed-through terminal block - 3058500

Product properties

Product type	High temperature terminal block
Number of connections	2
Number of rows	1
Potentials	1
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Electrical properties

Rated surge voltage	8 kV

Connection data

Number of connections per level	2
Nominal cross section	2.5 mm²
Level 1 above 1 below 1
Screw thread	M3
Tightening torque	0.6 ... 0.8 Nm
Stripping length	9 mm
Internal cylindrical gage	A3
Connection in acc. with standard	IEC 60947-7-1
Conductor cross section rigid	0.2 mm² ... 4 mm²
Cross section AWG	24 ... 12 (converted acc. to IEC)
Conductor cross section flexible	0.2 mm² ... 4 mm²
Conductor cross section, flexible [AWG]	24 ... 12 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.25 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.25 mm² ... 1.5 mm²
2 conductors with same cross section, solid	0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible	0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve	0.25 mm² ... 1.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm² ... 1.5 mm²
Nominal current	24 A
Maximum load current	32 A (with 4 mm² conductor cross section)
Nominal voltage	690 V
Nominal cross section	2.5 mm²

Dimensions

Width	6.2 mm
End cover width	3.5 mm

Material specifications

Color	ivory
Material	Ceramics
Insulating material group	I

Electrical tests

Surge voltage test
Test voltage setpoint	9.8 kV
Result	Test passed
Short-time withstand current 4 mm²	0.48 kA
Result	Test passed
Power-frequency withstand voltage
Test voltage setpoint	1.89 kV
Result	Test passed

Mechanical properties

Mechanical data
Open side panel	Yes

Mechanical tests

Mechanical strength
Result	Test passed
Attachment on the carrier
DIN rail/fixing support	NS 32
Test force setpoint	1 N
Result	Test passed
Test for conductor damage and slackening
Rotation speed	10 rpm
Revolutions	135
Conductor cross section/weight	0.2 mm² / 0.2 kg
	4 mm² / 0.9 kg
Result	Test passed

Environmental and real-life conditions

Ambient conditions
Ambient temperature (storage/transport)	for a short time, not exceeding 24 h, -60 °C to +70 °C

Standards and regulations

Connection in acc. with standard	IEC 60947-7-1

Mounting

Număr articol	3058500
Unitate de ambalare	1 Bucată
Cantitate minimă pentru comandă	1 Bucată
Cod produs	BE1211
GTIN	4046356712668
Greutate pe bucată (inclusiv ambalajul)	99,99 g
Greutate pe bucată (fără ambalaj)	99,99 g

China RoHS
Environment friendly use period (EFUP)	EFUP-E Nu există substanțe periculoase peste valorile limită
EU REACH SVHC
Trimitere la substanţa candidată REACH (nr. CAS)	Nicio substanţă cu un procentaj masic mai mare de 0,1 %

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

SSK 0525 KER 1E - Feed-through terminal block

3058500

Detalii despre produs

UNSPSC

Produse compatibile

Avantajele dumneavoastră

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

SSK 0525 KER 1E - Feed-through terminal block 3058500

Detalii despre produs

UNSPSC

Produse compatibile

KB- 6 - Chain bridge 0201472

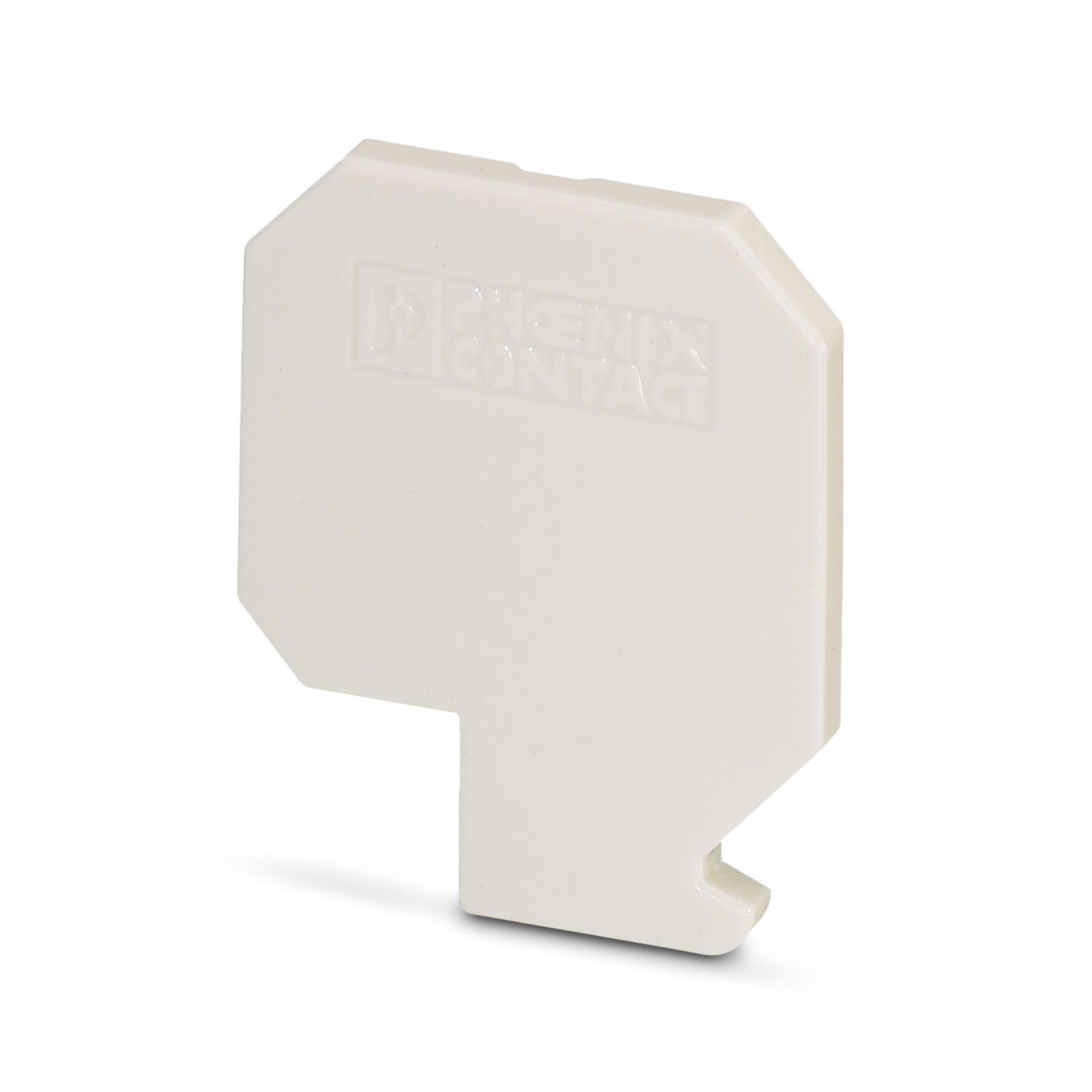

D-SSK 0525 KER - End cover 0201061
