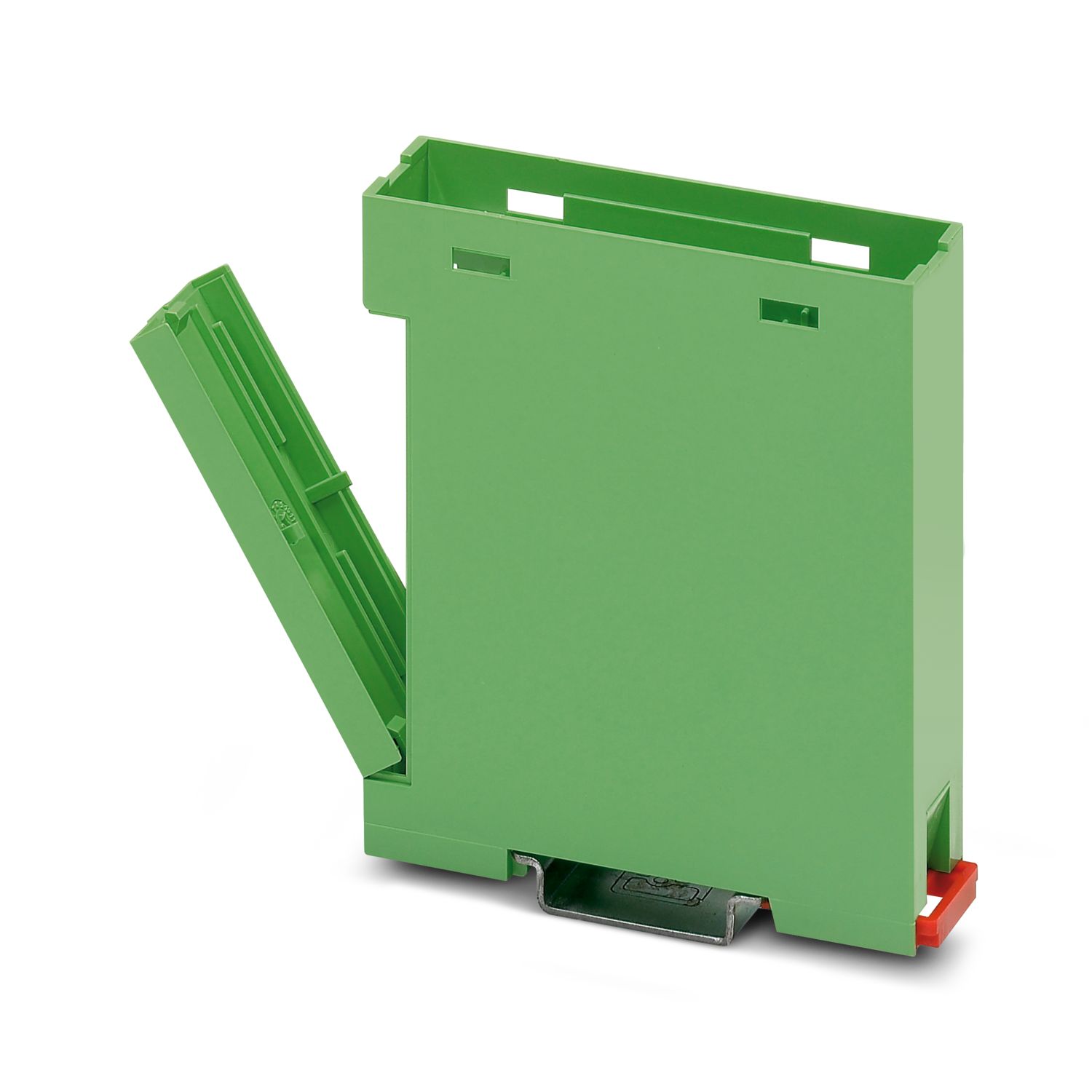

EG 22,5-GP/ABS GN
-
Mounting base housing
2764056
Mounting base housing ,Component housing, length: 75 mm, without vents, Lower housing part, with snap-on foot and test opening with side cover, cross connection: without bus connector, color: green, width: 22.5 mm, height: 107.5 mm, number of positions cross connector: not relevant
Pentru operarea acestui produs, sunt necesare și alte produse.
Accesorii necesare
Detalii despre produs
| Housing type | Component housing |
| Type | Lower housing parts with test opening with side cover, housing cover necessary to complete the module |
| Number of positions | 8 |
| Type | Lower housing part, with snap-on foot and test opening with side cover |
| Dimensional drawing |
|
| Width | 22.5 mm |
| Installed height | 107.5 mm |
| Height NS 35/7,5 | 107.5 mm |
| Depth | 75 mm |
| Length | 75 mm |
| Color | green |
| Flammability rating according to UL 94 | HB |
| Housing material | ABS |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 80 °C |
| Mounting type | DIN rail mounting |
