This audible signal element is designed as a component of a modular signal tower. According to your requirements, a signal tower may comprise any combination of up to five signal elements. You may use up to five optical signal elements or up to four optical and one audible signal element. An audible signal element can be used as top element only. A bayonet locking system establishes the mechanical and electrical connection between the elements. Connection elements with spring-cage or screw connection can be used for electrical connection of the signal tower. Mounting elements for base or tube mounting can be used to mount the signal tower.

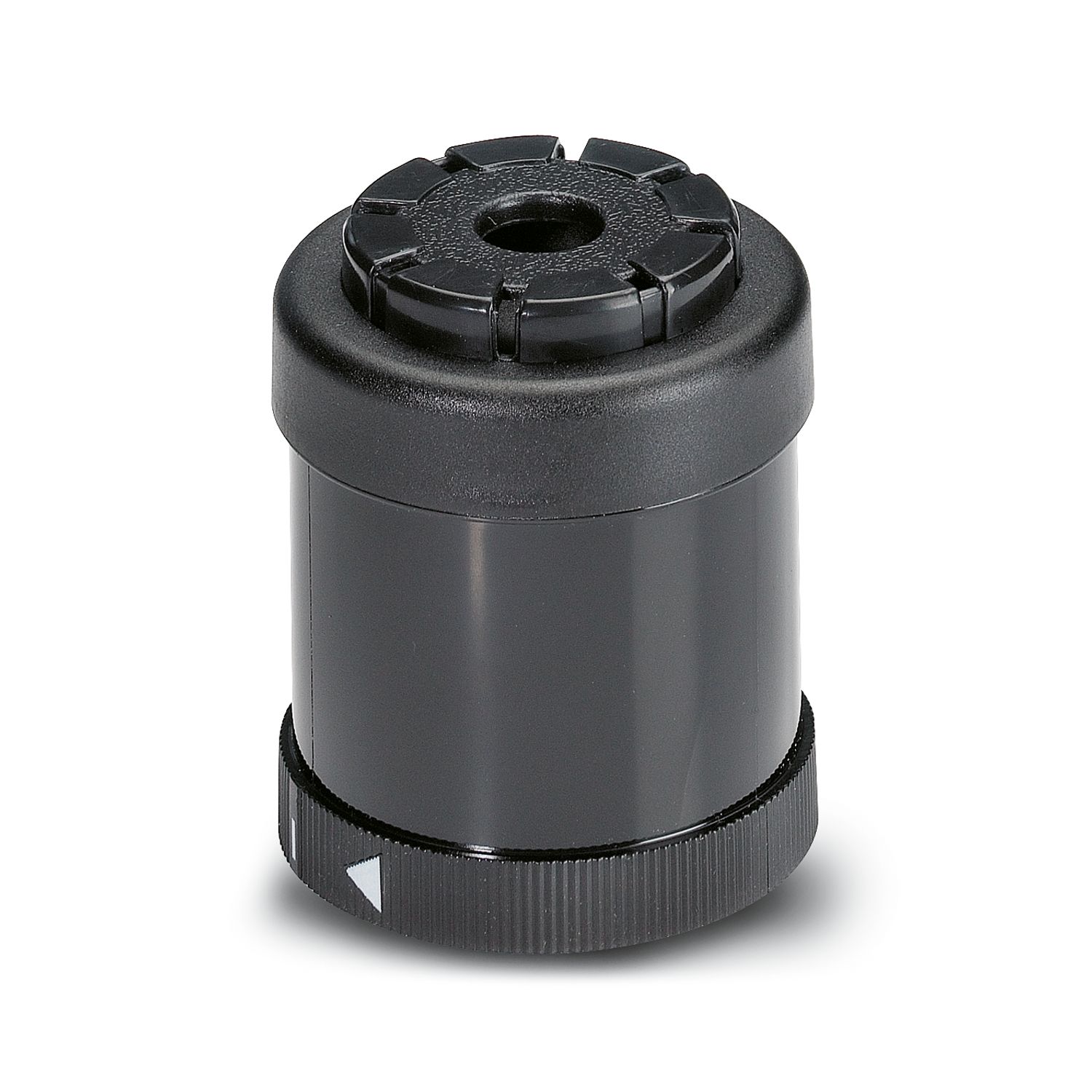

PSD-S AE SC1-2 105DB
-
Acoustic element
2700139
Siren element, alternating, 24 V DC, max. 105 dB(A), black
Detalii despre produs
| Product type | Acoustic element |
| Maximum power dissipation for nominal condition | 3.6 W |
| General | |
| Input voltage | 24 V DC ±10 % |
| Nominal input voltage range | 21.6 V DC ... 26.4 V DC |
| Maximum inrush current | max. 500 mA |
| Current consumption | 100 mA |
| Operating time | 100 % |
| Service life electrical | min. 5,000 h |
| Type of acoustic signal | Alternating continuous tone |
| Tone frequency | approx. 3.3 kHz ±9 % |
| Volume | 105 |

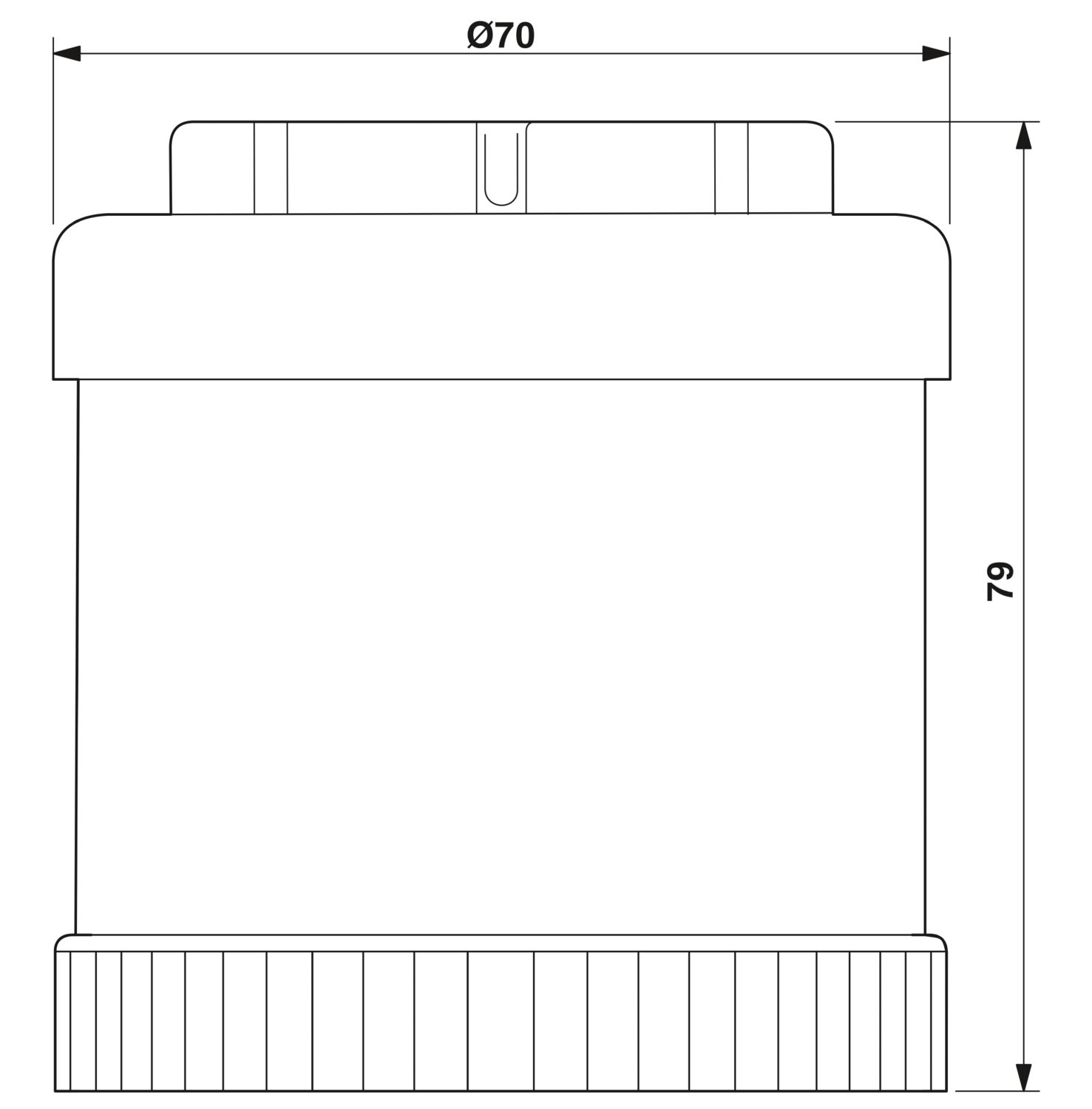

| Dimensional drawing |
|
| Height | 79 mm |
| Diameter | 70 mm |
| Color | black |
| Material | Polycarbonate PC |
| Ambient conditions | |
| Degree of protection | IP40, when installed |
| Ambient temperature (operation) | -30 °C ... 50 °C |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Mounting position | any |
Produse compatibile
Avantajele dumneavoastră
High volume ensures optimum awareness even in noisy environments
Alternating continuous tone ensures optimum awareness
