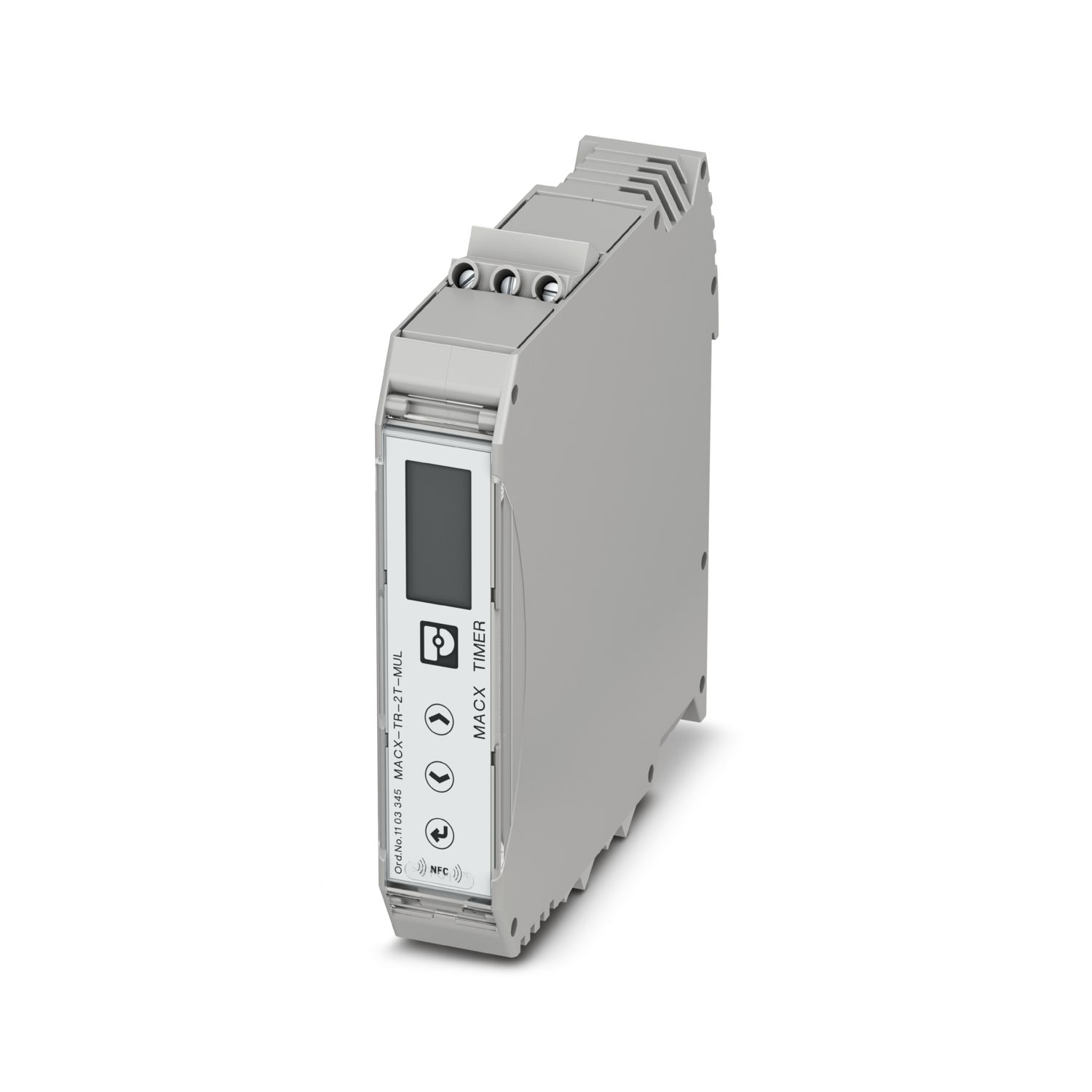

MACX-TR-2T-MUL
-
Timer relay
1103345
Multifunctional time relay, 24 V AC/DC … 240 V AC/DC wide-range supply, with 14 functions, 2 adjustable times, adjustable time range (10 ms ... 999 h:59 min), two configuration possibilities, password protection, supporting dry contacts, PNP and NPN proximity switch inputs, 2 PDTs, screw connection
Maksuton lataus saatavilla.
Ladattavat tiedostot
Tuotetiedot
| Product type | Timer relay |
| Mechanical service life | approx. 3x 107 cycles |
| Insulation characteristics | |
| Insulation | Basic insulation |
| Overvoltage category | III |
| Pollution degree | 3 |
| Service life electrical | approx. 1x 105 cycles, resistive load 2000 V A |
| Nominal frequency | 48 Hz ... 63 Hz |
| Nominal power consumption | 2.5 VA (0.8 W) |
| Rated insulation voltage | 300 V AC |
| Dielectric strength | 2 kV ((2 mA, 60 s) (IEC 60947-5-1)) |
| Nominal power consumption | 2.5 VA (0.8 W) |
| Input voltage range | 24 V AC/DC ... 240 V AC/DC (-15 % ... +10 %) |
| Temperature coefficient, typical | ≤ 0.01 %/°C |
| Recovery time | 100 ms |
| Setting range time | 10 ms ... 59999 min (10 ms ... 999 h 59 min.) |
| Setting accuracy | ≤ 0.5 % (＞1 s) |
| Repeat accuracy | ≤ 0.05 % (＞1 s) |
| Control | |
| Connection name | Non-floating, terminals A1-B1 |
| Control pulse length | 50 ms |
| Switching | |
| Contact switching type | 2 floating changeover contacts |
| Contact material | AgSnO2 |
| Maximum switching voltage | 400 V AC |
| Interrupting rating (ohmic load) max. | 2000 VA (8 A / 250 V AC) |
| Output fuse | 8 A (fast-blow) |
| Connection method | Screw connection |
| Stripping length | 10 mm |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 14 |
| Tightening torque | 0.5 Nm ... 0.6 Nm (5 lb in ... 7 lb in) |
| Width | 22.5 mm |
| Height | 109 mm |
| Depth | 114 mm |
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 |
| Housing insulation material | PBT |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 2000 m |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| CE | |
| Identification | CE-compliant |
| UL, USA/Canada | |
| Identification | UL/C-UL Listed UL 508 |
| CCC | |
| Identification | GB/T 14048.5 |
| Electromagnetic compatibility | Conformance with EMC directive |
| Low Voltage Directive | Conformance with Low Voltage Directive |
| Noise immunity | EN 61000-6-2 |
| Impulse withstand voltage | 4 kV (1.2/50 µs, IEC 60947-5-1) |
| Noise emission | |
| Standards/regulations | EN 61000-6-4 |
| Standards/regulations | IEC 60947-5-1 |
| IEC 61812-1 |
| Mounting type | DIN rail mounting |
| Assembly note | on standard DIN rail NS 35 in accordance with EN 60715 |
| Mounting position | any |
| Tuotenumero | 1103345 |
| Pakkausyksikkö | 1 Kappaletta |
| Vähimmäistilausmäärä | 1 Kappaletta |
| Tuoteavain | DK6621 |
| Tuotekoodi | DK6621 |
| GTIN | 4055626966038 |
| Paino kappaletta kohti (sis. pakkauksen) | 191 g |
| Paino kappaletta kohti (ilman pakkausta) | 191 g |
| Tullitariffinumero | 85364190 |
| Alkuperämaa | CN |
ECLASS
| ECLASS-13.0 | 27371605 |
ETIM
| ETIM 9.0 | EC001439 |
UNSPSC
| UNSPSC 21.0 | 39122300 |
| EU RoHS | |
| Täyttää RoHS-direktiivin vaatimukset | Kyllä |
| poikkeussäännökset siltä osin kuin ne ovat tiedossa | 7(a), 7(c)-I |
| China RoHS | |
| Environment friendly use period (EFUP) |
EFUP-50
Löydät tuotekohtaisen Kiinan RoHS-ilmoitusluettelon kunkin tuotteen latausalueelta Valmistajan ilmoitus -kohdasta. EFUP-E-merkinnän sisältäville tuotteille ei tarvita Kiinan RoHS-ilmoitusluetteloa, eikä sitä tarvitse siksi laatia.
|
| EU REACH SVHC | |
| Huomautus REACH-kandidaattiaineesta (CAS-nro) | Lead (CAS-nro: 7439-92-1) |
| SCIP | b058784d-32c5-4b12-820e-3a15bc7f4bce |
