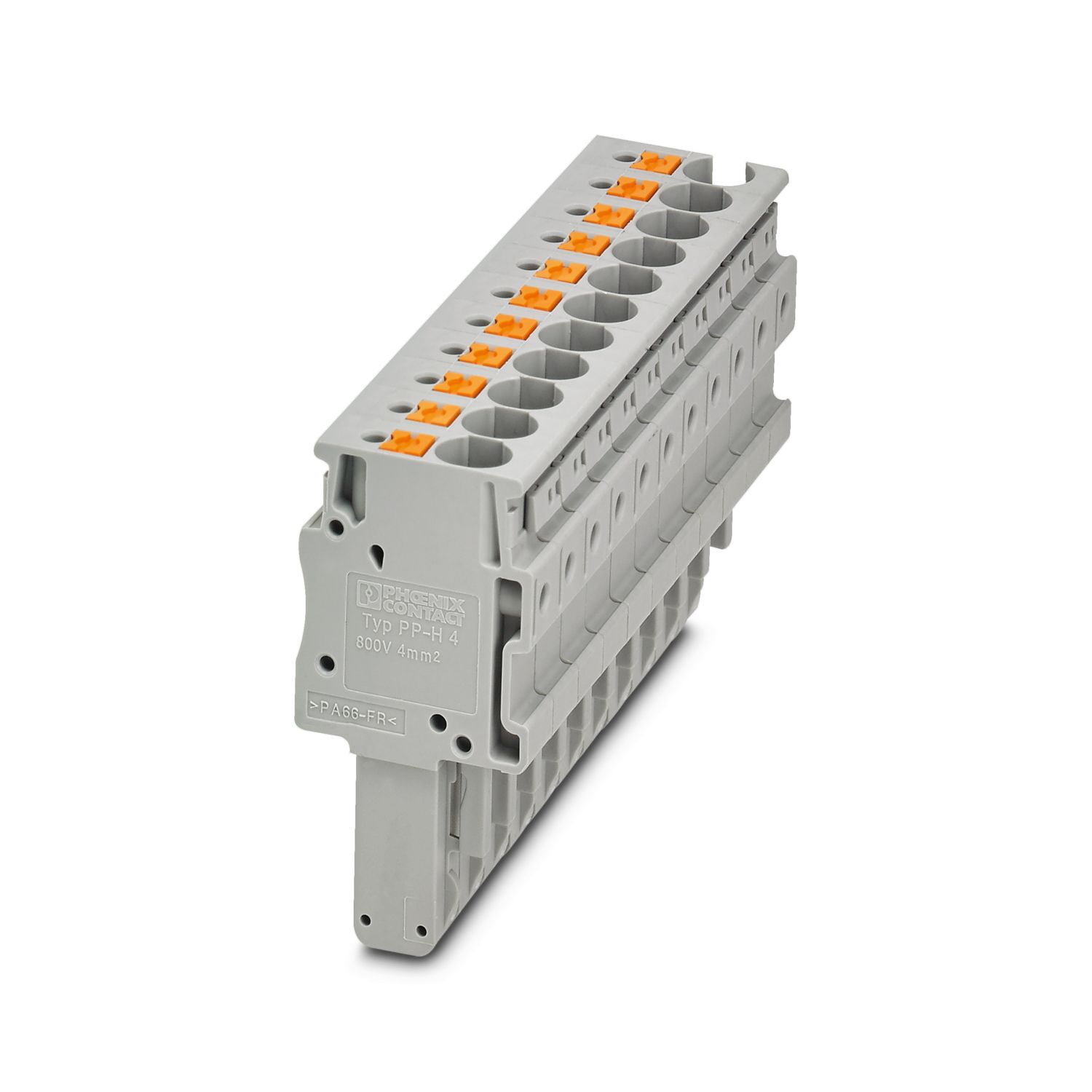

PP-H 4/11 - Plug - 3212074 | Phoenix Contact

Tuotetiedot

Tekniset tiedot

Product properties

Product type	Terminal plug
Area of application	Railway industry
	Machine building
	Plant engineering
Number of positions	11
Pitch	6.2 mm
Number of connections	11
Number of rows	1
Potentials	11
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Electrical properties

Rated surge voltage	8 kV
Maximum power dissipation for nominal condition	1.02 W

Connection data

Number of connections per level	11
Nominal cross section	4 mm²
1st level connection left
Stripping length	10 mm ... 12 mm
Internal cylindrical gage	A4
Connection in acc. with standard	IEC 61984
Conductor cross section rigid	0.2 mm² ... 6 mm²
Cross section AWG	24 ... 10 (converted acc. to IEC)
Conductor cross section flexible	0.2 mm² ... 4 mm²
Conductor cross section, flexible [AWG]	24 ... 12 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.25 mm² ... 4 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.25 mm² ... 4 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm² ... 1 mm²
Nominal current	32 A
Maximum load current	32 A (with 6 mm² conductor cross section)
Nominal voltage	800 V
Nominal cross section	4 mm²
1st level connection left Connection cross sections directly pluggable
Conductor cross section rigid	0.5 mm² ... 6 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)	0.5 mm² ... 4 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.5 mm² ... 4 mm²

Dimensions

Width	68.2 mm
Height	21 mm
Depth	42.3 mm
Pitch	6.2 mm

Material specifications

Color	gray (RAL 7042)
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	130 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)	28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Mechanical properties

Mechanical data
Open side panel	No

Environmental and real-life conditions

Ambient conditions
Ambient temperature (operation)	-60 °C (max. operating temperature see derating curve)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Standards and regulations

Connection in acc. with standard	IEC 61984

Kaupalliset tiedot

Tuotenumero	3212074
Pakkausyksikkö	10 Kappaletta
Vähimmäistilausmäärä	10 Kappaletta
Tuoteavain	BE2244
Tuotekoodi	BE2244
Luettelosivu	Sivu 327 (C-1-2019)
GTIN	4046356483155
Paino kappaletta kohti (sis. pakkauksen)	54,07 g
Paino kappaletta kohti (ilman pakkausta)	50,1 g
Tullitariffinumero	85366990
Alkuperämaa	PL

Luokitukset

Hyväksynnät

Approval Specification Data
	Nimellisjännite U_N	Nimellisvirta I_N	Poikkipinta AWG	Poikkipinta mm²
	800 V	32 A

Approval Specification Data
	Nimellisjännite U_N	Nimellisvirta I_N	Poikkipinta AWG	Poikkipinta mm²
Only flexible conductors	800 V	32 A		0.2 - 4

Environmental product compliance

EU RoHS
Täyttää RoHS-direktiivin vaatimukset	Kyllä (Ei poikkeussäännöksiä)
China RoHS
Environment friendly use period (EFUP)	EFUP-E Ei raja-arvot ylittäviä vaarallisia aineita
EU REACH SVHC
Huomautus REACH-kandidaattiaineesta (CAS-nro)	Aineen pitoisuus ei ole yli 0,1 %.
