Self-closing protective cover for infrastructure charging socket
EV-GBSC-D6,5MM
-
Protective cover
1623888
CHARX connect basic, GB/T, Type 2, Protective cover, Accessories, circular, Front mounting, housing: black, with self-locking mechanism, for attaching to infrastructure charging sockets, Adhered "PHOENIX CONTACT" sticker, GB/T 20234.2, IEC 62196-2
Tuotetiedot
| Product type | Protective cover for Socket Outlet |
| Product family | CHARX connect basic |
| Application | for attaching to infrastructure charging sockets |
| Design (Protective cover) | circular |
| Type | Accessories |
| Design | with self-locking mechanism |
| Affixed logo | Adhered "PHOENIX CONTACT" sticker |
| Label | 14.1 mm x 44.8 mm (customer logo on request) |
| Charging standard | GB/T |
| Type 2 | |
| Charging mode | Mode 3, Case B |
| Customer variations | On request |
| Protective cover | |

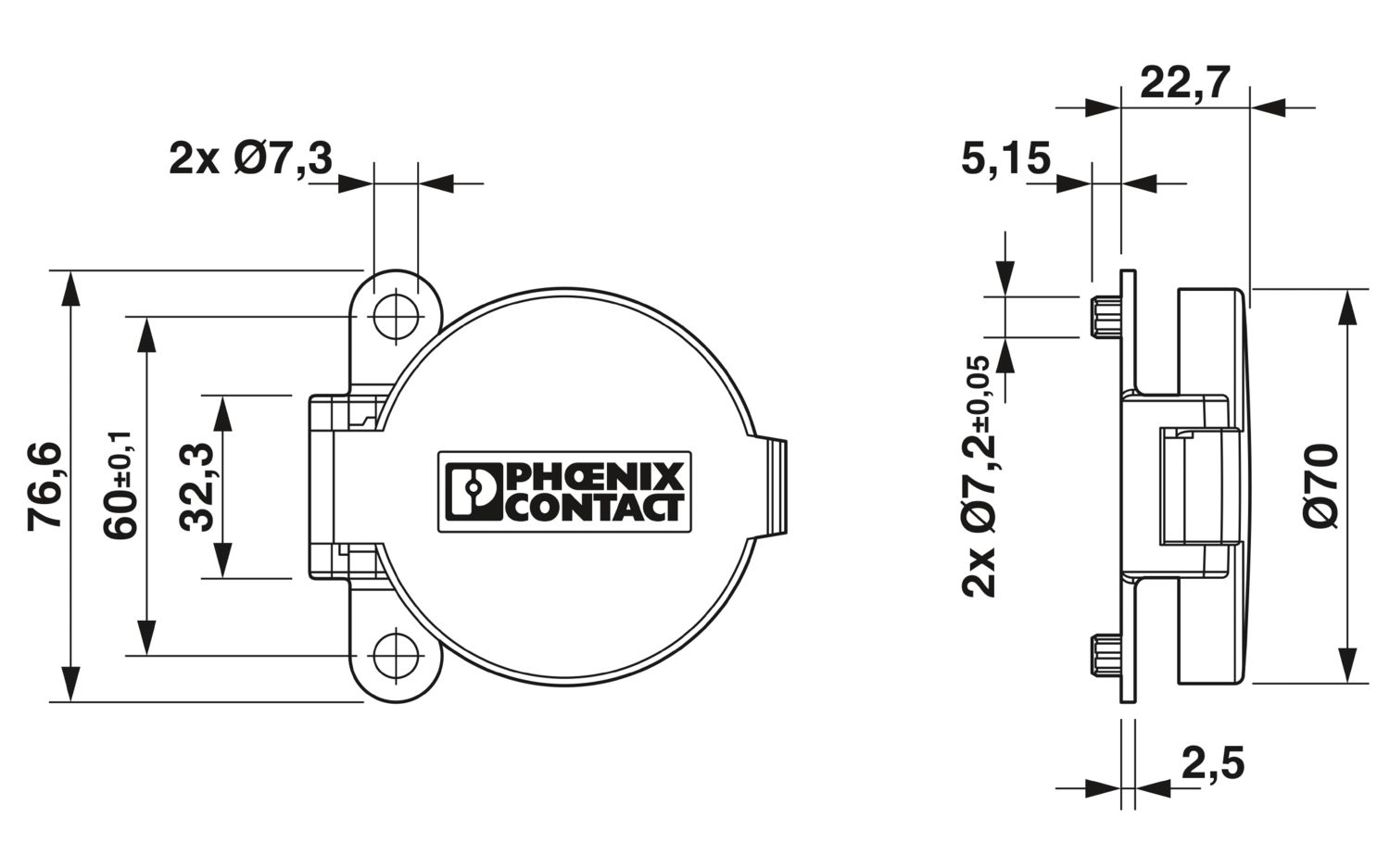

| Dimensional drawing |
|
| Width | 76.6 mm |
| Height | 76.6 mm |
| Depth | 24.7 mm |
| Bore dimensions | |
| Dimensional drawing |
|
| Width | 60 mm |
| Height | 60 mm |
| Color (Housing) | black (9005) |
| Material (Housing) | Plastic |
| Flammability rating according to UL 94 | V0 () |
| Ambient conditions | |
| Degree of protection (Protective cover) | IP54 (plugged in) |
| Ambient temperature (operation) | -30 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Standards | |
| Standards/regulations | GB/T 20234.2 |
| IEC 62196-2 | |
| Mounting type Protective cover | Front mounting (rear screw connection) |
| Mounting type Infrastructure charging socket | right or left-sided installation |
| Mounting hole diameter | 6.50 mm (ø) |
Edut
Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
Individual branding, thanks to the use your own logo
Reliable protection of your socket outlet from weather and vandalism
