FLKM-2FLK14/FKDSP-MT/DIL/HF/S7
-
Passive module
2296883

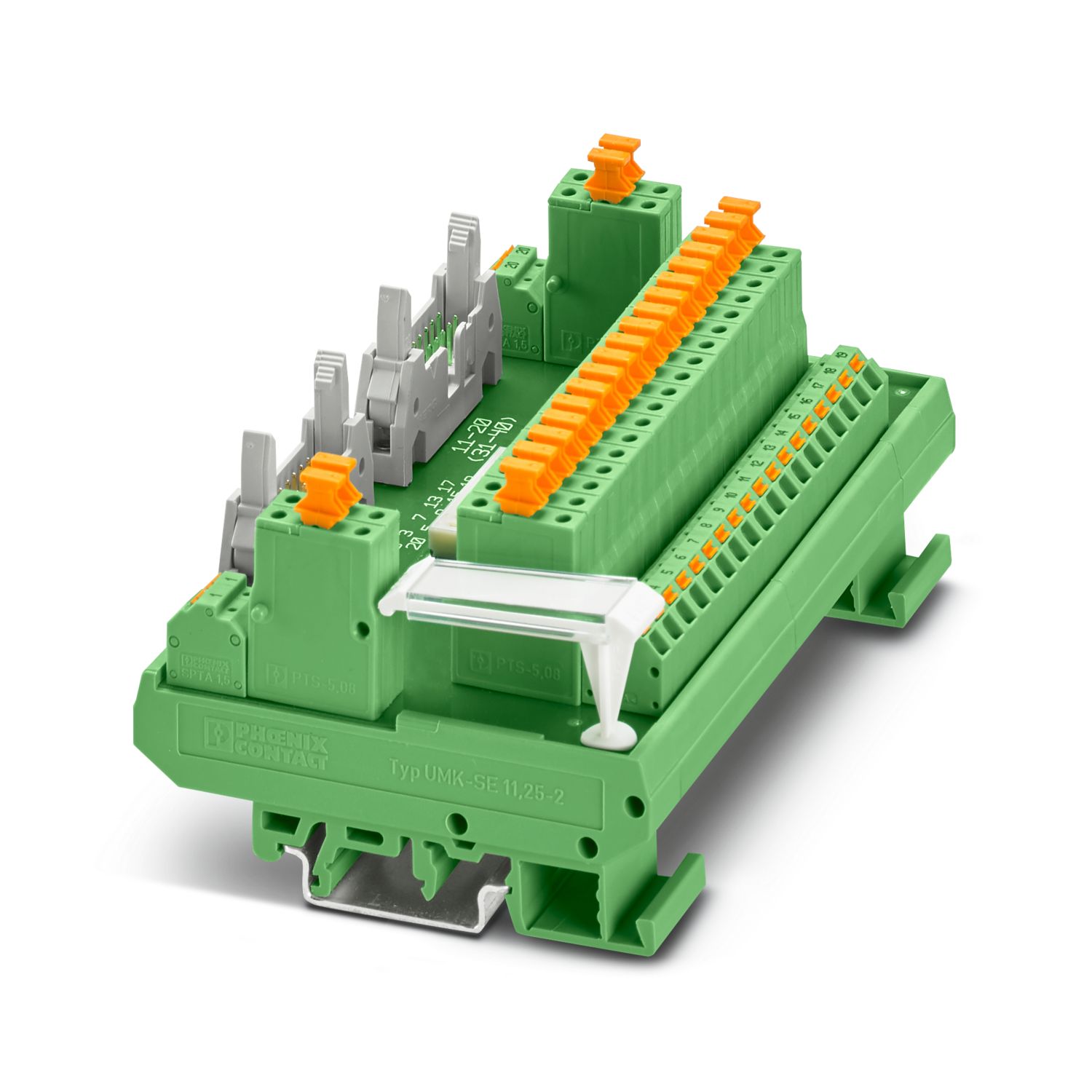

VARIOFACE termination board for Siemens SIMATIC® S7-300, with SIMATIC®-specific marking (1 - 20) and additional 18 connection terminal blocks (positive potential). Several terminal points can be bridged via one switch.
Tuotetiedot
| Product type | Interface module |
| Product family | VARIOFACE |
| Operating mode | 100% operating factor |
| Insulation characteristics: Air clearances and creepage distances | |
| Insulation | Functional insulation |
| Overvoltage category | II |
| Pollution degree | 2 |
| Operating voltage (AC) | ≤ 30 V AC |
| Operating voltage (DC) | ≤ 30 V DC |
| Current (per branch) | ≤ 1 A |
| Current (Voltage supply) | ≤ 3 A |
| Air clearances and creepage distances | |
| Rated insulation voltage | 63 V |
| Rated surge voltage | 0.6 kV (1.2/50 μs) |
| Supported controller SIEMENS S7-300 / ET 200 M | |
| Suitable I/O card | 6ES7331-7KF02-0AB0 |
| Connection 1 (control level) | |
| Connection in acc. with standard | IEC 60603-13 |
| Connection method | IDC/FLK pin strip |
| Number of connections | 2 |
| Number of positions | 14 |
| Insertion/withdrawal cycles | > 50 |
| Pitch | 2.54 mm |
| Connection 2 (field level) | |
| Connection method | Push-in spring connection |
| Stripping length | 10 mm |
| Number of connections | 1 |
| Number of positions | 18 |
| Conductor cross section rigid | 0.2 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 1.5 mm² |
| 0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve) | |
| 0.25 mm² ... 1.5 mm² (Ferrule with plastic sleeve) | |
| Conductor cross section AWG | 24 ... 16 |
| Pitch | 5.08 mm |
| Connection 3 (field level) | |
| Connection method | PCB terminal block |
| Type | PCB isolating plugs |
| Number of connections | 1 |
| Number of positions | 18 |
| Pitch | 5.08 mm |
| Connection 4 (supply) | |
| Connection method | Push-in spring connection |
| Number of connections | 2 |
| Number of positions | 2 |
| Conductor cross section rigid | 0.2 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 1.5 mm² |
| 0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve) | |
| 0.25 mm² ... 1.5 mm² (Ferrule with plastic sleeve) | |
| Conductor cross section AWG | 24 ... 16 |
| Pitch | 5.08 mm |
| Connection 5 (supply) | |
| Connection method | PCB terminal block |
| Type | PCB isolating plugs |
| Number of connections | 2 |
| Number of positions | 2 |
| Item dimensions | |
| Width | 123.5 mm |
| Height | 77 mm |
| Depth | 57.17 mm |
| Ambient conditions | |
| Degree of protection (Module) | IP00 |
| Degree of protection (Installation location) | ≥ IP54 |
| Ambient temperature (operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Altitude | ≤ 2000 m |
| UKCA | |
| Certificate | UKCA-compliant |
| Air clearances and creepage distances | |
| Standards/regulations | EN IEC 60664-1 |
| Mounting type | DIN rail mounting |
| Mounting position | any |
| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
| Tuotenumero | 2296883 |
| Pakkausyksikkö | 1 Kappaletta |
| Vähimmäistilausmäärä | 1 Kappaletta |
| Tuoteavain | DK218S |
| Tuotekoodi | DK218S |
| GTIN | 4017918729448 |
| Paino kappaletta kohti (sis. pakkauksen) | 234,2 g |
| Paino kappaletta kohti (ilman pakkausta) | 231,1 g |
| Tullitariffinumero | 85369010 |
| Alkuperämaa | DE |
