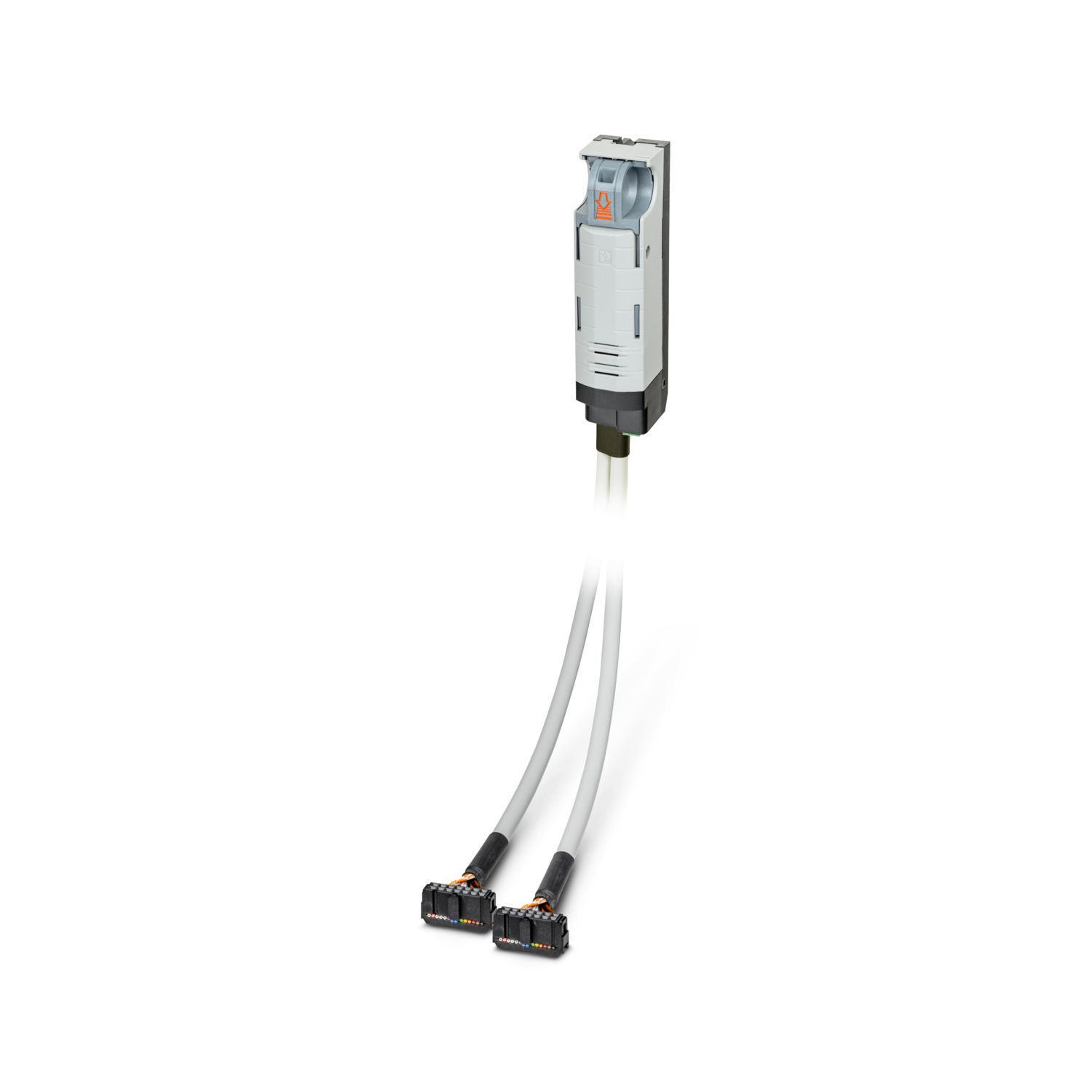

VIP-PA-2X14/26/ 4,0M/1756/062 - Front adapter

1162595

VIP VARIOFACE front adapter, with connected system cables for ControlLogix® 1756 I/O. Up to 2 x 8 channels can be connected.

Tuotetiedot

Tekniset tiedot

Product properties

Product type	Front adapter
Product family	VARIOFACE Professional

Electrical properties

Max. permissible operating voltage	120 V AC
Max. permissible current	1 A (per path)
	3 A (per group, positive terminals)
	8 A (per group, negative terminals)
Supported controller ALLEN-BRADLEY ControlLogix
Suitable I/O card	1756-IA16
	1756-IB16
	1756-IC16
	1756-IN16

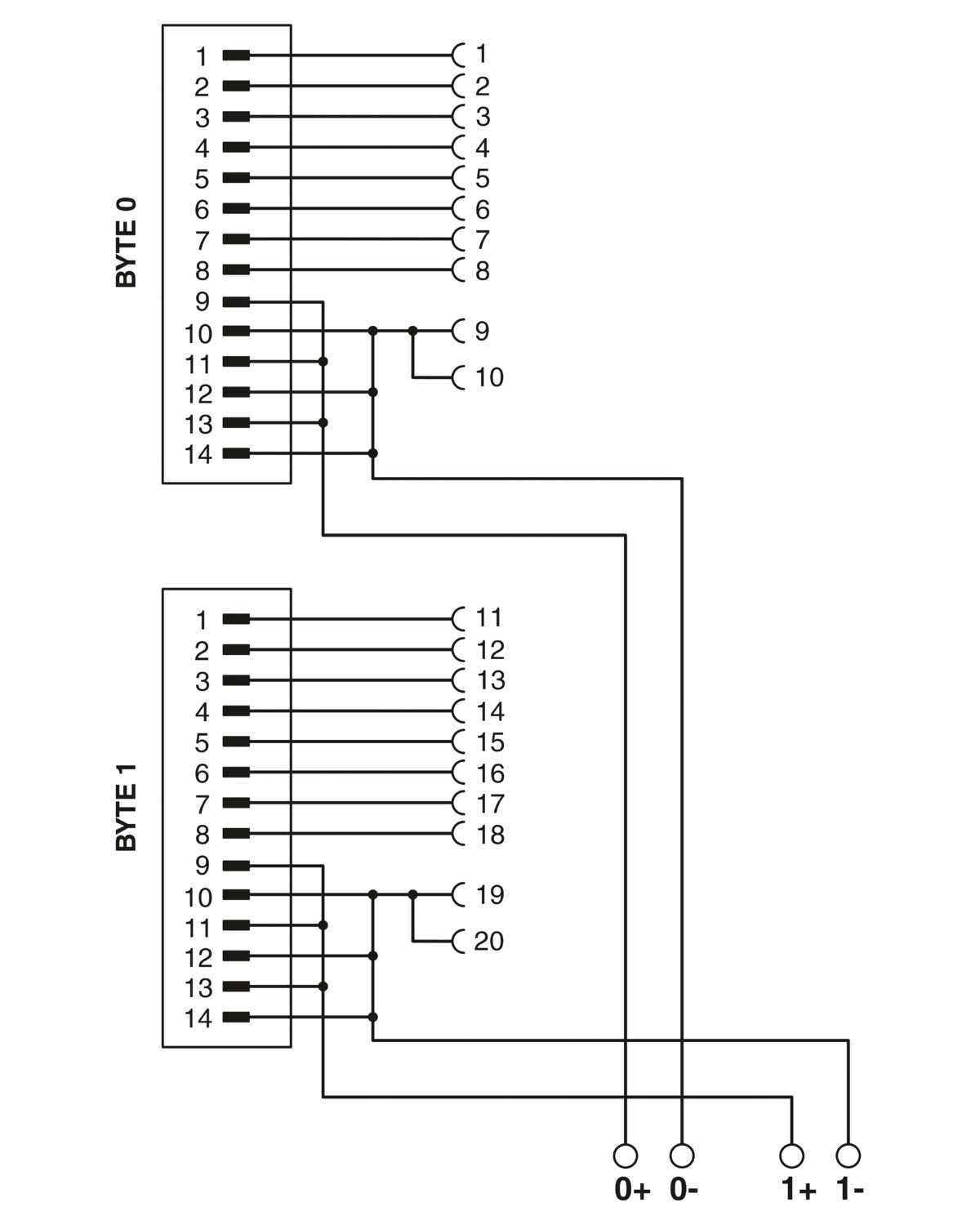

Connection data

Controller level
Connection method	Plug-in connection
Note	Can be plugged onto 20-pos. I/O modules
Field level
Connection in acc. with standard	IEC 60603-13
Connection method	IDC/FLK socket strip
Number of connections	2
Number of positions	14
Pitch	2.54 mm
Supply
Connection method	Push-in / plug connection
Stripping length	9 mm
Conductor cross section rigid	0.14 mm² ... 1.5 mm²
Conductor cross section flexible	0.14 mm² ... 1.5 mm²
Conductor cross section AWG	26 ... 16

Dimensions

Item dimensions
Width	344.822 mm
Height	47.352 mm
Depth	56.345 mm
Cable
Length	4 m

Cable/line

14X0.14 [PVC]
UL AWM Style	2464/1061
Number of positions	14
Shielded	no
Cable type	14X0.14 [PVC]
Conductor type	Round cable set
Conductor structure signal line	7x 0.16 mm
AWG signal line	26
Conductor cross section	14x 0.14 mm²
Wire diameter incl. insulation	1 mm ±0.03 mm
External cable diameter	6.40 mm ±0.4 mm
Outer sheath, material	Semi-rigid PVC
External sheath, color	gray
Conductor material	Tin-plated Cu litz wires
Cable resistance	≤ 145 Ω/km (20 °C)
Insulation resistance	≥ 20 MΩ*km (20 °C)
Smallest bending radius, fixed installation	55 mm
Smallest bending radius, movable installation	104 mm
Dynamic load capacity (bending)	Max. bending cycles: 5000 (at a radius of ≥ 15x outside diameter)
Halogen-free	no
Flame resistance	IEC 60332-1-2 (raw cable)
		VDE 0842, Part 332-1-2 (raw cable)
		IEC 60332-3-22 (raw cable)
		UL VW-1
		CSA FT-1
Resistance to oil	can withstand occasional splashes (raw cable)
Cable type	Front adapter with splitting cable for two modules

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	0 °C ... 60 °C
Ambient temperature (storage/transport)	0 °C ... 80 °C
Altitude	≤ 2000 m (Above sea level)
Permissible humidity (operation)	≤ 95 % (non-condensing)

Standards and regulations

Standards/regulations	UL 61010-2-201

Notes

Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Kaupalliset tiedot

Tuotenumero	1162595
Pakkausyksikkö	1 Kappaletta
Vähimmäistilausmäärä	1 Kappaletta
Huomautus	Toimeksiantosidonnainen valmistus (ei palautusta)
Tuoteavain	DK232R
Tuotekoodi	DK232R
GTIN	4063151172589
Paino kappaletta kohti (ilman pakkausta)	700 g
Tullitariffinumero	85444290
Alkuperämaa	DE

Luokitukset

Hyväksynnät

Environmental product compliance

Yhteensopivat tuotteet

Lisätarvikkeet

Edut

Individual I/O modules lock to the controller for connection security

Disconnect lever aids in removal from I/O card

Marking label can be attached

Pluggable screw terminals on adapter for power connection

ECLASS-13.0	27242292
ECLASS-15.0	27242292

EU RoHS
Täyttää RoHS-direktiivin vaatimukset	Kyllä
poikkeussäännökset siltä osin kuin ne ovat tiedossa	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 Löydät tuotekohtaisen Kiinan RoHS-ilmoitusluettelon kunkin tuotteen latausalueelta Valmistajan ilmoitus -kohdasta. EFUP-E-merkinnän sisältäville tuotteille ei tarvita Kiinan RoHS-ilmoitusluetteloa, eikä sitä tarvitse siksi laatia.
EU REACH SVHC
Huomautus REACH-kandidaattiaineesta (CAS-nro)	Lead (CAS-nro: 7439-92-1)
SCIP	02afa872-df08-43df-913f-f051e612e5f9
