A-INL-M12-N-S
-
Counter nut
1411240

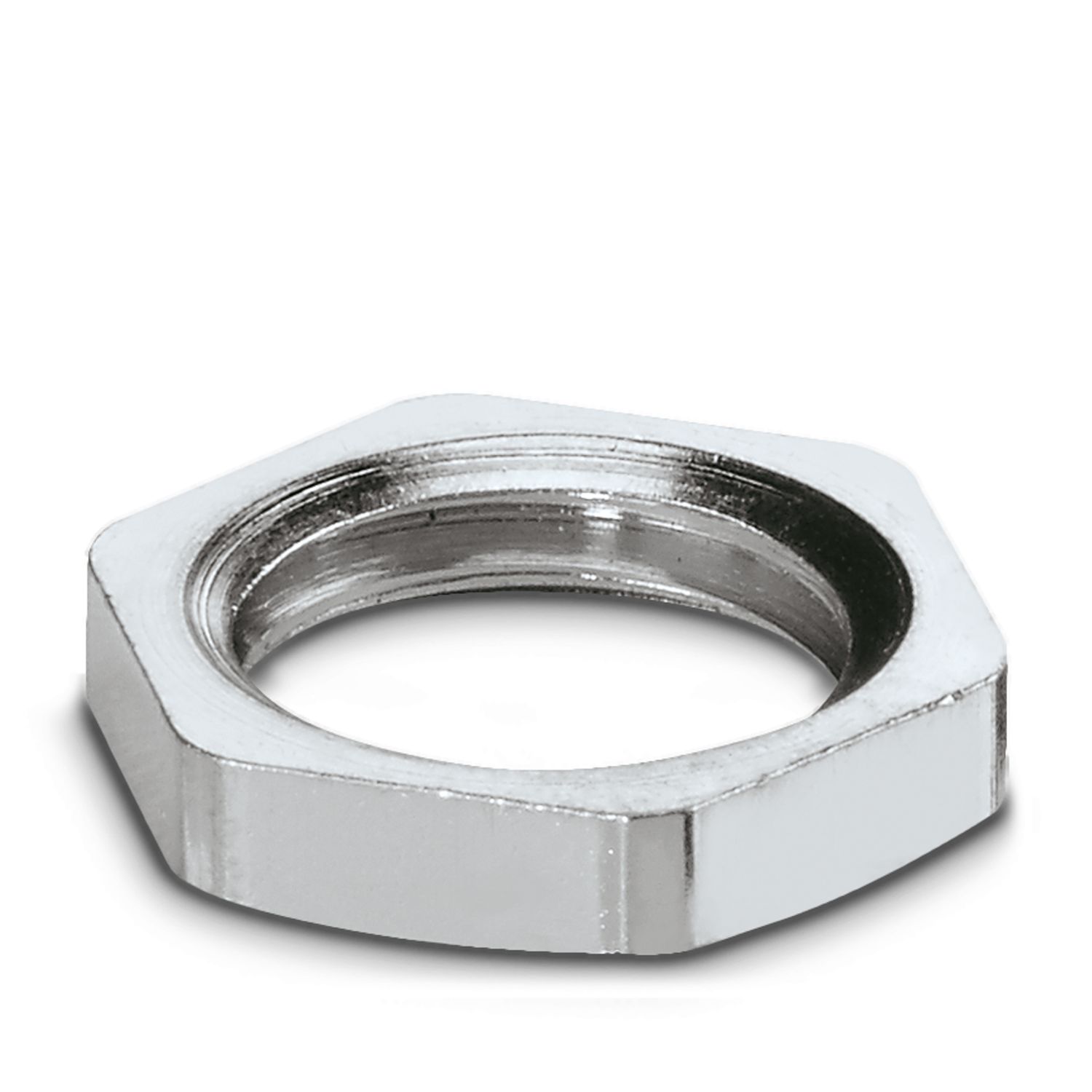

Counter nut, for threads M12 x 1.5, color: silver-colored
Tuotetiedot
| Product type | Flat nut |
| Thread type | M12 |

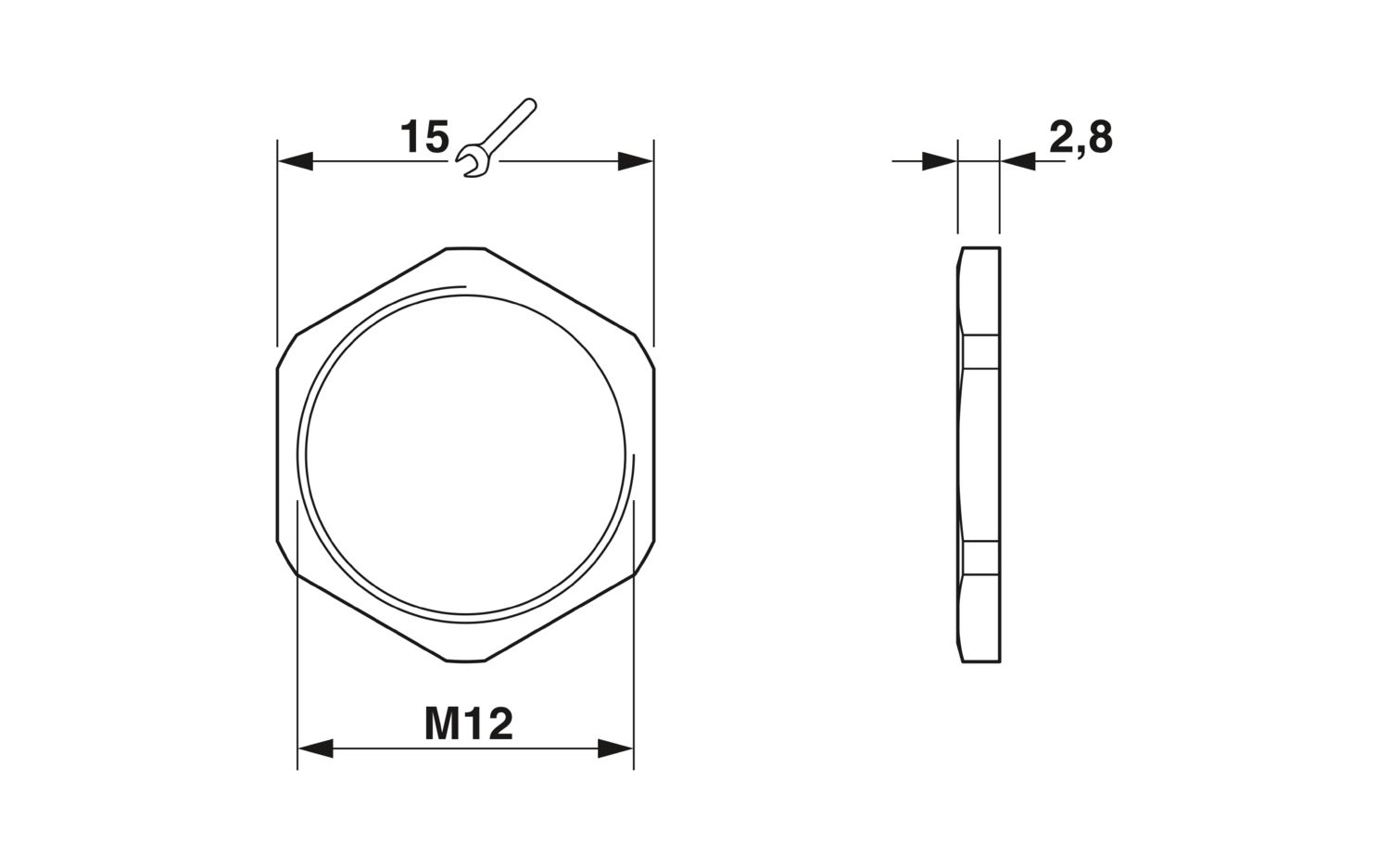

| Dimensional drawing |
|
| Length | 2.8 mm |
| Diameter | 12 mm |
| Connecting thread diameter | 12 mm |
| Wrench size, counter nut | 15 mm |
| Hexagon angular dimension | 16.5 mm |
| Thread type connection side | M12 x 1.5 |
| Thread pitch | 1.5 mm |
| Material | Brass, nickel-plated |
| Halogen-free | yes |
| Ambient conditions | |
| Ambient temperature (operation) | -70 °C ... 220 °C |
