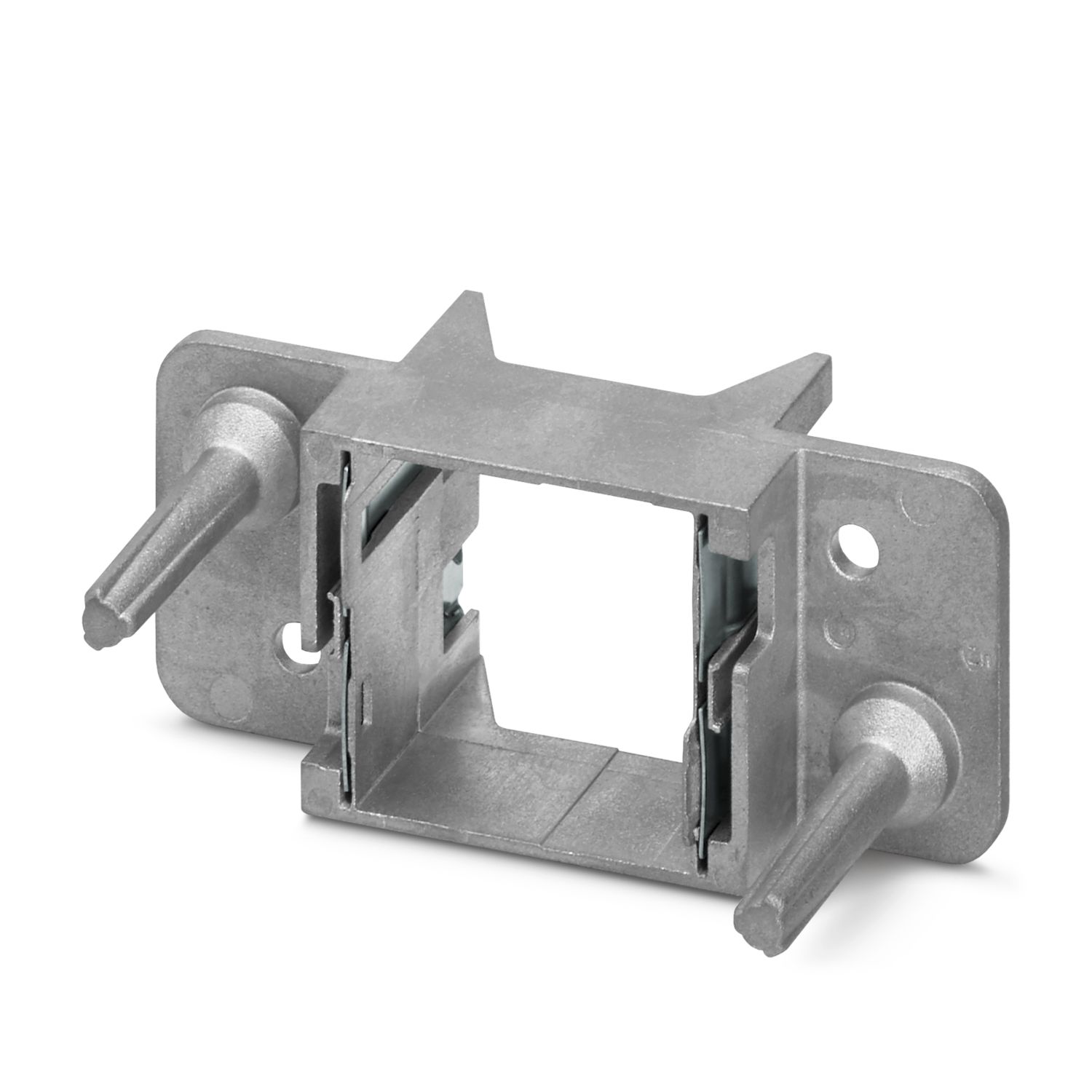

Docking frame for 2 modules, fixed assembly, rack compensation of ±2.0 mm in the x/y-axis
Tuotetiedot

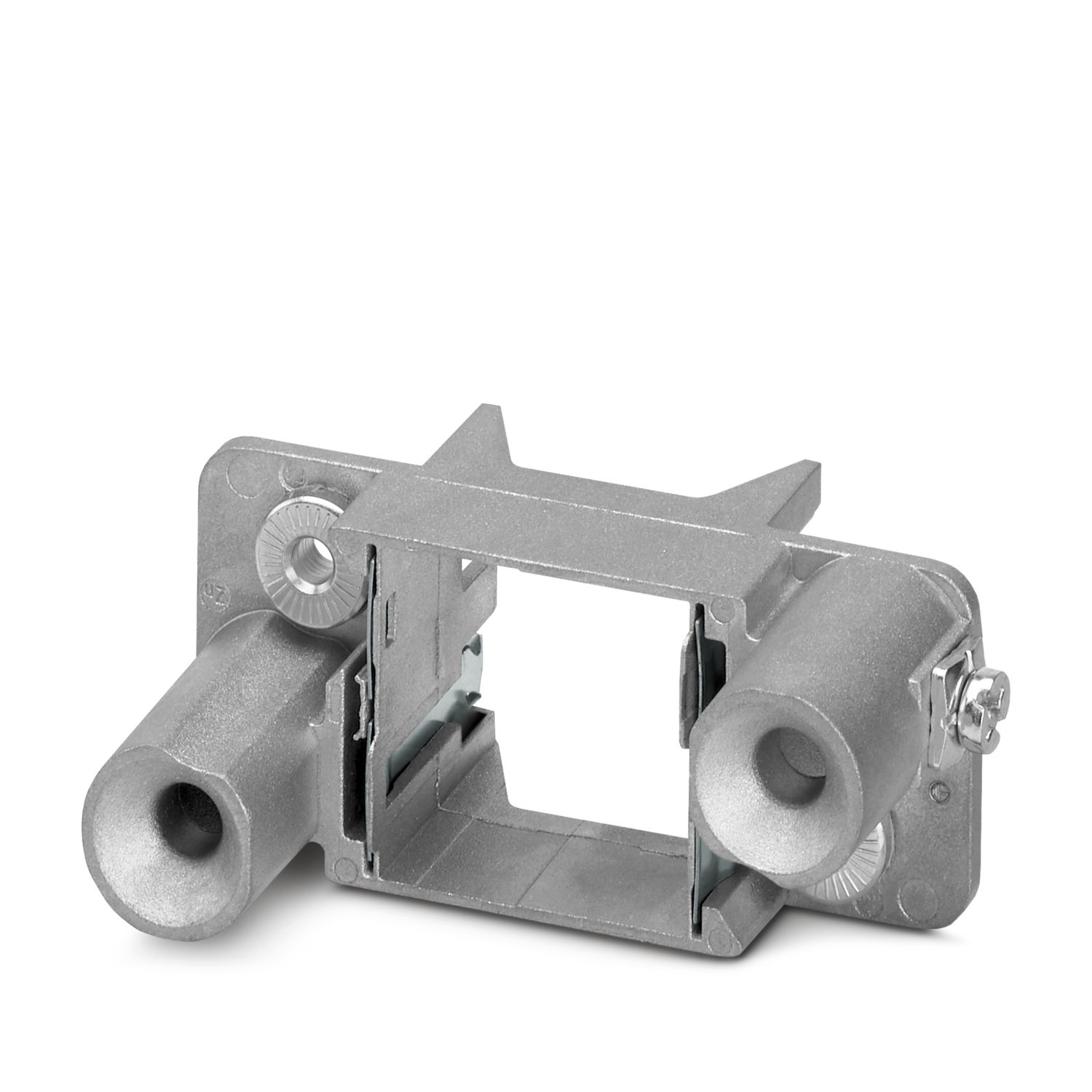

Docking frame, floating assembly, rack compensation of ±2.0 mm in the x/y axis
Product type
Docking frame
Series
HC-M-B
HC-M-02
HC-M-03
HC-M-03/04
HC-M-04
HC-M-05
HC-M-06
HC-M-08
HC-M-08-GBIT
HC-M-12
HC-M-17
HC-M-20
HC-M-25
HC-M-DSUB
HC-M-EMV
HC-M-HV
HC-M-HS
HC-M-00
Application
Modular docking frame
Type
B6
Number of module slots
2
Frame type
Docking frames
Material
Die-cast zinc
Mounting type
Direct mounting with flange
Assembly note
When using the module carrier frame in metal housings, the connection of the PE conductor must be ensured via the PE connection provided on the module carrier frame or via a special metal PE module
