FB-12SP ISO
-
Device coupler
2316312

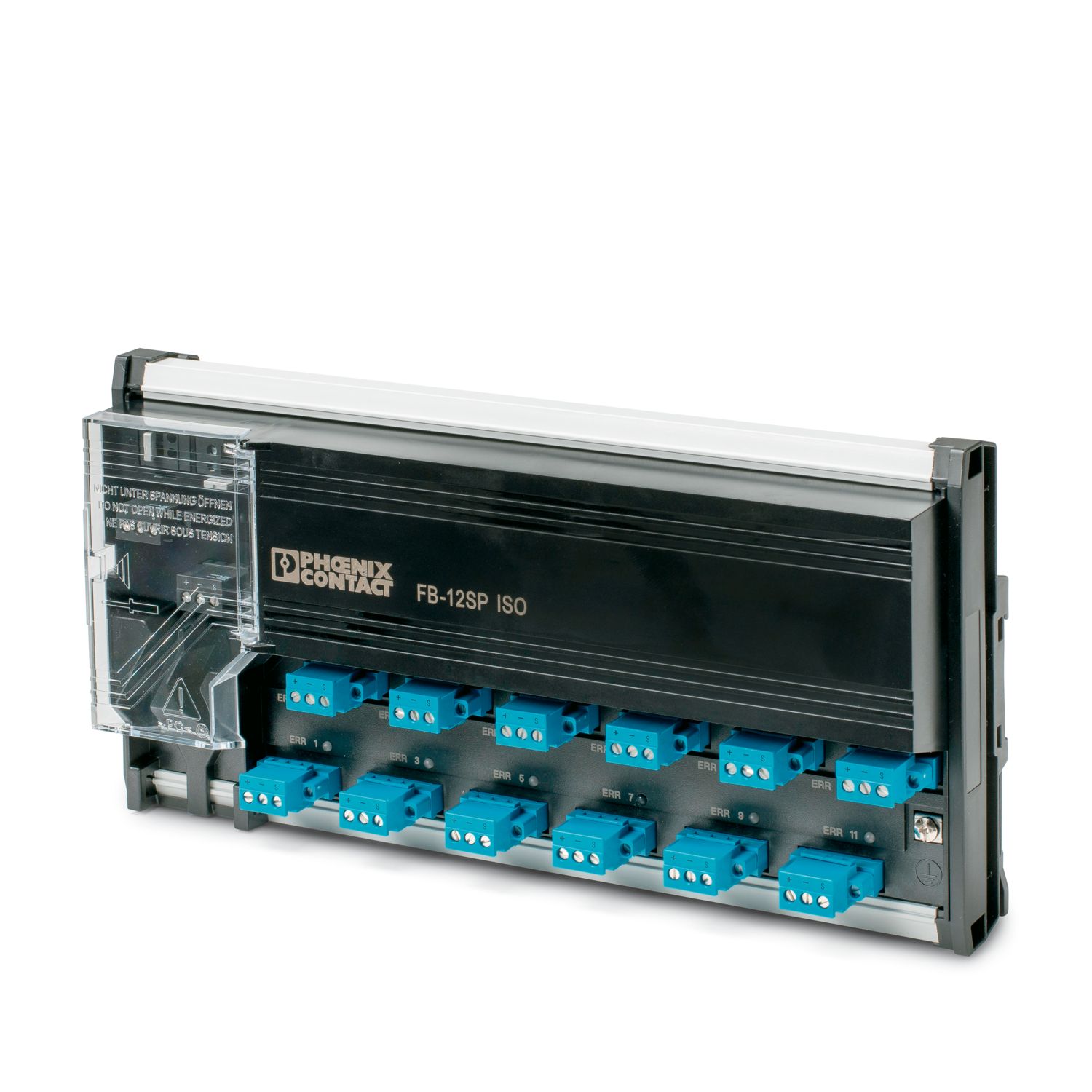

Zone 1 installed device coupler for Foundation Fieldbus and PROFIBUS PA with terminal connections for 12 spurs connected to fieldbus end devices.
Tuotetiedot
| Note on application | |
| Note on application | Only for industrial use |
| Utilization restriction | |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
| Product type | Device coupler |
| Insulation characteristics | |
| Overvoltage category | II |
| Degree of pollution | 2 |
| Supply | |
| Supply voltage range | 16 V DC ... 32 V DC (input on trunk line side) |
| Max. current consumption | 50 mA (trunk, no load) |
| 550 mA (maximum trunk current) | |
| Supply | |
| Conductor cross section, flexible | 2.50 mm² ... 0.20 mm² |
| Conductor cross section, rigid | 2.50 mm² ... 0.20 mm² |
| Conductor cross section, flexible [AWG] | 24 ... 12 |
| Conductor cross section AWG | 24 ... 12 |
| Safety data | |
| Input voltage Ui | 32 V |
| Inductance Li | 0 µH |
| Capacitance Ci | 0 µF |
| Max. output voltage Uo | 16.7 V |
| Max. output current Io | 250 mA |
| Max. output power Po | 1.05 W |
| Safety-related maximum voltage Um | 253 V |
| IIC: Max. external inductivity Lo / Max. external capacitance Co | / 0.39 µF |
| IIB: Max. external inductivity Lo / Max. external capacitance Co | / 2.33 µF |
| IIC: Max. external inductivity Lo / Max. external capacitance Co | 0.56 mH |
| IIB: Max. external inductivity Lo / Max. external capacitance Co | 2.27 mH |
| Signal | FOUNDATION Fieldbus |
| PROFIBUS | |
| Data: Foundation Fieldbus and PROFIBUS PA Segment | |
| Connection method | Pluggable COMBICON screw connection for each spur |
| No. of channels | 12 |
| Termination resistor | Integrated termination, activated with bridge located in correct terminals |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section, rigid max. | 2.5 mm² |
| Conductor cross section, rigid min. | 0.2 mm² |
| Conductor cross section AWG max. | 12 |
| Conductor cross section AWG min. | 24 |
| Output nominal voltage | ≤ 14 V (each spur) |
| Output current | 35 mA (per spur) |
| Dimensional drawing |
|
| Width | 279 mm |
| Height | 142 mm |
| Depth | 66 mm |
| Flammability rating according to UL 94 | V0 |
| Cable impedance | Recommend Type A fieldbus cable |
| Corrosive resistance in accordance with ANSI-ISA 71.04-1985 - Severity level G3 | : |
| Ambient conditions | |
| Degree of protection | IP20 |
| IP30 (over trunk connections) | |
| Ambient temperature (operation) | -40 °C ... 80 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Max. permissible relative humidity (operation) | < 95 % (non-condensing) |
| Permissible humidity (operation) | 95 % (non-condensing) |
| Shock | 15g for 11 ms |
| Vibration (operation) | 2g, 10 Hz ... 150 Hz |
| ATEX | |
| Identification | II 2(1) G Ex eb ib mb [ia Ga] IIC T4 Gb II (1D) [Ex ia Da] IIIC FISCO power supply (spur) |
| Certificate | DEMKO 16ATEX 1689X |
| IECEx | |
| Identification | Ex eb ib mb [ia Ga] IIC T4 Gb [Ex ia Da] IIIC FISCO power supply (spur) |
| Certificate | IECEx UL 16.0114X |
| UKCA Ex (UKEX) | |
| Identification | II 2(1) G Ex eb ib mb [ia Ga] IIC T4 Gb II (1D) [Ex ia Da] IIIC FISCO power supply (spur) |
| Certificate | UL21UKEX2210X |
| CCC Ex | |
| Identification | Ex eb ib mb [ia Ga] IIC T4 Gb [Ex ia Da] IIIC |
| Ex data | |
| UL, USA / Canada | Install in Class I, Div. 2, Groups A, B, C, D Entity/FISCO spur to: Class I, Groups A, B, C, D; Class II, Groups E, F, G; Class III; Group IIIC Class I, Zone 1 AEx eb ib mb [ia Ga] IIC T4 Gb [AEx ia Da] IIIC FISCO power supply (spur) Ex eb ib mb [ia Ga] IIC T4 Gb [Ex ia Da] IIIC FISCO power supply (spur) |
| Standards/regulations | |
| Standards/regulations | Ring wave noise immunity in acc. with IEC 61000-4-12 |
| Standards/regulations | |
| Standards/regulations | Dry heat in acc. with IEC 61131-2 |
| Standards/regulations | |
| Standards/regulations | Damp heat in acc. with IEC 61131-2 |
| Standards/regulations | |
| Standards/regulations | Shock and vibration in acc. with EN 61131-2 and EN 50178 |
| Standards/regulations | IEC 61158-2 |
| Mounting type | DIN rail mounting |
| Mounting position | On horizontal and vertical DIN rail NS 35 in acc. with EN 60715 |
Edut

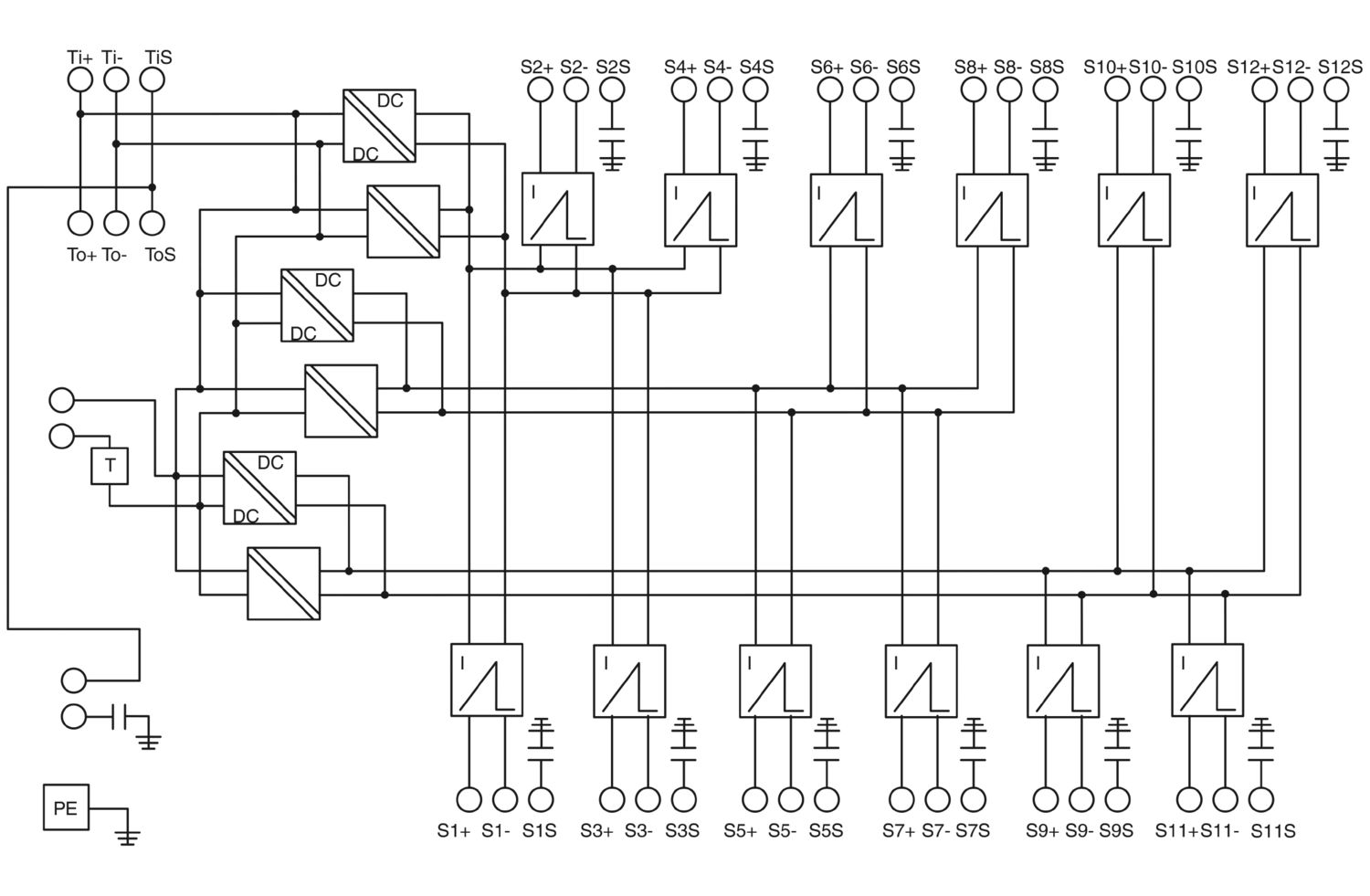

Provides current limiting short-circuit protection per spur
Three isolation zones; Spurs 1-4, 5-8, and 9-12.
Single-sided plug configuration eliminates cable bend radius issues
Connect up to 12 Foundation Fieldbus or PROFIBUS PA field devices located in Zone 0/1
Terminator preinstalled
