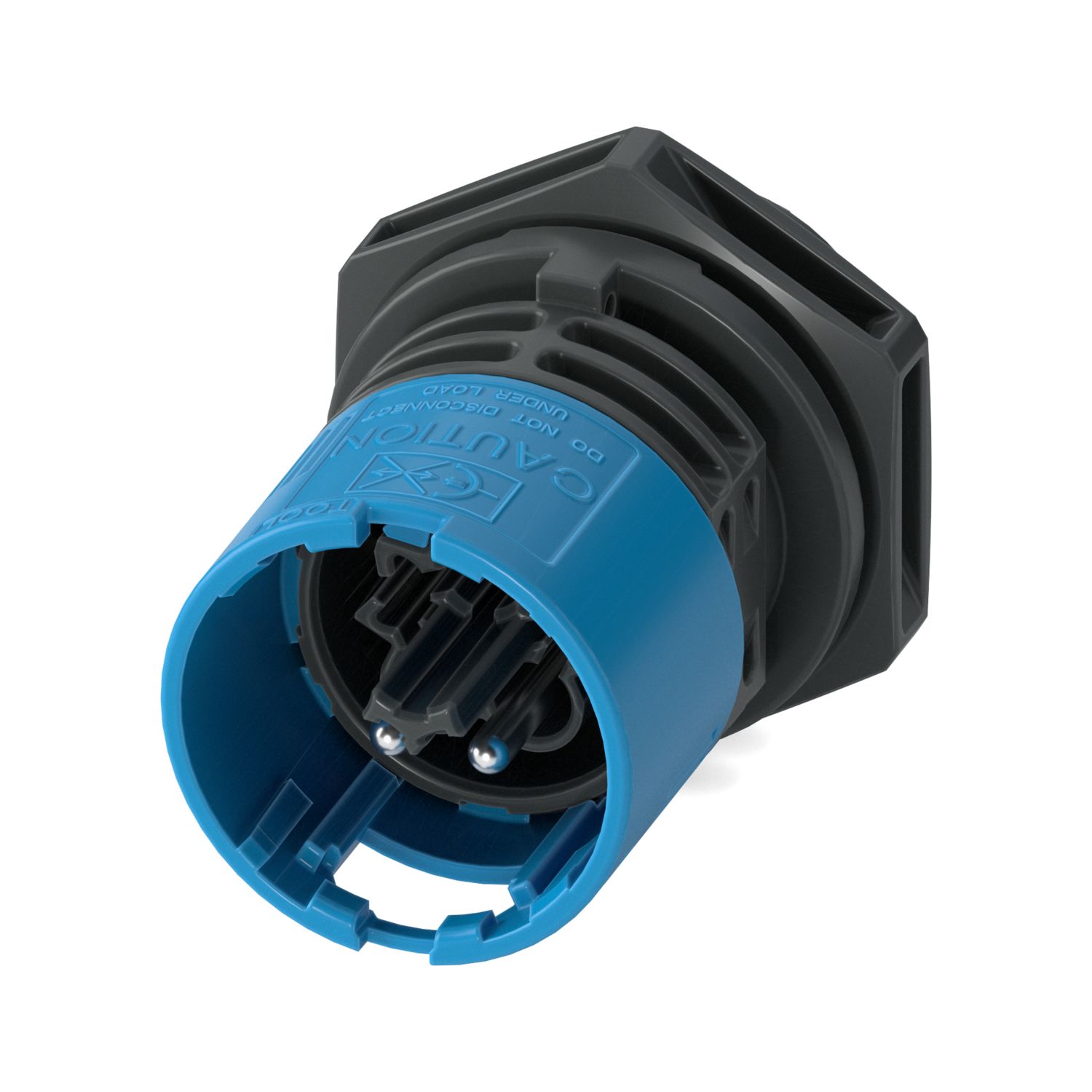

Device connector front mounting, Range of articles: PRC 20, color: black, number of positions: 2, min. conductor cross section: 0.5 mm2, max. conductor cross section: 2.5 mm2, rated voltage: 400 V, rated current: 20 A, Connection method: Screw connection, Contact connection type: Pin, Setting option for release: 1. with a tool or 2. by hand, scope: AC
| Order information: | Setting option for release: 1. with a tool or 2. by hand |
| Note on application | For assembly notes, please refer to the packing slip |
| Product type | Panel feed-through |
| Product family | PRC 20 |
| Area of application | AC |
| Number of positions | 2 |
| Connection profile | 2 |
| Coding | 2-C1 |
| Insulation characteristics | |
| Protection class | II |
| Dimensional drawing |
|
| Width | 34 mm |
| Height | 38.4 mm |
| Length | 53.7 mm |
| Nominal voltage ATD | 400 V (III/2.00) in accordance with IEC 61984 |
| 400 V AC (III/2.00) in accordance with IEC 61535 | |
| 600 V AC / DC (III/2.00) in accordance with UL 2238 / UL 2237 | |
| 500 V DC (III/2.00) in accordance with IEC 61535 | |
| Rated current | 20 A (With 2.5 mm² conductor cross section in accordance with IEC 61535) |
| Color (Housing) | black (RAL 9005) |
| Material Housing | PPE |
| Material Contact carrier | PPE |
| Flammability rating according to UL 94 | V0 |
| Single wire, cross section | 0.5 mm² 2.5 mm² |
| Stripping length of the individual wire | 10 mm (Lay PE conductor 8 mm leading) |
| Halogen-free | yes |
| Ambient conditions | |
| Degree of protection | IP66 |
| IP68 (2 m / 2 h) | |
| IP69 | |
| Category of shock impact | IK08 (-25°C) |

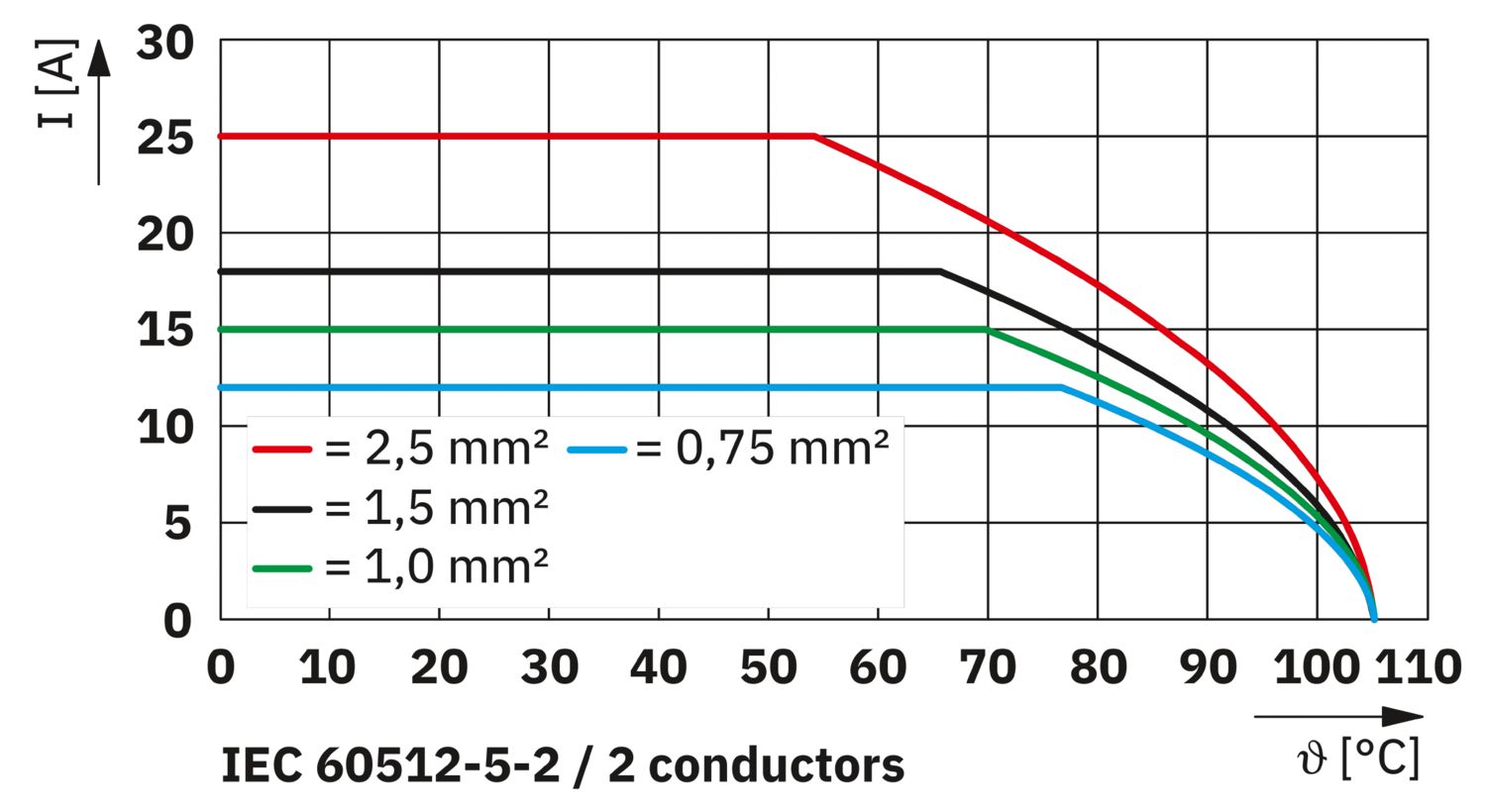

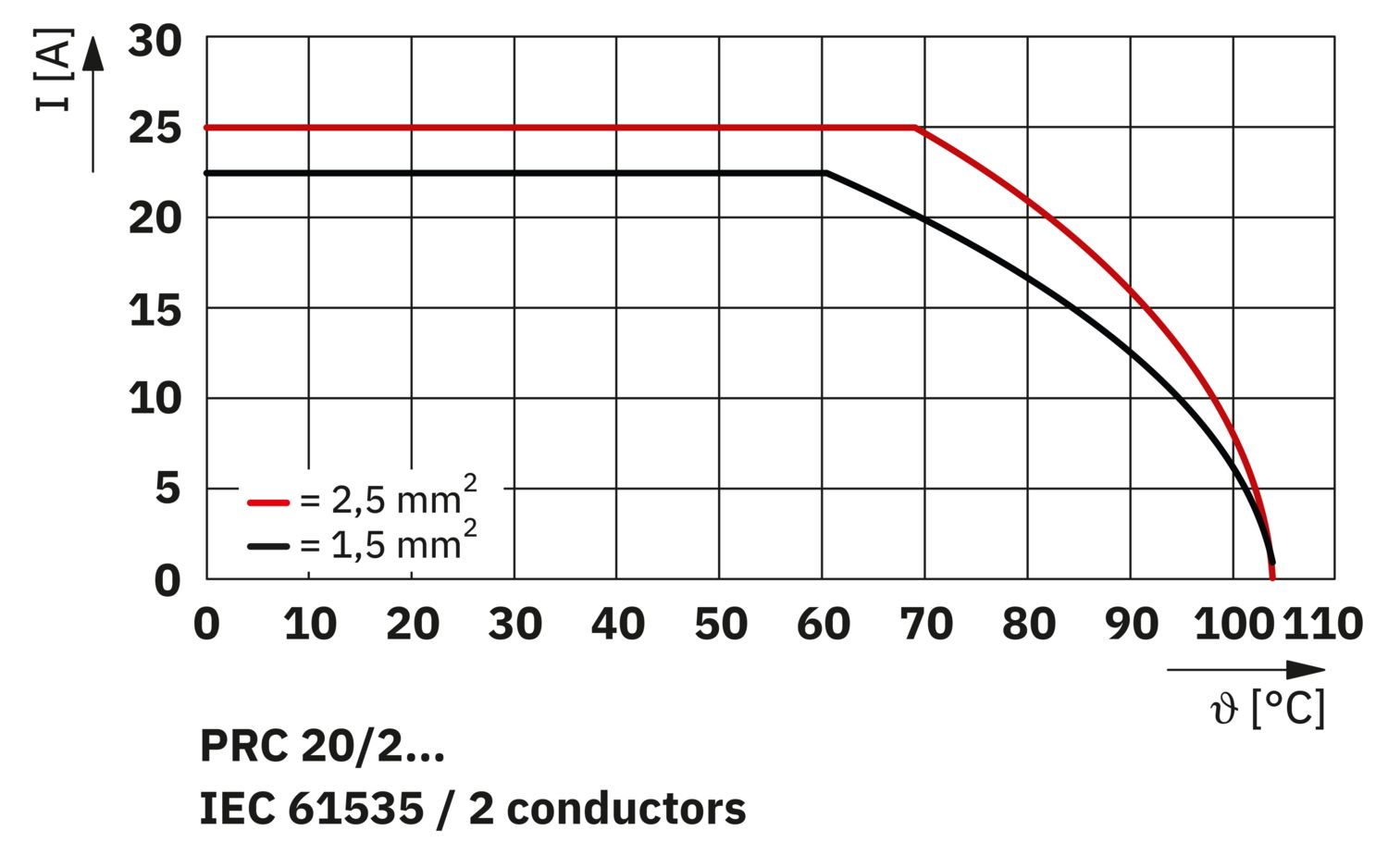

| Ambient temperature (operation) | -40 °C ... 85 °C (observe derating) |
| Ambient temperature (storage/transport) | -40 °C ... 75 °C |
| Ambient temperature (assembly) | -5 °C ... 85 °C |
| Nimellisjännite UN | Nimellisvirta IN | Poikkipinta AWG | Poikkipinta mm2 | |
|---|---|---|---|---|
| 600 V | 20 A | 20 - 14 |
| Nimellisjännite UN | Nimellisvirta IN | Poikkipinta AWG | Poikkipinta mm2 | |
|---|---|---|---|---|
| 600 V | 20 A | 20 - 14 |
| Nimellisjännite UN | Nimellisvirta IN | Poikkipinta AWG | Poikkipinta mm2 | |
|---|---|---|---|---|
| 500 V | 20 A | 0.5 - 2.5 |
