SACB-16X0,5/ 3X1,0-50,0 VPUR
-
Master cable ring
1430938
Master cable for sensor/actuator boxes, with PE conductor, unshielded, material PUR/PP, 19-pos., 16 x 0.50 mm2 and 3 x 1.00 mm2, length: 50 m
Tuotetiedot
| Product type | Cable by the meter |
| Application | Distributor boxes |
| Number of positions | 19 |
| Nominal voltage UN | 300 V AC |
| 300 V DC |
| Cable length | 50 m |
| PUR halogen-free black [PUR] | |

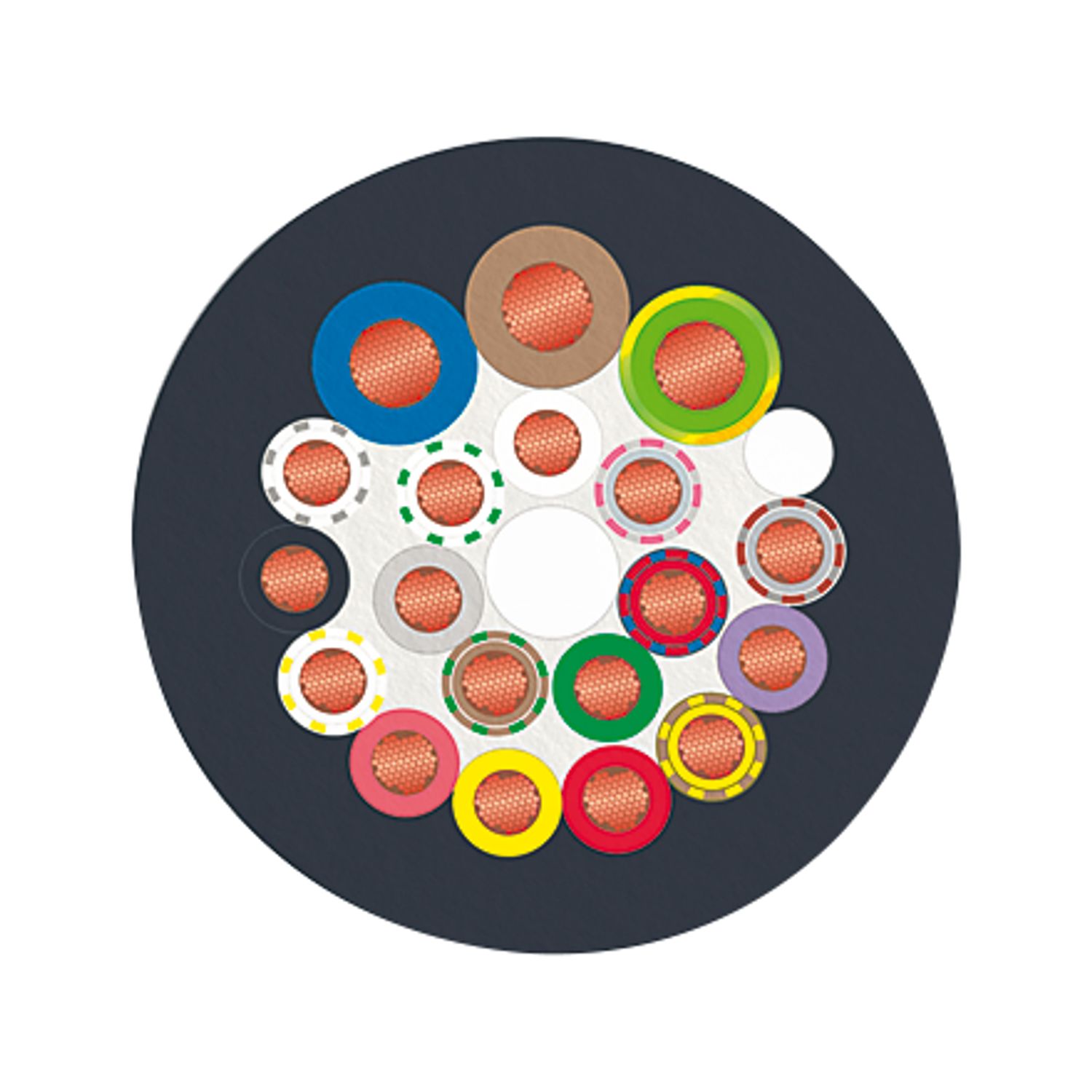

| Mittapiirros |
|
| Number of positions | 19 |
| Shielded | no |
| Cable type | PUR halogen-free black [PUR] |
| Conductor structure signal line | 64x 0.10 mm |
| AWG signal line | 20 |
| Conductor structure, voltage supply | 128x 0.10 mm |
| AWG power supply | 17 |
| Conductor cross section | 16x 0.5 mm² (Signal line) |
| 3x 1 mm² (power line) | |
| External cable diameter | 11.60 mm ±0.3 mm |
| Outer sheath, material | PUR |
| External sheath, color | black RAL 9005 |
| Conductor material | Bare Cu litz wires |
| Material wire insulation | PP |
| Single wire, color | brown, blue, green/yellow, white, green, yellow, gray, pink, red, black, violet, gray/pink, red/blue, white/green, brown/green, white/yellow, yellow/brown, white/gray, gray/brown |
| Overall twist | Wires twisted in layers |
| Nominal voltage, cable | 300 V |
| Test voltage | 2000 V |
| Smallest bending radius, fixed installation | 116 mm |
| Smallest bending radius, movable installation | 116 mm |
| Dynamic load capacity (bending) | Max. bending cycles: 1500000, Bending radius: 116 mm, Traversing path: 2 m, Traversing rate: 2 m/s |
| Flame resistance | DIN EN 50265 |
| Resistance to oil | according to VDE 0472 Part 803 |
| Other resistance | Highly resistant to acids, alkaline solutions and solvents |
| Special properties | Silicone-free |
| Ambient temperature (operation) | -40 °C ... 90 °C (cable, fixed installation) |
| -5 °C ... 80 °C (Cable, flexible installation) | |
