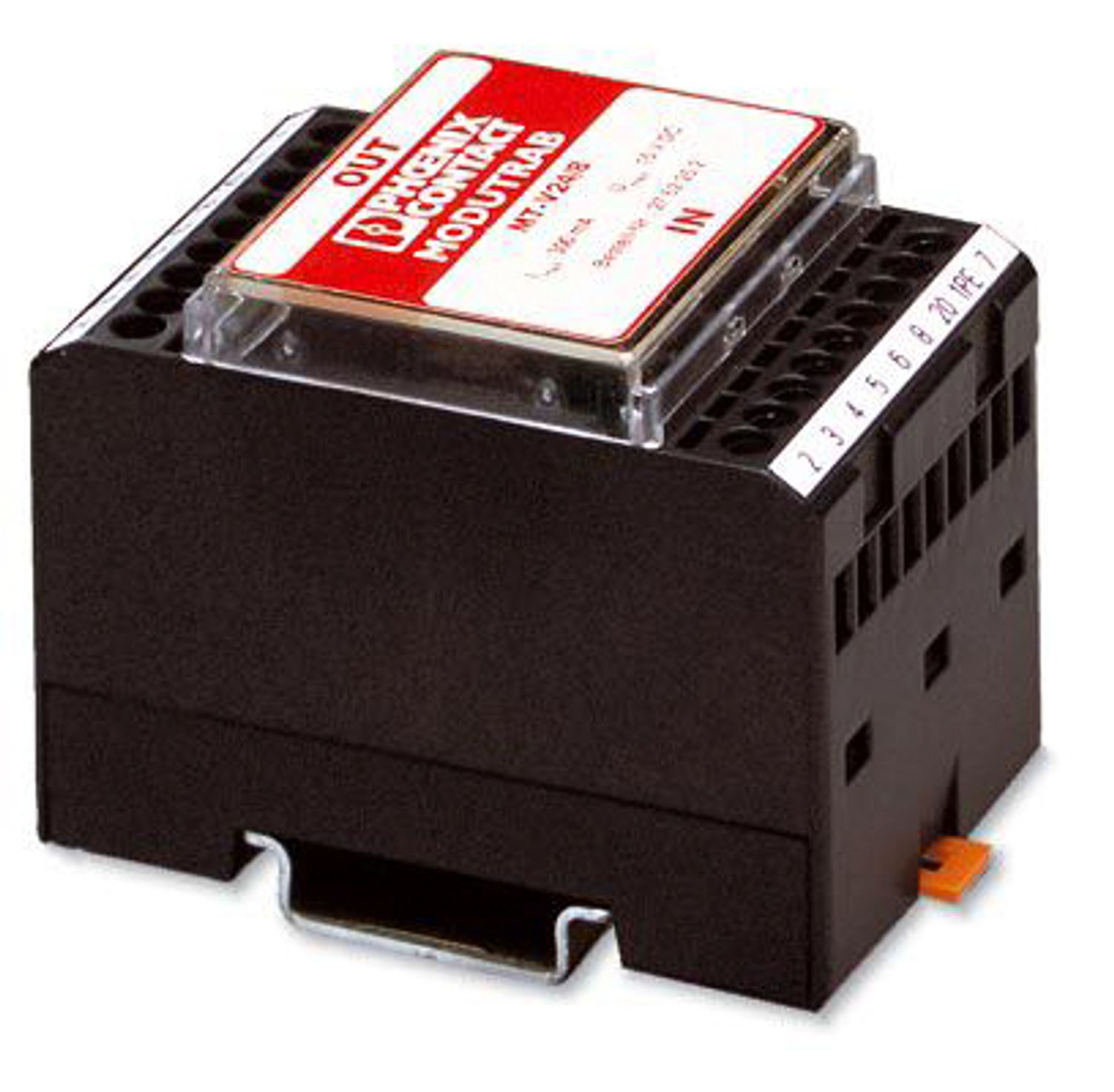

MT-V24/8
-
Surge protection device
2762252
Rail-mountable module with surge voltage coarse and fine protection for V.24 interface with handshake, for mounting on NS 35/7.5, housing width: 50 mm
Detalii despre produs
| Product type | Surge protection for information technology |
| IEC test classification | C1 |
| C3 | |
| VDE requirement class | C1 |
| C3 | |
| Type | DIN rail module, one-piece |
| Surge protection fault message | none |
| Connection method | Screw connection |
| Screw thread | M3 |
| Conductor cross-section flexible min. | 0.2 mm² |
| Conductor cross-section flexible max. | 2.5 mm² |
| Conductor cross-section, rigid min. | 0.2 mm² |
| Conductor cross-section, rigid max. | 4 mm² |
| Dimensional drawing |
|

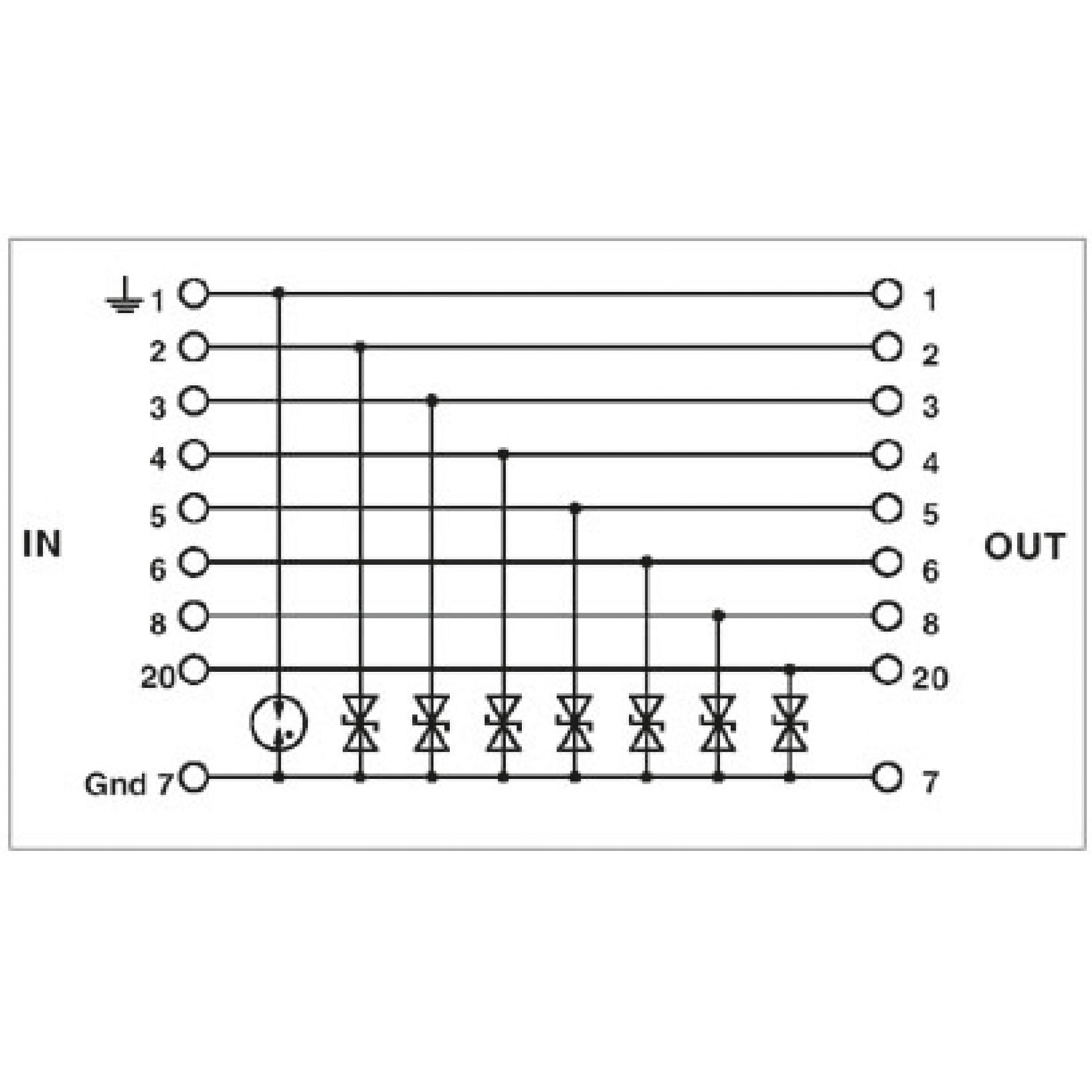

| Width | 12.4 mm |
| Height | 77.5 mm |
| Depth | 55 mm |
| Mechanical data | |
| Open side panel | No |
| Direction of action | Line-Line & Line-Signal Ground/Shield & Signal Ground/Shield-Earth Ground |
| Maximum continuous voltage UC (line-earth) | 15 V DC |
| Protective conductor current IPE | ≤ 5 µA |
| Nominal discharge current In (8/20) µs (line-ground) | 10 kA |
| Nominal discharge current In (8/20) µs (line-signal ground) | 0.3 kA |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 600 V |
| Output voltage limitation at 1 kV/µs (line-shield) spike | ≤ 22 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 600 V |
| Output voltage limitation at 1 kV/µs (line-signal ground) static | ≤ 22 V |
| Residual voltage at In (line-signal ground) | ≤ 28 V |
| Voltage protection level Up (line-earth) | ≤ 600 V |
| Voltage protection level Up (line-signal ground) | ≤ 28 V |
| Response time tA (line-earth) | ≤ 100 ns |
| Response time tA (line-signal ground) | ≤ 1 ns |

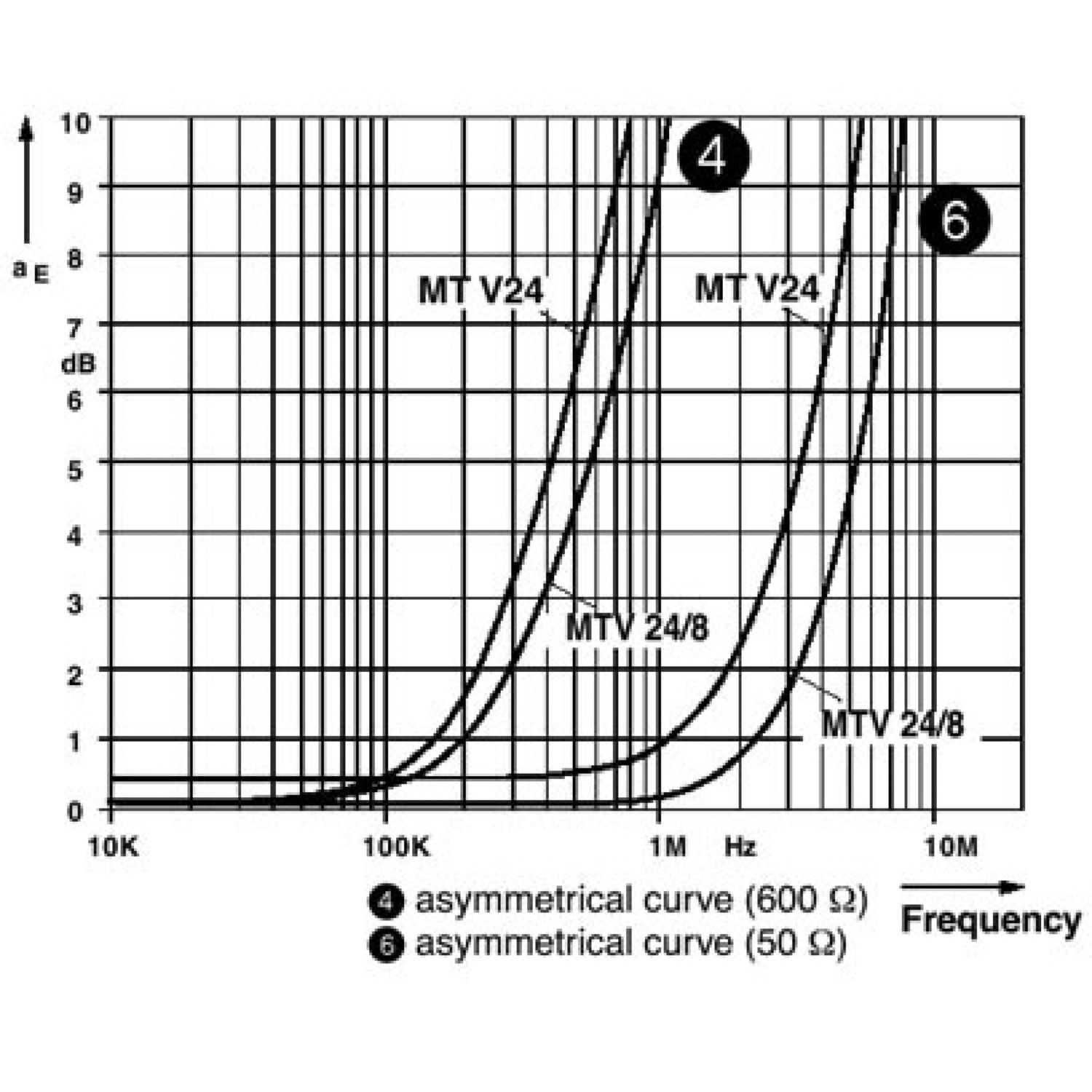

| Cut-off frequency fg (3 dB), asym. (siganl ground) in 50 Ω system | 4 MHz |
| Cut-off frequency fg (3 dB), asym. (signal ground) in 600 Ω system | 300 kHz |
| Resistance per path | 4.7 Ω |
| Surge protection fault message | none |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 60 °C |
| VDE requirement class | C1 |
| C3 | |
| Standards Information technology specification | |
| Standards/regulations | IEC 61643-21 |
| IEC 61643-21 | |
| Mounting type | DIN rail: 35 mm |
