PI-EX-ME-SD-24/60-S
-
Signal isolator
2835668

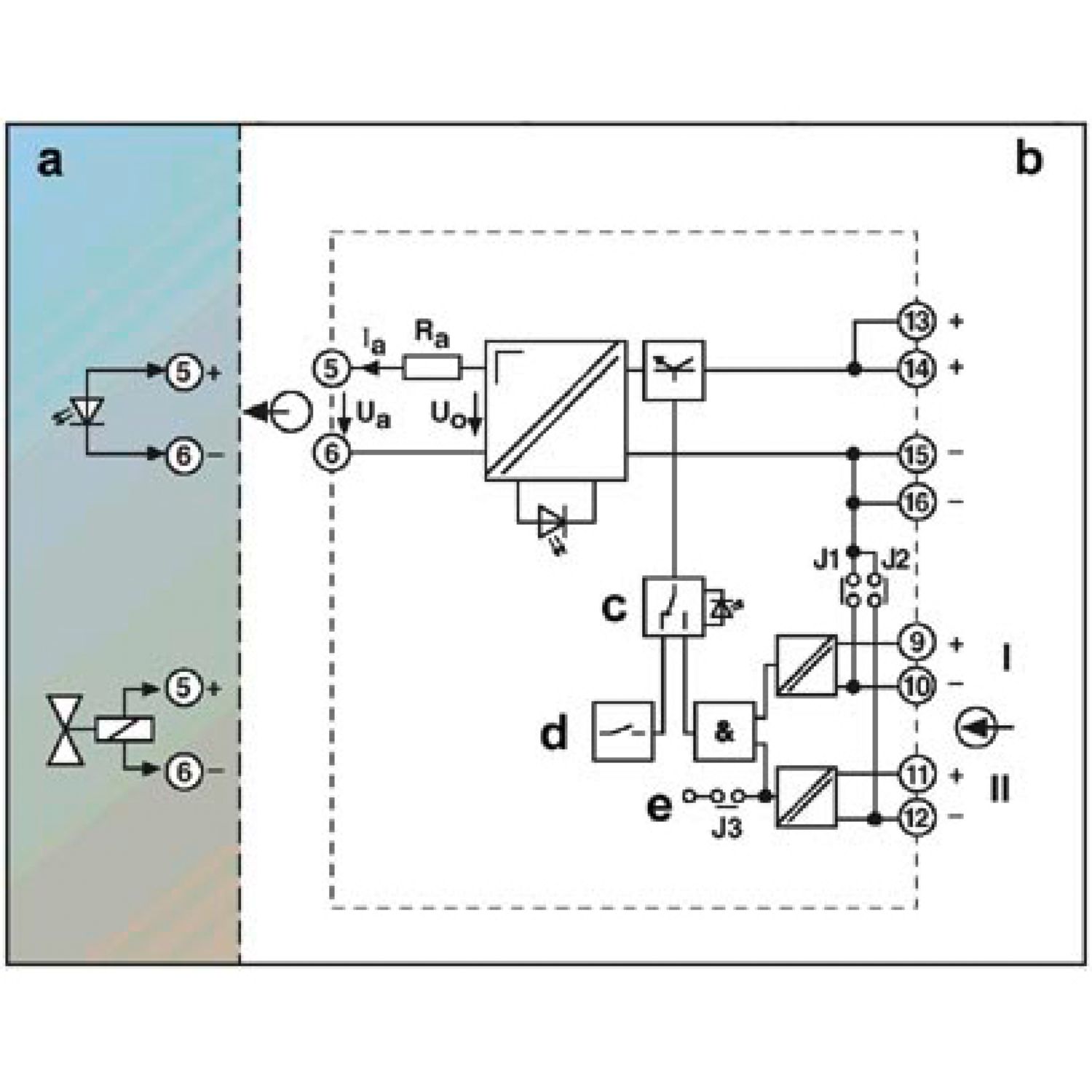

Solenoid driver with intrinsically safe output and hand-operated level, 1-channel
Detalii despre produs
| Product type | Signal conditioner |
| Application | Digital OUT |
| No. of channels | 1 |
| Line monitoring | NE 21 |
| Test voltage input/output | 2500 V |
| Test voltage input/power supply | 500 V |
| Supply | |
| Supply voltage range | 20 V DC ... 30 V DC |
| Power consumption | 2 W |
| Control | |
| Voltage input signal | 15 V DC ... 30 V DC (supply voltage - 1 V) |
| Signal: Voltage | |
| Output description | intrinsically safe |

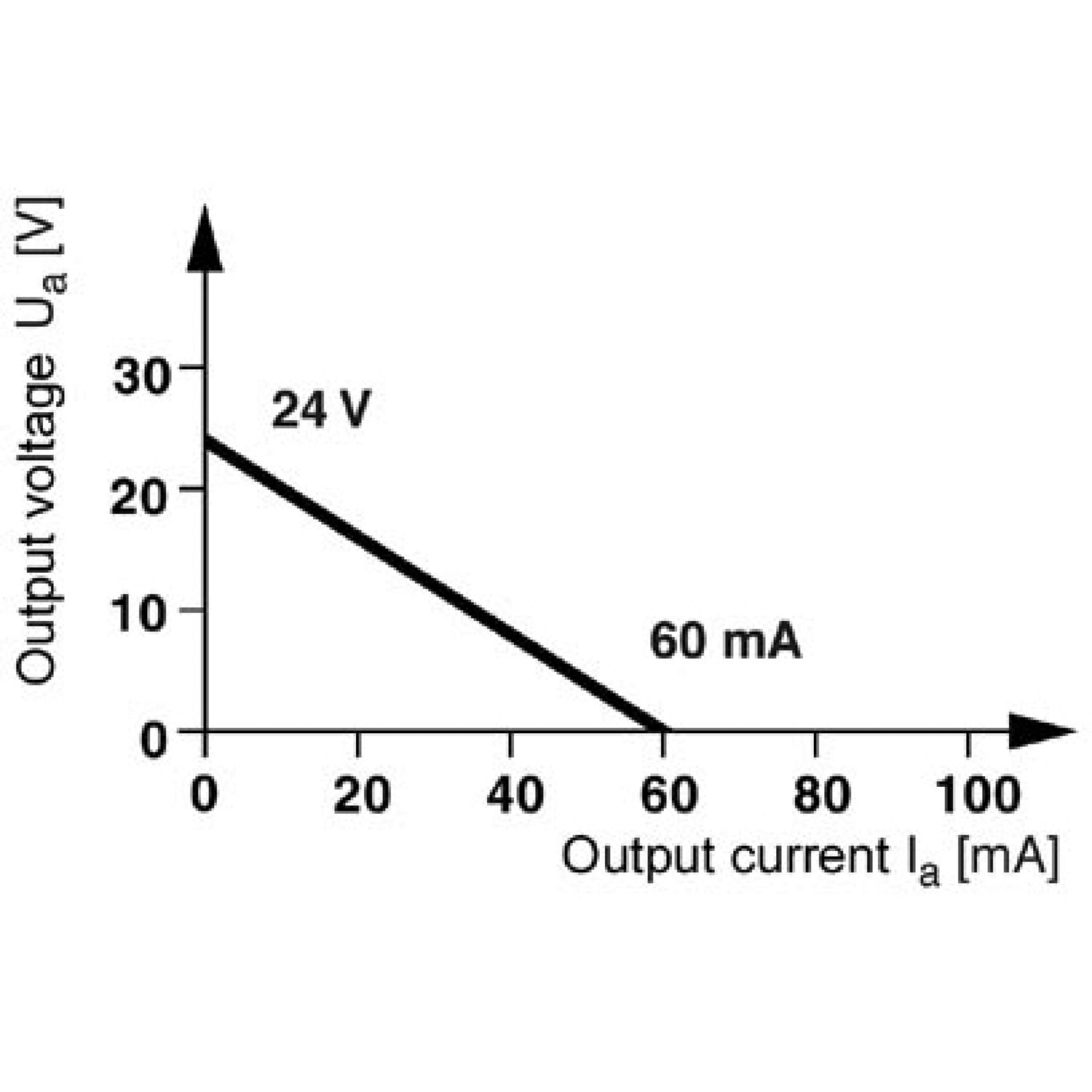

| Output voltage | 24 V (Uv = 24 V DC) |
| Output resistor | 390 Ω (Ra = 390 Ω) |
| Connection method | Pluggable screw terminal block |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 14 |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Safety data | |
| Max. output voltage Uo | 27.4 V |
| Max. output current Io | 74 mA |
| Max. output power Po | 505 mW |
| EEX specification | [EEx ia] IIC, EX II (1)GD, TÜV 02 ATEX 1904 |
| IIB: Max. external inductivity Lo / Max. external capacitance Co | 23 mH / 0.677 µF |
| IIC: Max. external inductivity Lo / Max. external capacitance Co | 3.8 mH / 0.087 µF |
| Status display | LED yellow (switching state) |
| LED red (manual mode) |
| Dimensional drawing |
|
| Width | 22.5 mm |
| Height | 114.5 mm |
| Depth | 99 mm |
| Color | green (RAL 6021) |
| Flammability rating according to UL 94 | V0 |
| Housing material | Polyamide PA non-reinforced |
| Ambient conditions | |
| Ambient temperature (operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -20 °C ... 80 °C |
| Permissible humidity (operation) | ≤ 75 % (annual average) |
| ≤ 95 % (30 days/year, non-condensing) | |
| Electromagnetic compatibility | Conformance with EMC directive |
| Noise immunity | EN 61000-6-2:2005 |
| Noise emission | |
| Standards/regulations | EN 50081-2 |
