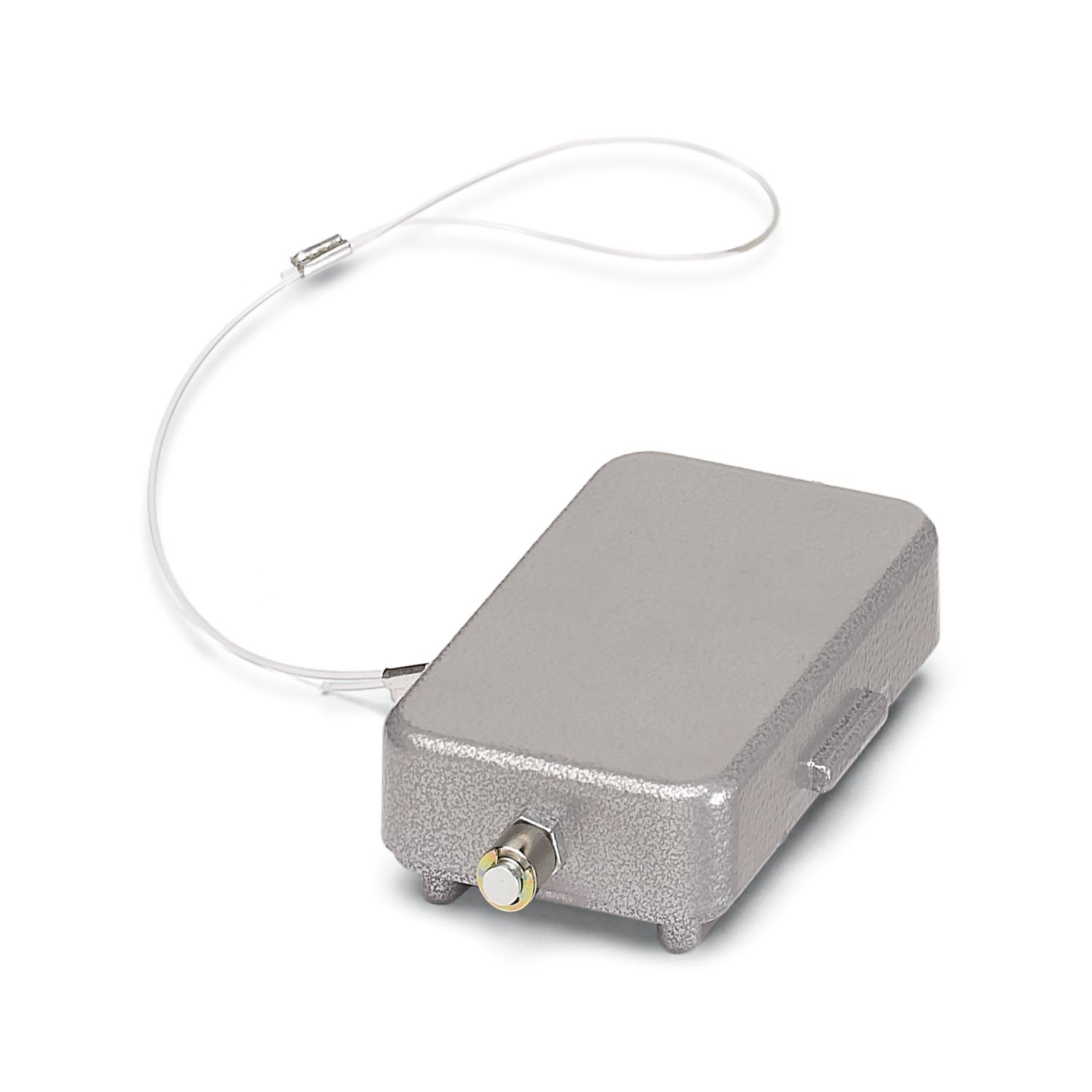

HC-B 10-SD-FLU/FS-AL
-
Protective cover
1644562
Protective cover B10, for single locking latch, protective cover material: Al, height: 16 mm, seal: no, with lanyard
Detalii despre produs
| Product type | Protective cover |
| Housing type | Protective cover |
| Type | B10 |
| Type | for supporting base element with single locking latch |
| Retaining cord present | yes |
| Seal present | no |

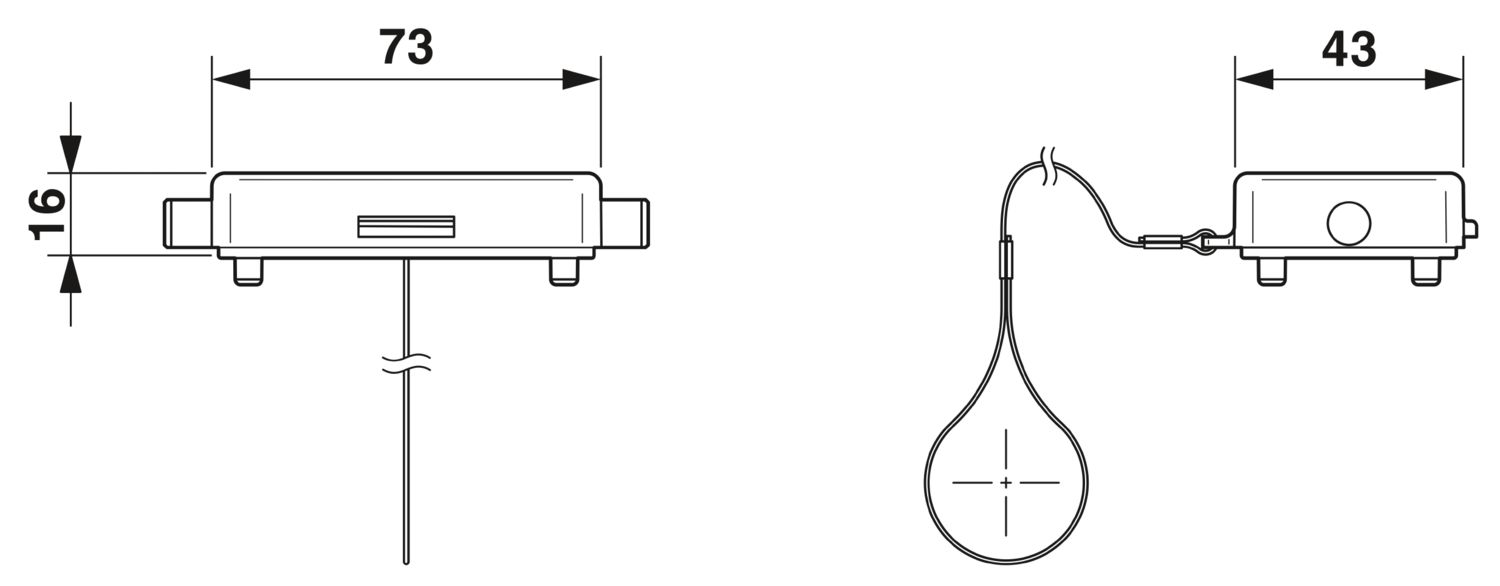

| Dimensional drawing |
|
| Width | 43 mm |
| Height | 16 mm |
| Length | 73 mm |
| Diameter | 30 mm |
| Material Protective cover | Die-cast aluminum (powder-coated) |
| Housing surface material | Powder-coated, gray |
| Material, protective cover | Al |
| Mechanical data | |
| Locking type | Pin |
| Ambient conditions | |
| Degree of protection | IP66 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Assembly note | The guide pins of the protective cover must be removed when using coding sockets, pins, and bolts. |
