The terminal is designed for use within an Inline station. Two channels that operate independently of one another offer the option of pulse width modulation (PWM) for the output signals. The terminal block supports the following operating modes: PWM (pulse width modulation), frequency generator, single shot (single pulse generator), and pulse direction signal.
IB IL PWM/2-PAC
-
Function module
2861632
Inline function terminal for pulse width and frequency modulation or activation of impulse-driven motor control parts with pulse/direction interface, two outputs for 5 V or 24 V
Descărcare gratuită disponibilă.
Descărcări
Detalii despre produs
| Dimensional drawing |
|
| Width | 24.4 mm |
| Height | 136.8 mm |
| Depth | 71.5 mm |
| Note on application | |
| Note on application | Only for industrial use |
| Inline local bus | |
| Number of interfaces | 2 |
| Connection method | Inline data jumper |
| Transmission speed | 500 kbps |
| Module | |
| ID code (dec.) | 191 |
| ID code (hex) | BF |
| Length code (hex) | 02 |
| Length code (dec) | 02 |
| Process data channel | 32 bit |
| Input address area | 4 Byte |
| Output address area | 4 Byte |
| Register length | 4 Byte |
| Required parameter data | 1 Byte |
| Required configuration data | 5 Byte |
| Digital: | |
| Output name | Digital output: 24 V DC |
| Connection technology | 2-conductor (shielded) |
| Number of outputs | 2 |
| Protective circuit | Short-circuit protection, overload protection of the outputs; integrated damping diode for each channel |
| Output voltage | 24 V |
| Maximum output current per module / terminal block | 1 A |
| Nominal output voltage | 24 V DC |
| Nominal load, inductive | 12 VA (1.2 H, 24 Ω) |
| Nominal load, lamp | 12 W |
| Nominal load, ohmic | 12 W |
| Maximum operating frequency with ohmic nominal load | 500 Hz |
| Reverse voltage resistance to short pulses | Reverse voltage proof |
| Behavior with overload | Auto restart |
| Behavior at voltage switch-off | The output follows the power supply without delay |
| Overcurrent shut-down | as of 0.7 A |
| Digital: | |
| Output name | Digital output: 5 V DC |
| Connection technology | 2-conductor (shielded) |
| Number of outputs | 2 |
| Protective circuit | Short-circuit protection, overload protection of the outputs; integrated damping diode for each channel |
| Nominal output voltage | 5 V DC |
| Maximum operating frequency with ohmic nominal load | 50 kHz |
| Product type | I/O component |
| Product family | Inline |
| Type | modular |
| Operating mode | PWM, frequency generator, single-shot, pulse/direction signal |
| Process data operation with 2 words | |
| Diagnostics messages | Short circuit or overload of a 24 V output yes |
| Maximum power dissipation for nominal condition | 1.4 W |
| Potentials: Communications power (UL) | |
| Supply voltage | 7.5 V DC (via voltage jumper) |
| Current draw | max. 130 mA |
| Potentials: Segment circuit supply (US) | |
| Supply voltage | 24 V DC (via voltage jumper) |
| Current draw | max. 1 A |
| 0 A | |
| Electrical isolation/isolation of the voltage ranges | |
| Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O) | 500 V AC, 50 Hz, 1 min |
| Test voltage: 7.5 V supply (bus logic) / 5 V supply (I/O) | 500 V AC, 50 Hz, 1 min |
| Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min |
| Test voltage: 5 V supply (I/O)/functional ground | 500 V AC, 50 Hz, 1 min |
| Connection technology | |

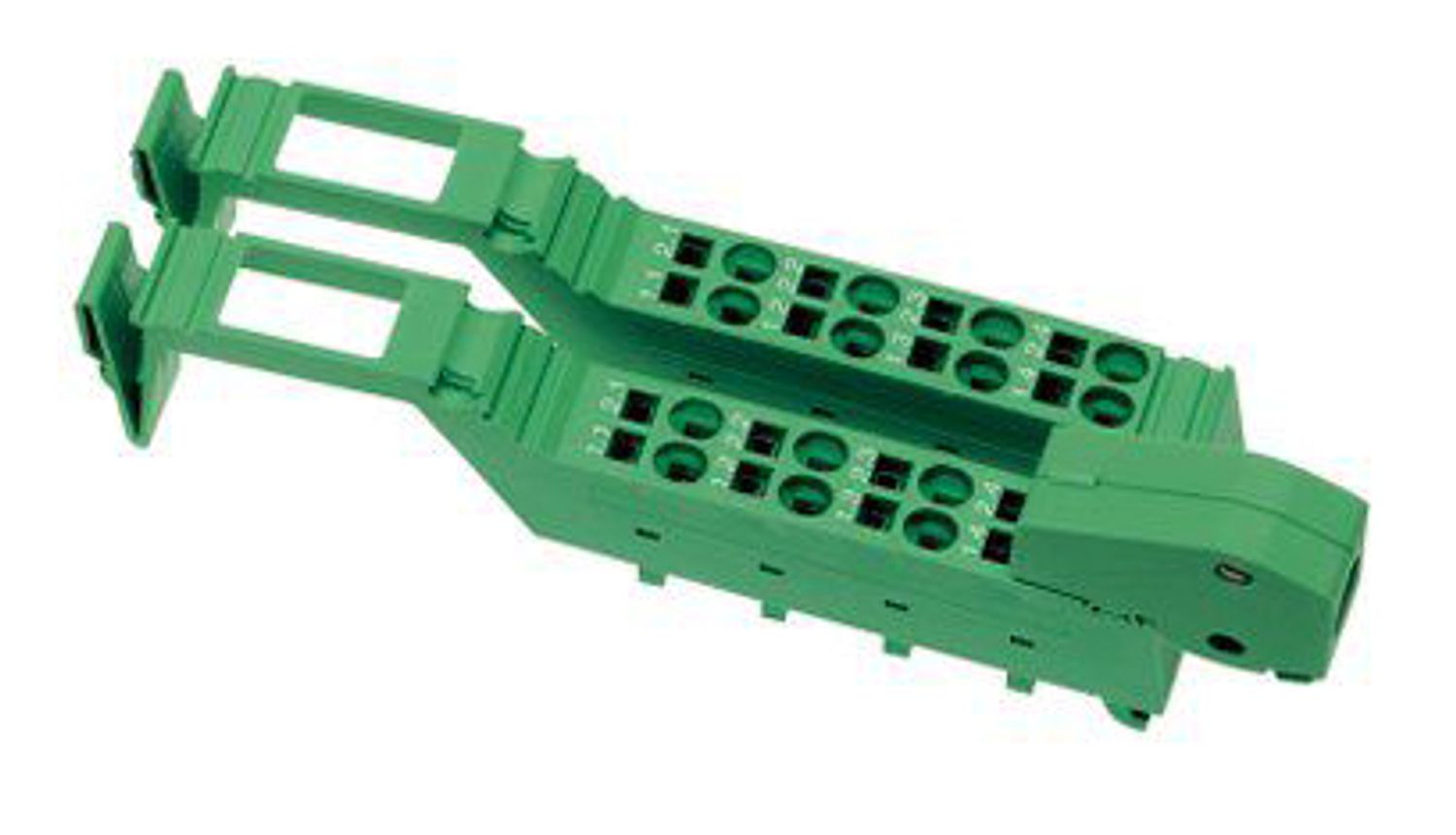

| Connection name | Inline connector |
| Conductor connection | |
| Connection method | Spring-cage connection |
| Conductor cross section rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm |
| Inline connector | |
| Connection method | Spring-cage connection |
| Conductor cross section, rigid | 0.08 mm² ... 1.5 mm² |
| Conductor cross section, flexible | 0.08 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
| Stripping length | 8 mm |
| Ambient conditions | |
| Ambient temperature (operation) | -25 °C ... 55 °C |
| Degree of protection | IP20 |
| Air pressure (operation) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 70 kPa ... 106 kPa (up to 3000 m above sea level) |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Mounting type | DIN rail mounting |
BV
ID de înregistrare: 20989_C0 BVBSH
ID de înregistrare: 658aRINA
ID de înregistrare: ELE121121XGABS
ID de înregistrare: 22-2226444-PDADNV
ID de înregistrare: TAA00002CUcULus Listed
ID de înregistrare: E140324
Avantajele dumneavoastră
2 independent channels
Output of 5 V or 24 V signals
Maximum frequency of 50 kHz
Pulse direction signal output without integrated ramp function for controlling step motor power supply units
Single pulse output (pulse length of 10 μs to 25.5 s can be set)
Pulse width modulation (period length can be set in increments from 100 µs to 10 s, duty factor in 0.39% increments)
Frequency output (frequency can be set between 0 Hz and 50 kHz)
