GW PL HART4-BUS
-
Protocol converter
2702234
Four-channel HART® expansion module, with screw connection
Pentru operarea acestui produs, sunt necesare și alte produse.
Accesorii necesare

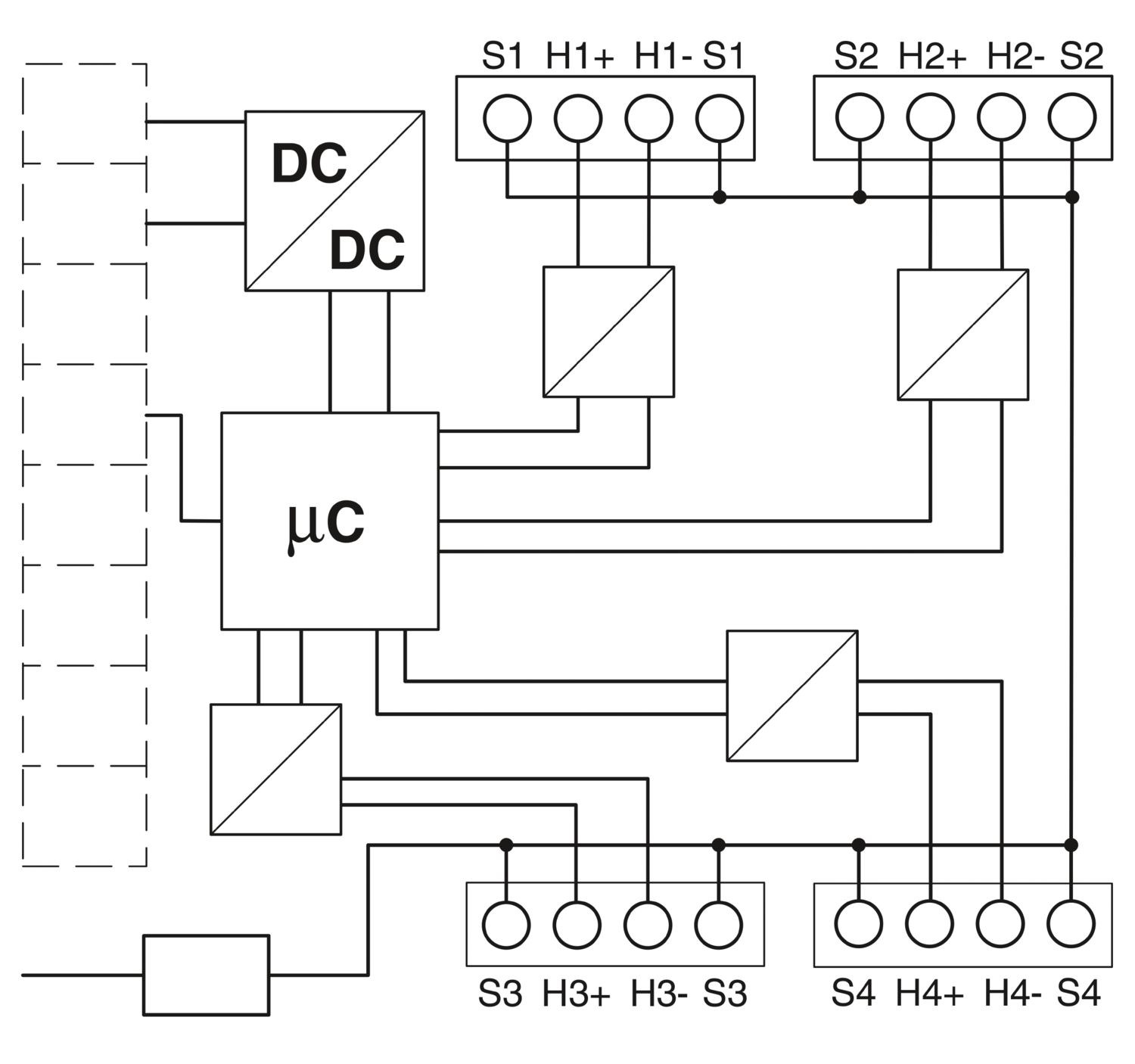

Detalii despre produs
| Dimensional drawing |
|
| Width | 22.5 mm |
| Height | 99 mm |
| Depth | 114.5 mm |
| Note on application | |
| Note on application | Only for industrial use |
| Utilization restriction | |
| CCCex note | Use in potentially explosive areas is not permitted in China. |
| Color | gray |
| Data: HART FSK | |
| Transmission speed | 1200 bps |
| Connection method | Screw connection |
| No. of channels | 4 |
| Product type | I/O component |
| MTBF | 359 Years (Siemens model SN29500, temperature 40°C, env. factor 1.5 and stress factor 50%) |
| Test voltage data interface/power supply | 500 V AC |
| Test voltage data interfaces | 500 V AC |
| Supply | |
| Supply voltage range | 19.2 V DC ... 30 V DC (supplied from the bus) |
| Typical current consumption | 44 mA (at 24 V DC) |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 70 °C |
| -40 °F ... 158 °F | |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Conformity/Approvals | |
| Conformance | CE-compliant |
| Noxious gas test | ISA-S71.04-1985 G3 Harsh Group A |
| Ex data | |
| ATEX | II 3 G Ex nA IIC T4 Gc DEMKO 17 ATEX 1749X |
| IECEx | IECEx ULD 17.0020X Ex nA IIC T4 Gc |
| UL, USA / Canada | Class I, Div. 2, Groups A, B, C, D |
| Mounting type | DIN rail mounting |
| Assembly note | on standard DIN rail NS 35 in accordance with EN 60715 |
| Mounting position | any |
