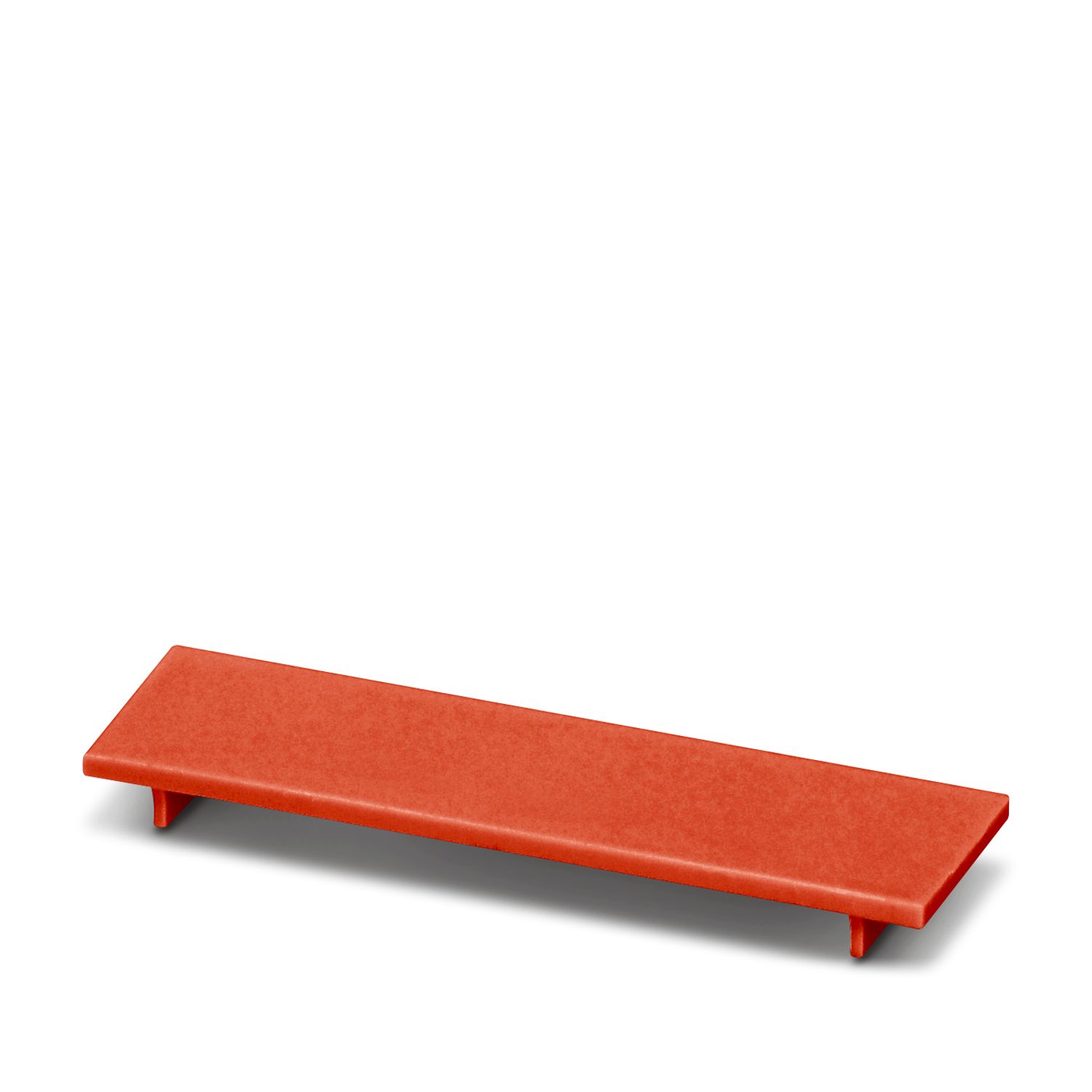

ME 17,5 PLATE-MSTBO RD - Insertion plate - 2200410

Product properties

Product type	Cover
Housing type	DIN rail housing
Housing series	ME
Ventilation openings present	no

Dimensions

Material specifications

Flammability rating according to UL 94	V0
CTI according to IEC 60112	600
Housing material	PA
Surface characteristics	untreated

Environmental and real-life conditions

Vibration test
Specification	IEC 60068-2-6:2007-12
Frequency	10 - 150 - 10 Hz
Sweep speed	1 octave/min
Amplitude	0.15 mm (10 Hz ... 58.1 Hz)
Acceleration	2g (58.1 Hz ... 150 Hz)
Test duration per axis	2.5 h
Test directions	X-, Y- and Z-axis
Glow-wire test
Specification	IEC 60695-2-11:2014-02
Temperature	850 °C
Time of exposure	30 s
Thermal stability / ball thrust test
Specification	IEC 60695-10-2:2014-02
Temperature	125 °C
Test duration	1 h
Force	20 N
Mechanical strength / tumbling barrel
Specification	IEC 60998-1:2002-12
Height of fall	50 cm
Frequency	10
Shocks
Specification	IEC 60068-2-27:2008-02
Pulse shape	Half-sine
Acceleration	15g
Shock duration	11 ms
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)
Degree of protection (IP code)
Specification	IEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08
Ambient conditions
Max. IP code to attain	IP20
Ambient temperature (operation)	-40 °C ... 105 °C (depending on power dissipation)
Ambient temperature (storage/transport)	-40 °C ... 55 °C
Ambient temperature (assembly)	-5 °C ... 100 °C
Relative humidity (storage/transport)	80 %

Mounting

Număr articol	2200410
Unitate de ambalare	10 Bucată
Cantitate minimă pentru comandă	250 Bucată
Indicație	Produs la comandă (nereturnabil)
Cod produs	ACHAAZ
GTIN	4046356577588
Greutate pe bucată (inclusiv ambalajul)	1,18 g
Greutate pe bucată (fără ambalaj)	1,18 g
Cod tarifar vamal	85389099

EU RoHS
Îndeplineşte cerinţele conform directivei RoHS	Da (Nicio reglementare privind excepţiile)
China RoHS
Environment friendly use period (EFUP)	EFUP-E Nu există substanțe periculoase peste valorile limită
EU REACH SVHC
Trimitere la substanţa candidată REACH (nr. CAS)	Nicio substanţă cu un procentaj masic mai mare de 0,1 %

ME 17,5 PLATE-MSTBO RD - Insertion plate

2200410
