HC-HPR-B10-SHFH-2SSM32-EMR-BK
-
Housing
1411096
HEAVYCON B10 box mounting base, for screw locking, HPR series, with 2 x M32 gland, for increased environmental and EMC requirements
Detalii despre produs
| General | For contact inserts HC-B10, BB18, DD42, M, K8/24 |
| Product type | Housing with screw locking |
| Housing type | Surface mounting housing |
| Product family | HC-HPR-B |
| Series | HPR-B10 |
| Application | Railway applications |
| Type | B10 |
| No. of cable outlets | 2 |
| Type of the screw connection | 2x M32 |
| Type | Tall design |
| Protective cover | no |
| Cable outlet | lateral |
| Pg screw connection | none |
| Tightening torque | 10 Nm ... 15 Nm (for M8 mounting screws on the surface-mount housing) |

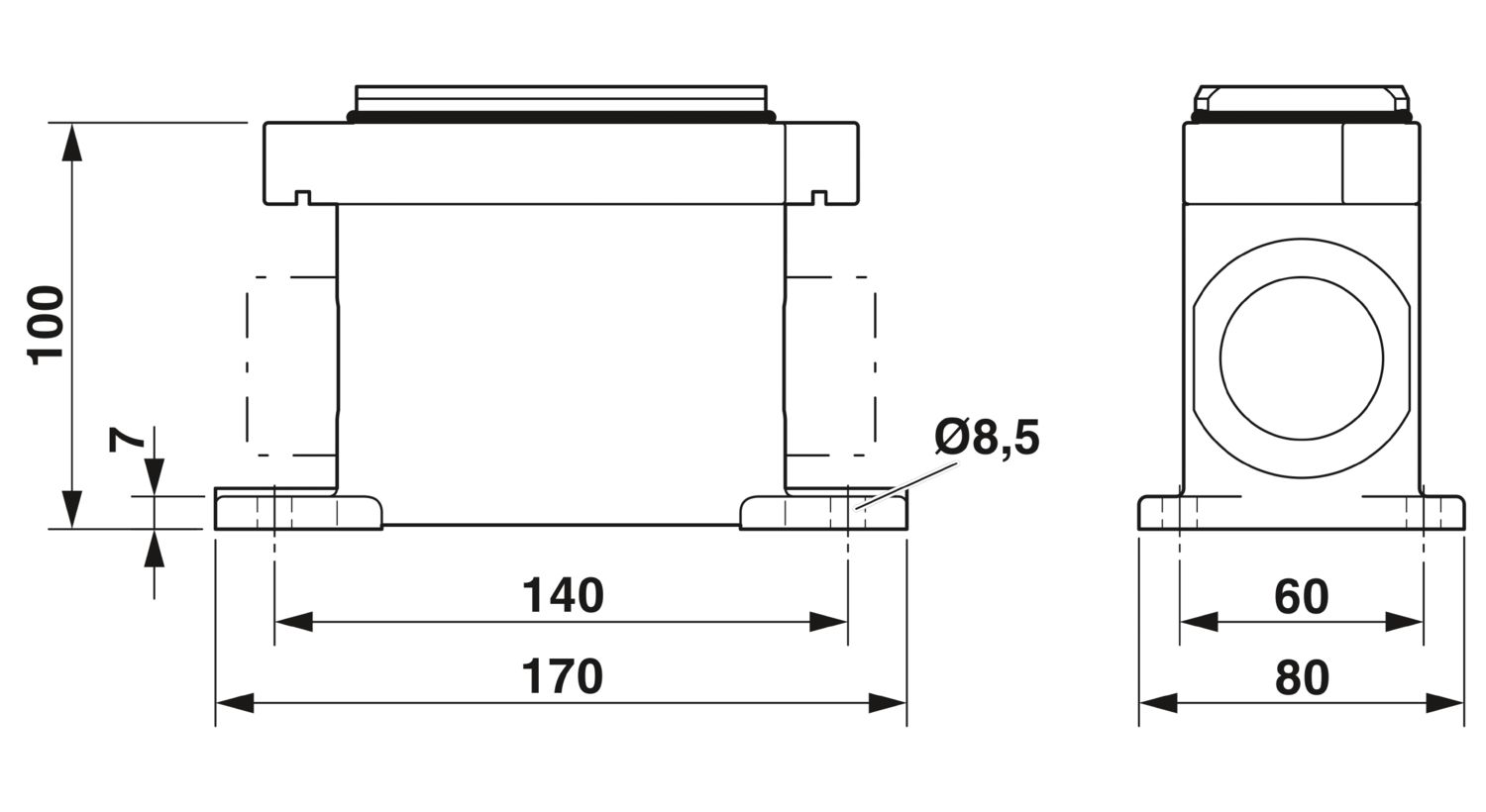

| Dimensional drawing |
|
| Width | 80 mm |
| Height | 100 mm |
| Length | 170 mm |
| Drill hole distance, horizontal | 140 mm |
| Drill hole distance, vertical | 60 mm |
| Hole diameter | 8.5 mm |
| Seal material | NBR |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, black |
| Ambient conditions | |
| Degree of protection | IP66 |
| IP68 (0.5 bar / 24 h) | |
| IP69 (ISO 20653:2013-02) | |
| Impact strength | IK09 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Mechanical data | |
| Type of the screw connection | 2x M32 |
| Locking type | Nut |
Avantajele dumneavoastră
Vibration and shock: IEC 61373/EN 50155, category 1, class 1B
