HC-HV 3-AMLD
-
Housing
1773572

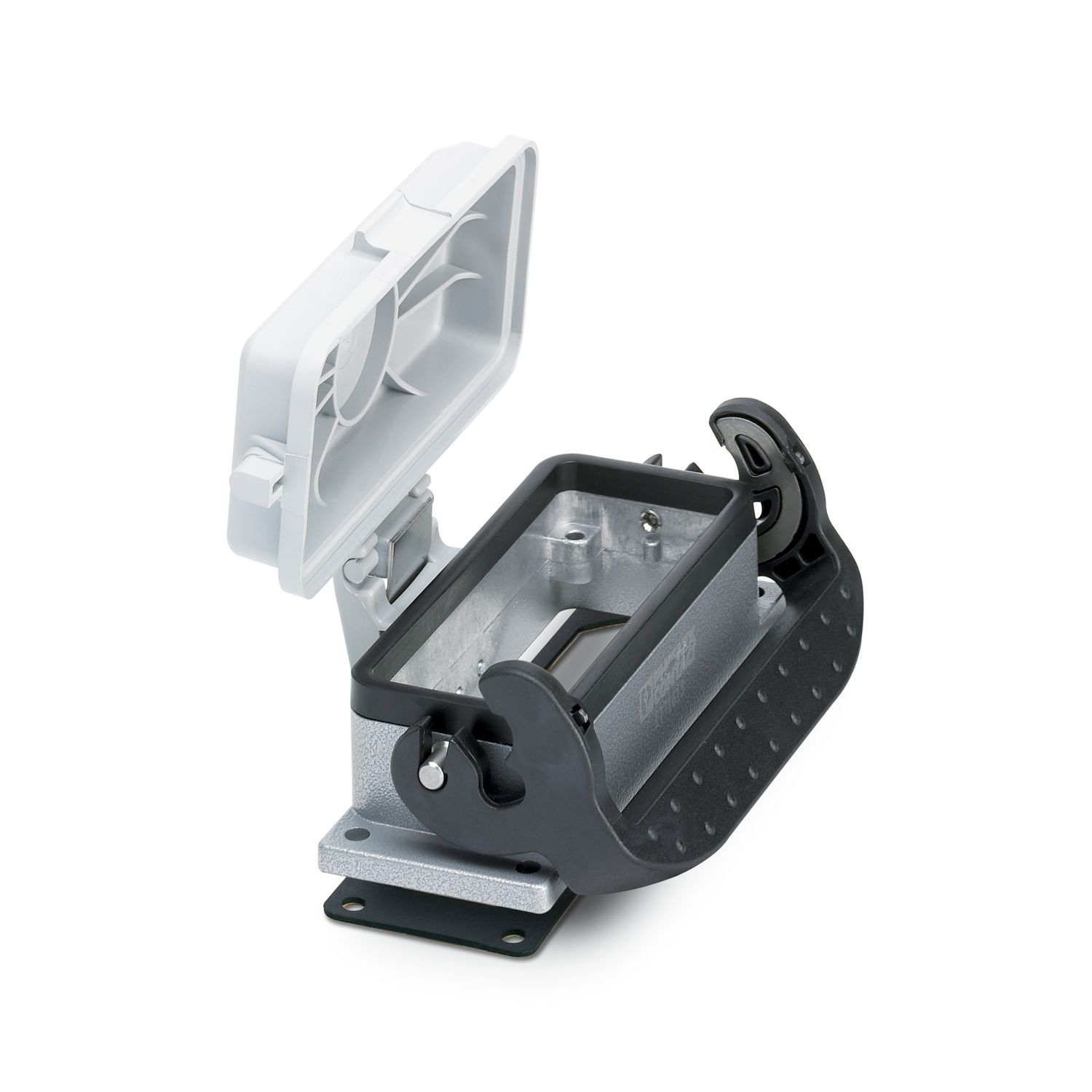

HEAVYCON panel mounting base HV3, with single locking latch, height 27 mm, with cover
Detalii despre produs
| General | For contact inserts HV-HV3 |
| Product type | Housing with locking latch |
| Housing type | Panel mounting base |
| Application | Standard |
| Type | HV3 |
| Protective cover | yes |
| Dimensional drawing |
|
| Width | 43 mm |
| Height | 27 mm |
| Length | 93 mm |
| Installation dimensions | |
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 64 mm |
| Seal material | NBR |
| CR | |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Material, protective cover | PA |
| Locking latch material | Stainless steel, handle: PA |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
