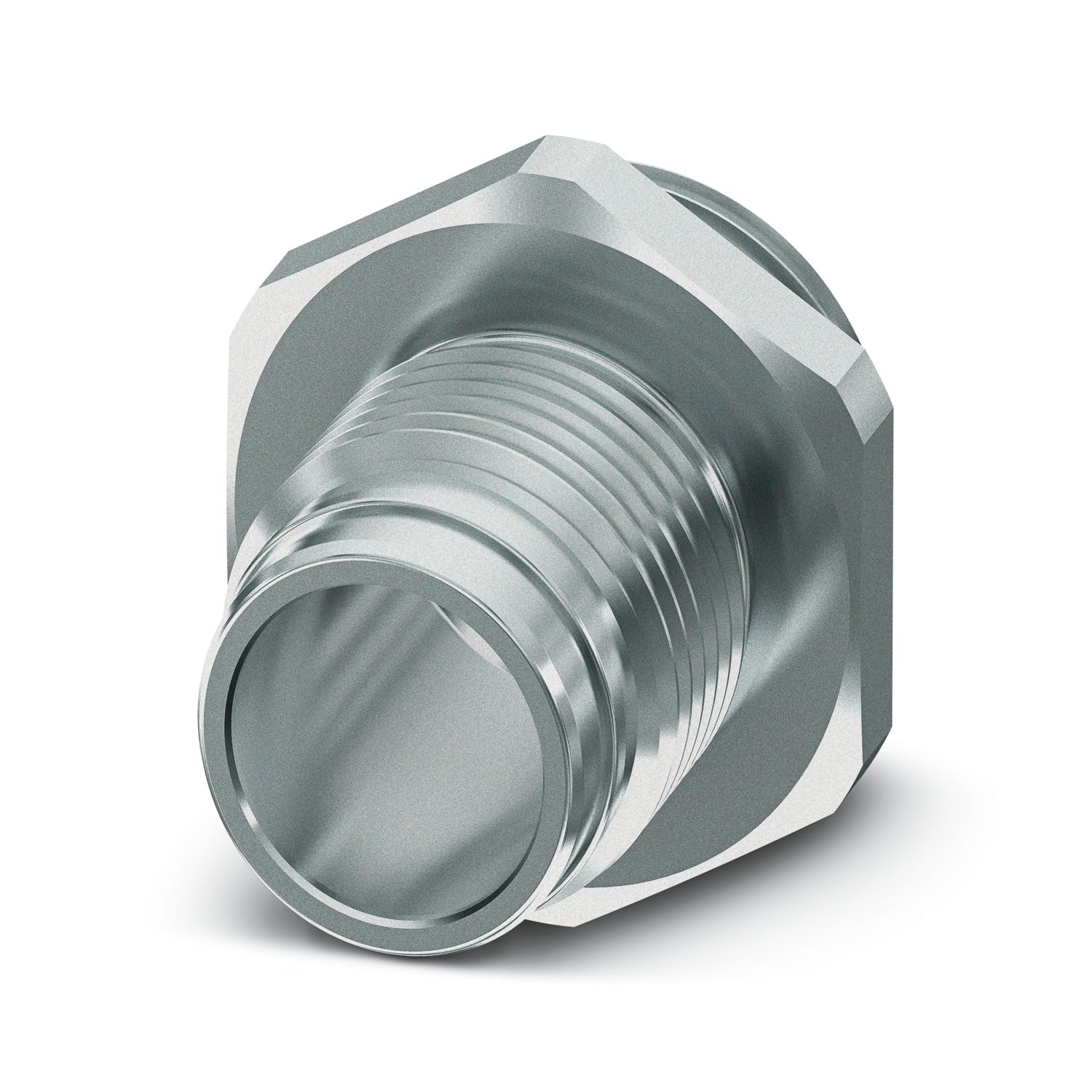

Sensor/actuator flush-type plug, 17-pos. with shroud, A-coded, with straight THR solder connection, contact insert only
Detalii despre produs
Notes on operation
The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Product type
Contact insert
Number of positions
17
No. of cable outlets
1
Shielded
yes
Coding
A
Thread type
M12
Insulation characteristics
Overvoltage category
III
Degree of pollution
3
Rated surge voltage
0.8 kV
Contact resistance
≤ 3 mΩ
Insulation resistance
≥ 100 MΩ
Nominal voltage UN
30 V
Nominal current IN
1.5 A
Connection method
THR solder connection
Status display
no
Status display present
no
Flammability rating according to UL 94
V0
Contact material
CuZn
Contact surface material
Au
Contact carrier material
PPA
Connection 1
Head design
Pin
Head cable outlet
straight
Head thread type
M12
Coding
A
Ambient temperature (operation)
-40 °C ... 85 °C (cable, fixed installation)
-25 °C ... 85 °C (Cable, flexible installation)
Mechanical data
Insertion/withdrawal cycles
> 100
Ambient conditions
Degree of protection
IP67
IP67
Ambient temperature (operation) (male connector/female connector)
-25 °C ... 85 °C (Plug / socket)
-40 °C ... 85 °C (without mechanical actuation)
Ambient temperature (operation) (Cable, flexible installation)
-25 °C ... 85 °C (Cable, flexible installation)
Ambient temperature (operation) (Cable, fixed installation)
-40 °C ... 85 °C (cable, fixed installation)
UL Type Rating
Type 4 (indoor use only)
Standard designation
M12 circular connector
Standards/specifications
according to IEC 61076-2-101
Mounting type
PCB mounting
Număr articol
1413555
Unitate de ambalare
1 Bucată
Cantitate minimă pentru comandă
1 Bucată
Indicație
Produs la comandă (nereturnabil)
Cod produs
ABQAGA
GTIN
4055626008257
Greutate pe bucată (inclusiv ambalajul)
5,7 g
Greutate pe bucată (fără ambalaj)
3,436 g
Cod tarifar vamal
85366990
Țara de origine
DE
ECLASS
ECLASS-13.0
27440110
ETIM
ETIM 9.0
EC003568
UNSPSC
UNSPSC 21.0
39121400
EU RoHS
Îndeplineşte cerinţele conform directivei RoHS
Da
reglementări excepţionale, dacă sunt cunoscute
6(c)
China RoHS
Environment friendly use period (EFUP)
EFUP-50
Un tabel de declarații China RoHS legat de articol poate fi găsit în zona de descărcare a articolului respectiv la „Declarația producătorului”. Nu se emite și nu este necesar niciun tabel de declarații China RoHS pentru toate articolele EFUP-E.
