M23, Device connector front mounting, series: CA, straight, shielded: yes, for standard and SPEEDCON interlock, No. of pos.: 6, Direction of rotation: Standard, contact connection type: Socket, Solder-in connection, Flat gasket, flange dimensions: 25 mm x 25 mm, coding: N, this item is expected to be lead-free from Q1 2027 in accordance with RoHS II without exception 6c (Pb < 0.1%), a lead-free alternative is possible on request in advance
| Product type | Circular connectors (device side) |

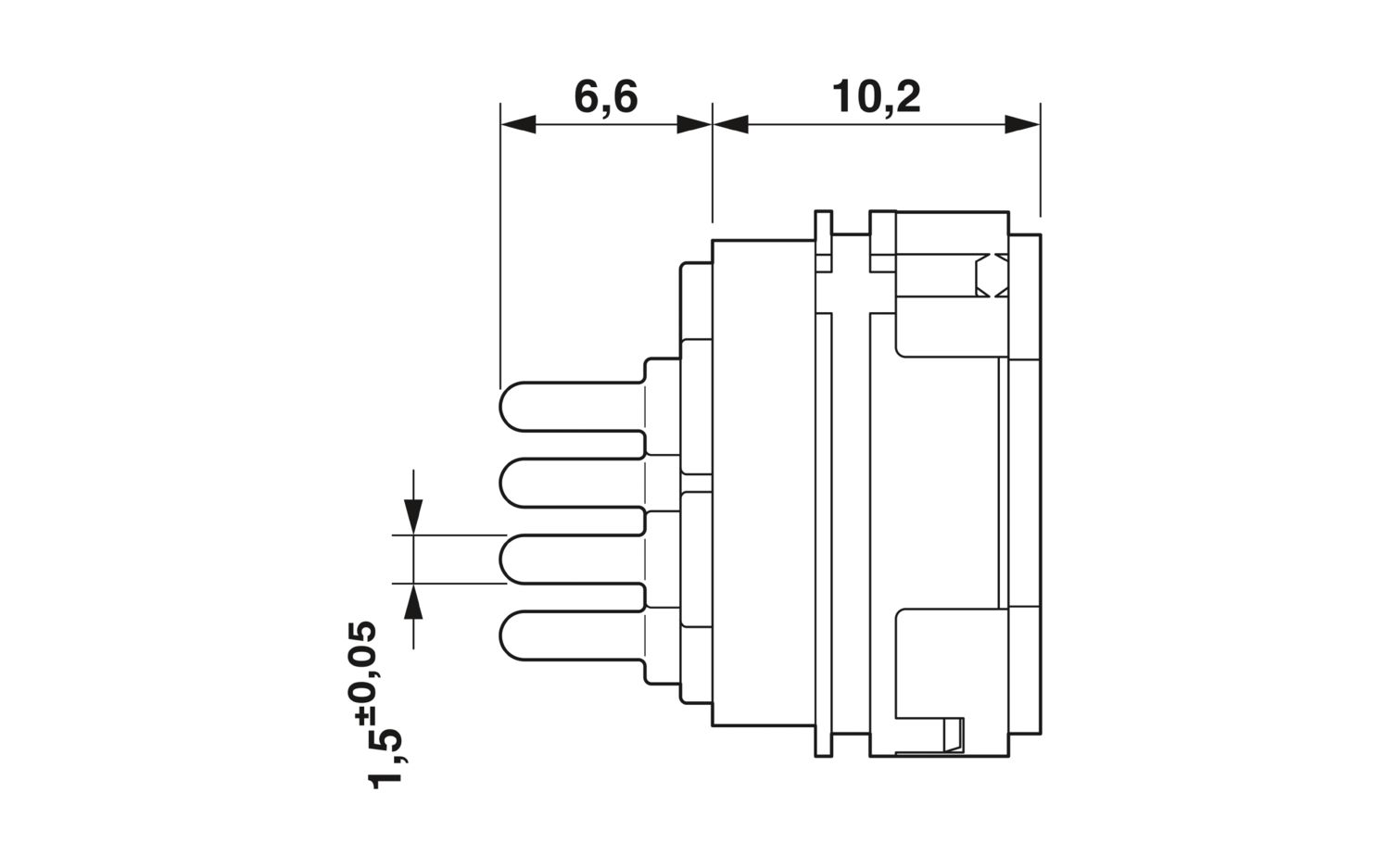

| Dimensional drawing |
|
| Length of the solder pin | 3.5 mm |
| 3.5 mm |
| Insulating body | |
| Coding | N |
| Contact material | CuZn |
| Contact surface material | Ni/Au |
| Connection method | Solder-in connection |
| Contact switching type | Socket |
| Application | Signal |
| Number of positions | 6 |
| Direction of rotation | Standard |
| Connection profile | 6 |
| Number Contact (Contact group 1) | 6 |
| Diameter Contact (Contact group 1) | 2 mm |
| Rated current Contact (Contact group 1) | 20 A (for max. connection cross section) |
| Rated voltage Contact (Contact group 1) | 48 V AC |
| 74 V DC | |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Housing | |
| Thread type | M23 |
| Type of locking | for standard and SPEEDCON interlock |
| Pg screw connection | none |
| Flange dimensions | 25 mm x 25 mm |
| Housing material | GD-Zn |
| Degree of protection (plugged in) | IP67 |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Tensiune nominală UN | Curent nominal IN | Secțiune transversală AWG | Secțiune transversală mm2 | |
|---|---|---|---|---|
| 48 V | 10 A | 14 |
| Tensiune nominală UN | Curent nominal IN | Secțiune transversală AWG | Secțiune transversală mm2 | |
|---|---|---|---|---|
| 48 V | 20 A | 14 |
