ST-OV4- 24DC/ 24DC/4-PRO
-
Solid-state relay
2905585
Plug-in power protective circuit solid-state relay, with signal logic, can be plugged into 4-pos. basic terminal blocks, input: 24 V DC, output: short-circuit-proof, 18 - 36 V DC/4 A
Tuotetiedot
Yhteensopivat tuotteet
Edut
Feedback in the event of an error
Safe detection and signaling of a wire break on the load side
Time-dependent overload shutdown for reliable protection against continuous overloads

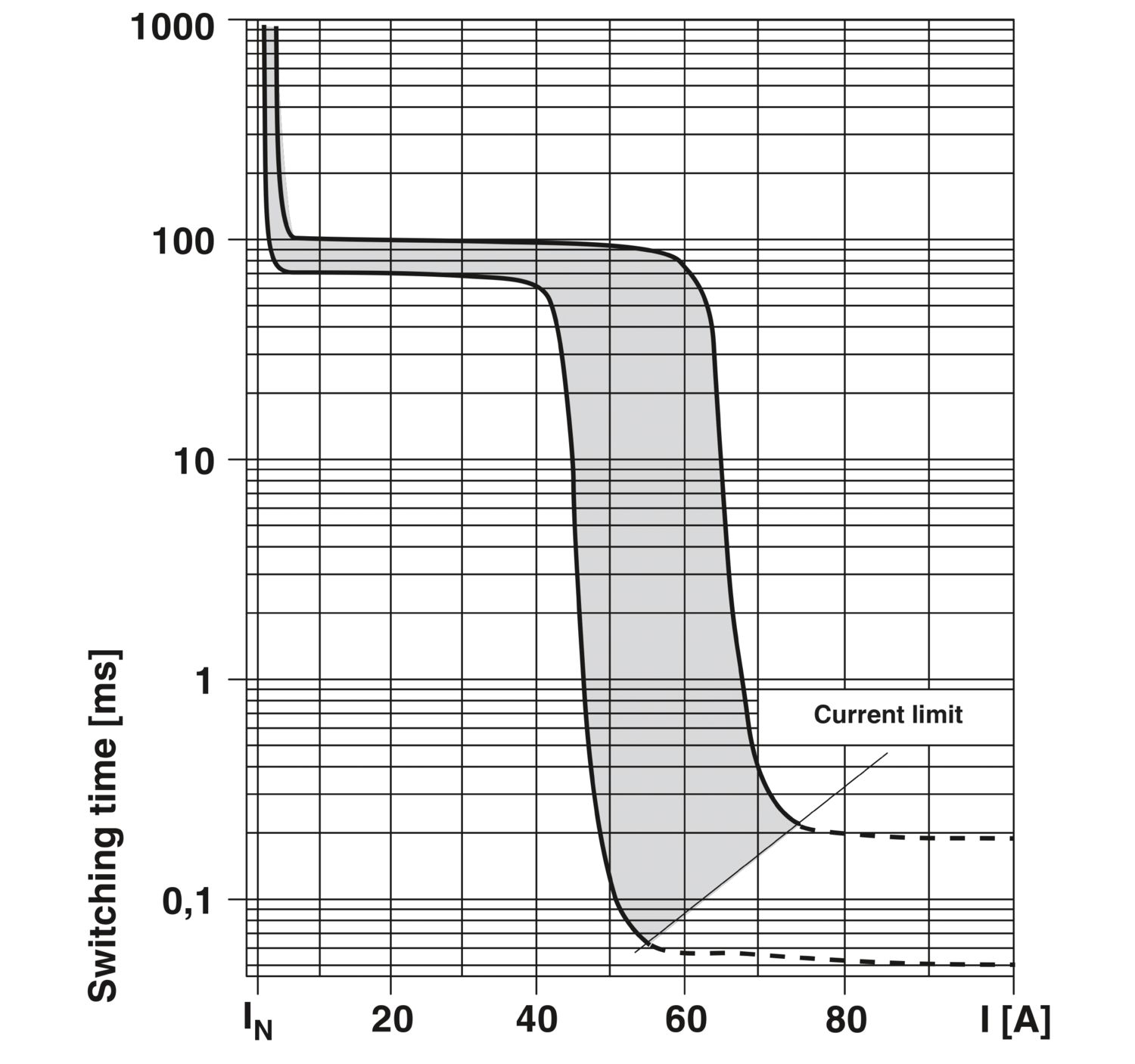

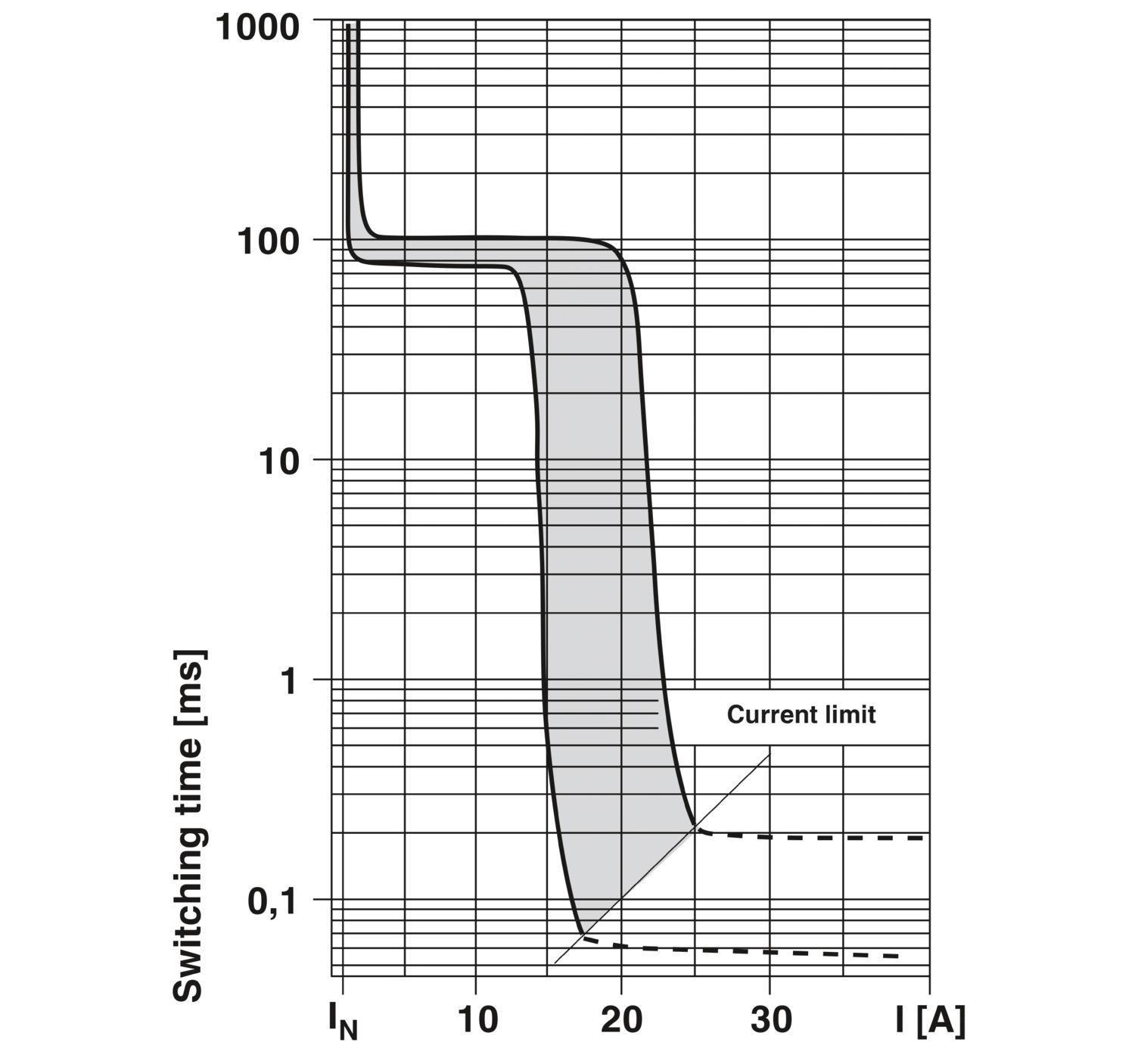

Fast short circuit shutdown with simultaneous current limitation
After an overload or short-circuit has been triggered, a defined reset of the control voltage must be carried out
Brief inrush peaks are ignored
