RV 8-TP(2,4X0,8)L
-
Marshalling panel
3191013
Marshalling panel, nom. voltage: 250 V, nominal current: 5 A, connection method: TERMI-POINT®, 1st, 2nd, 3rd, 4th, 5th, 6th, 7th and 8th level, cross section: 0.22 mm2 - 0.56 mm2, mounting: NS 35/7,5, NS 35/15, color: gray
Tuotetiedot
Edut
The external housing ridges act as a cable duct side panel, such that good cable routing is ensured and standard cable duct covers can be used

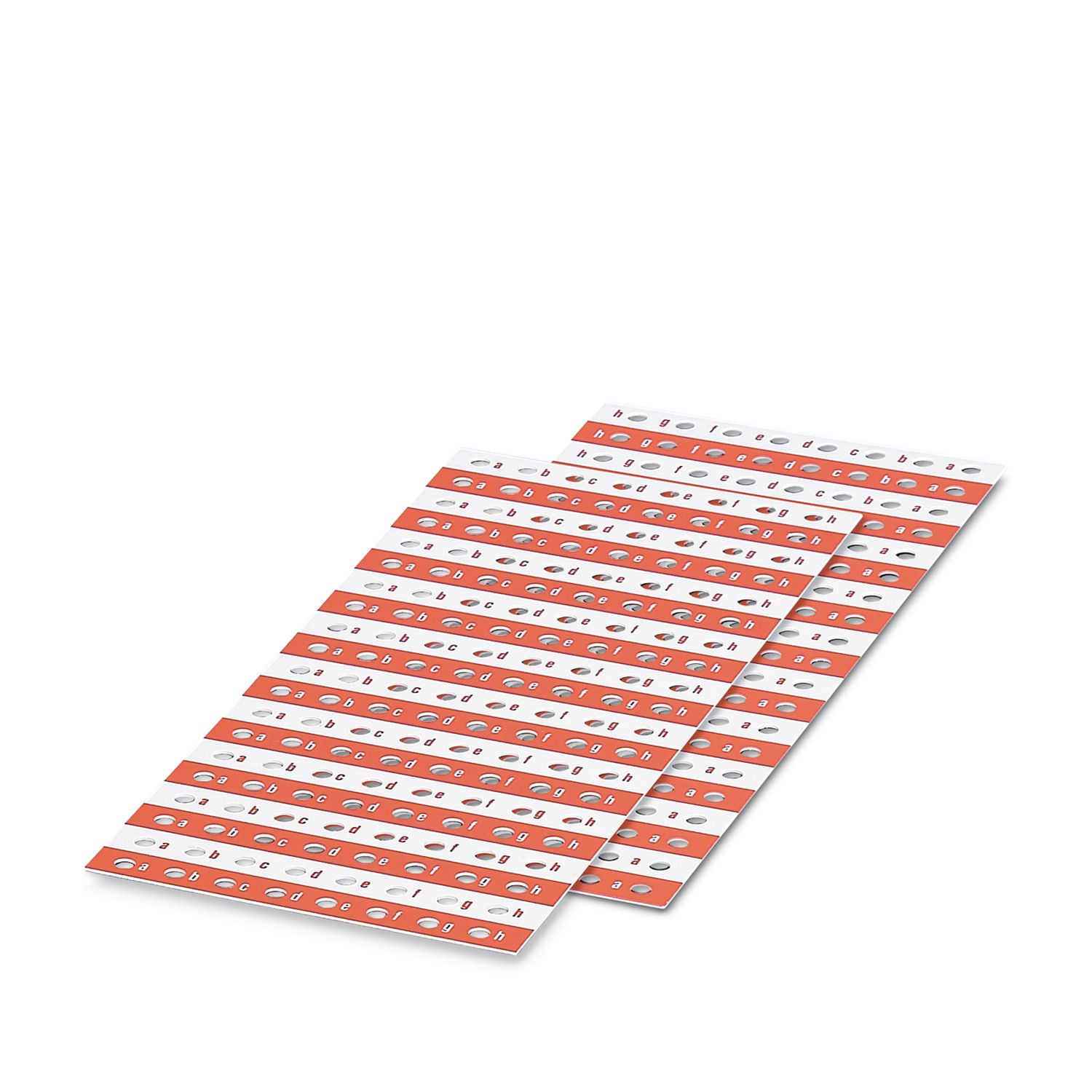

The red-white marking masks with alternating negative/positive 1 ‑ 8 or a ‑ h labeling clearly distinguish the rows of pins and make the process of connecting and finding specific connections much easier
There are two housing grooves between the pin panel and labeling rib into which the potential busbars can be inserted

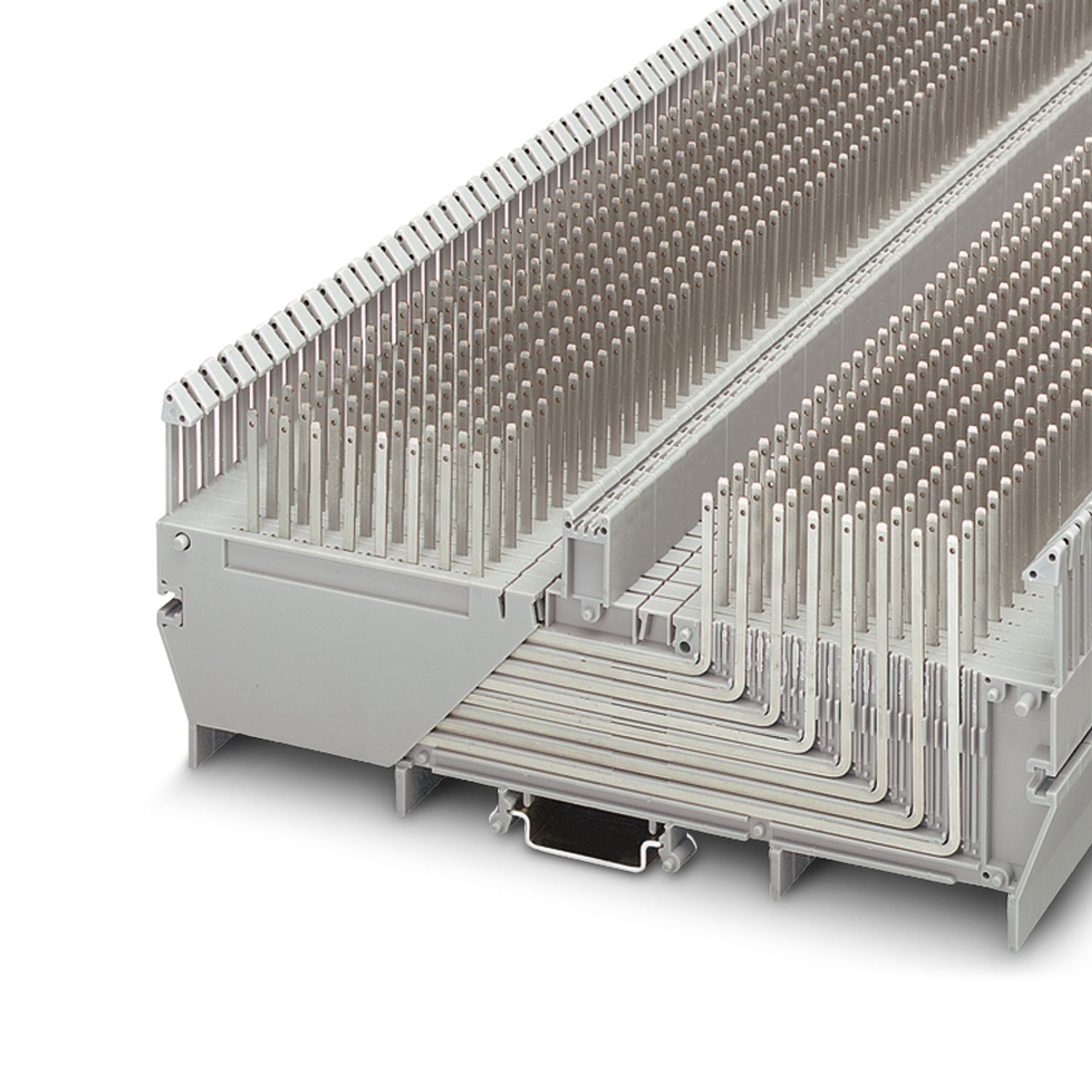

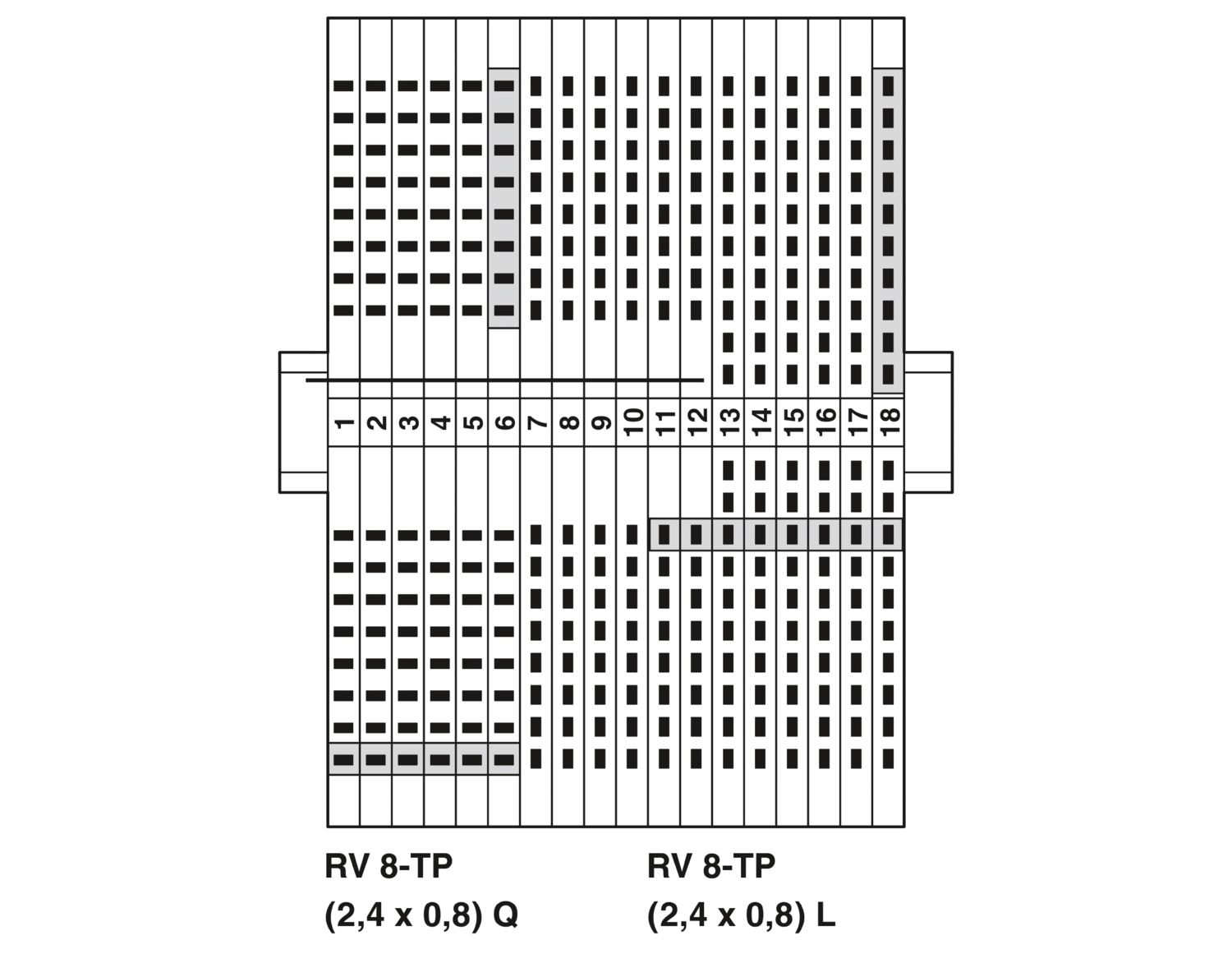

The RV 8 element has eight 2.4 x 0.8 mm TERMI-POINT®(TP) pins for the incoming and outgoing conductors on both sides of the raised labeling rib
