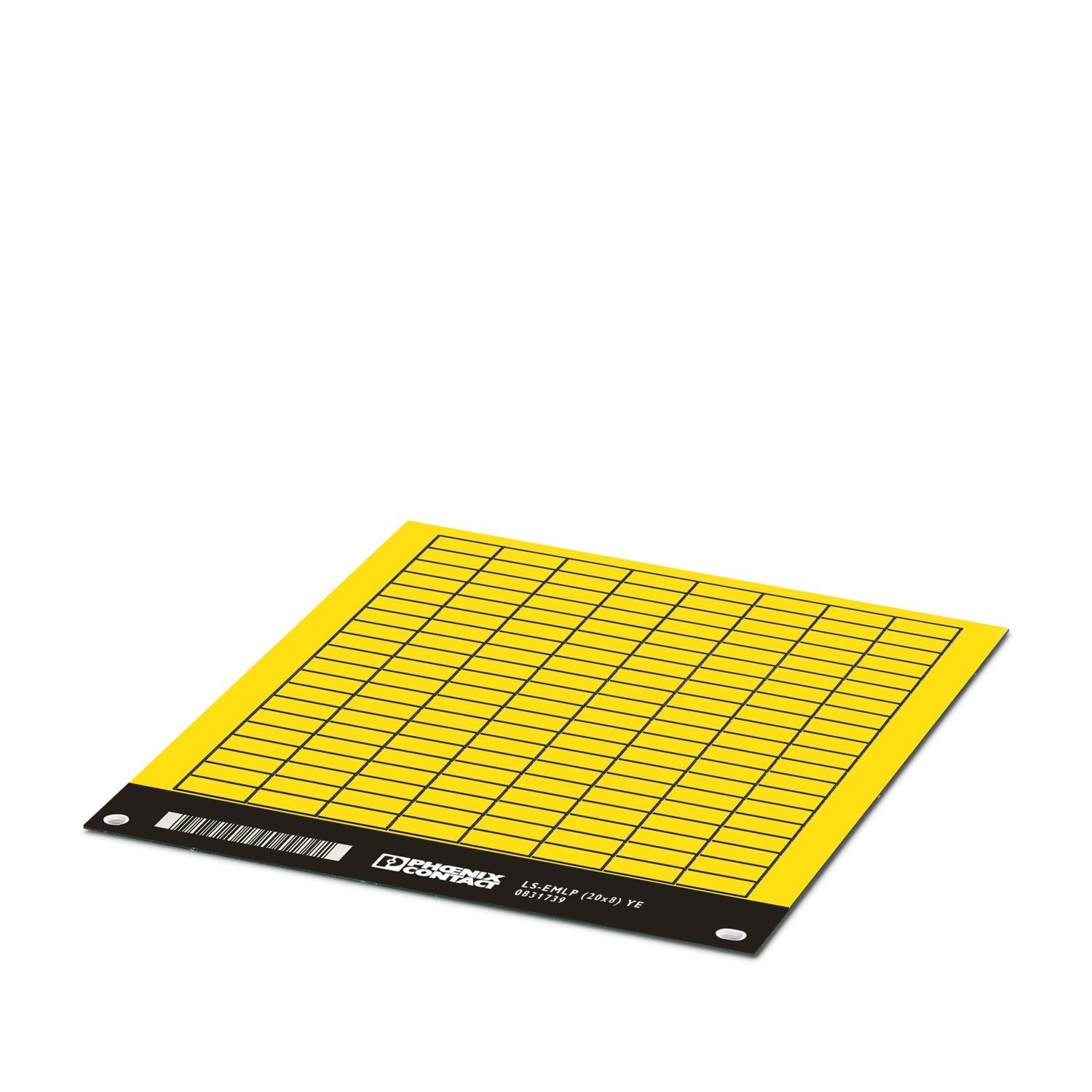

LS-EMLP (20X8) YE - Device marker - 0831739

Product properties

Product type	Device marking
Type	Laser sheet
Marking
Number of individual labels	160
Identification technology	Direct laser marking

Mounting

Mounting type	adhesive

Material specifications

Foil strength	800 µm
Adhesive strength	50 µm
Adhesive	Acrylic
Color	yellow (RAL 1018)
Material	ABS
Components	free from silicone and halogen

Environmental and real-life conditions

Test for substances that would hinder coating with paint or varnish
Result	Test passed
Test for substances that would hinder coating with paint or varnish
Result	Test passed
Scratch test for the determining scratch resistance
Specification	DIN EN ISO 1518-1:2019-10 (following)
Requirements	≥ 5 N
Result	Test passed
Tesafilm test
Specification	DIN EN ISO 2409:2013 (following)
Result	Test passed
UV resistance
Specification	DIN EN ISO 4892-2:2021-11 (following)
Result	Test passed
Test duration	96 h
Weathering-resistance
Specification	DIN EN ISO 4892-2:2021-11
Result	Test passed
Test duration	6500 h
Procedure	A
Temperature resistance
Specification	ANSI/UL 969-2018:03 (following)
Test duration	240 h
Wipe resistance of inscriptions
Specification	DIN EN 61010-1 (VDE 0411-1):2011-07
Specification		DIN EN 62208 (VDE 0660-511):2012-06 (in parts)
Isopropyl [CAS No. 67-63-0]	Test passed
n-Hexane [CAS No. 110-54-3]	Test passed
Water + Petroleum ether [CAS No. 64742-82-1]	Test passed
Sodium hydroxide 0.1 mol/l [CAS No. 1310-73-2]	Test passed
Ethanol (99 %) [CAS No. 64-17-5]	Test passed
Specification	ISO 175:2010 (following)
Test duration	168 h
Sodium hydroxide 0.1 mol/l [CAS No. 1310-73-2]	Test passed
Diesel [CAS No. 68476-34-6]	Test passed
IRM 901	Test passed
IRM 902	Test passed
Testing in a condensation changing climate in the presence of sulfur dioxide
Specification	EN ISO 22479:2022-06
Result	Test passed
Procedure	Method B
Cycles	2
Salt spray test
Specification	DIN EN 60068-2-11:2000-02
Result	Test passed
Test duration	96 h
Ambient conditions
Ambient temperature (operation)	-20 °C ... 60 °C
Recommended ambient temperature (storage/transport)	23 °C
Recommended humidity (storage/transport)	50 % (Storage in a dry and dark place in the original packaging is recommended)
Shelf life	1 Year

Dimensions

Width	20 mm
Length	8 mm
Material strength	0.80 mm
Text field
Text field width	20 mm
Text field height	8 mm

Standards and regulations

Tuotenumero	0831739
Pakkausyksikkö	10 Kappaletta
Vähimmäistilausmäärä	10 Kappaletta
Tuoteavain	BG241D
Tuotekoodi	BG241D
Luettelosivu	Sivu 291 (C-3-2019)
GTIN	4046356926782
Paino kappaletta kohti (sis. pakkauksen)	36,93 g
Paino kappaletta kohti (ilman pakkausta)	36,93 g
Tullitariffinumero	39191080
Alkuperämaa	DE

EU RoHS
Täyttää RoHS-direktiivin vaatimukset	Kyllä (Ei poikkeussäännöksiä)
EU REACH SVHC
Huomautus REACH-kandidaattiaineesta (CAS-nro)	Aineen pitoisuus ei ole yli 0,1 %.
