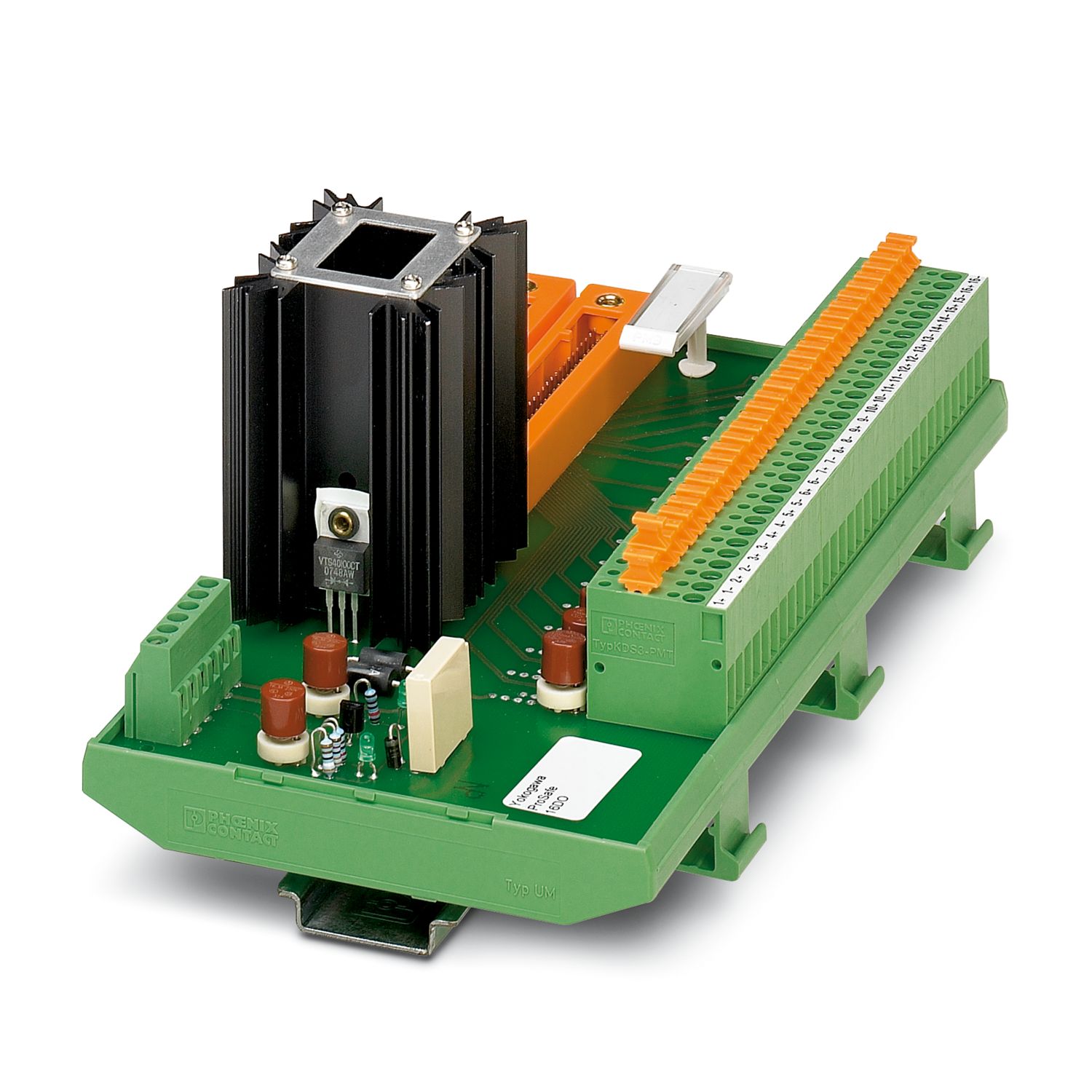

16-channel digital output module with screw connection and integrated knife disconnect function. Redundant voltage supply. Suitable for Yokogawa card SDV 541.
Tuotetiedot
Product type
Interface module
Number of positions
50
No. of channels
16
Insulation characteristics: Air clearances and creepage distances
Insulation
Functional insulation
Overvoltage category
II
Pollution degree
2
Nominal voltage UN
30 V DC
Max. current carrying capacity per branch
200 mA
Max. total current of voltage supply
6.3 A (F101, F102) plug-in fuse (IEC 127-2, TR5, 6.3 A)
Air clearances and creepage distances
Rated insulation voltage
50 V
Rated surge voltage
0.5 kV (1.2/50 μs)
Supported controller YOKOGAWA ProSafe-RS
Suitable I/O card
SDV541
Field level
Connection method
Screw connection
Number of positions
32
Conductor cross section rigid
0.2 mm² ... 4 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
24 ... 12
Controller level
Connection method
Yokogawa, KS compatible
Number of connections
2
Number of positions
50
Tightening torque
0.5 Nm
Supply
Connection method
Screw connection
Conductor cross section rigid
0.2 mm² ... 4 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
24 ... 12
Status display present
no
Item dimensions
Width
215.1 mm
Height
111.8 mm
Depth
93.4 mm
Color
green (RAL 6021)
Ambient conditions
Degree of protection
IP00
Degree of protection (Installation location)
≥ IP54 (Installation location)
Ambient temperature (operation)
-20 °C ... 70 °C
Altitude
< 2000 m
Air clearances and creepage distances
Standards/regulations
EN IEC 60664-1
Mounting type
DIN rail mounting
Mounting position
any
Notes on operation
Voltage monitoring on the module does not work in combination with upstream HESILED fuse terminal blocks with integrated LED display.
Notes on operation
For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
Tuotenumero
2319595
Pakkausyksikkö
1 Kappaletta
Vähimmäistilausmäärä
1 Kappaletta
Tuoteavain
DK2A8N
Tuotekoodi
DK2A8N
Luettelosivu
Sivu 523 (C-5-2017)
GTIN
4046356447164
Paino kappaletta kohti (sis. pakkauksen)
824,4 g
Paino kappaletta kohti (ilman pakkausta)
824,4 g
Tullitariffinumero
85369010
Alkuperämaa
DE
ECLASS
ECLASS-13.0
27141152
ETIM
ETIM 9.0
EC002780
UNSPSC
UNSPSC 21.0
39121400
EAC
Hyväksyntätunnus: RU*-DE.*08.B.01829*
EU RoHS
Täyttää RoHS-direktiivin vaatimukset
Kyllä
poikkeussäännökset siltä osin kuin ne ovat tiedossa
6(c), 7(a), 7(c)-I
